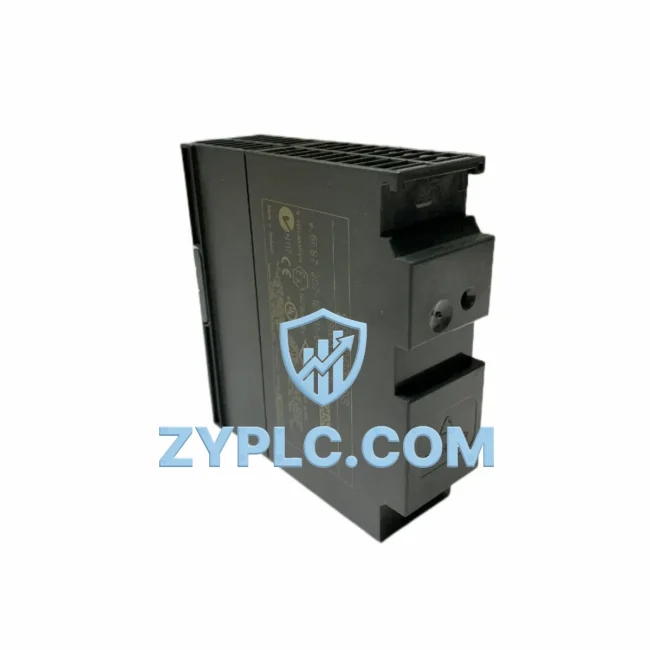

Siemens 6ES7307-1BA01-0AA0 System-Ready Power Supply for S7-300 Architecture

Siemens 6ES7307-1BA01-0AA0 System-Ready Power Supply for S7-300 Control Architecture

The Siemens 6ES7307-1BA01-0AA0 is a PS307 series 24 VDC / 2 A power supply module engineered specifically for integration within SIMATIC S7-300 distributed control architectures. Rather than functioning as a standalone component, this module occupies a foundational role in the power layer of a multi-tier automation system — delivering stable, regulated DC power to the CPU rack, I/O expansion modules, and communication interfaces that together form a coherent control platform. In demanding industrial environments where uptime is non-negotiable, the 6ES7307-1BA01-0AA0 provides the electrical backbone that enables every other layer of the system to operate with confidence.

Designed for DIN rail mounting within standard S7-300 control cabinets, this module accepts a wide-range AC input (120/230 VAC, 50/60 Hz) and converts it to a clean 24 VDC output rated at 2 A continuous. Its compact form factor and direct rack integration make it the preferred power solution for small-to-medium S7-300 configurations, including those built around the CPU 314, CPU 315-2 DP, and CPU 317-2 PN/DP processors. The module’s regulated output ensures that voltage fluctuations on the supply side do not propagate into the control logic, protecting signal integrity across the entire I/O layer.

At ZYPLC, every 6ES7307-1BA01-0AA0 unit is sourced from verified supply channels, functionally tested prior to dispatch, and covered by a 12-Month Warranty — giving procurement engineers and maintenance teams the assurance they need when specifying replacement or expansion components for live production systems.

Architecture Specification Table

Coordinated Control System Design

The 6ES7307-1BA01-0AA0 does not operate in isolation — its value is realized through its role in a coordinated, multi-layer control architecture. In a typical S7-300 system, this power supply module occupies the leftmost slot of the mounting rail, immediately adjacent to the CPU module. From this position, it supplies regulated 24 VDC to the CPU backplane bus, ensuring that the processor and all connected signal modules receive stable power throughout the control cycle.

In a fully configured S7-300 rack, the 6ES7307-1BA01-0AA0 works in direct coordination with the CPU 315-2 DP or CPU 317-2 PN/DP as the central processing unit, which manages the scan cycle, program execution, and communication scheduling. Digital input modules such as the SM 321 (6ES7321-1BH02-0AA0) and digital output modules such as the SM 322 (6ES7322-1BH01-0AA0) populate the remaining rack slots, receiving their logic-level power from the backplane bus energized by this PS307 unit. Analog signal modules, including the SM 331 and SM 332 series, similarly depend on the power supply’s output stability for accurate signal conversion.

For systems requiring distributed I/O over PROFIBUS DP, the IM 360 / IM 361 interface modules extend the rack bus across multiple expansion racks — each of which may require its own PS307 power supply, making the 6ES7307-1BA01-0AA0 a recurring component in multi-rack architectures. In PROFINET-based configurations, the power supply supports racks housing CP 343-1 communication processors that manage Ethernet connectivity between the S7-300 controller and SCADA or MES systems.

At the human-machine interface layer, operator panels such as the Siemens TP700 Comfort HMI or KTP700 Basic panels connect to the CPU via PROFINET or MPI, with their own 24 VDC supply requirements often sourced from the same PS307 output rail through appropriately rated terminal blocks. In cabinet designs where load distribution is critical, engineers frequently pair the 6ES7307-1BA01-0AA0 with a Siemens SITOP PSU100S or similar regulated power supply to handle auxiliary 24 VDC loads — such as solenoid valves, relay coils, and sensor excitation — separately from the PLC rack supply, preserving the integrity of the control power domain.

This coordinated approach to power architecture — separating control power from field power, sizing the PS307 correctly for rack load, and planning for expansion — is a fundamental principle of S7-300 system design that the 6ES7307-1BA01-0AA0 directly enables.

Application in Layered Automation Systems

The 6ES7307-1BA01-0AA0 is deployed across a wide range of industrial sectors where the SIMATIC S7-300 platform remains the control standard of choice. In discrete manufacturing environments — including automotive assembly lines, packaging machinery, and material handling conveyors — the PS307 power supply supports S7-300 controllers managing sequential logic, motion coordination, and safety interlocks. Its compact footprint makes it well-suited for machine-mounted control panels where space is constrained.

In process industries such as chemical processing, water and wastewater treatment, and oil and gas facilities, the S7-300 platform is frequently used for PID loop control, valve sequencing, and alarm management. The 6ES7307-1BA01-0AA0 provides the stable 24 VDC supply that these applications demand, particularly in environments where mains voltage quality may be inconsistent. Its wide-range AC input (120/230 VAC) makes it suitable for international installations without hardware modification.

In power generation and distribution substations, S7-300 systems equipped with CP 343-1 communication modules and redundant CPU configurations rely on correctly specified power supplies to maintain continuous operation. The 6ES7307-1BA01-0AA0 is appropriate for non-redundant rack configurations in these environments, while larger PS307 variants (such as the 5 A or 10 A models) are selected for higher-load racks.

In mining and metallurgical applications, where control systems must operate reliably in high-vibration, high-temperature, and electrically noisy environments, the PS307’s regulated output and robust design provide the electrical stability required for consistent PLC operation. Similarly, in food and beverage processing and pharmaceutical manufacturing, where batch control and recipe management are handled by S7-300 CPUs, the power supply’s reliability directly impacts production consistency and regulatory compliance.

Architecture Engineering FAQ

Q1: Is the 6ES7307-1BA01-0AA0 compatible with all S7-300 CPU modules and expansion racks?
The 6ES7307-1BA01-0AA0 is designed for use with the full SIMATIC S7-300 CPU family, including the CPU 312, 314, 315-2 DP, 317-2 PN/DP, and 319-3 PN/DP. It mounts in the leftmost slot of any standard S7-300 mounting rail and supplies 24 VDC to the backplane bus. For expansion racks connected via IM 360/361 interface modules, a separate PS307 unit is required per rack. The 2 A output rating is suitable for racks with moderate I/O loads; for racks with high-density analog or high-current output modules, the PS307 5 A (6ES7307-1EA01-0AA0) or 10 A (6ES7307-1KA02-0AA0) variants should be evaluated.

Q2: How does this power supply support long-term maintenance and spare parts planning in an S7-300 architecture?
The 6ES7307-1BA01-0AA0 has been a standard component in S7-300 architectures for many years, and ZYPLC maintains stock of tested units to support both planned maintenance and emergency replacement scenarios. Because the PS307 is a field-replaceable module with no configuration data stored internally, replacement requires only physical substitution — no programming or parameter transfer is needed. This simplifies maintenance procedures and reduces mean time to repair (MTTR) in production environments. All units supplied by ZYPLC are covered by a 12-Month Warranty and have been functionally verified prior to dispatch.

Q3: What installation and commissioning considerations apply when integrating this module into an existing S7-300 system?
When installing the 6ES7307-1BA01-0AA0 into an existing S7-300 rack, engineers should verify that the total current draw of all installed modules does not exceed the 2 A (48 W) output rating. Siemens STEP 7 or TIA Portal hardware configuration tools provide module current consumption data for accurate load calculation. The module should be installed with the system de-energized, and the AC input wiring should be protected by an appropriately rated circuit breaker (typically 6 A type B or C). After installation, the green LED indicator on the module confirms correct output voltage. No software configuration is required for the power supply itself, as it is a passive power layer component within the S7-300 Contextual Integration framework.
