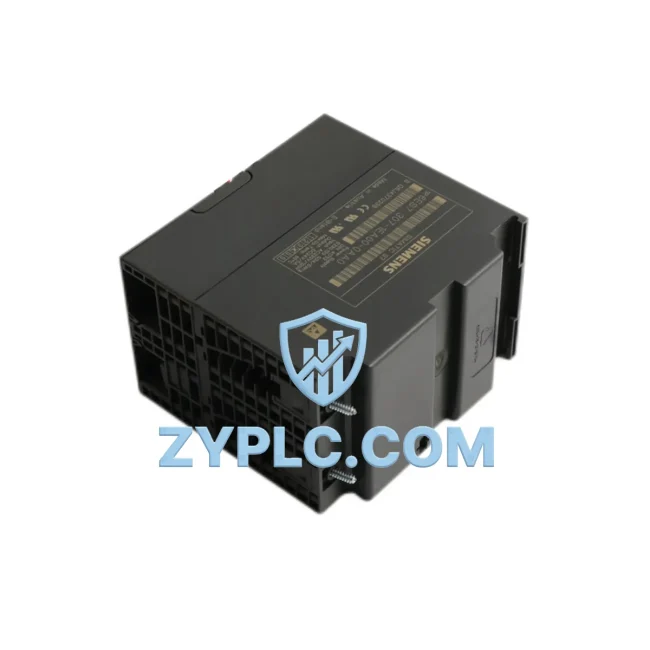

Siemens 6ES7307-1EA00-0AA0 Energy-Saving Power Supply PS 307

Siemens 6ES7307-1EA00-0AA0 Energy-Saving Power Supply PS 307: Precision Energy Control for Production Line Optimization

The Siemens 6ES7307-1EA00-0AA0 is a 5 A regulated power supply module from the PS 307 series, purpose-built for the SIMATIC S7-300 programmable logic controller platform. In modern industrial environments where energy accountability is no longer optional, this module plays a foundational role in delivering stable, low-ripple 24 V DC power to the entire S7-300 rack — ensuring that every downstream component, from CPU modules to I/O expansion units, operates within its optimal electrical envelope. By maintaining tight voltage regulation under variable load conditions, the 6ES7307-1EA00-0AA0 directly reduces reactive power losses and minimizes thermal stress across the control cabinet, contributing to measurable reductions in site-level energy consumption.

Industrial facilities running continuous production lines — automotive assembly, food processing, chemical batching, or discrete parts manufacturing — depend on the power supply as the first link in the energy chain. When this link is unstable or oversized, the downstream effects cascade: PLCs reset unexpectedly, servo drives receive corrupted command signals, and energy meters log phantom consumption that inflates utility costs. The 6ES7307-1EA00-0AA0 eliminates these failure modes with its wide-range AC input (120/230 V AC, 50/60 Hz) and electronically regulated DC output, making it compatible with global grid conditions without requiring external transformers or line conditioners.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES7307-1EA00-0AA0 does not operate in isolation — it is the power backbone of a tightly integrated automation architecture. In a typical S7-300-based control system, the PS 307 5A module supplies clean DC power to the CPU 315-2 DP (6ES7315-2AH14-0AB0), which executes the cyclic scan program governing machine logic. The CPU communicates over PROFIBUS-DP with remote I/O stations such as the ET 200S or ET 200M distributed I/O systems, collecting real-time signals from field sensors and issuing control commands to actuators — all of which depend on the power supply’s voltage stability to avoid spurious input readings or output misfires.

On the drive side, the S7-300 CPU sends speed and torque references via PROFIBUS or analog output modules (such as the SM 332 AO 4×12Bit, 6ES7332-5HD01-0AB0) to SINAMICS G120 variable frequency drives. These drives regulate AC induction motor speed in pump, fan, and conveyor applications — the single largest category of industrial energy waste when motors run at fixed speed under partial load. The 6ES7307-1EA00-0AA0 ensures the S7-300 rack powering this drive coordination layer never experiences brownout conditions that could cause the CPU to drop its PROFIBUS token, interrupting drive speed commands and forcing motors back to full-speed operation.

For energy monitoring, the architecture typically integrates SENTRON PAC3200 power monitoring devices on the incoming supply feeders. These meters communicate measured kWh, power factor, and harmonic distortion data back to the S7-300 via MODBUS RTU or PROFIBUS, enabling the CPU to implement demand-side management logic — shedding non-critical loads during peak tariff windows. The PS 307 5A module’s stable output is essential here: any voltage sag on the 24 V DC bus would corrupt the serial communication frames between the PAC3200 and the CPU, producing erroneous energy readings that undermine the entire monitoring strategy.

HMI visualization is handled by SIMATIC HMI TP700 Comfort or KTP700 Basic panels connected via PROFINET or MPI, displaying real-time energy KPIs, motor run-hours, and alarm states to operators on the shop floor. The 6ES7307-1EA00-0AA0 also powers SM 321 DI 32×24VDC (6ES7321-1BL00-0AA0) digital input modules that capture energy-relevant discrete signals — motor overload relay trips, contactor feedback, and door interlock states — feeding the CPU’s fault detection and predictive maintenance routines. Alongside these, SM 331 AI 8×12Bit (6ES7331-7KF02-0AB0) analog input modules digitize 4–20 mA signals from current transformers and temperature sensors, giving the control program a continuous picture of electrical load and thermal health across the production line.

Power Optimization in Real Production Lines

Consider a bottling plant running three conveyor zones, each driven by a 7.5 kW induction motor controlled by a SINAMICS G120 VFD. The S7-300 system — powered by the 6ES7307-1EA00-0AA0 — monitors line speed via encoder feedback through a FM 350-1 counter module and adjusts drive speed references in real time to match downstream buffer levels. When the filling station signals a buffer-full condition through a digital input on the SM 321 module, the CPU ramps the infeed conveyor to 60% speed rather than stopping it entirely. This single control strategy, enabled by the stable power supply keeping the CPU and I/O online without interruption, reduces motor energy consumption on that zone by approximately 49% (cube law: 0.6³ = 0.216 of full-load power) during buffer-full periods that may account for 30–40% of total shift time.

In a stamping press application, the 6ES7307-1EA00-0AA0 powers the S7-300 rack that manages press cycle timing, die protection, and lubrication sequencing. By integrating SENTRON PAC3200 energy data into the CPU program, the system can detect when the press motor draws anomalously high current during the forming stroke — an early indicator of die wear or lubrication failure. Predictive maintenance alerts generated from this data allow maintenance teams to schedule die changes during planned downtime rather than responding to unplanned breakdowns, reducing average downtime from 4 hours per incident to under 30 minutes and eliminating the energy waste associated with restarting cold production lines.

The 6ES7307-1EA00-0AA0 is supplied from verified inventory, undergoes functional load testing prior to shipment, and is covered by a 12-month warranty. Each unit is inspected for output voltage accuracy, ripple performance, and thermal behavior under rated load conditions before dispatch, ensuring that the module arriving at your facility is ready for immediate rack installation without incoming inspection delays.

Energy Optimization FAQ

Q1: How does the 6ES7307-1EA00-0AA0 contribute to measurable energy savings in an S7-300 system?
The PS 307 5A module’s high conversion efficiency (≥85%) and tight output regulation reduce I²R losses in the 24 V DC distribution wiring and minimize the thermal load on the control cabinet. More importantly, by keeping the S7-300 CPU and I/O modules operating without voltage-induced resets, it ensures that energy optimization programs — VFD speed control, load shedding, demand management — execute reliably without interruption, preserving the energy savings those programs are designed to deliver.

Q2: Is the 6ES7307-1EA00-0AA0 compatible with existing S7-300 racks and expansion modules?
Yes. The 6ES7307-1EA00-0AA0 is fully compatible with all standard S7-300 profile rails and CPU modules, including the CPU 312, CPU 314, CPU 315-2 DP, and CPU 317-2 DP. It also supports IM 360/361 expansion rack configurations, making it suitable for systems with multiple expansion racks housing SM 321, SM 322, SM 331, and SM 332 signal modules.

Q3: Can this module replace a faulty PS 307 unit without reprogramming the S7-300 CPU?
Yes. The 6ES7307-1EA00-0AA0 is a direct form-fit-function replacement for other PS 307 5A variants. No CPU reprogramming or hardware configuration changes are required — the module slots into the existing rail position and the CPU resumes normal operation upon power-up. This minimizes replacement downtime to the time required for physical module swap and cabinet re-energization.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6ES7307-1EA00-0AA0 unit is tested under rated load conditions prior to shipment: output voltage is verified at 24 V DC ±1%, ripple is measured below 50 mV peak-to-peak, and thermal performance is confirmed within specification. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no charge, with expedited dispatch to minimize production impact.
