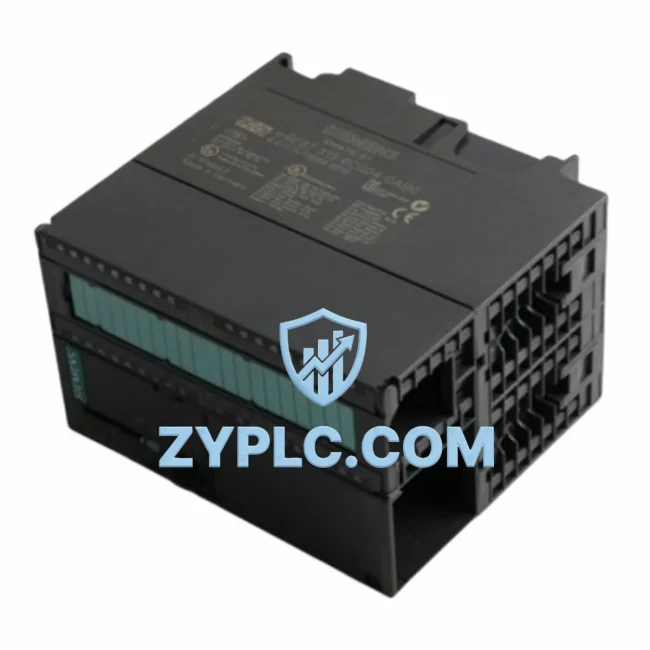

Siemens 6ES7313-5BE01-0AB0 System-Ready CPU for S7-300 Architecture

Siemens 6ES7313-5BE01-0AB0 System-Ready CPU for S7-300 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6ES7313-5BE01-0AB0 is a compact yet capable CPU module engineered specifically for the SIMATIC S7-300 programmable logic controller platform. Within a layered industrial automation architecture, this CPU occupies the central control layer, orchestrating signal acquisition from distributed I/O modules, executing ladder logic and function block programs, and coordinating real-time communication across the control network. Its role is not simply that of a standalone processor — it is the architectural anchor that determines system consistency, scalability, and long-term maintainability across every layer of the control hierarchy.

In modern industrial environments — whether in discrete manufacturing, continuous process control, power distribution, or water treatment — the CPU module defines the operational boundary of the entire control system. The 6ES7313-5BE01-0AB0 integrates seamlessly into S7-300 rack-based architectures, supporting a wide range of signal modules, communication processors, and function modules mounted on the same backplane. Its MPI (Multi-Point Interface) port enables direct programming via STEP 7 or TIA Portal, while also supporting peer-to-peer communication with other S7-300 or S7-400 CPUs in distributed control configurations.

From an engineering perspective, the 6ES7313-5BE01-0AB0 supports up to 32 digital and analog I/O modules when combined with expansion racks connected via the IM 360/IM 361 interface modules, making it suitable for medium-complexity automation tasks. Its onboard memory — including work memory for program execution and load memory for project storage — ensures stable operation without external memory cards for standard applications. The integrated real-time clock supports time-stamped event logging, which is critical for fault diagnostics and maintenance scheduling in regulated industries.

System architects deploying this CPU benefit from its deterministic scan cycle behavior, which ensures predictable response times for time-critical control loops. When paired with SM 321 digital input modules, SM 322 digital output modules, SM 331 analog input modules, and SM 332 analog output modules, the 6ES7313-5BE01-0AB0 forms a complete signal processing chain capable of handling both binary switching logic and continuous process variable control within a single rack assembly.

For applications requiring network-level integration, the CP 343-1 Ethernet communication processor can be added to the same S7-300 rack, enabling PROFINET or Industrial Ethernet connectivity to SCADA systems, historian servers, or MES platforms. This transforms the 6ES7313-5BE01-0AB0 from a standalone controller into a fully networked node within a plant-wide automation hierarchy. Similarly, the CP 342-5 PROFIBUS DP communication processor extends the system’s field-level connectivity, allowing the CPU to act as a DP master controlling remote I/O stations, variable frequency drives, and intelligent field devices across long cable runs.

Power integrity is foundational to reliable CPU operation. The PS 307 power supply module, available in 2A, 5A, and 10A variants, provides regulated 24 VDC to the S7-300 backplane, ensuring the 6ES7313-5BE01-0AB0 and all co-installed modules receive stable, noise-filtered power even in electrically harsh environments such as motor control centers or high-voltage switchgear panels. Proper power supply sizing — accounting for the aggregate current draw of all installed modules — is a prerequisite for system certification and long-term reliability.

At the human-machine interface layer, the 6ES7313-5BE01-0AB0 communicates natively with Siemens SIMATIC HMI panels such as the TP700 Comfort or KTP900 Basic via MPI or PROFIBUS, enabling operators to monitor process variables, acknowledge alarms, and adjust setpoints without interrupting the CPU’s scan cycle. This tight integration between the CPU and HMI layer reduces engineering effort during commissioning and simplifies operator training, as both systems share a common data model defined in the STEP 7 or TIA Portal project.

For applications demanding higher availability, the 6ES7313-5BE01-0AB0 can be deployed in warm-standby configurations using the IM 360/IM 361 expansion interface, allowing a secondary rack to take over I/O scanning if the primary rack experiences a fault. While full hot-standby redundancy requires higher-tier CPUs such as the S7-400H series, the S7-300 architecture with the 6ES7313-5BE01-0AB0 provides a cost-effective redundancy strategy for non-critical-to-safety applications where brief switchover times are acceptable.

All units supplied by ZYPLC are sourced from verified distribution channels, individually tested for firmware integrity and communication functionality, and covered by a 12-Month Warranty. Our engineering support team provides pre-sales architecture consultation, helping customers confirm rack compatibility, I/O module selection, and communication processor configuration before purchase. Post-sales support includes firmware version guidance, STEP 7 project import assistance, and replacement logistics for warranty claims.

Architecture Specification Table

Coordinated Control System Design

The 6ES7313-5BE01-0AB0 achieves its full architectural potential when deployed as part of a coordinated S7-300 system. In a typical control cabinet configuration, the CPU shares the S7-300 profile rail with the PS 307 5A power supply, which provides the 24 VDC backplane voltage required by all installed modules. Adjacent to the CPU, SM 321 DI 16×DC 24V digital input modules collect field signals from proximity sensors, limit switches, and pushbuttons, while SM 322 DO 16×DC 24V/0.5A digital output modules drive solenoid valves, indicator lamps, and relay coils.

For process control applications involving temperature, pressure, or flow measurement, SM 331 AI 8×12Bit analog input modules convert 4–20 mA or 0–10 V signals from field transmitters into digital values processed by the CPU’s PID function blocks. Corresponding SM 332 AO 4×12Bit analog output modules generate control signals for variable frequency drives, control valves, and other modulating actuators.

Network connectivity is extended through the CP 343-1 Lean Ethernet communication processor, which enables the S7-300 system to participate in plant-wide PROFINET networks or communicate with OPC-UA servers for data exchange with MES and ERP systems. For legacy field device integration, the CP 342-5 PROFIBUS DP master module connects the 6ES7313-5BE01-0AB0 to distributed I/O stations such as the ET 200S or ET 200M, extending the system’s physical reach without additional CPU resources.

At the human-machine interface layer, the Siemens KTP700 Basic HMI panel connects via MPI directly to the CPU, providing operators with real-time process visualization, alarm management, and recipe control. For multi-rack configurations, the IM 360 send interface module and IM 361 receive interface module extend the S7-300 backplane across up to three expansion racks, allowing the 6ES7313-5BE01-0AB0 to manage a significantly larger I/O footprint while maintaining a single programming instance.

Terminal modules such as the Siemens SITOP PSU100S stabilized power supply can be integrated into the same control panel to provide redundant 24 VDC distribution, ensuring that field sensor loops and communication circuits remain energized even during brief mains interruptions. This coordinated approach to power, control, I/O, communication, and HMI design is what distinguishes a robust industrial automation system from a collection of individual components.

Application in Layered Automation Systems

The 6ES7313-5BE01-0AB0 is deployed across a broad spectrum of industrial sectors where reliable, deterministic control is non-negotiable. In discrete manufacturing environments — such as automotive assembly lines, packaging machinery, and material handling conveyors — the CPU manages sequential logic, interlocking conditions, and production counting with millisecond-level scan cycle consistency. Its compact form factor makes it suitable for machine-mounted control panels where space is constrained.

In power distribution and electrical substation applications, the S7-300 platform with the 6ES7313-5BE01-0AB0 is used for bay-level control, monitoring circuit breaker status, transformer temperatures, and busbar voltages. The CPU’s MPI communication capability allows it to report to a substation SCADA system while simultaneously executing local protection logic independent of network availability.

For water and wastewater treatment facilities, the 6ES7313-5BE01-0AB0 controls pump sequencing, chemical dosing, and filtration cycles. Its analog I/O expansion capability — via SM 331 and SM 332 modules — supports the continuous monitoring of pH, turbidity, dissolved oxygen, and flow rate sensors distributed across the treatment process. The CPU’s real-time clock enables time-based control strategies such as off-peak pump scheduling and timed backwash cycles.

In petrochemical and oil & gas process plants, the S7-300 system is deployed in utility control applications including compressed air systems, cooling water circuits, and flare gas management. The 6ES7313-5BE01-0AB0’s stable operating temperature range and IP20 protection rating make it suitable for installation in climate-controlled instrument rooms adjacent to hazardous areas, with field signals routed through appropriate intrinsic safety barriers.

Mining and metallurgical applications leverage the S7-300 platform for conveyor belt control, crusher sequencing, and ore processing automation. The CPU’s ability to handle both digital interlocking logic and analog PID control within a single program makes it a versatile choice for processes that combine discrete and continuous control requirements. Long-term maintenance is simplified by the availability of replacement modules from ZYPLC’s verified inventory, backed by a 12-Month Warranty that covers both the CPU and associated signal modules.

Architecture Engineering FAQ

Q1: Is the 6ES7313-5BE01-0AB0 compatible with existing S7-300 racks and backplanes, and can it replace older CPU 313 variants without hardware changes?

The 6ES7313-5BE01-0AB0 is fully compatible with standard S7-300 profile rails and backplane connectors. It can replace earlier CPU 313 variants (such as the 6ES7313-1AD03-0AB0) in the same rack slot without mechanical modification, provided the STEP 7 project is updated to reflect the new CPU’s memory and I/O addressing. Signal modules, power supplies, and communication processors installed in the same rack remain fully operational after CPU replacement. ZYPLC recommends a firmware compatibility check and a cold restart of the CPU after replacement to ensure all module parameters are correctly initialized.

Q2: What communication options are available for integrating the 6ES7313-5BE01-0AB0 into a PROFINET or Industrial Ethernet architecture?

The 6ES7313-5BE01-0AB0’s onboard MPI port supports direct programming and HMI communication but does not natively support PROFINET or Industrial Ethernet. To integrate this CPU into an Ethernet-based architecture, a CP 343-1 or CP 343-1 Lean communication processor must be installed in an adjacent slot on the same S7-300 rack. This CP module provides a dedicated Ethernet port and handles all TCP/IP, ISO-on-TCP, and PROFINET IO communication independently of the CPU’s scan cycle, ensuring that network traffic does not impact control loop timing. PROFIBUS DP integration is similarly achieved via the CP 342-5 module.

Q3: What does the 12-Month Warranty from ZYPLC cover, and what is the process for warranty claims on the 6ES7313-5BE01-0AB0?

ZYPLC’s 12-Month Warranty covers manufacturing defects, firmware corruption, and communication interface failures identified during normal operation under specified environmental conditions. Each unit undergoes functional testing — including MPI communication verification, memory integrity check, and power consumption measurement — prior to shipment. In the event of a warranty claim, customers contact ZYPLC at [email protected] or +86 19859288691 with the unit’s serial number and a description of the fault. ZYPLC will arrange return logistics and provide a replacement unit or full refund within the agreed service timeline. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized firmware modification.
