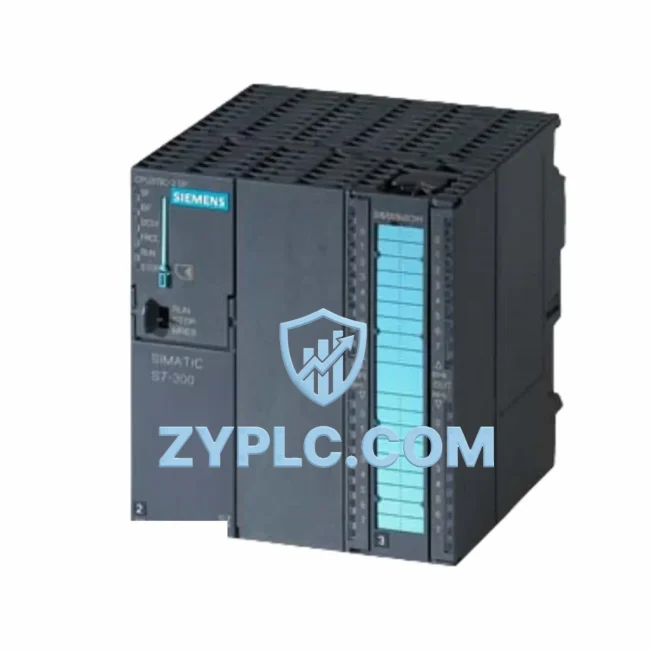

Siemens 6ES7313-6CF03-0AB0 Energy-Saving PLC CPU for S7-300

Siemens 6ES7313-6CF03-0AB0 Energy-Saving PLC CPU for Optimized S7-300 Automation

The Siemens 6ES7313-6CF03-0AB0 is a high-performance CPU module from the SIMATIC S7-300 series, engineered to deliver precise, energy-aware control across demanding industrial environments. As factories face increasing pressure to reduce operational energy costs while maintaining throughput, the 6ES7313-6CF03-0AB0 provides the processing backbone that enables smarter motor control, leaner cycle times, and measurable reductions in idle-state power consumption. Whether deployed in automotive assembly, food processing, chemical handling, or discrete manufacturing, this CPU module brings deterministic scan-cycle execution and integrated diagnostic capabilities that directly support energy optimization strategies.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a well-designed energy-efficient production cell, the 6ES7313-6CF03-0AB0 acts as the central decision-making unit, coordinating signals from field devices and translating them into precise actuator commands — all while minimizing unnecessary processing overhead. Its integrated PROFIBUS DP master interface allows it to communicate directly with distributed I/O stations such as the ET 200S or ET 200M without requiring additional communication processors, reducing both hardware cost and bus-level energy overhead.

On the drive side, the CPU pairs naturally with Siemens SINAMICS G120 variable frequency drives — for example, the 6SL3210-1KE21-3UF1 — to implement closed-loop motor speed control. Rather than running motors at fixed full speed, the 6ES7313-6CF03-0AB0 issues dynamic setpoint commands over PROFIBUS DP, allowing the G120 to modulate motor output in real time based on actual load demand. This alone can reduce motor energy consumption by 20–40% in pump and fan applications.

For power quality monitoring, the CPU integrates seamlessly with Siemens SENTRON PAC3200 power meters via PROFIBUS or Modbus RTU, enabling the controller to read real-time kWh, power factor, and harmonic distortion data. When combined with analog input modules such as the 6ES7331-7KF02-0AB0 (SM 331, 8 AI), the system can monitor current transformers and voltage transducers across multiple feeder circuits, giving operators a granular view of where energy is being consumed on the production floor.

Digital output modules like the 6ES7322-1BL00-0AA0 (SM 322, 32 DO) extend the CPU’s control reach to contactors, solenoid valves, and relay-driven loads, while digital input modules such as the 6ES7321-1BL00-0AA0 (SM 321, 32 DI) collect status signals from motor protection relays, door interlocks, and energy meters. Together, these signal modules allow the 6ES7313-6CF03-0AB0 to implement demand-response logic — automatically shedding non-critical loads during peak tariff windows.

For operator visibility, the CPU communicates with SIMATIC HMI panels such as the KTP700 Basic (6AV2123-2GB03-0AX0) over MPI or PROFIBUS, presenting real-time energy dashboards, alarm histories, and production KPIs. Operators can monitor OEE, energy per unit produced, and motor runtime hours from a single touchscreen interface, enabling data-driven decisions that reduce waste without slowing throughput.

On the power supply side, the SITOP PSU100S 6EP1333-3BA10 provides a stable 24 V DC rail to the S7-300 rack, with its high efficiency design (≥ 91%) ensuring minimal heat dissipation in the control cabinet — a factor that directly reduces cooling load and cabinet ambient temperature. Stable supply voltage also protects the CPU’s SRAM and flash memory from data corruption during load transients.

For plants requiring Ethernet-level connectivity, the CP 343-1 communication processor (6GK7343-1EX30-0XE0) can be added to the same S7-300 rack, enabling the 6ES7313-6CF03-0AB0 to exchange data with SCADA systems, MES platforms, and energy management software via PROFINET or Industrial Ethernet. This connectivity is essential for plants implementing ISO 50001 energy management systems, where real-time data acquisition from the controller level is mandatory.

Power Optimization in Real Production Lines

In a typical discrete manufacturing line, unplanned downtime and inefficient motor scheduling are the two largest contributors to wasted energy. The 6ES7313-6CF03-0AB0 addresses both through its high-speed interrupt processing and integrated high-speed counters, which allow it to detect machine faults within microseconds and initiate controlled shutdowns before mechanical damage propagates — avoiding the energy-intensive restart cycles that follow uncontrolled trips.

The CPU’s integrated 16 digital inputs and 16 digital outputs, combined with its 3 analog inputs and 1 analog output, reduce the need for additional signal modules in small-to-medium applications, lowering rack power draw and simplifying cabinet wiring. Its three integrated 30 kHz high-speed counters support encoder feedback from servo axes and conveyor drives, enabling position-based energy cutoff — motors are de-energized precisely when a workpiece reaches its target position rather than running continuously on a timed basis.

In process industries, the CPU’s analog I/O channels support 4–20 mA and 0–10 V signals from flow transmitters, pressure sensors, and temperature probes. By closing the control loop at the PLC level rather than relying on standalone PID controllers, the 6ES7313-6CF03-0AB0 eliminates the energy waste associated with over-pressurization, over-heating, and over-pumping — common inefficiencies in plants that rely on manual setpoint adjustment.

Predictive maintenance is another area where this CPU delivers measurable energy savings. By logging motor runtime hours, start/stop counts, and fault frequencies in its retentive data memory, the controller provides maintenance teams with the data needed to schedule servicing before bearing wear or winding degradation causes efficiency losses. A motor running with degraded bearings can consume 5–15% more energy than a well-maintained unit — catching this early through PLC-level diagnostics directly reduces the energy cost per unit produced.

All units supplied by ZYPLC undergo pre-shipment functional testing, including power-on verification, I/O channel checks, and communication interface validation. Each 6ES7313-6CF03-0AB0 is backed by a 12-month warranty, ensuring that your production line investment is protected from day one. Stock is maintained for fast dispatch, minimizing lead times for urgent replacement or new installation projects.

Energy Optimization FAQ

Q1: How much energy can the 6ES7313-6CF03-0AB0 help save in a motor-driven application?
When paired with a SINAMICS G120 variable frequency drive over PROFIBUS DP, the CPU can implement load-adaptive speed control that typically reduces motor energy consumption by 20–40% in variable-torque applications such as pumps, fans, and compressors. Actual savings depend on the load profile and baseline operating conditions.

Q2: Is the 6ES7313-6CF03-0AB0 compatible with TIA Portal and STEP 7 Classic?
Yes. The CPU is fully programmable with both SIMATIC STEP 7 V5.x (Classic) and TIA Portal V13 SP1 or later (with HSP hardware support package). This makes it suitable for both legacy system upgrades and new installations within a unified engineering environment.

Q3: What is the recommended replacement or upgrade path for aging S7-300 CPUs?
For direct replacement, the 6ES7313-6CF03-0AB0 is a drop-in substitute for earlier 313C-2 DP variants. For plants considering migration to S7-1500, ZYPLC can advise on compatible migration tools and hardware. The existing S7-300 I/O modules (SM 321, SM 322, SM 331 series) remain reusable in the new rack, protecting your existing field wiring investment.

Q4: What does the 12-month warranty cover, and how is the testing process conducted?
Every unit is tested prior to shipment: power supply rail verification, CPU boot and self-diagnostic check, MPI/PROFIBUS DP communication port validation, and integrated I/O channel continuity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. ZYPLC provides direct technical support for warranty claims, with replacement units dispatched from in-stock inventory to minimize your downtime.
