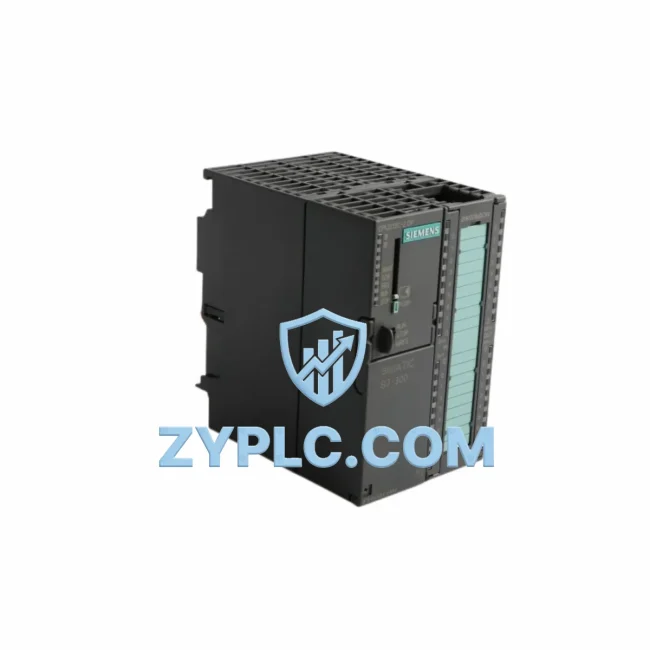

Siemens 6ES7313-6CG04-0AB0 Energy-Saving PLC CPU S7-300

Siemens 6ES7313-6CG04-0AB0 Energy-Saving PLC CPU S7-300: Precision Control for Optimized Production Lines

The Siemens 6ES7313-6CG04-0AB0 is a high-performance CPU module from the SIMATIC S7-300 series, engineered to deliver reliable, energy-aware automation control across demanding industrial environments. As a CPU 313C-2 DP variant, this module integrates onboard digital and analog I/O with a PROFIBUS-DP master/slave interface, enabling seamless integration into distributed control architectures without the overhead of additional communication modules. For factories seeking to reduce idle energy consumption, tighten production cycle times, and extend equipment service life, the 6ES7313-6CG04-0AB0 provides the processing backbone that makes it possible.

Every watt consumed in an industrial facility represents a cost. The 6ES7313-6CG04-0AB0 addresses this directly through its optimized scan cycle management, deterministic program execution, and low standby power draw. When paired with a Siemens SITOP PSU100S 24V power supply module, the overall panel power budget is kept lean, reducing heat generation and lowering cooling demands in the control cabinet — a compounding efficiency gain that accumulates over thousands of operating hours.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES7313-6CG04-0AB0 is rarely deployed in isolation — its true efficiency value emerges when it operates as the control hub of a well-integrated automation architecture. In a typical energy-optimized production cell, this CPU coordinates with a Siemens SM 321 digital input module and SM 322 digital output module to handle high-density I/O without burdening the CPU’s onboard resources, keeping cycle times short and deterministic.

On the drive side, the CPU communicates via PROFIBUS-DP with Siemens SINAMICS G120 variable frequency drives, enabling precise motor speed regulation based on real-time load demand. Rather than running motors at fixed full speed, the G120 adjusts output frequency dynamically — a strategy that can reduce motor energy consumption by 20–50% in variable-torque applications such as fans, pumps, and conveyors. The 6ES7313-6CG04-0AB0 issues speed setpoints and reads back actual torque and current values, closing the energy control loop at the PLC level.

For servo-driven axes — common in packaging, assembly, and pick-and-place applications — the CPU interfaces with Siemens SINAMICS S120 servo drive units through the same PROFIBUS backbone, coordinating motion profiles that minimize acceleration energy spikes and regenerative braking losses. Integrating a Siemens SIMATIC ET 200S distributed I/O station at the machine level further reduces wiring runs and associated resistive losses across the panel.

Power quality and consumption visibility are handled by connecting a Siemens SENTRON PAC3200 power monitoring device to the network. This meter feeds real-time kWh, power factor, and harmonic data back to the S7-300 system, allowing the 6ES7313-6CG04-0AB0 to trigger load-shedding routines or alert operators when consumption deviates from baseline — a foundational step toward ISO 50001 energy management compliance.

Operator interaction is managed through a Siemens SIMATIC HMI KTP700 Basic panel, which displays live energy dashboards, production KPIs, and alarm states. Operators can adjust drive speed limits, enable eco-mode schedules, and acknowledge energy threshold alerts directly from the panel — without requiring engineering software access. For facilities running multiple S7-300 racks, a Siemens CP 343-1 Ethernet communication processor extends connectivity to the plant SCADA or MES layer via PROFINET/Industrial Ethernet, enabling centralized energy reporting across production zones.

Power Optimization in Real Production Lines

In discrete manufacturing environments — automotive body shops, electronics assembly lines, food and beverage filling systems — unplanned downtime and inefficient motor operation are the two largest contributors to wasted energy. The 6ES7313-6CG04-0AB0 addresses both vectors simultaneously.

Its deterministic program execution ensures that control decisions — stopping a conveyor, adjusting a drive setpoint, triggering a pneumatic actuator — happen within predictable scan cycle windows. This predictability eliminates the micro-delays that cause mechanical systems to overshoot, requiring corrective energy expenditure. On a high-speed bottling line running 600 units per minute, shaving 5 ms of corrective motion per cycle translates to measurable reductions in actuator wear and compressed air consumption over a production shift.

The onboard PROFIBUS-DP interface allows the CPU to poll drive status registers — actual speed, output current, fault codes — at every scan cycle. When a drive begins drawing anomalously high current (a leading indicator of bearing wear or mechanical binding), the CPU can flag a predictive maintenance alert before the fault escalates to an unplanned stop. Preventing a single 4-hour unplanned downtime event on a line producing $10,000/hour of output recovers the cost of the entire control system many times over.

Energy scheduling is another practical application: the 6ES7313-6CG04-0AB0 can execute time-of-day logic that reduces conveyor speeds during shift changeovers, powers down non-critical I/O segments during planned breaks, and ramps systems back up in a controlled sequence to avoid demand charge spikes at utility meters. These strategies, implemented entirely in the PLC program, require no additional hardware investment — only the processing capability that the 6ES7313-6CG04-0AB0 already provides.

All units supplied by ZYPLC undergo functional testing under load conditions prior to shipment. Test records confirm correct program execution, I/O response, and PROFIBUS communication handshake. In-stock availability ensures rapid dispatch, minimizing production line downtime during emergency replacements. Every 6ES7313-6CG04-0AB0 is backed by a 12-month warranty, covering defects in materials and workmanship under normal industrial operating conditions.

Energy Optimization FAQ

Q1: How does the 6ES7313-6CG04-0AB0 contribute to measurable energy savings on a production line?
The CPU’s deterministic scan cycle and PROFIBUS-DP integration allow it to issue real-time speed setpoints to variable frequency drives such as the SINAMICS G120, reducing motor energy consumption in proportion to actual load demand. Combined with time-of-day scheduling logic and power monitoring feedback from devices like the SENTRON PAC3200, facilities typically achieve 15–35% reductions in motor-related energy costs without hardware changes beyond the control layer.

Q2: Is the 6ES7313-6CG04-0AB0 compatible with existing S7-300 racks and expansion modules?
Yes. The CPU 313C-2 DP is fully compatible with the standard S7-300 rail system and communicates with all SM 300-series signal modules, FM function modules, and CP communication processors. It can be integrated into existing S7-300 installations as a direct replacement for earlier CPU 313 variants, provided the user program is recompiled in STEP 7 or TIA Portal with the correct CPU target selected.

Q3: What is the recommended replacement or upgrade path if this CPU is being substituted for a failed unit?
For a like-for-like replacement, the 6ES7313-6CG04-0AB0 is the direct substitute for earlier 6ES7313-6CG03-0AB0 and 6ES7313-6CE01-0AB0 variants. The user program stored on the Micro Memory Card (MMC) transfers directly to the new CPU without reprogramming. ZYPLC recommends retaining the original MMC from the failed unit and inserting it into the replacement CPU after verifying firmware compatibility.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every unit undergoes functional verification including power-on self-test, I/O channel response check, and PROFIBUS-DP communication handshake before dispatch. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions (24V DC supply, 0–60°C ambient). It does not cover damage resulting from incorrect wiring, overvoltage events, or physical impact. Warranty claims are processed directly through ZYPLC with a target response time of 2 business days.
