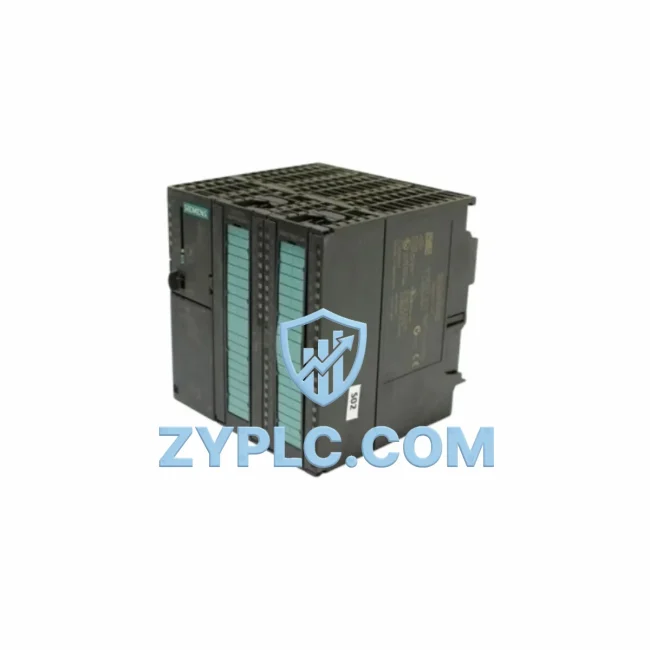

Siemens 6ES7314-6BF01-0AB0 System-Ready Compact CPU for S7-300 Architecture

Siemens 6ES7314-6BF01-0AB0 System-Ready Compact CPU for S7-300 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6ES7314-6BF01-0AB0 — the CPU 314C-2 PTP — is a compact, high-performance central processing unit engineered for seamless integration within the SIMATIC S7-300 modular control platform. Rather than functioning as a standalone device, this CPU is designed from the ground up to serve as the command nucleus of a layered automation architecture, coordinating signal acquisition, logic execution, serial communication, and process output across every tier of the control hierarchy. Its onboard I/O, integrated PtP (Point-to-Point) serial interface, and robust instruction set make it a preferred choice for engineers building scalable, maintainable, and redundancy-aware industrial control systems across manufacturing, energy, petrochemical, water treatment, mining, metallurgy, and packaging applications.

In a complete S7-300 system architecture, the 6ES7314-6BF01-0AB0 occupies the central control layer, receiving process data from distributed I/O modules, executing user programs stored in integrated work memory, and issuing control commands to actuators, drives, and field devices. Its Contextual Integration capability ensures that the CPU can be deployed within existing S7-300 rack configurations without requiring hardware redesign, enabling engineers to upgrade processing capacity while preserving the integrity of the surrounding system architecture.

Architecture Specification Table

Coordinated Control System Design

The 6ES7314-6BF01-0AB0 achieves its full architectural value when deployed within a coordinated S7-300 system. At the power layer, the Siemens 6ES7307-1BA01-0AA0 PS 307 power supply module provides stable 24 V DC to the CPU and all rack-mounted modules, ensuring uninterrupted operation even under fluctuating grid conditions. The CPU mounts directly onto a 6ES7390-1AE80-0AA0 DIN rail profile or standard S7-300 rack, with the backplane bus providing high-speed data exchange between the CPU and all connected I/O modules.

At the I/O layer, the CPU coordinates with digital input modules such as the 6ES7321-1BL00-0AA0 SM 321 32-channel DI module and digital output modules such as the 6ES7322-1BL00-0AA0 SM 322 32-channel DO module, enabling precise field signal acquisition and actuator control. For analog process variables — temperature, pressure, flow — the 6ES7331-7KF02-0AB0 SM 331 8-channel AI module feeds real-time process values directly into the CPU’s data memory for closed-loop control execution.

The integrated PtP serial interface of the 6ES7314-6BF01-0AB0 enables direct communication with barcode readers, weighing systems, SCADA terminals, and third-party field devices without requiring an additional communication processor. For PROFIBUS-DP network expansion, the 6ES7315-2AG10-0AB0 CPU 315-2 DP or a dedicated 6GK7343-1EX30-0XE0 CP 343-1 Ethernet communication processor can be integrated into the same rack to extend the system’s network reach across plant-wide automation layers.

At the human-machine interface layer, the CPU communicates with operator panels such as the Siemens TP700 Comfort HMI panel via MPI or PROFIBUS, providing operators with real-time process visualization, alarm management, and parameter adjustment capabilities. Terminal modules and marshalling components, including 6ES7392-1AM00-0AA0 front connectors, ensure clean, maintainable field wiring connections to all I/O modules in the rack.

For applications requiring output-stage control, the CPU’s digital outputs interface directly with relay modules and motor starters, while analog outputs connect to variable frequency drives for speed-controlled motor applications. This end-to-end signal flow — from field sensor through I/O module, CPU logic execution, and back to the actuator — defines the architectural coherence that makes the 6ES7314-6BF01-0AB0 a reliable foundation for long-term system operation.

Application in Layered Automation Systems

In discrete manufacturing environments, the 6ES7314-6BF01-0AB0 manages assembly line sequencing, conveyor control, and quality inspection logic. Its high-speed counter inputs support encoder-based position tracking and pulse counting for precision motion applications. The integrated PtP interface enables direct communication with vision systems and barcode scanners on the production line, eliminating the need for additional gateway hardware.

In power distribution and energy management systems, the CPU coordinates protection relay logic, switchgear control, and load monitoring across substation automation panels. Its robust operating temperature range and IP20 protection class make it suitable for installation in industrial control cabinets in electrical substations and power plants.

In petrochemical and process industries, the CPU executes continuous PID control loops for temperature, pressure, and flow regulation. Its analog I/O channels interface directly with 4–20 mA transmitters and control valves, while the MPI interface connects to SCADA systems for centralized process monitoring and historian data logging.

In water and wastewater treatment plants, the 6ES7314-6BF01-0AB0 manages pump sequencing, dosing control, and level regulation across multiple treatment stages. Its modular expansion capability allows engineers to add I/O modules as plant capacity grows, without replacing the central CPU or reprogramming the core control logic.

In mining and metallurgical applications, the CPU controls conveyor drives, crusher sequencing, and material handling systems in environments characterized by vibration, dust, and wide temperature variation. The S7-300 platform’s proven reliability in harsh industrial environments makes the 6ES7314-6BF01-0AB0 a trusted choice for long-lifecycle automation projects where system uptime is critical.

Architecture Engineering FAQ

Q1: Is the 6ES7314-6BF01-0AB0 compatible with existing S7-300 racks and expansion modules?
Yes. The CPU 314C-2 PTP is fully compatible with the standard S7-300 rack system, including all SM 300 series signal modules, CP 300 series communication processors, and FM 300 series function modules. It can be installed in any S7-300 rack slot position (slot 2 reserved for CPU) and communicates with all connected modules via the integrated backplane bus. Contextual Integration with existing S7-300 hardware configurations is supported without hardware modification, making it an ideal upgrade or replacement CPU for installed base systems.

Q2: How does the integrated PtP interface affect system architecture and wiring design?
The onboard PtP serial interface (RS-232/RS-422/RS-485) eliminates the need for a separate CP 340 or CP 341 communication processor module in applications requiring serial device connectivity. This reduces rack slot consumption, lowers system cost, and simplifies cabinet wiring. The interface supports ASCII, 3964(R), and RK 512 protocols, covering the majority of serial field device communication requirements in industrial automation. For multi-drop RS-485 networks, the interface can address multiple field devices on a single serial bus, further reducing hardware complexity.

Q3: What does the 12-Month Warranty cover, and how is long-term maintenance supported?
The 12-Month Warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. Replacement or repair is provided at no additional cost for warranted failures. For long-term maintenance, the S7-300 platform’s modular architecture means that individual modules — including the CPU, power supply, and I/O modules — can be replaced independently without system-wide downtime. Spare parts availability, including the 6ES7314-6BF01-0AB0 and associated S7-300 components, is maintained to support installed base systems throughout their operational lifecycle.
