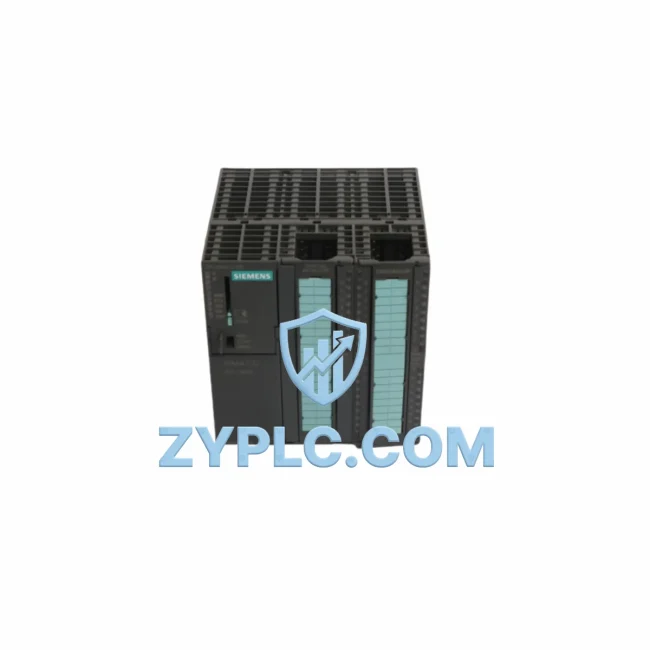

Siemens 6ES7314-6CH04-0AB0 System-Ready PROFIBUS CPU for S7-300 Architecture

Siemens 6ES7314-6CH04-0AB0: Industrial Data Link and Smart Factory Connectivity for S7-300 Architecture

In modern industrial automation, the ability to move data reliably across every layer of a control system — from field-level sensors to enterprise SCADA platforms — defines the operational efficiency of a smart factory. The Siemens 6ES7314-6CH04-0AB0, commercially designated as the CPU 314C-2 DP, is a compact yet powerful central processing unit engineered for the SIMATIC S7-300 platform. With its integrated PROFIBUS DP master/slave interface, onboard digital and analog I/O, and high-speed processing capability, this CPU serves as a critical node in the industrial data chain — bridging field devices, distributed I/O stations, communication gateways, and supervisory systems into a unified, coherent control architecture.

Unlike standalone CPUs that require additional communication modules to participate in network-level automation, the 6ES7314-6CH04-0AB0 integrates PROFIBUS DP directly into its core design. This eliminates the need for supplementary CP modules in many standard configurations, reducing rack space, lowering system cost, and simplifying cabinet wiring. For engineers designing layered automation systems across manufacturing, energy, chemical processing, or infrastructure sectors, this CPU delivers the connectivity density and processing reliability required for continuous industrial operation.

Network Communication Table

Connected Automation Data Flow

The 6ES7314-6CH04-0AB0 operates at the heart of a distributed control architecture, where its integrated PROFIBUS DP master port enables direct communication with a wide range of field-level and network-level devices. In a typical smart factory deployment, the CPU connects upstream to a SIMATIC HMI TP900 Comfort Panel or WinCC SCADA server via MPI or Ethernet (through a CP 343-1 Lean Ethernet communication processor mounted on the same S7-300 rack), while simultaneously managing downstream PROFIBUS DP slaves such as ET 200S distributed I/O stations and ET 200M remote I/O racks.

On the field device side, the CPU’s PROFIBUS DP master interface communicates with SINAMICS G120 variable frequency drives for motor speed regulation, receiving real-time feedback on current draw, fault status, and operational parameters. Simultaneously, SITRANS flow transmitters and pressure sensors connected via PROFIBUS PA (bridged through a DP/PA Link module) feed process values directly into the CPU’s data blocks, enabling closed-loop control without additional signal conditioning hardware.

For applications requiring redundant or extended I/O capacity, the 6ES7314-6CH04-0AB0 supports connection to SM 321 digital input modules, SM 322 digital output modules, and SM 331 analog input modules mounted on the local S7-300 rack, while offloading remote I/O tasks to PROFIBUS-connected ET 200 stations. This architecture ensures that signal acquisition, protocol conversion, and data transmission occur in a structured, deterministic manner — eliminating the data isolation that commonly plagues heterogeneous industrial sites.

In facilities where legacy equipment operates on older serial protocols, a SIMATIC NET CP 342-5 PROFIBUS module or a third-party protocol gateway can be integrated into the rack to bridge Modbus RTU or DeviceNet devices into the PROFIBUS DP network managed by this CPU. The result is a unified data flow from every field device — regardless of native protocol — into a single, coherent process image accessible to the CPU, HMI, and SCADA layers simultaneously.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols, isolated control islands, and legacy equipment that cannot natively participate in modern network architectures. The Siemens 6ES7314-6CH04-0AB0 directly addresses these challenges through its multi-protocol communication capability and its position as a PROFIBUS DP master in the S7-300 ecosystem.

Protocol Unification: By acting as a PROFIBUS DP master, the CPU consolidates data from dozens of field devices — drives, sensors, remote I/O, and actuators — into a single process image. Engineers no longer need to manage separate communication stacks for each device type. The CPU handles polling, data exchange, and fault detection for all connected DP slaves within a single scan cycle, dramatically reducing integration complexity.

Remote Monitoring and Transparency: When paired with a CP 343-1 Ethernet module, the 6ES7314-6CH04-0AB0 enables full remote access via S7 communication protocols. Maintenance engineers can connect from a remote STEP 7 programming station or TIA Portal client to monitor real-time diagnostics, upload/download programs, and review fault logs — without physical presence on the plant floor. This capability is essential for multi-site operations, where centralized engineering teams must support distributed production lines.

Production Line Transparency: The CPU’s onboard analog and digital I/O, combined with its PROFIBUS DP network, enables complete signal visibility across the production line. Process values, alarm states, and equipment status are continuously updated in the CPU’s data blocks and made available to WinCC or third-party SCADA systems via OPC DA/UA servers, enabling real-time dashboards, trend analysis, and predictive maintenance workflows.

System Scalability: As production requirements grow, the S7-300 architecture supported by this CPU scales gracefully. Additional I/O modules can be added to the local rack, new PROFIBUS DP slaves can be connected to the network (up to 124 stations), and additional S7-300 or S7-400 CPUs can be integrated via MPI or PROFIBUS to form multi-CPU architectures. This scalability protects the initial engineering investment and allows the control system to evolve alongside the facility.

Inventory Assurance and 12-Month Warranty: ZYPLC maintains verified stock of the 6ES7314-6CH04-0AB0 with full pre-shipment functional testing. Every unit is covered by a 12-Month Warranty, ensuring that procurement teams and maintenance engineers can source this CPU with confidence — whether for new installations, system expansions, or emergency replacements of failed units in production-critical environments.

Industrial Connectivity FAQ

Q1: Does the 6ES7314-6CH04-0AB0 support both PROFIBUS DP master and slave modes?
Yes. The integrated PROFIBUS DP interface on the CPU 314C-2 DP supports both master and slave operation. In master mode, it can manage up to 124 DP slave stations. In slave mode, it can be integrated into a higher-level PROFIBUS network controlled by another master CPU or gateway, enabling flexible multi-tier control architectures.

Q2: Can this CPU communicate with Ethernet-based SCADA systems?
The 6ES7314-6CH04-0AB0 does not have a native Ethernet port, but Ethernet connectivity is achieved by adding a CP 343-1 or CP 343-1 Lean communication processor to the same S7-300 rack. This enables S7 communication, PROFINET IO (on compatible CP variants), and OPC server connectivity for integration with WinCC, iFIX, Wonderware, or any OPC-compatible SCADA platform.

Q3: Is the 6ES7314-6CH04-0AB0 compatible with TIA Portal?
The CPU 314C-2 DP is primarily programmed using SIMATIC STEP 7 V5.x. Limited support is available through TIA Portal via the STEP 7 Professional package with legacy device support. For new projects requiring full TIA Portal integration, Siemens recommends migrating to the S7-1500 platform; however, for existing S7-300 installations, STEP 7 V5.x remains the standard and fully supported programming environment.

Q4: What does the 12-Month Warranty cover, and how is it handled?
All units of the 6ES7314-6CH04-0AB0 supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify communication interfaces, I/O operation, and firmware integrity. In the event of a warranty claim, ZYPLC provides replacement or repair support with priority handling to minimize production downtime.
