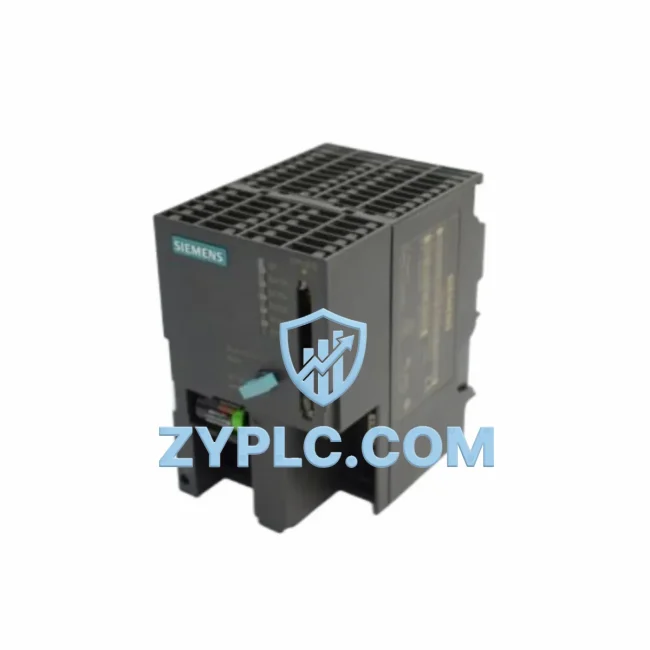

Siemens 6ES7315-1AF03-0AB0 Energy-Saving PLC CPU S7-300

Siemens 6ES7315-1AF03-0AB0 Energy-Saving PLC CPU for Optimized S7-300 Automation

The Siemens 6ES7315-1AF03-0AB0 is a high-performance CPU 315 module designed for the SIMATIC S7-300 programmable logic controller platform. In modern manufacturing environments where energy costs and equipment uptime directly impact profitability, this CPU module delivers the processing reliability and cycle-time precision needed to reduce idle consumption, eliminate unnecessary actuator dwell, and maintain tight control over motor-driven processes. Whether deployed in automotive assembly, food processing, chemical batching, or discrete parts manufacturing, the 6ES7315-1AF03-0AB0 serves as the computational core of an energy-aware automation architecture.

Efficiency Performance Table

Energy-Aware Automation Architecture

Achieving measurable energy savings in a production facility requires more than a single efficient component — it demands a coordinated system where every layer, from field-level sensing to supervisory control, operates in synchrony. The 6ES7315-1AF03-0AB0 CPU 315 sits at the center of this architecture, orchestrating data exchange and control logic across the entire S7-300 rack.

On the drive side, the CPU communicates with Siemens SINAMICS G120 variable frequency drives via PROFIBUS DP, enabling dynamic speed adjustment of induction motors based on real-time load demand. Rather than running motors at fixed speed regardless of production throughput, the G120 drive responds to CPU-issued setpoints, trimming motor speed during low-demand intervals and recovering that energy margin as measurable kWh savings per shift. Paired with SINAMICS S120 servo drive systems for multi-axis motion, the CPU coordinates acceleration and deceleration ramps to minimize regenerative energy waste.

For distributed field I/O, the 6ES7315-1AF03-0AB0 integrates seamlessly with ET 200M and ET 200S remote I/O stations over PROFIBUS DP, allowing sensor signals — including current transformers, pressure transducers, and flow meters — to be collected at the machine level and processed centrally. This eliminates the latency that causes over-actuation and the associated energy spikes common in loosely coupled systems.

Power quality and consumption monitoring is handled upstream by Siemens SENTRON PAC3200 power monitoring devices, which feed real-time kW, kVAr, and power factor data into the SCADA layer via MODBUS TCP. The CPU 315 uses this feedback to trigger load-shedding routines during peak tariff windows, automatically deferring non-critical conveyor segments or auxiliary pump cycles to off-peak periods.

On the human-machine interface layer, a Siemens SIMATIC HMI TP900 or KTP700 Basic panel provides operators with live energy dashboards, alarm acknowledgment, and recipe management. Operators can monitor per-zone energy consumption trends and intervene before inefficiencies compound into significant cost overruns. The HMI communicates with the CPU via MPI or PROFINET, depending on panel generation.

For safety-critical zones, the architecture incorporates SIMATIC S7-300 SM 326 fail-safe digital input modules alongside standard SM 321 and SM 322 I/O modules, ensuring that safety shutdowns are executed without unnecessary full-system de-energization — a common source of restart energy surges. The CPU’s integrated diagnostic functions continuously monitor module health, flagging degraded I/O channels before they cause unplanned downtime.

Communication with higher-level MES or ERP systems is achieved through a CP 343-1 Industrial Ethernet communication processor, enabling the CPU to push production counts, energy consumption logs, and fault records to plant-level databases in real time. This data pipeline is the foundation of any predictive maintenance or energy benchmarking program.

Power Optimization in Real Production Lines

In a typical discrete manufacturing cell, unoptimized motor control accounts for 30–50% of avoidable energy waste. The Siemens 6ES7315-1AF03-0AB0 addresses this directly through its fast scan cycle — as low as 0.3 µs per binary instruction — which allows the PLC program to respond to load changes within milliseconds rather than seconds. This responsiveness is critical for applications such as conveyor speed modulation, pump pressure regulation, and compressor staging, where delayed control responses translate directly into energy overshoot.

In automotive body-in-white welding lines, the CPU manages the sequencing of resistance welding guns, servo positioners, and pneumatic clamps. By tightly controlling the dwell time of each actuator and synchronizing the release sequence with the next station’s readiness signal, the CPU eliminates the idle-energized state that wastes power when upstream stations are not yet ready. This inter-station synchronization, managed through the CPU’s high-speed I/O processing, can reduce per-vehicle energy consumption by several percentage points across a full production shift.

In process industries such as water treatment or chemical dosing, the CPU’s analog output modules drive variable-speed pump controllers based on flow demand signals. Instead of running pumps at full capacity and throttling output with control valves — a notoriously inefficient practice — the CPU issues proportional speed commands to the SINAMICS G120 drives, matching pump output precisely to process demand. The result is a measurable reduction in motor current draw and a corresponding decrease in heat generation, which also extends bearing and seal service life.

Predictive maintenance integration is another key energy optimization lever. The CPU logs motor run-hours, start counts, and fault frequencies to the data block memory, which is periodically uploaded to the plant historian via the CP 343-1 Ethernet module. Maintenance teams use this data to schedule bearing replacements and belt inspections before failures occur, avoiding the energy-intensive restart cycles and production catch-up overtime that follow unplanned breakdowns.

Every unit of the 6ES7315-1AF03-0AB0 supplied by ZYPLC undergoes full functional testing prior to shipment, including program load verification, I/O channel checks, and communication interface validation. Stock is maintained for immediate dispatch, and all units are covered by a 12-month warranty, ensuring that your production line investment is protected from day one.

Energy Optimization FAQ

Q1: How does the 6ES7315-1AF03-0AB0 contribute to measurable energy savings on the production line?
The CPU 315’s fast scan cycle and deterministic program execution allow precise control of motor start/stop sequences, actuator dwell times, and drive speed setpoints. When integrated with SINAMICS variable frequency drives and power monitoring devices such as the SENTRON PAC3200, the CPU enables load-based speed control and peak-demand shedding routines that directly reduce kWh consumption per production unit.

Q2: Is the 6ES7315-1AF03-0AB0 compatible with existing S7-300 racks and PROFIBUS DP networks?
Yes. The 6ES7315-1AF03-0AB0 is fully compatible with the standard S7-300 rack system and supports MPI communication natively. It integrates with PROFIBUS DP master/slave configurations, allowing connection to ET 200M distributed I/O stations, SINAMICS drives, and third-party field devices without hardware modification to existing installations.

Q3: What is the recommended replacement or upgrade path for aging S7-300 CPU modules?
For direct replacement, the 6ES7315-1AF03-0AB0 is a drop-in substitute for earlier CPU 315 variants within the S7-300 family. For sites planning a longer-term migration to SIMATIC S7-1500, the existing S7-300 program can be converted using the TIA Portal migration tool, preserving control logic while gaining access to the S7-1500’s enhanced energy reporting and PROFINET IO capabilities.

Q4: What testing and warranty coverage is provided with units sourced from ZYPLC?
Every 6ES7315-1AF03-0AB0 unit is tested for full functional operation before shipment, including CPU boot verification, memory integrity check, and communication port validation. All units are covered by a 12-month warranty from the date of delivery. In the event of a confirmed hardware fault within the warranty period, ZYPLC provides replacement or repair support with priority handling to minimize production downtime.
