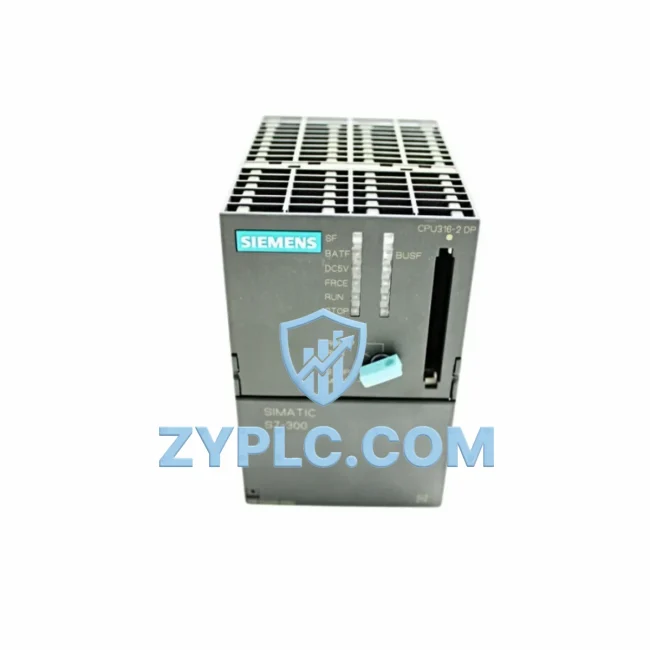

Siemens 6ES7316-2AG00-0AB0 Energy-Saving PLC CPU for S7-300

Siemens 6ES7316-2AG00-0AB0 Energy-Saving PLC CPU for S7-300 Automation

The Siemens 6ES7316-2AG00-0AB0 is a high-performance CPU 316-2 DP module engineered for the SIMATIC S7-300 platform, purpose-built to deliver precision control, reduced energy consumption, and optimized production line throughput in demanding industrial environments. As factories face increasing pressure to reduce operational energy costs and maximize equipment utilization, this CPU module serves as the intelligent core of an energy-aware automation architecture — coordinating data acquisition, control execution, drive regulation, and system feedback with minimal overhead.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully integrated energy-optimized production cell, the 6ES7316-2AG00-0AB0 acts as the central decision-making unit, orchestrating a network of field devices and subsystems to eliminate wasted energy at every stage of the process cycle. On the drive side, it communicates directly with Siemens SINAMICS G120 variable frequency drives via PROFIBUS-DP, enabling dynamic speed regulation of induction motors based on real-time load demand — a critical factor in reducing motor energy consumption during partial-load or idle conditions.

For distributed I/O, the CPU pairs seamlessly with Siemens ET 200S and ET 200M remote I/O stations, allowing field signals — including temperature sensors, pressure transmitters, and flow meters — to be collected at the machine level without long cable runs that introduce signal loss and maintenance complexity. The PROFIBUS-DP interface also supports integration with Siemens SIMOTION D motion controllers, enabling coordinated multi-axis servo control for packaging lines, press machines, and assembly robots where precise cycle timing directly impacts energy efficiency per unit produced.

Power quality and energy monitoring are handled upstream by Siemens SENTRON PAC3200 power monitoring devices, which feed real-time kWh, power factor, and harmonic data back to the S7-300 system via PROFIBUS or Modbus. This closed-loop energy feedback allows the 6ES7316-2AG00-0AB0 to trigger load-shedding routines, stagger motor starts to avoid peak demand spikes, and log energy consumption per production batch for OEE reporting. On the HMI side, a Siemens SIMATIC TP700 Comfort Panel or MP277 operator panel provides operators with live energy dashboards and alarm management, reducing response time to abnormal energy events.

For safety-critical zones, the CPU integrates with Siemens SIRIUS 3RK3 safety relay modules and 3RT contactors to ensure that energy isolation during maintenance follows IEC 60204-1 lockout/tagout procedures — preventing both safety incidents and the energy waste associated with unplanned restarts. The SM 321/SM 322 digital I/O modules and SM 331/SM 332 analog I/O modules expand the CPU’s field connectivity, supporting precise analog control of proportional valves, servo amplifiers, and variable-speed pump controllers that are central to energy-efficient fluid and thermal management systems.

Power Optimization in Real Production Lines

In automotive body-in-white welding lines, the 6ES7316-2AG00-0AB0 has been deployed to coordinate robot trigger signals, weld timer sequences, and conveyor indexing — reducing inter-station idle time by synchronizing downstream equipment readiness before upstream release. This tightening of production line rhythm (takt time optimization) directly reduces the duration that motors, heaters, and pneumatic compressors run without productive output, cutting energy waste per shift by a measurable margin.

In food and beverage processing, the CPU manages CIP (Clean-In-Place) cycle automation, ensuring that pump speeds, valve sequencing, and heating element activation are precisely timed to minimize water and thermal energy consumption. By replacing fixed-time relay logic with PLC-driven adaptive sequencing, plants have reported reductions in CIP cycle energy use without compromising hygiene validation requirements.

For predictive maintenance, the 6ES7316-2AG00-0AB0 supports diagnostic buffer logging and module status monitoring via STEP 7 or TIA Portal (with appropriate CPU migration planning), enabling maintenance teams to identify degrading I/O modules, communication faults, or drive parameter drift before they cause unplanned downtime. Unplanned stops are among the highest sources of energy waste in discrete manufacturing — restarting cold equipment, purging lines, and re-running quality checks all consume disproportionate energy relative to steady-state production.

Every unit of the 6ES7316-2AG00-0AB0 supplied by ZYPLC is sourced from verified inventory channels, undergoes functional power-on testing and communication interface verification, and ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Stock availability is maintained to support both urgent replacement orders and planned MRO procurement schedules.

Energy Optimization FAQ

Q1: How does the 6ES7316-2AG00-0AB0 contribute to measurable energy savings on the production floor?
The CPU 316-2 DP enables energy savings primarily through precise control of variable-speed drives, elimination of unnecessary idle cycles, and coordinated load management across PROFIBUS-DP connected devices. By replacing fixed-speed motor control with demand-driven speed regulation via SINAMICS drives, facilities typically see motor energy reductions of 20–40% on variable-torque loads such as fans, pumps, and conveyors.

Q2: Is the 6ES7316-2AG00-0AB0 compatible with existing S7-300 racks and expansion modules?
Yes. This CPU is fully compatible with the standard S7-300 rail system and works with all SM 300-series signal modules, CP 300-series communication processors, and FM 300-series function modules. It supports both centralized and distributed I/O configurations via PROFIBUS-DP, making it a drop-in replacement for earlier CPU 314 or CPU 315 variants in most applications with appropriate program adaptation.

Q3: What is the recommended replacement or upgrade path if this CPU is end-of-life in my system?
For systems requiring long-term support, Siemens recommends migration to the SIMATIC S7-1500 platform using the TIA Portal migration tool. However, for facilities that need to maintain existing S7-300 infrastructure without full system redesign, the 6ES7316-2AG00-0AB0 remains a cost-effective and functionally equivalent replacement for failed or aging CPU units. ZYPLC maintains stock of this model specifically to support MRO and emergency replacement needs.

Q4: What testing and warranty coverage does ZYPLC provide for this unit?
Each 6ES7316-2AG00-0AB0 unit is tested for power-on functionality, MPI/PROFIBUS-DP communication integrity, and memory operation prior to shipment. All units are covered by a 12-month warranty from the date of delivery, covering defects in materials and workmanship under normal operating conditions. Expedited replacement support is available for critical production line applications.
