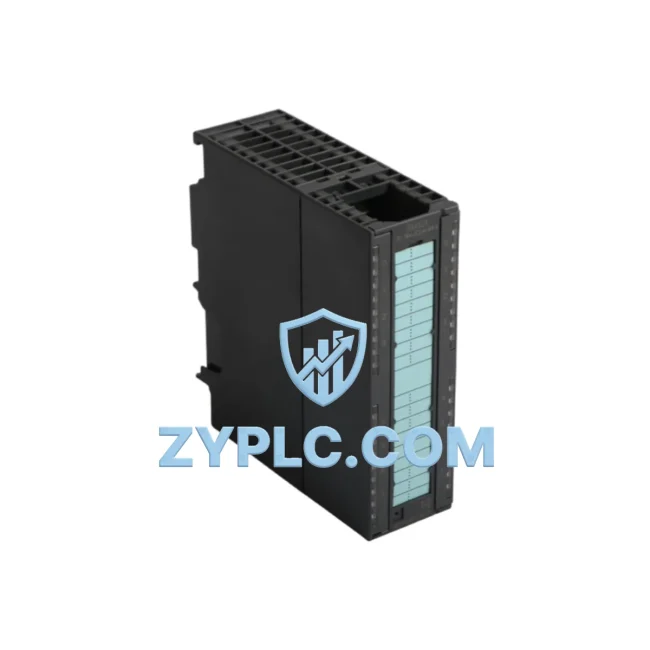

Siemens 6ES7321-1CH00-0AA0 System-Ready Digital Input for S7-300 Architecture

Siemens 6ES7321-1CH00-0AA0 System-Ready Digital Input for S7-300 Architecture

The Siemens 6ES7321-1CH00-0AA0 is a 16-channel digital input module belonging to the SM 321 signal module family, engineered specifically for seamless integration within the SIMATIC S7-300 modular control system architecture. Rather than functioning as a standalone component, this module is designed to operate as a precision signal acquisition layer within a fully coordinated automation hierarchy — bridging field-level discrete signals to the CPU’s processing core with deterministic reliability.

In a layered S7-300 control architecture, the 6ES7321-1CH00-0AA0 occupies the I/O layer, receiving 24 VDC digital signals from field devices such as proximity sensors, limit switches, push buttons, and relay contacts. These signals are conditioned, isolated, and transmitted via the S7-300 backplane bus to the central processing unit — typically a CPU 314, CPU 315-2 DP, or CPU 317-2 PN/DP — where they are processed within the PLC scan cycle. The module’s galvanic isolation ensures that field-side transients and ground loops do not propagate into the control network, protecting both the CPU and the communication infrastructure.

System architects integrating this module into a new or expanded S7-300 rack will find it fully compatible with the UR1 and UR2 universal rack systems, supporting up to 8 signal modules per rack segment. When paired with a PS 307 power supply module (e.g., 6ES7307-1BA01-0AA0) and a CPU with integrated PROFIBUS DP or PROFINET interface, the 6ES7321-1CH00-0AA0 contributes to a complete, standards-compliant control node capable of distributed deployment across large plant topologies. For applications requiring redundancy, the module can be incorporated into hot-standby CPU configurations using the S7-400H architecture principles adapted for S7-300 distributed I/O via ET 200M remote I/O stations.

From a network layer perspective, when the 6ES7321-1CH00-0AA0 is deployed within an ET 200M distributed I/O station connected via PROFIBUS DP to a master CPU, the IM 153-2 interface module manages all bus communication, ensuring that digital input states are cyclically transmitted to the master controller with minimal latency. This architecture supports multi-drop PROFIBUS topologies where a single CPU 315-2 DP can manage dozens of distributed I/O stations across a production facility, each contributing discrete signal data to the unified control program.

At the HMI layer, operator panels such as the SIMATIC TP700 Comfort or MP277 can visualize the real-time status of inputs connected to the 6ES7321-1CH00-0AA0 through tag mappings in WinCC flexible or TIA Portal, enabling operators to monitor field device states, diagnose faults, and respond to process alarms without requiring direct access to the control cabinet. This integration between the I/O layer and the HMI layer is fundamental to modern SCADA-integrated automation architectures.

For the execution layer, the discrete inputs captured by the 6ES7321-1CH00-0AA0 directly govern actuator commands — motor starters, solenoid valves, variable frequency drives, and contactor coils — through the CPU’s output modules such as the SM 322 digital output series. The signal flow from field sensor through the SM 321 input module, through the CPU logic, and out through the SM 322 output module represents the fundamental control loop that underpins all discrete automation sequences.

Maintenance engineers benefit from the module’s front connector design, which allows the wiring harness to be transferred to a replacement module without rewiring — a critical feature for minimizing mean time to repair (MTTR) in production environments where downtime carries significant cost. Combined with STEP 7 or TIA Portal diagnostic functions, the module supports online fault detection, channel-level diagnostics, and parameter assignment without interrupting the running PLC program.

ZYPLC maintains verified stock of the 6ES7321-1CH00-0AA0 with full functional testing prior to dispatch, supported by a 12-Month Warranty covering manufacturing defects and operational failures under normal industrial service conditions. All units are supplied with original Siemens packaging where available, and each module undergoes pre-shipment inspection to confirm channel integrity and bus connector condition.

Architecture Specification Table

Coordinated Control System Design

The 6ES7321-1CH00-0AA0 achieves its full operational value when integrated within a coordinated S7-300 system architecture. A typical control cabinet configuration pairs this module with a CPU 315-2 DP (6ES7315-2AH14-0AB0) as the central processing unit, a PS 307 5A power supply (6ES7307-1BA01-0AA0) providing regulated 24 VDC to the rack, and complementary output modules from the SM 322 digital output series (such as the 6ES7322-1BH01-0AA0) to complete the discrete control loop.

For analog process variables, the SM 331 analog input module (6ES7331-7KF02-0AB0) can be installed in adjacent rack slots, allowing the CPU to process both discrete and continuous signals within a unified program structure. Communication expansion is achieved through CP 343-1 Ethernet communication processors, enabling the S7-300 station to participate in PROFINET networks alongside SCADA systems, historian servers, and remote engineering workstations.

In distributed architectures, the 6ES7321-1CH00-0AA0 is frequently deployed within ET 200M remote I/O stations managed by an IM 153-2 interface module (6ES7153-2BA02-0XB0), extending the digital input capacity of a master CPU across multiple physical locations via PROFIBUS DP. Terminal modules such as the TM-E15S26-A1 (3RK1903-0BA00) from the SIRIUS system can be used for structured field wiring, reducing installation time and improving cabinet organization. For motor control applications, SIRIUS 3RT contactors and 3RV circuit breakers in the execution layer receive their switching commands based on the input states captured by this module, forming a complete discrete automation chain from sensor to actuator.

Application in Layered Automation Systems

The 6ES7321-1CH00-0AA0 is deployed across a broad spectrum of industrial automation sectors where reliable discrete signal acquisition is fundamental to process integrity.

In manufacturing and assembly lines, the module captures position feedback from pneumatic cylinders, part-present signals from photoelectric sensors, and safety interlock states from light curtains and door switches — all feeding into the S7-300 CPU’s sequential control logic that governs conveyor sequencing, robotic cell coordination, and quality inspection gating.

In power distribution and substation automation, the module monitors circuit breaker status, transformer tap positions, and protection relay trip signals, providing the SCADA system with real-time switchgear state data essential for grid management and fault isolation procedures.

In petrochemical and refinery process control, the 6ES7321-1CH00-0AA0 acquires discrete signals from high-level switches, pressure switches, and flame detectors within hazardous area installations (ATEX Zone 2 certified), contributing to emergency shutdown (ESD) logic executed by the S7-300 CPU in conjunction with fail-safe output modules.

In water and wastewater treatment facilities, the module monitors pump run/fault status, valve open/closed feedback, and flow switch states across distributed pump stations connected via PROFIBUS DP to a central S7-300 master, enabling centralized supervisory control with local autonomous operation capability.

In mining and minerals processing, the module’s robust design and wide operating temperature range support deployment in conveyor control panels, crusher interlocking systems, and ventilation control cabinets where environmental conditions are demanding and module reliability directly impacts production throughput.

Architecture Engineering FAQ

Q1: Is the 6ES7321-1CH00-0AA0 compatible with both centralized S7-300 racks and distributed ET 200M stations?
Yes. The module is fully compatible with both deployment modes. In a centralized S7-300 rack, it connects directly to the CPU via the backplane P-bus. In a distributed ET 200M configuration, it is installed in the ET 200M rack alongside an IM 153-2 interface module, which manages all PROFIBUS DP communication with the master CPU. No hardware modification is required — the same module operates identically in both configurations, simplifying spare parts inventory management.

Q2: How does this module support long-term maintenance and system expandability?
The front connector design allows the wiring harness to be removed and transferred to a replacement module without rewiring, reducing repair time to minutes. The module supports online parameter assignment and channel-level diagnostics via STEP 7 or TIA Portal, enabling engineers to identify faults without interrupting the running control program. As system I/O requirements grow, additional SM 321 modules can be inserted into available rack slots without modifying the existing CPU program structure, provided the rack’s power budget and slot count permit expansion.

Q3: What does the 12-Month Warranty cover, and what is the supply lead time from ZYPLC?
ZYPLC’s 12-Month Warranty covers all manufacturing defects and operational failures occurring under normal industrial service conditions from the date of dispatch. Each unit is functionally tested prior to shipment, with channel integrity and bus connector condition verified. For in-stock units, standard dispatch is within 1–3 business days. Expedited shipping options are available for urgent maintenance requirements. For warranty claims or technical support, contact ZYPLC at [email protected] or +86 19859288691.
