Siemens 6ES7350-1AH03-0AE0 Energy-Saving Counter Module FM350-1

Siemens 6ES7350-1AH03-0AE0 Energy-Saving Counter Module FM350-1: Precision Efficiency Control for Optimized FM350-1 Automation

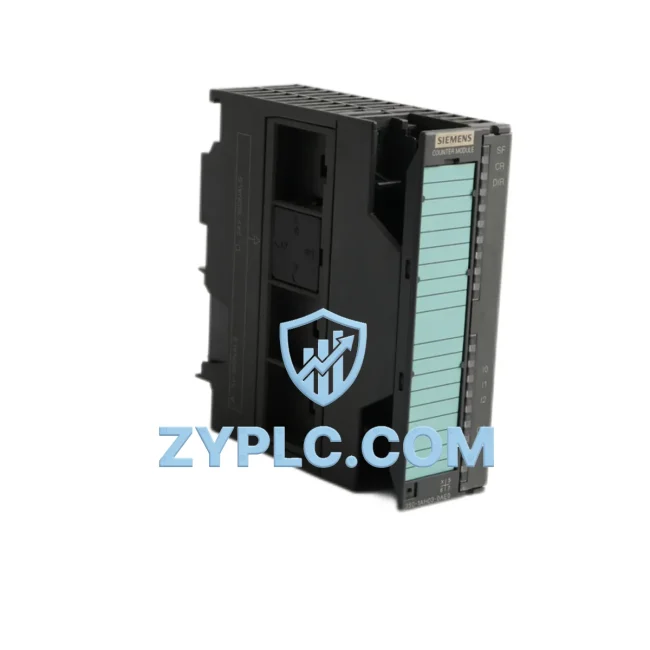

The Siemens 6ES7350-1AH03-0AE0 is a high-performance FM350-1 function module designed for integration into the SIMATIC S7-300 programmable logic controller platform. As industrial facilities face mounting pressure to reduce energy consumption and maximize equipment utilization, this counter module plays a pivotal role in closing the loop between real-time pulse data acquisition and actionable drive control decisions. By delivering precise, high-speed counting and measurement functions directly at the controller level, the 6ES7350-1AH03-0AE0 eliminates the latency and signal degradation that undermine energy-aware automation architectures.

Unlike generic I/O expansion cards, the FM350-1 is purpose-built for demanding counting, frequency measurement, and period measurement tasks — functions that are foundational to monitoring motor shaft speed, conveyor throughput, and rotary encoder feedback in energy-intensive production environments. When integrated with a properly tuned SIMATIC S7-300 CPU, this module enables the controller to make real-time adjustments to drive setpoints, reducing unnecessary motor run-time and eliminating the energy waste associated with fixed-speed operation.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES7350-1AH03-0AE0 FM350-1 is most effective when deployed as part of a layered energy-aware automation architecture. In a typical S7-300-based control cabinet, the FM350-1 sits alongside standard digital and analog I/O modules such as the SM321 and SM331, receiving encoder pulses from motor-mounted incremental encoders. These pulse trains are processed on-module — without burdening the CPU scan cycle — and the resulting speed or position data is passed to the CPU via the backplane bus for use in closed-loop control algorithms.

For drive-level energy optimization, the FM350-1 counter data is commonly used as the process variable input for PID blocks running on the S7-300 CPU, which then output frequency setpoint corrections to a SINAMICS G120 or MICROMASTER 440 variable frequency drive via PROFIBUS DP. This tight integration between the FM350-1 module, the S7-300 CPU, and the VFD eliminates the energy penalty of running motors at fixed rated speed when process demand is lower — a common source of 15–30% excess energy consumption in conveyor, pump, and fan applications.

For facilities using SIMATIC ET 200SP or ET 200M distributed I/O islands at remote machine stations, the FM350-1 at the central S7-300 rack can serve as the master counter for line-speed synchronization, while remote I/O handles auxiliary sensor inputs. Communication between the central rack and distributed stations typically runs over PROFIBUS DP or PROFINET IO, both of which are natively supported by the S7-300 platform. Adding a CP 343-1 communications processor to the rack enables Ethernet-based data exchange with SCADA systems or MES platforms for energy reporting and OEE tracking.

In servo-driven applications — such as cut-to-length systems or registration control on printing and packaging lines — the FM350-1 can work in conjunction with a SIMOTION D or SINAMICS S120 servo drive system. The counter module captures master encoder pulses for electronic gearing calculations, allowing the servo axis to track line speed dynamically rather than running at a fixed setpoint. This reduces servo drive energy draw during low-throughput periods and extends motor bearing life by avoiding unnecessary high-speed operation.

For energy monitoring at the panel level, the FM350-1 counter data can be correlated with power measurements from a SENTRON PAC3200 power monitoring device or a 7KM PAC series power meter connected via Modbus RTU or PROFIBUS. This combination gives plant engineers a direct view of the relationship between mechanical throughput (pulses counted) and electrical energy consumed — the foundation of meaningful energy intensity KPIs.

Power Optimization in Real Production Lines

In real production environments, the 6ES7350-1AH03-0AE0 FM350-1 delivers measurable energy and operational benefits across several common scenarios.

Conveyor and Material Handling: On multi-zone conveyor systems, the FM350-1 provides accurate belt speed feedback to the S7-300 CPU, which uses this data to command the SINAMICS G120 VFD to reduce belt speed during accumulation zones. Rather than running all conveyor zones at full speed continuously, the system trims drive frequency to match actual material flow — reducing motor energy consumption during partial-load periods without sacrificing throughput targets.

Packaging Line Synchronization: On high-speed packaging lines, line-speed synchronization between the infeed conveyor, the filling station, and the outfeed conveyor is critical to minimizing product jams and machine stops. The FM350-1 provides the master encoder reference that the S7-300 uses to synchronize all axis setpoints, reducing the frequency of emergency stops that waste energy through repeated acceleration cycles and cause mechanical wear on drive components.

Predictive Maintenance Integration: By logging encoder pulse counts over time and comparing them against expected values, the S7-300 CPU can detect gradual changes in motor or gearbox performance — such as slip or bearing drag — before they cause unplanned downtime. Early detection allows maintenance teams to schedule interventions during planned stops rather than reacting to failures, reducing the energy and production cost of unplanned restarts and extended warm-up cycles.

Inventory and Supply Assurance: The 6ES7350-1AH03-0AE0 is maintained in stock and undergoes functional testing prior to shipment, including verification of counting accuracy, encoder interface integrity, and backplane communication. Each unit is covered by a 12-month warranty, providing procurement teams with confidence in both availability and post-delivery support. For facilities managing spare parts programs, the FM350-1 is a recommended critical spare for any S7-300-based line where encoder feedback is used for drive control or energy monitoring.

Energy Optimization FAQ

Q1: How does the 6ES7350-1AH03-0AE0 FM350-1 contribute to energy savings in motor-driven applications?
The FM350-1 provides high-accuracy encoder pulse counting that enables the S7-300 CPU to implement closed-loop speed control via a connected VFD such as the SINAMICS G120 or MICROMASTER 440. By continuously trimming drive frequency to match actual process demand rather than running at fixed rated speed, the system eliminates excess motor energy consumption during partial-load conditions — typically the largest source of avoidable energy waste in conveyor, pump, and fan applications.

Q2: Is the 6ES7350-1AH03-0AE0 compatible with both PROFIBUS DP and PROFINET IO networks?
The FM350-1 module itself communicates with the S7-300 CPU via the internal backplane bus and does not directly connect to a fieldbus network. Network connectivity is determined by the CPU and communications processor modules installed in the same rack. A standard S7-300 CPU 315-2 DP provides PROFIBUS DP connectivity, while adding a CP 343-1 enables PROFINET IO. The FM350-1 counter data is accessible to any network-connected device through the CPU’s data blocks.

Q3: Can the FM350-1 replace an older 6ES7350-1AH00-0AE0 or 6ES7350-1AH01-0AE0 module without hardware changes?
The 6ES7350-1AH03-0AE0 is the current production version of the FM350-1 and is generally backward-compatible with earlier hardware revisions in the same series. The module occupies the same S7-300 rack slot and uses the same 40-pin front connector wiring. Configuration is performed using STEP 7 or TIA Portal with the FM350-1 parameter assignment tool. It is recommended to verify the firmware version of the S7-300 CPU and update the hardware catalog in STEP 7 before commissioning the replacement module.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Each 6ES7350-1AH03-0AE0 unit is functionally tested prior to shipment to verify counting accuracy across the full frequency range, correct encoder interface operation (both 5 V TTL and 24 V HTL), and error-free backplane communication with an S7-300 CPU. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Units that fail during the warranty period are repaired or replaced. For time-critical applications, in-stock availability ensures rapid dispatch to minimize production downtime.
