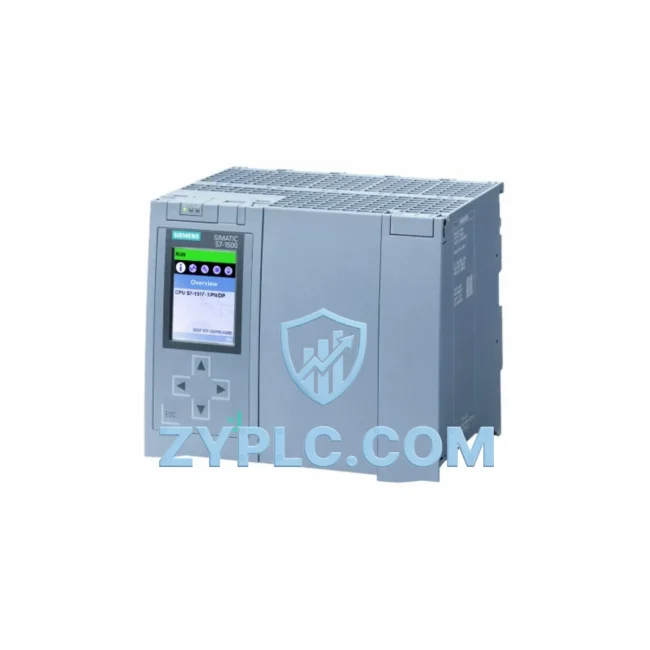

Siemens 6ES7517-3AP00-0AB0 System-Ready CPU for S7-1500 Architecture
The Siemens 6ES7517-3AP00-0AB0 — designated as the CPU 1517-3 PN/DP — is a high-performance central processing unit engineered for deployment within the SIMATIC S7-1500 automation platform. Rather than functioning as a standalone controller, this CPU is designed to serve as the command nucleus of a fully integrated, multi-layer control architecture. Its role spans from coordinating distributed I/O across PROFINET rings to managing redundant communication paths, synchronizing safety-rated modules, and interfacing with enterprise-level SCADA and MES systems. In demanding industrial environments — from automotive assembly lines to power generation substations — the 6ES7517-3AP00-0AB0 delivers the processing bandwidth, communication versatility, and system consistency required for mission-critical automation.
Architecture Specification Table
| Parameter |
Specification |
| System Role |
Central Processing Unit — S7-1500 Control Layer |
| CPU Designation |
CPU 1517-3 PN/DP |
| Work Memory |
3 MB (program) / 10 MB (data) |
| Processing Speed |
1 ns per bit operation (typical) |
| Communication Interfaces |
2× PROFINET (IRT capable), 1× PROFIBUS DP (Master/Slave) |
| Integrated Web Server |
Yes — for diagnostics and remote monitoring |
| Motion Control |
Up to 2,048 axes (technology objects) |
| Security Features |
Know-how protection, copy protection, access levels |
| Operating Voltage |
24 V DC (via backplane bus) |
| Operating Temperature |
0°C to +60°C |
| Mounting |
S7-1500 rack (e.g., UR2, UR2-H) — DIN rail compatible |
| Firmware |
Compatible with TIA Portal V15 and above |
| Warranty |
12-Month Warranty — tested prior to shipment |
Coordinated Control System Design
The 6ES7517-3AP00-0AB0 achieves its full potential when integrated within a coherent S7-1500 system architecture. At the power layer, the PM 70W 120/230V AC power supply module provides stable 24 V DC to the backplane, ensuring uninterrupted operation of the CPU and all connected I/O modules. The CPU slots into the UR2 mounting rack alongside digital and analog I/O modules such as the SM 521 DI 16×24VDC HF and SM 531 AI 8×U/I/RTD/TC ST, which handle field-level signal acquisition from sensors, actuators, and process instrumentation.
At the network layer, the CPU’s dual PROFINET interfaces support IRT (Isochronous Real-Time) communication, enabling deterministic data exchange with distributed I/O stations such as the ET 200SP and ET 200MP remote I/O systems. These distributed nodes extend the control reach across large plant floors without compromising cycle time or signal integrity. The integrated PROFIBUS DP master port allows backward-compatible communication with legacy field devices, drives, and third-party instruments — a critical feature in brownfield modernization projects where mixed-generation equipment coexists.
For human-machine interface integration, the CPU communicates natively with SIMATIC HMI panels such as the TP1500 Comfort Panel and KTP900 Basic Panel via PROFINET, enabling operators to monitor process variables, acknowledge alarms, and adjust setpoints in real time. At the drive layer, the CPU coordinates with SINAMICS S120 and G120 variable frequency drives through PROFINET or PROFIBUS, enabling closed-loop motor control, speed regulation, and energy-optimized drive sequencing. Safety-rated modules such as the F-DI 8×24VDC HF and F-DO 4×24VDC/2A PP HF can be integrated into the same rack, allowing the CPU to manage standard and safety-rated I/O within a unified programming environment using STEP 7 Safety in TIA Portal.
Communication gateways such as the IE/PB Link PN IO bridge the PROFINET backbone to legacy PROFIBUS segments, while the CP 1543-1 communications processor extends connectivity to Industrial Ethernet and enables secure remote access via VPN. This layered architecture — from field sensors through I/O modules, drives, and HMI panels up to the CPU and enterprise network — ensures that the 6ES7517-3AP00-0AB0 functions as a true system integrator rather than an isolated controller.
Application in Layered Automation Systems
In manufacturing environments, the CPU 1517-3 PN/DP manages multi-axis motion sequences, conveyor synchronization, and quality inspection triggers across high-speed assembly lines. Its fast bit-processing speed and large work memory allow it to handle complex ladder logic, structured text, and function block programs simultaneously — essential for automotive body-in-white welding lines or electronics SMT production.
In power generation and electrical substation applications, the CPU’s redundant PROFINET capability supports ring topology configurations that maintain communication continuity even during cable faults or switch failures. This is particularly valuable in 110 kV substation automation where IEC 61850 GOOSE messaging and protection relay coordination demand sub-millisecond response times.
In petrochemical and refinery process control, the CPU integrates with SIMATIC PCS 7 distributed control system architectures, managing continuous process loops for temperature, pressure, flow, and level control. Its compatibility with HART-enabled analog modules allows direct communication with smart field instruments, reducing wiring complexity and enabling predictive maintenance through device diagnostics.
Water treatment and municipal utility applications benefit from the CPU’s web server functionality, which enables remote diagnostics and parameter adjustment without requiring a dedicated engineering workstation on-site. Mining and metallurgical operations leverage the CPU’s high I/O capacity and motion control capabilities to manage crusher drives, conveyor systems, and ore processing equipment across geographically distributed plant sections.
Architecture Engineering FAQ
Q1: Is the 6ES7517-3AP00-0AB0 compatible with existing S7-1500 racks and I/O modules?
Yes. The CPU 1517-3 PN/DP is fully compatible with all standard S7-1500 mounting racks (UR1, UR2, UR2-H) and the complete range of S7-1500 signal modules, technology modules, and communication modules. It is programmed using TIA Portal V15 or higher, and existing projects developed for other S7-1500 CPUs can be migrated with minimal reconfiguration. Mixed installations combining standard and fail-safe (F-series) modules are fully supported within the same rack.
Q2: Can this CPU support PROFINET IRT for motion control and high-speed I/O synchronization?
Yes. Both PROFINET interfaces on the 6ES7517-3AP00-0AB0 support IRT (Isochronous Real-Time) communication with send cycles as low as 250 µs. This enables precise synchronization of distributed I/O stations and SINAMICS drives for coordinated multi-axis motion control. The CPU’s technology objects support up to 2,048 axes, making it suitable for complex packaging machinery, robotic cells, and high-speed printing lines.
Q3: What does the 12-Month Warranty cover, and how is the unit tested before shipment?
Every 6ES7517-3AP00-0AB0 unit supplied by ZYPLC undergoes functional testing prior to dispatch, including power-on verification, communication interface checks, and firmware version confirmation. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped in anti-static packaging with appropriate documentation. For warranty claims or technical support, contact our engineering team directly.
