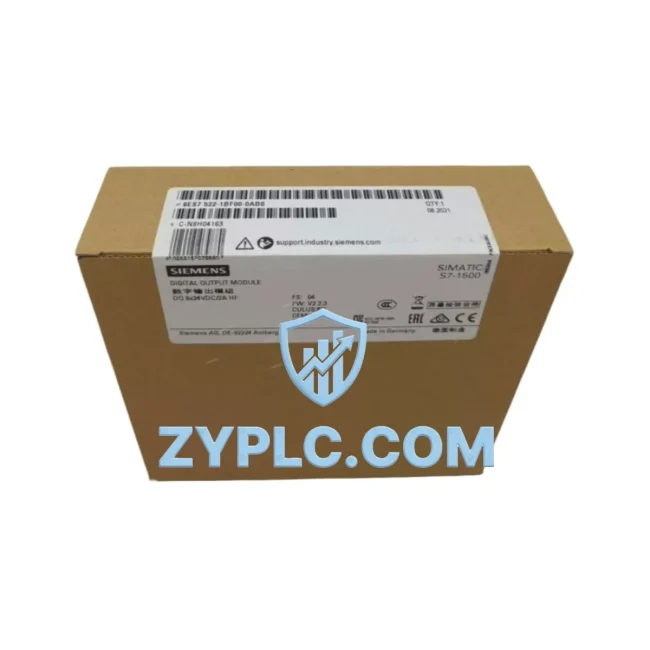

Siemens 6ES7522-1BF00-0AB0 Energy-Saving DQ Module S7-1500

Siemens 6ES7522-1BF00-0AB0 Energy-Saving DQ Module S7-1500: Precision Output Control for Optimized Line Efficiency

The Siemens 6ES7522-1BF00-0AB0 is a high-density digital output module designed for the SIMATIC S7-1500 automation platform. Rated at DQ 32×24V DC / 0.5A, this module delivers deterministic, low-latency switching control across 32 output channels, enabling factories to eliminate unnecessary actuator dwell time, reduce idle-state energy draw, and synchronize production line beats with sub-millisecond precision. In an era where industrial energy costs are under constant scrutiny, the 6ES7522-1BF00-0AB0 serves as a foundational component in any efficiency-first automation architecture.

Unlike generic output modules, the 6ES7522-1BF00-0AB0 integrates natively with the S7-1500 backplane bus, supporting isochronous real-time (IRT) communication via PROFINET. This tight coupling with the CPU — whether a CPU 1511-1 PN, CPU 1515-2 PN, or higher-tier CPU 1518-4 PN/DP — ensures that output switching commands are executed within the same deterministic cycle, preventing energy-wasting output overlap or delayed actuator release that commonly inflates compressed-air and hydraulic consumption on production lines.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES7522-1BF00-0AB0 does not operate in isolation — its energy efficiency contribution is amplified when deployed within a well-structured S7-1500 automation architecture. On the power supply side, the SITOP PSU8600 modular power supply provides load-adaptive output, reducing standby losses during low-demand production windows. The module’s 24V DC outputs connect directly to field devices such as solenoid valves, contactors, and indicator lamps, all of which benefit from the module’s per-channel short-circuit protection, preventing energy-wasting fault loops from persisting undetected.

For motor-driven loads, the 6ES7522-1BF00-0AB0 works in concert with SINAMICS G120 variable frequency drives. The DQ module issues start/stop and direction commands to the G120 drive’s digital inputs, while the drive’s internal energy recovery function (via the SINAMICS G120 Smart Line Module) feeds regenerative braking energy back to the DC bus — a closed-loop energy architecture that the precise, low-latency output switching of the 6ES7522-1BF00-0AB0 makes possible without command jitter.

On the input and monitoring side, the 6ES7521-1BH00-0AB0 (DI 32×24V DC HF) digital input module pairs naturally with this DQ module, forming a matched I/O pair on the S7-1500 rack. Together, they enable fast feedback loops: the DI module captures sensor states (proximity switches, end-stops, flow sensors), and the CPU processes these within the same IRT cycle before the DQ module actuates the corresponding output — eliminating the inter-cycle latency that causes energy-wasting actuator overshoot in high-speed assembly lines.

For energy monitoring at the panel level, integrating a SENTRON PAC3200 or SENTRON PAC4200 power monitoring device into the same control cabinet allows operators to correlate DQ output activity with real-time power consumption data. When the S7-1500 CPU — via the TIA Portal V17/V18 engineering environment — logs output switching events alongside PAC energy readings, maintenance teams gain the data foundation for predictive energy audits, identifying which actuator groups consume disproportionate power during specific production phases.

Communication-wise, the S7-1500 rack hosting the 6ES7522-1BF00-0AB0 can be extended via PROFIBUS DP or PROFINET IO to remote I/O stations using ET 200SP or ET 200MP distributed I/O systems, decentralizing output control closer to the machine without adding CPU scan-time overhead. This distributed architecture reduces cable runs, lowers installation energy losses, and improves response times for remote actuators — all contributing to a leaner energy footprint per production cycle.

For visualization and operator intervention, a SIMATIC HMI TP1200 Comfort panel connected via PROFINET provides real-time output status dashboards, allowing line operators to identify stuck-on outputs — a common source of hidden energy waste — without requiring PLC programmer intervention. The combination of transparent output diagnostics from the 6ES7522-1BF00-0AB0 and HMI visualization closes the energy awareness loop at the operator level.

Power Optimization in Real Production Lines

In discrete manufacturing environments — automotive body shops, electronics assembly lines, food and beverage packaging — the 6ES7522-1BF00-0AB0 delivers measurable energy optimization through three primary mechanisms.

Elimination of Output Overlap Waste: In multi-axis pneumatic systems, simultaneous activation of opposing solenoid valves (e.g., extend and retract on the same cylinder) wastes compressed air and risks mechanical damage. The 6ES7522-1BF00-0AB0’s IRT-synchronized output switching, governed by the S7-1500 CPU’s motion sequencing logic, enforces dead-band timing at the hardware level, ensuring mutually exclusive output states without relying on software interlocks alone. This reduces compressor load cycles and extends valve service life.

Reduced Idle-State Energy Draw: The module’s per-channel diagnostic capability detects wire-break and short-circuit conditions in real time. In traditional systems, a shorted output channel may remain energized for an entire production shift before a technician identifies the fault — continuously drawing current and heating the wiring harness. The 6ES7522-1BF00-0AB0 flags the fault within one CPU scan cycle, allowing the S7-1500 to de-energize the affected channel and log the event to the TIA Portal diagnostic buffer, minimizing both energy waste and thermal stress on field wiring.

Line Beat Optimization: In high-throughput assembly lines, output switching latency directly affects cycle time. A 5ms delay in actuator command execution across 20 stations accumulates to 100ms of lost cycle time per part — translating to reduced throughput and higher energy cost per unit produced. The 6ES7522-1BF00-0AB0’s deterministic backplane bus communication ensures output commands are executed within the CPU’s configured OB1 cycle time (as low as 1ms on high-performance S7-1500 CPUs), tightening line beat and improving overall equipment effectiveness (OEE) without increasing installed power.

Predictive Maintenance Enablement: By logging output switching counts and diagnostic events through the S7-1500’s integrated data logging functions, maintenance teams can establish actuator wear baselines. When a solenoid valve begins drawing anomalous current (detectable via SENTRON power monitoring correlated with DQ output state), a predictive maintenance alert can be issued before the valve fails — avoiding unplanned downtime that forces lines to run at reduced speed (and thus reduced energy efficiency) during recovery periods.

All units of the 6ES7522-1BF00-0AB0 supplied by ZYPLC are sourced from verified supply channels, undergo functional output switching tests across all 32 channels prior to shipment, and are covered by a 12-month warranty. Stock is maintained for immediate dispatch, supporting urgent MRO (maintenance, repair, and operations) requirements without extended lead times.

Energy Optimization FAQ

Q1: How does the 6ES7522-1BF00-0AB0 contribute to reducing factory energy consumption?
The module’s per-channel diagnostics immediately detect and report short-circuit and overload conditions, preventing sustained fault currents that waste energy and generate heat. Its IRT-synchronized output switching eliminates actuator command overlap, reducing unnecessary compressed-air and hydraulic energy consumption. When integrated with SENTRON power monitoring and TIA Portal data logging, it provides the output-state visibility needed to identify and eliminate hidden energy waste across production shifts.

Q2: Is the 6ES7522-1BF00-0AB0 compatible with existing S7-1500 racks and TIA Portal projects?
Yes. The 6ES7522-1BF00-0AB0 is fully compatible with all SIMATIC S7-1500 CPU variants and integrates directly into TIA Portal V13 SP1 and later versions. It can replace older DQ modules on the same rack without hardware modification, provided the rack’s power budget accommodates the module’s ≤3.5W backplane consumption. No additional licensing is required for standard digital output functionality.

Q3: What is the recommended replacement or upgrade path from older Siemens DQ modules?
For systems migrating from S7-300 or S7-400 platforms, the 6ES7522-1BF00-0AB0 is the recommended S7-1500 equivalent for 24V DC digital output applications. The migration is supported by TIA Portal’s hardware migration wizard, which maps existing I/O addresses to the new module configuration. For applications requiring higher per-channel current (up to 2A), the 6ES7522-1BH00-0AB0 (DQ 16×24V DC/2A) is the appropriate alternative within the same S7-1500 module family.

Q4: What testing and warranty coverage does ZYPLC provide for this module?
Every 6ES7522-1BF00-0AB0 unit shipped by ZYPLC undergoes a pre-shipment functional test covering all 32 output channels, backplane bus communication verification, and diagnostic response validation. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. For urgent MRO requirements, in-stock units are available for same-day dispatch. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for availability confirmation and lead-time commitments.
