Siemens 6ES7648-2BF02-0XG0 Energy-Saving Memory Module

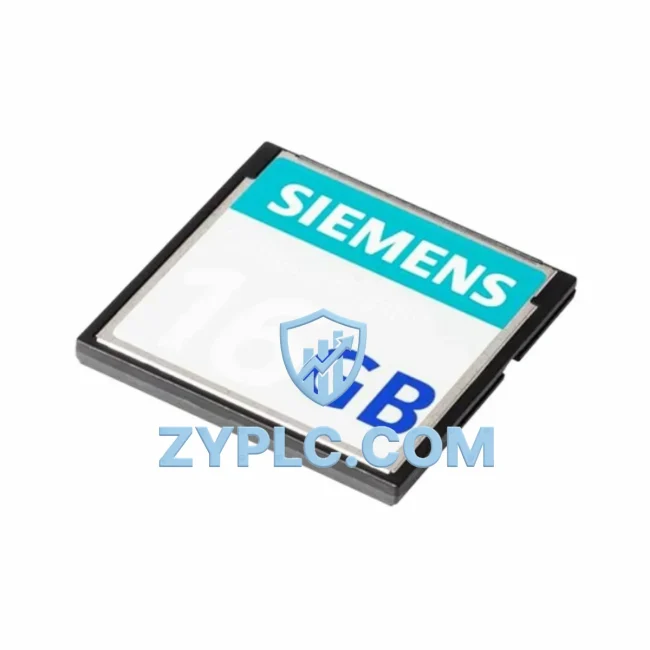

Siemens 6ES7648-2BF02-0XG0 Energy-Saving Memory Module for Optimized SIMATIC Automation

The Siemens 6ES7648-2BF02-0XG0 is a high-performance CompactFlash memory module engineered for SIMATIC Industrial PCs (IPC), delivering reliable, low-power data storage at the heart of modern industrial automation architectures. In energy-intensive manufacturing environments, every component in the control chain contributes to overall system efficiency — and the 6ES7648-2BF02-0XG0 is no exception. By providing fast, stable, and non-volatile program and data storage, this module eliminates the read/write latency bottlenecks that cause unnecessary CPU load cycles, extended scan times, and elevated power draw across the entire control platform.

Designed to integrate seamlessly with Siemens SIMATIC IPC platforms such as the IPC477E, IPC547G, and IPC677D series, the 6ES7648-2BF02-0XG0 supports the full SIMATIC software ecosystem — including STEP 7, TIA Portal, WinCC SCADA, and energy monitoring applications built on SIMATIC Energy Suite. When paired with a SIMATIC S7-1500 PLC or S7-300 controller, the module ensures that program execution cycles remain tight and deterministic, reducing idle processing time and the associated energy overhead.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully integrated SIMATIC automation architecture, the 6ES7648-2BF02-0XG0 memory module serves as the persistent storage backbone for the industrial PC that coordinates higher-level control logic, HMI visualization, and energy data aggregation. Consider a typical mid-scale discrete manufacturing line: a SIMATIC S7-1500 CPU 1516-3 PN/DP handles real-time PLC logic and communicates over PROFINET with distributed ET 200SP I/O modules at each machine station. The IPC running the 6ES7648-2BF02-0XG0 hosts the WinCC Runtime Professional SCADA layer, which collects energy consumption data from SENTRON PAC3200 power monitoring devices installed at the main distribution panels.

Drive-level efficiency is managed by SINAMICS G120 variable frequency drives controlling conveyor and pump motors, with energy recovery functions enabled through the drive’s integrated DC bus braking. The IPC’s CF card — the 6ES7648-2BF02-0XG0 — stores the WinCC project, trend archives, and alarm logs without the mechanical failure risk of a spinning hard disk, ensuring that energy data is never lost during an unexpected power event. Servo axes on the line are coordinated by a SIMOTION D425-2 motion controller, which interfaces with the S7-1500 via PROFINET IRT for synchronized, energy-optimized motion profiles.

Communication between the IPC, PLC, drives, and field devices flows through a SCALANCE X208 managed Ethernet switch, maintaining deterministic cycle times that prevent the retransmission overhead that wastes both bandwidth and processing energy. For facilities targeting ISO 50001 energy management compliance, the IPC running on the 6ES7648-2BF02-0XG0 can host SIMATIC Energy Suite alongside WinCC, enabling real-time KPI dashboards for specific energy consumption (SEC) per production unit. Additional field-level energy data is gathered via SIMATIC ET 200M with EM 340 energy metering modules, feeding granular consumption figures back to the IPC for trend analysis and anomaly detection.

The result is a tightly coupled, data-rich automation ecosystem where the 6ES7648-2BF02-0XG0 acts as the silent enabler — ensuring that every joule of energy data captured by the SENTRON meters, every drive efficiency log from the SINAMICS units, and every motion profile executed by the SIMOTION controller is reliably stored, instantly accessible, and never a bottleneck to system throughput.

Power Optimization in Real Production Lines

Factory energy waste rarely comes from a single source — it accumulates through dozens of small inefficiencies: extended machine startup sequences, slow HMI response times that delay operator decisions, data logging gaps that hide energy anomalies, and unplanned downtime that forces cold restarts of energy-hungry equipment. The Siemens 6ES7648-2BF02-0XG0 addresses several of these vectors directly.

First, by replacing mechanical hard drives in SIMATIC IPCs with this solid-state CompactFlash module, facilities eliminate the single most common cause of IPC failure in vibration-prone environments — disk head crashes. An IPC that stays online is an IPC that doesn’t trigger an unplanned shutdown sequence, which in motor-heavy lines can mean avoiding the high inrush current spikes that occur every time large drives restart from cold. Fewer restarts mean lower peak demand charges on the facility’s energy bill.

Second, the fast read performance of the 6ES7648-2BF02-0XG0 accelerates WinCC project load times at shift startup. In a three-shift operation, shaving 90 seconds off the IPC boot-and-ready sequence across 250 working days saves meaningful operator time and reduces the window during which machines idle at partial load waiting for the SCADA system to come online.

Third, reliable non-volatile storage ensures that energy trend data collected by SIMATIC Energy Suite is never corrupted by power interruptions. Continuous, gap-free energy logs are the foundation of effective predictive maintenance scheduling — identifying motors running above their efficiency curve before they fail, flagging drives operating outside their optimal load range, and pinpointing compressed air leaks through abnormal compressor motor consumption patterns. All of this analysis depends on the integrity of the data stored on the 6ES7648-2BF02-0XG0.

At ZYPLC, every 6ES7648-2BF02-0XG0 unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and covered by a 12-month warranty. Stock is maintained for immediate dispatch, minimizing the production downtime associated with waiting for critical spare parts.

Energy Optimization FAQ

Q1: How does the 6ES7648-2BF02-0XG0 contribute to energy savings compared to a standard HDD-based IPC?
Solid-state CompactFlash storage draws significantly less power than a mechanical hard disk drive during both active and idle states. More importantly, it eliminates the seek latency that forces the IPC CPU to wait — reducing unnecessary processing cycles and the associated power overhead. In continuous 24/7 operations, this translates to measurable reductions in IPC-level energy consumption over the course of a year.

Q2: Is the 6ES7648-2BF02-0XG0 compatible with my existing SIMATIC IPC and TIA Portal project?
The 6ES7648-2BF02-0XG0 is designed for SIMATIC IPC platforms that use a standard CompactFlash interface, including the IPC477E, IPC547G, IPC677D, and IPC847D series. It is compatible with Windows-based SIMATIC IPC operating environments running STEP 7, TIA Portal V13 and above, and WinCC Runtime. Always verify the CF card capacity requirement specified in your IPC’s hardware manual before ordering.

Q3: What is the recommended replacement and testing process when substituting this module in a live production environment?
Best practice is to image the existing CF card to a backup medium before removal, install the new 6ES7648-2BF02-0XG0, restore the image, and perform a full IPC boot and SCADA connectivity test during a planned maintenance window. ZYPLC ships all units pre-tested and ready for installation. The 12-month warranty covers any functional defects identified after installation under normal operating conditions.

Q4: Does ZYPLC offer warranty support and what does the 12-month coverage include?
Yes. All Siemens 6ES7648-2BF02-0XG0 units sold through ZYPLC carry a 12-month warranty from the date of shipment. Coverage includes functional failure under normal industrial operating conditions. ZYPLC maintains in-stock inventory for rapid replacement dispatch, ensuring your production line is not held up waiting for warranty resolution. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for warranty claims and pre-sales compatibility consultation.
