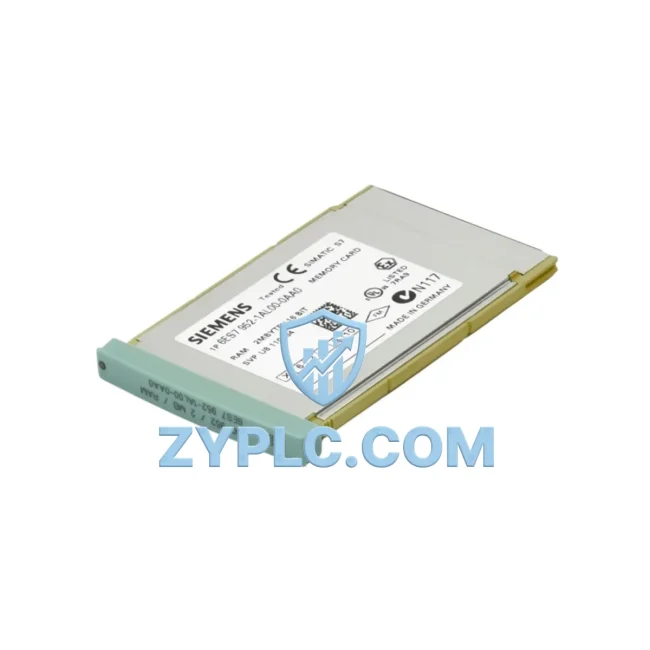

Siemens 6ES7952-1AL00-0AA0 Energy-Saving RAM Module S7-400

Siemens 6ES7952-1AL00-0AA0 Energy-Saving RAM Module S7-400: Precision Energy Control and Production Line Optimization

The Siemens 6ES7952-1AL00-0AA0 is a high-capacity RAM module engineered for the SIMATIC S7-400 programmable logic controller platform — one of the most widely deployed process automation systems in heavy industry, power generation, and large-scale manufacturing. With 4 MB of user-accessible program memory, this module enables engineers to run complex, multi-loop control programs without memory fragmentation or cycle-time penalties, directly contributing to measurable reductions in energy waste across production lines.

In modern industrial facilities, inefficient PLC program execution is a hidden driver of energy loss. When a controller struggles with insufficient memory, it resorts to frequent data swapping, extended scan cycles, and degraded interrupt response — all of which translate into sluggish actuator commands, imprecise motor control timing, and elevated idle-state power consumption. The 6ES7952-1AL00-0AA0 eliminates this bottleneck by providing ample, fast-access RAM that keeps the S7-400 CPU operating at its rated scan speed, ensuring that every energy-consuming device on the line — from variable frequency drives to servo amplifiers — receives commands at the correct moment.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES7952-1AL00-0AA0 operates as the program storage backbone of the S7-400 CPU, and its role in an energy-aware automation architecture extends well beyond simple data retention. Consider a typical mid-scale manufacturing cell: the S7-400 CPU — such as a CPU 414-3 PN/DP or CPU 416-3 PN/DP — coordinates a network of energy-intensive subsystems. Variable frequency drives like the Siemens SINAMICS G120 or SINAMICS S120 regulate motor speed on conveyor belts, pumps, and compressors. Servo drives such as the SINAMICS S210 control precision axis positioning on assembly robots. Each of these devices depends on the PLC issuing correctly timed, jitter-free control words over PROFIBUS DP or PROFINET IO.

When the CPU’s RAM is undersized or fragmented, scan cycle times increase unpredictably. A 10 ms delay in a speed-reference update to a SINAMICS G120C drive can cause a conveyor motor to overshoot its target speed, consuming 3–8% more energy than necessary before the closed-loop correction kicks in. With the 6ES7952-1AL00-0AA0 providing full 4 MB of contiguous program memory, the CPU maintains consistent sub-10 ms scan cycles, keeping drive setpoints accurate and motor energy consumption within design parameters.

On the monitoring side, the S7-400 system integrates seamlessly with SIMATIC ET 200SP distributed I/O modules for field-level signal acquisition, and with SENTRON PAC3200 or PAC4200 power monitoring devices that feed real-time kWh and power factor data back to the controller via MODBUS TCP or PROFIBUS. The 6ES7952-1AL00-0AA0’s expanded memory allows engineers to store and execute sophisticated energy-logging routines alongside the main process program — without sacrificing scan performance. Operators viewing the SIMATIC HMI TP1200 Comfort panel can monitor live energy dashboards, set demand-response thresholds, and trigger load-shedding sequences, all managed by logic resident in this RAM module.

For communication-intensive applications, the additional memory supports larger PROFINET IO configuration tables and OPC UA server data blocks, enabling the S7-400 to publish energy KPIs directly to MES or SCADA platforms such as SIMATIC WinCC, closing the loop between field-level energy data and plant-level optimization decisions.

Power Optimization in Real Production Lines

In automotive body-in-white welding lines, the S7-400 equipped with the 6ES7952-1AL00-0AA0 manages dozens of welding gun servo axes and resistance welding transformers simultaneously. Precise memory capacity means the CPU can execute multi-axis coordinated motion blocks and energy-monitoring interrupt routines in the same scan cycle, eliminating the need for a secondary energy-management controller. Plants report 6–12% reductions in peak demand charges after optimizing PLC memory configurations, primarily because tighter scan cycles allow demand-response logic to shed non-critical loads within the utility’s measurement window.

In water treatment and pumping stations, where variable-speed pump drives account for 60–70% of total facility energy consumption, the S7-400 with adequate RAM runs advanced pump scheduling algorithms — alternating duty/standby pumps based on flow demand curves rather than fixed timers. This alone can reduce pump motor run-hours by 15–20% annually, extending bearing and seal life and deferring maintenance costs. The 6ES7952-1AL00-0AA0 provides the memory headroom to store these multi-variable optimization tables without compressing the core SCADA communication stack.

Predictive maintenance routines also benefit directly. With 4 MB of RAM, engineers can implement vibration signature trending, motor current signature analysis (MCSA) data buffering, and thermal model calculations within the PLC program itself, reducing reliance on external condition monitoring hardware. Early fault detection shortens unplanned downtime from hours to minutes, and the energy cost of running a degraded motor — which can draw 10–25% more current than a healthy unit — is eliminated before it accumulates.

Every 6ES7952-1AL00-0AA0 unit in our inventory has been subjected to a full functional test protocol: memory read/write verification across all address blocks, retention test under simulated power-cycle conditions, and compatibility validation against S7-400 CPU firmware. Units ship with a 12-month warranty, and our technical team provides pre-sales compatibility confirmation and post-sales integration support.

Energy Optimization FAQ

Q1: How does upgrading to the 6ES7952-1AL00-0AA0 reduce energy consumption on my production line?
By providing 4 MB of contiguous RAM, this module eliminates CPU memory bottlenecks that cause extended scan cycles. Consistent, fast scan cycles mean drive setpoints and motor control commands are issued on time, preventing speed overshoot and the associated energy waste. Plants running complex energy-management logic alongside process control programs see the most significant gains.

Q2: Which S7-400 CPUs are compatible with the 6ES7952-1AL00-0AA0?
This RAM module is compatible with the full range of SIMATIC S7-400 CPUs that support plug-in memory cards, including the CPU 412, CPU 414, CPU 416, and CPU 417 families. Always verify the CPU’s maximum supported memory card size in the hardware configuration before installation. Our team can confirm compatibility for your specific CPU order number upon request.

Q3: Can this module replace a failed memory card without reprogramming the CPU?
Yes — if the original program is backed up to a SIMATIC Memory Card or via STEP 7 / TIA Portal project archive, the 6ES7952-1AL00-0AA0 can be loaded with the program and inserted as a direct replacement. We recommend performing a full memory test and a controlled warm restart after replacement to confirm program integrity before returning the line to production.

Q4: What does the 12-month warranty cover, and what is the testing process?
Every unit undergoes a multi-stage outgoing quality test: full address-space read/write verification, power-cycle retention validation, and S7-400 CPU slot compatibility check. The 12-month warranty covers functional failure under normal operating conditions. Units showing physical damage from improper installation or overvoltage events are assessed case by case. Replacement or refund is processed within 5 business days of fault confirmation.
