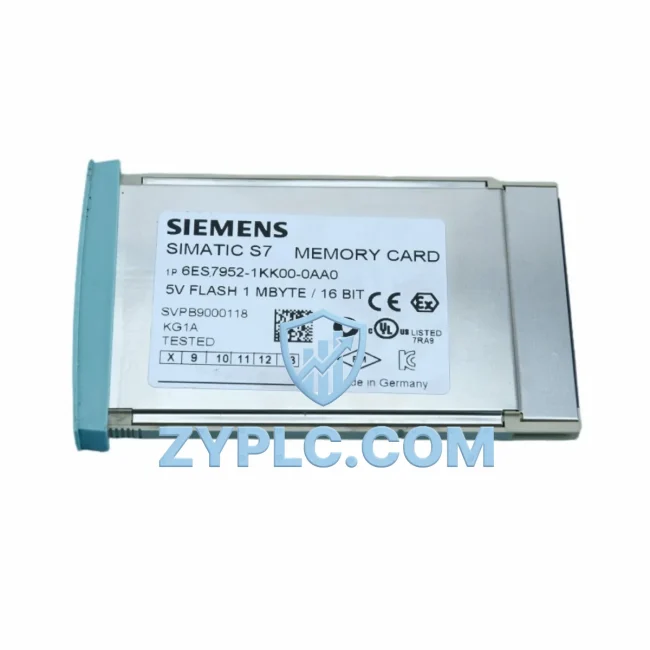

In modern industrial automation, the integrity of a programmable logic controller’s memory subsystem is not a peripheral concern — it is the backbone of deterministic control. The Siemens 6ES7952-1KK00-0AA0, a MC 952 series Flash Memory Card engineered for the SIMATIC S7-400 platform, occupies a critical position within the layered control architecture of process-intensive and discrete manufacturing environments. This component does not operate in isolation; it functions as the persistent program and data store that enables the CPU module to execute, recover, and maintain system state across power cycles, firmware updates, and redundancy switchovers.

Understanding the role of the 6ES7952-1KK00-0AA0 requires examining the full control hierarchy in which it operates. The SIMATIC S7-400 system is structured around a high-performance central rack that integrates the CPU, power supply, communication processors, and I/O interface modules into a unified backplane. The memory card slots directly into the CPU — such as the CPU 414-3 PN/DP or CPU 416-3 PN/DP — and stores the user program, data blocks, and system configuration in non-volatile Flash memory. This ensures that even after an unplanned power interruption or a controlled shutdown sequence, the controller resumes execution from a known, validated program state without requiring manual reload from an engineering workstation.

Architecture Specification Table

Coordinated Control System Design

The 6ES7952-1KK00-0AA0 achieves its full value when considered within the coordinated architecture of a complete S7-400 control system. At the CPU layer, the memory card works in tandem with the CPU 416-3 PN/DP (6ES7416-3XR05-0AB0), providing the persistent storage that allows the processor to maintain program integrity across all operational states. The CPU communicates downward to distributed I/O through PROFIBUS DP or PROFINET IO networks, where interface modules such as the IM 460-0 (6ES7460-0AA01-0AB0) and IM 461-0 (6ES7461-0AA01-0AB0) extend the rack architecture across expansion units, each carrying additional signal modules.

At the power layer, the PS 407 10A Power Supply (6ES7407-0KA02-0AA0) delivers stable 24 VDC and 5 VDC rails to the central rack, ensuring that the CPU and its inserted memory card receive clean, regulated power even during load transients caused by simultaneous I/O scanning and communication processing. Power quality at this layer directly affects the write endurance and data retention characteristics of the Flash memory.

At the I/O layer, digital input modules such as the SM 321 DI 32×DC 24V (6ES7321-1BL00-0AA0) and analog output modules such as the SM 332 AO 4×12Bit (6ES7332-5HD01-0AB0) feed process signals into the CPU’s execution cycle. The program stored on the 6ES7952-1KK00-0AA0 governs how these signals are processed, conditioned, and translated into control outputs — making the memory card the authoritative source of system behavior at every scan cycle.

At the communication layer, CP 443-1 Ethernet communication processors (6GK7443-1EX30-0XE0) extend the S7-400 system into plant-wide PROFINET and Industrial Ethernet networks, enabling integration with SCADA systems, MES platforms, and remote engineering stations. The program blocks stored on the memory card include the communication function blocks (FBs) and organization blocks (OBs) that govern these network interactions, including connection management, data exchange, and fault response routines.

At the human-machine interface layer, SIMATIC Panel PCs and TP1500 Comfort Panels connected via PROFINET retrieve real-time process values and alarm states from the S7-400 CPU. The consistency and completeness of the HMI display depend directly on the integrity of the data blocks stored on the 6ES7952-1KK00-0AA0 — any corruption or loss of the memory card’s contents would immediately affect operator visibility and control capability.

For redundant system architectures, the S7-400H platform pairs two CPUs in a hot-standby configuration. In this design, the memory card in each CPU must carry identical, synchronized program versions. The 6ES7952-1KK00-0AA0 supports this requirement by providing a stable, field-replaceable storage medium that can be programmed offline, verified, and swapped into either the active or standby CPU without requiring a full engineering workstation connection during maintenance windows.

Application in Layered Automation Systems

The 6ES7952-1KK00-0AA0 is deployed across a wide range of industrial sectors where the SIMATIC S7-400 platform serves as the primary control infrastructure.

In power generation and distribution facilities, S7-400 systems manage turbine control, switchgear sequencing, and load balancing. The memory card stores the protection logic and interlocking programs that must survive power outages and restart without operator intervention — a non-negotiable requirement in grid-connected generation assets.

In petrochemical and refinery environments, the S7-400 controls distillation columns, reactor feed systems, and emergency shutdown (ESD) sequences. The 6ES7952-1KK00-0AA0 retains the SIL-rated program logic that governs these safety-critical sequences, and its non-volatile Flash architecture ensures that no program loss occurs even during extended plant shutdowns or emergency de-energization events.

In water treatment and municipal infrastructure plants, S7-400 controllers manage pump sequencing, chemical dosing, and filtration cycles across geographically distributed stations. The memory card’s role in these applications extends to storing communication parameters for remote PROFIBUS DP outstations, ensuring that the central controller can re-establish field communication automatically after a network interruption.

In automotive and heavy manufacturing assembly lines, S7-400 systems coordinate multi-axis motion, robotic cell integration, and quality inspection gates. The program stored on the 6ES7952-1KK00-0AA0 includes the recipe management blocks and production parameter sets that define product variants — enabling rapid changeover without manual reprogramming at the engineering workstation.

In mining and metallurgical operations, where environmental conditions include elevated dust, vibration, and temperature cycling, the Flash memory architecture of the 6ES7952-1KK00-0AA0 provides superior data retention compared to battery-backed RAM alternatives, eliminating the maintenance burden of periodic battery replacement in remote or hazardous locations.

Architecture Engineering FAQ

Q1: Is the 6ES7952-1KK00-0AA0 compatible with all S7-400 CPU variants, and can it be used in S7-400H redundant systems?
The 6ES7952-1KK00-0AA0 is compatible with the full range of SIMATIC S7-400 CPUs, including the CPU 412, CPU 414, CPU 416, and CPU 417 families. It is also fully supported in S7-400H high-availability redundant configurations, where identical memory cards are installed in both the active and standby CPUs. For redundant deployments, it is recommended to program and verify both cards from the same project source using STEP 7 or TIA Portal before installation to ensure program consistency across the redundancy pair.

Q2: What is the recommended procedure for replacing the memory card during live system maintenance, and how does this affect system availability?
In standard S7-400 single-CPU configurations, memory card replacement requires the CPU to be placed in STOP mode. The replacement card should be pre-programmed with the validated project before insertion to minimize downtime. In S7-400H redundant systems, the memory card in the standby CPU can be replaced while the active CPU continues process control, after which a controlled switchover allows the previously active CPU to be updated — achieving zero-process-interruption maintenance. All replacement units supplied under the 12-Month Warranty are tested and verified prior to dispatch to ensure immediate operational readiness.

Q3: How does the 12-Month Warranty apply to the 6ES7952-1KK00-0AA0, and what support is available for system integration and commissioning?
Every 6ES7952-1KK00-0AA0 supplied by ZYPLC is covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. The warranty covers the full memory capacity, data retention characteristics, and physical interface integrity of the card. In addition to warranty coverage, ZYPLC provides pre-sales technical consultation to confirm compatibility with your specific CPU variant and system architecture, as well as post-sales support for commissioning questions related to program loading, memory card formatting, and STEP 7 / TIA Portal project transfer procedures. Contact our technical team at [email protected] or +86 19859288691 for architecture-specific guidance.
