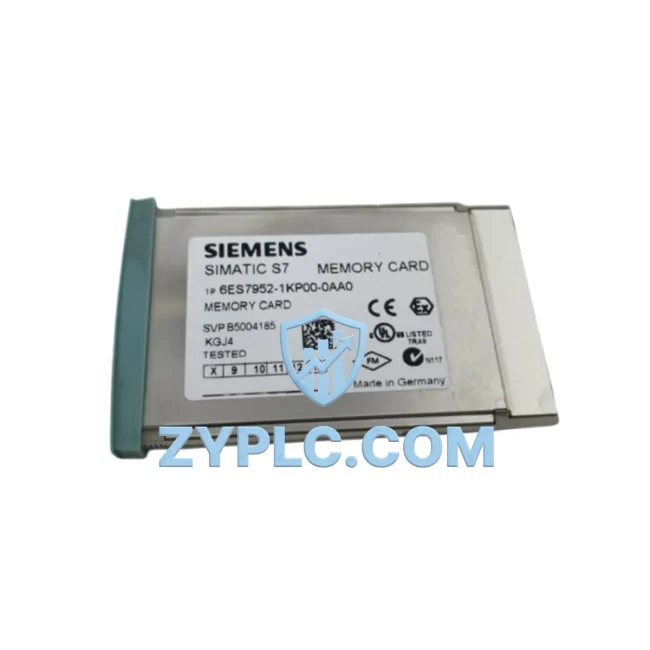

The Siemens 6ES7952-1KP00-0AA0 is an 8MB Flash Memory Card engineered for seamless integration within the SIMATIC S7-400 programmable logic controller platform — one of Siemens’ most robust and widely deployed control architectures in heavy industry. Rather than functioning as a standalone peripheral, this memory module plays a foundational role in the overall control system architecture, enabling reliable program storage, data retention, and firmware management across the full hierarchy of automation layers.

In a layered automation system, the S7-400 CPU — such as the CPU 414-3 PN/DP or CPU 416-3 PN/DP — sits at the heart of the control layer, coordinating signal acquisition from distributed I/O modules, executing ladder logic or structured text programs, and communicating upstream to SCADA or MES platforms. The 6ES7952-1KP00-0AA0 Flash Memory Card is inserted directly into the CPU’s memory slot, providing non-volatile storage for the user program, data blocks, and system configuration. Without a correctly specified memory card, the CPU cannot retain its program across power cycles, making this component mission-critical for system continuity.

At the I/O layer, the S7-400 platform interfaces with a wide range of signal modules — including SM 421 digital input modules, SM 422 digital output modules, SM 431 analog input modules, and SM 432 analog output modules — all mounted on UR1 or UR2 universal racks. The memory card ensures that all I/O configuration data, including channel assignments, scaling parameters, and diagnostic settings, is preserved and immediately available upon system restart. This eliminates the need for manual re-parameterization after power interruptions, significantly reducing downtime in continuous process environments.

At the network and communication layer, the S7-400 CPU communicates via PROFIBUS-DP and PROFINET IO, connecting to distributed field devices such as ET 200M remote I/O stations, SINAMICS G120 variable frequency drives, and SCALANCE X-series industrial Ethernet switches. The program stored on the 6ES7952-1KP00-0AA0 governs all communication configurations, including DP master/slave relationships, IO controller assignments, and GSD file-based device parameterization. A high-capacity, reliable flash memory card is therefore essential for maintaining communication stability across complex multi-node networks.

For systems requiring high availability, the S7-400H redundant controller platform relies on synchronized memory states between the active and standby CPUs. In such architectures, the 6ES7952-1KP00-0AA0 must be installed in both CPU units to ensure that program synchronization and switchover operations function correctly. This redundancy capability is critical in applications such as power generation, petrochemical processing, and water treatment, where unplanned downtime carries significant operational and safety consequences.

At the power supply layer, the S7-400 system is typically powered by PS 405 or PS 407 power supply modules, which provide regulated 24VDC or 5VDC backplane power. The flash memory card draws minimal current from the CPU’s internal supply, ensuring that its presence does not affect the overall power budget of the rack. Engineers designing high-density configurations with multiple SM modules and CP communication processors can confidently include the 6ES7952-1KP00-0AA0 without recalculating power margins.

From a human-machine interface perspective, SIMATIC WinCC or WinCC flexible SCADA systems connected via the CP 443-1 Ethernet communication processor rely on the CPU’s stored program to define process variable mappings, alarm configurations, and trend data structures. The integrity of the flash memory card directly affects the consistency of data presented at the operator station, making it a key component in maintaining HMI accuracy and operator confidence.

At the execution layer, the program stored on the 6ES7952-1KP00-0AA0 governs the behavior of actuators, motor starters, and valve positioners connected through the S7-400’s output modules or via PROFIBUS-connected drives. Precise program retention ensures that control sequences — including PID loops, interlocking logic, and safety shutdown routines — execute exactly as commissioned, even after extended power outages or planned maintenance shutdowns.

For engineering teams managing large installed bases of S7-400 systems, maintaining a stock of 6ES7952-1KP00-0AA0 memory cards is a standard practice. The card’s compatibility with multiple S7-400 CPU variants, combined with its plug-and-play replacement capability, makes it an ideal spare part for minimizing mean time to repair (MTTR). All units supplied by ZYPLC are covered by a 12-Month Warranty, ensuring confidence in component quality and long-term system reliability.

Architecture Specification Table

Coordinated Control System Design

The 6ES7952-1KP00-0AA0 is most effectively deployed as part of a coordinated S7-400 control system architecture. A typical configuration begins with the CPU 416-3 PN/DP as the central processing unit, supported by the PS 407 10A power supply module providing stable backplane power across the UR2 rack. Digital and analog I/O is handled by SM 421, SM 422, SM 431, and SM 432 signal modules, while inter-rack communication is managed via IM 460-0 and IM 461-0 send/receive interface modules for multi-rack expansion.

Network connectivity is established through the CP 443-1 Advanced Ethernet communication processor, enabling PROFINET IO integration with field devices and upstream SCADA systems. For PROFIBUS-DP networks, the CPU’s integrated DP interface connects directly to ET 200M distributed I/O stations and SINAMICS G120 drives. The 6ES7952-1KP00-0AA0 stores all network configuration data, ensuring that communication parameters are restored instantly after any system restart. In redundant S7-400H configurations, a second CPU 417H is paired with an identical memory card to maintain synchronized program states and enable bumpless switchover.

Application in Layered Automation Systems

The 6ES7952-1KP00-0AA0 Flash Memory Card finds application across a broad spectrum of industrial sectors. In power generation and electrical substation automation, S7-400 systems equipped with this memory card manage turbine control sequences, protection relay coordination, and grid synchronization logic — where program integrity is non-negotiable. In petrochemical and refinery environments, the card supports continuous process control programs governing reactor temperature, pressure regulation, and emergency shutdown (ESD) sequences in compliance with IEC 61511 functional safety standards.

Water and wastewater treatment plants rely on S7-400 controllers to manage pump sequencing, chemical dosing, and filtration cycles across geographically distributed stations. The flash memory card’s data retention capability ensures that all setpoints and control parameters survive power interruptions common in utility infrastructure. In mining and metallurgical applications, S7-400 systems control conveyor drives, crusher sequencing, and smelting furnace temperature profiles — all stored reliably on the 6ES7952-1KP00-0AA0. Packaging and discrete manufacturing lines benefit from the card’s fast program load times, enabling rapid changeover between product recipes and minimizing production downtime.

Architecture Engineering FAQ

Q1: Is the 6ES7952-1KP00-0AA0 compatible with all S7-400 CPU variants?
The 6ES7952-1KP00-0AA0 is compatible with the majority of SIMATIC S7-400 CPU modules, including CPU 412, CPU 414, CPU 416, and CPU 417 series. However, compatibility depends on the specific CPU firmware version and memory card slot type. Engineers should verify compatibility against the CPU’s hardware manual or the Siemens SIMATIC S7-400 system manual before installation. ZYPLC’s technical team can assist with compatibility confirmation prior to order.

Q2: Can this memory card be used in an S7-400H redundant system?
Yes. In S7-400H high-availability configurations, the 6ES7952-1KP00-0AA0 must be installed in both the active and standby CPU modules. The redundancy controller synchronizes program data between both CPUs, and both memory cards must have identical capacity and firmware compatibility to ensure seamless switchover. ZYPLC supplies matched pairs of memory cards for redundant system deployments, all covered under the 12-Month Warranty.

Q3: What is the recommended procedure for replacing this memory card during maintenance?
Memory card replacement on the S7-400 platform should be performed with the CPU in STOP mode to prevent data corruption. The existing program should be backed up to a PG/PC using SIMATIC Manager or TIA Portal before removal. After inserting the new 6ES7952-1KP00-0AA0, the program can be downloaded directly from the engineering station. ZYPLC recommends maintaining at least one spare memory card per S7-400 system in critical applications to minimize MTTR. All replacement units supplied by ZYPLC are tested and covered by a 12-Month Warranty.
