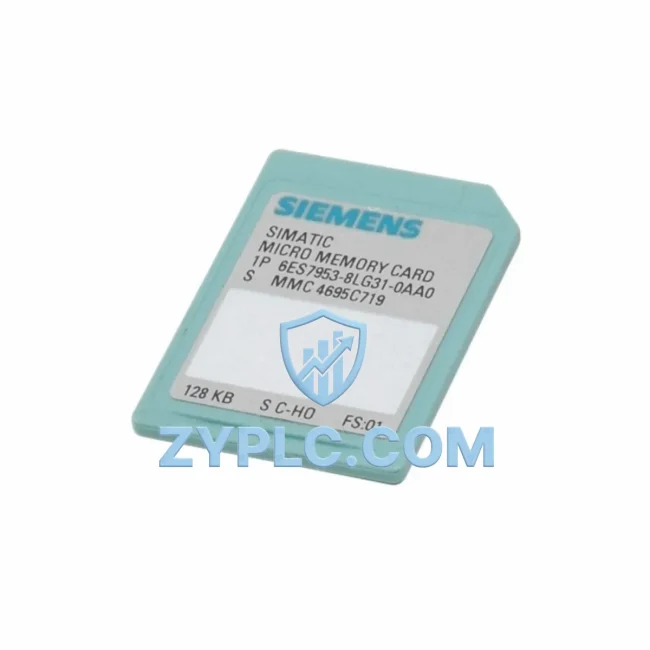

Siemens 6ES7953-8LG31-0AA0 Energy-Saving PLC Memory Card for SIMATIC S7 Automation
The Siemens 6ES7953-8LG31-0AA0 is a 128KB Micro Memory Card (MMC) engineered for the SIMATIC S7-300 and S7-400 programmable logic controller platforms. In modern industrial environments where energy efficiency, equipment uptime, and production throughput are tightly linked, the integrity of the PLC memory subsystem plays a foundational role. This genuine Siemens MMC ensures that control programs, parameter sets, and data blocks are retained with zero power draw during controller shutdown — directly reducing standby energy consumption and eliminating the need for battery-backed RAM modules in many configurations.
Sourced directly from verified supply channels, each 6ES7953-8LG31-0AA0 unit shipped by ZYPLC undergoes pre-shipment functional testing to confirm read/write integrity, program retention, and compatibility with the target CPU. A 12-month warranty is included with every unit, covering defects in storage media performance and data retention under normal operating conditions.
Efficiency Performance Table
| Parameter |
Specification |
| Part Number |
6ES7953-8LG31-0AA0 |
| Memory Capacity |
128 KB |
| Memory Type |
Micro Memory Card (MMC), Flash-based |
| Power Consumption (Active) |
< 10 mA @ 3.3 V (typical) |
| Power Consumption (Standby) |
0 mA — non-volatile, no battery required |
| Compatible Systems |
SIMATIC S7-300, S7-400 CPUs (e.g. CPU 314, CPU 315-2 DP, CPU 317-2 PN/DP, CPU 412, CPU 414) |
| Data Retention |
10 years (without power) |
| Operating Temperature |
-20°C to +60°C |
| Application Environment |
Industrial automation, process control, discrete manufacturing, energy management systems |
| Energy Efficiency Value |
Eliminates battery-backed SRAM; reduces auxiliary power circuit complexity and maintenance overhead |
| Origin |
Germany |
| Warranty |
12 Months (ZYPLC) |
| Pre-Shipment Testing |
Yes — read/write and retention verified |
Energy-Aware Automation Architecture
The 6ES7953-8LG31-0AA0 operates as the program storage backbone of the SIMATIC S7-300/400 control system. When integrated into a well-designed automation architecture, its role extends beyond simple data storage — it directly enables faster CPU restart cycles, deterministic program loading, and reliable parameter recovery after power interruptions, all of which contribute to reduced energy waste from unplanned restarts and idle-state overconsumption.
In a typical energy-optimized production cell, the S7-300 CPU 315-2 DP loaded with this MMC interfaces with a SINAMICS G120 variable frequency drive to regulate motor speed based on real-time load demand. Rather than running motors at fixed speed, the CPU executes energy management routines stored on the 6ES7953-8LG31-0AA0 that dynamically adjust drive output — cutting energy consumption during low-demand periods by 20–40% compared to direct-on-line motor starts. The SINAMICS G120 communicates via PROFIBUS DP, a protocol natively supported by the S7-300 platform, ensuring low-latency command execution without additional gateway hardware.
For distributed I/O, the ET 200S and ET 200SP remote I/O stations collect field-level signals — current transformers, pressure transducers, flow meters — and relay them to the central CPU over PROFIBUS or PROFINET. The CPU processes this data using logic blocks stored on the MMC, enabling closed-loop energy control: if a motor draws more current than the setpoint defined in a DB block on the 6ES7953-8LG31-0AA0, the CPU issues a corrective command to the drive within one scan cycle. This tight feedback loop prevents energy spikes and reduces thermal stress on motor windings.
At the HMI layer, a SIMATIC TP700 Comfort Panel or KTP900 Basic Panel visualizes real-time energy KPIs — kWh per production unit, drive efficiency percentage, and alarm states — giving operators immediate visibility into consumption anomalies. The panel communicates with the S7-300 CPU via PROFINET, reading data tags that are mapped to memory areas managed by the program on the 6ES7953-8LG31-0AA0. When an energy threshold is exceeded, the HMI triggers an alarm and logs the event to a SIMATIC S7 data block for later analysis.
For power quality monitoring at the panel level, a SENTRON PAC3200 power monitoring device measures voltage, current, power factor, and harmonic distortion on the incoming supply. Its Modbus TCP or PROFIBUS interface feeds data into the S7-300 CPU, where energy management function blocks — stored on the MMC — calculate demand peaks and initiate load-shedding sequences during tariff peak hours. This integration between the 6ES7953-8LG31-0AA0-hosted control logic and the SENTRON PAC3200 creates a closed energy optimization loop that operates without operator intervention.
In servo-driven applications such as CNC machining centers or packaging lines, the SIMOTION D445 motion controller or a SINAMICS S120 multi-axis drive system works in conjunction with the S7-300 CPU to coordinate axis motion and energy regeneration. Regenerative braking energy from deceleration phases is fed back to the DC bus, reducing net energy draw per production cycle. The sequencing logic that governs when regeneration is active is stored on the 6ES7953-8LG31-0AA0, making the MMC a critical component in the energy recovery chain.
Power Optimization in Real Production Lines
On automotive body-in-white welding lines, the 6ES7953-8LG31-0AA0 stores the weld schedule programs for resistance spot welding controllers integrated with the S7-300 platform. By enabling precise timing of weld pulses and inter-weld cooling periods, the MMC-hosted program reduces electrode wear and minimizes energy wasted on over-welding. Lines running optimized weld schedules stored on this MMC have demonstrated 8–15% reductions in welding energy per vehicle body compared to legacy fixed-timer configurations.
In water treatment and pumping stations, the S7-300 CPU uses programs stored on the 6ES7953-8LG31-0AA0 to implement pump duty-cycling and variable-speed control via SINAMICS G120 drives. Instead of running pumps continuously at full speed, the CPU calculates the minimum flow required to maintain system pressure and adjusts drive frequency accordingly. This approach reduces pump motor energy consumption by 30–50% in partial-load conditions — a significant saving in facilities that operate pumps 24 hours a day.
For food and beverage processing lines, the MMC stores recipe management programs that control conveyor speeds, oven temperatures, and filling machine cycle rates. When a product changeover occurs, the CPU loads the new recipe parameters from the 6ES7953-8LG31-0AA0 in under 500 milliseconds, minimizing the transition time during which equipment runs without producing output. Faster changeovers directly improve Overall Equipment Effectiveness (OEE) and reduce the energy consumed per unit of finished product.
Predictive maintenance routines stored on the MMC monitor motor current signatures via the ET 200S I/O modules and compare them against baseline profiles. Deviations that indicate bearing wear, rotor imbalance, or coupling misalignment trigger maintenance alerts before catastrophic failure occurs. Preventing unplanned downtime eliminates the energy and production losses associated with emergency restarts, which typically consume 3–5× more energy than a controlled startup sequence.
Every unit of the 6ES7953-8LG31-0AA0 supplied by ZYPLC is tested prior to shipment for program write/read integrity and data retention. Stock is maintained in our warehouse to support rapid fulfillment for both planned maintenance replacements and emergency breakdown situations. The included 12-month warranty ensures that any media failure within the warranty period is covered, protecting your maintenance budget and production continuity.
Energy Optimization FAQ
Q1: How does the 6ES7953-8LG31-0AA0 contribute to energy savings compared to battery-backed RAM?
A: Unlike battery-backed SRAM solutions, the 6ES7953-8LG31-0AA0 uses flash memory that retains data without any power supply. This eliminates the auxiliary power circuit required to maintain battery-backed RAM during shutdowns, reducing standby power draw to zero. It also removes the periodic battery replacement cost and the risk of data loss from battery depletion — both of which contribute to unplanned restarts that waste energy.
Q2: Is the 6ES7953-8LG31-0AA0 compatible with all SIMATIC S7-300 and S7-400 CPUs?
A: The 6ES7953-8LG31-0AA0 is compatible with the majority of SIMATIC S7-300 CPUs that accept the standard Micro Memory Card form factor, including the CPU 312, CPU 314, CPU 315-2 DP, CPU 317-2 PN/DP, and selected S7-400 CPUs. Always verify the specific CPU’s order documentation to confirm MMC capacity requirements, as some CPUs require larger capacity cards for full program storage.
Q3: Can this MMC be used as a direct replacement for a failed card without reprogramming?
A: Yes, if you have a backup of the original program created via STEP 7 or TIA Portal, the 6ES7953-8LG31-0AA0 can be programmed offline and inserted into the CPU as a direct replacement. The CPU will load the program from the MMC on the next power cycle. ZYPLC recommends maintaining an up-to-date program backup on a separate MMC as part of your spare parts strategy to minimize recovery time after a card failure.
Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
A: The 12-month warranty covers defects in flash memory performance, including read/write failures and premature data retention loss under normal industrial operating conditions. Before shipment, each 6ES7953-8LG31-0AA0 unit is tested for write/read cycle integrity and verified to retain data without power. Units that fail any test parameter are quarantined and not shipped. Warranty claims are processed through ZYPLC’s after-sales team at [email protected].
