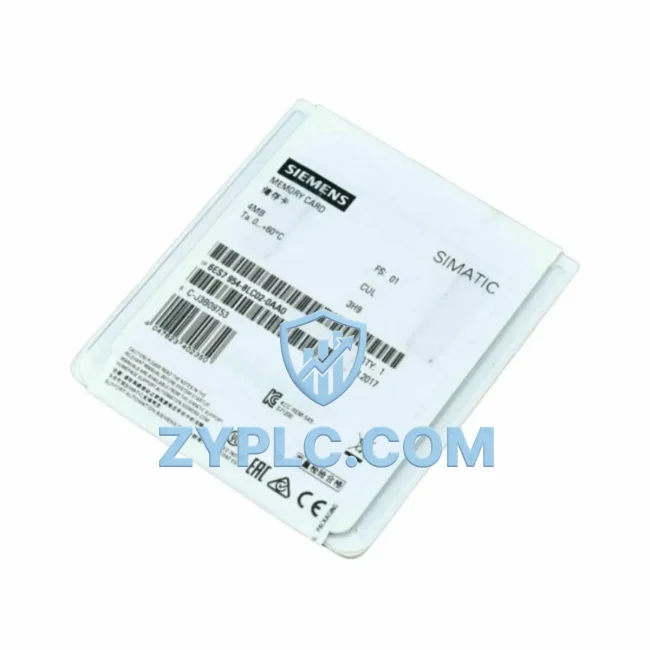

Siemens 6ES7954-8LC02-0AA0 Energy-Saving Memory Card S7-1500

Siemens 6ES7954-8LC02-0AA0 Energy-Saving Memory Card for S7-1500 Automation

The Siemens 6ES7954-8LC02-0AA0 is a high-capacity SIMATIC Memory Card engineered for the S7-1500 PLC platform, delivering reliable program storage and data retention that directly supports energy-efficient automation architectures. In modern industrial environments where every watt of consumed energy and every second of unplanned downtime translates into measurable cost, the role of a stable, high-speed memory module cannot be overstated. This card serves as the backbone of the S7-1500 controller’s runtime environment, ensuring that optimized control programs — including energy-saving motion profiles, adaptive drive parameters, and intelligent load-shedding routines — are executed with zero data loss and maximum repeatability.

Designed for demanding production environments, the 6ES7954-8LC02-0AA0 supports seamless firmware updates, project transfers, and data logging functions that are critical for predictive maintenance strategies. When integrated with the broader SIMATIC ecosystem, this memory card enables plant engineers to push refined energy management programs directly to the controller without interrupting live production cycles, reducing both energy waste and production downtime simultaneously.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6ES7954-8LC02-0AA0 operates at the heart of a well-structured energy-aware control architecture. In a typical S7-1500-based system, the CPU — such as the CPU 1515-2 PN or CPU 1517-3 PN/DP — relies on this memory card to store and execute the complete automation project, including all energy optimization logic. When paired with a SINAMICS G120 variable frequency drive, the PLC program stored on this card can dynamically adjust motor speed setpoints based on real-time load demand, eliminating the fixed-speed energy waste that plagues legacy systems.

For motion-intensive lines, the memory card supports the runtime of programs that coordinate SINAMICS S120 multi-axis drive systems, where synchronized torque and velocity profiles are calculated to minimize peak power draw during acceleration phases. The ET 200SP distributed I/O modules connected via PROFINET report field-level energy data back to the S7-1500 CPU, and the 6ES7954-8LC02-0AA0 ensures that all data acquisition logic and alarm thresholds are retained even through power cycling events.

Integration with the SIMATIC Energy Manager or third-party power monitoring systems is facilitated through structured data blocks stored on this card, enabling the CPU to communicate consumption metrics via OPC UA or PROFINET to higher-level SCADA or MES platforms. The SIMATIC HMI panels — such as the KTP700 Basic or TP1500 Comfort — display real-time energy dashboards driven by the data structures maintained in the S7-1500 program, all of which reside on the 6ES7954-8LC02-0AA0. Additionally, the card supports the storage of safety-integrated programs for F-CPU variants, ensuring that energy-saving routines do not compromise functional safety requirements on lines using SIMATIC Safety controllers.

For decentralized architectures, the memory card also supports the SIMATIC Drive Controller — a combined CPU and SINAMICS S120 drive unit — where a single 6ES7954-8LC02-0AA0 card stores both the motion program and the drive parameterization, reducing hardware complexity and improving overall system energy efficiency by eliminating redundant communication overhead between separate controller and drive units.

Power Optimization in Real Production Lines

In real-world production environments, the value of the 6ES7954-8LC02-0AA0 extends far beyond simple data storage. Consider an automotive body shop where dozens of servo axes and conveyor drives must be coordinated to maintain precise line takt times. The S7-1500 CPU, running its program from this memory card, executes motion coordination routines that stagger motor start sequences to prevent simultaneous inrush current spikes — a technique that can reduce peak demand charges by 10–20% on facilities with time-of-use electricity tariffs.

In process industries such as water treatment or chemical manufacturing, the PLC program stored on this card manages pump and compressor scheduling based on process demand signals, enabling variable-speed operation through connected SINAMICS G120 or G150 drives rather than throttling with mechanical valves. This single operational change, made possible by reliable program execution from the 6ES7954-8LC02-0AA0, can reduce motor energy consumption by 30–50% compared to fixed-speed alternatives.

Predictive maintenance routines stored on the card monitor drive load signatures, vibration feedback from connected sensors, and thermal data from the ET 200MP I/O modules to detect bearing wear, belt slippage, or pump cavitation before they cause unplanned stops. Early fault detection reduces emergency maintenance costs and prevents the energy spikes associated with cold restarts of large thermal processes. The card’s data retention capability ensures that all historical trend data and maintenance counters survive power outages, preserving the continuity of predictive maintenance algorithms across shift changes and planned shutdowns.

For facilities pursuing ISO 50001 energy management certification, the structured data logging capability enabled by this memory card provides the audit trail of energy consumption events, setpoint changes, and production throughput data required by certification bodies. All logged data is accessible via the S7-1500’s integrated OPC UA server, making it available to enterprise energy management platforms without additional hardware investment.

Every unit of the 6ES7954-8LC02-0AA0 supplied by ZYPLC undergoes outgoing shipment testing to verify read/write integrity and compatibility with target CPU firmware versions, ensuring that the card performs to specification from the first power-on in your facility. Stock availability is maintained to support both planned project deployments and urgent replacement scenarios, with dispatch within 1–3 business days and full 12-month warranty coverage on all units.

Energy Optimization FAQ

Q1: How does the 6ES7954-8LC02-0AA0 contribute to energy savings in an S7-1500 system?
The memory card itself consumes negligible power, but its primary energy contribution is enabling the reliable execution of sophisticated energy management programs within the S7-1500 CPU. By storing optimized control logic — including variable-speed drive setpoints, load-shedding schedules, and demand-response routines — the card ensures that energy efficiency strategies are consistently applied across every production cycle without data loss or program corruption.

Q2: Is the 6ES7954-8LC02-0AA0 compatible with all S7-1500 CPU variants?
Yes. The 6ES7954-8LC02-0AA0 is compatible with the full range of SIMATIC S7-1500 standard CPUs, F-CPUs (safety), T-CPUs (motion), and the ET 200MP interface module family. It is also supported by the SIMATIC Drive Controller. Always verify the required firmware version for your specific CPU against the card’s supported firmware range before deployment.

Q3: Can this card replace an older or smaller SIMATIC Memory Card without reprogramming?
In most cases, yes. The 6ES7954-8LC02-0AA0 can be used as a direct replacement for smaller-capacity SIMATIC Memory Cards in S7-1500 systems. The existing project can be transferred to the new card via TIA Portal’s download function or by using the card as a program transfer medium. No hardware reprogramming of the CPU is required; the controller reads the project from the card on startup.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 6ES7954-8LC02-0AA0 units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each card undergoes read/write integrity testing and firmware compatibility verification. If a card fails within the warranty period under normal use, ZYPLC will arrange replacement or repair. Contact our team at [email protected] or +86 19859288691 to initiate a warranty claim.
