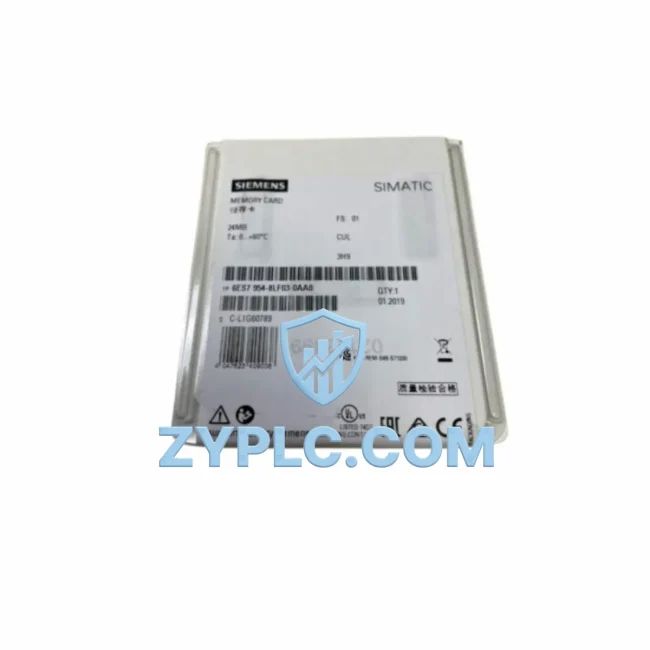

Siemens 6ES7954-8LF03-0AA0 System-Ready Memory Card for S7-1500 Architecture

Siemens 6ES7954-8LF03-0AA0 System-Ready Memory Card for S7-1500 Architecture: Control System Architecture and Upstream-Downstream Coordination

In modern industrial automation, the integrity of a programmable logic controller system depends not only on the processing power of its CPU but equally on the reliability and compatibility of every supporting component within the control architecture. The Siemens 6ES7954-8LF03-0AA0 SIMATIC Memory Card is a purpose-engineered storage module designed specifically for the SIMATIC S7-1500 controller platform, serving as the primary program and data carrier that underpins the entire control layer. Far from being a peripheral accessory, this memory card occupies a structurally critical position in the S7-1500 system hierarchy — it is the medium through which firmware, user programs, data blocks, and configuration parameters are stored, transferred, and retained across power cycles and system restarts.

Understanding the role of the 6ES7954-8LF03-0AA0 requires viewing it within the full context of a layered automation system. At the control layer, the SIMATIC S7-1500 CPU — whether a standard CPU 1511-1 PN, a high-performance CPU 1516-3 PN/DP, or a safety-rated CPU 1518F-4 PN/DP — relies on this memory card to load and execute the user program at startup. Without a correctly formatted and programmed memory card, the CPU cannot enter RUN mode, making this component a foundational dependency for the entire control architecture. The card supports the TIA Portal engineering workflow, enabling engineers to transfer projects directly from the programming environment to the controller via the card, which is particularly valuable during commissioning, firmware updates, and disaster recovery scenarios.

At the I/O layer, the stability of the memory card directly influences the deterministic behavior of distributed I/O modules. When the S7-1500 CPU communicates with ET 200MP or ET 200SP distributed I/O stations over PROFINET, the consistency of the program stored on the 6ES7954-8LF03-0AA0 ensures that I/O mapping, interrupt routines, and process image updates execute without deviation. Any corruption or incompatibility at the storage level would cascade into unpredictable I/O behavior, making the quality and compatibility of the memory card a system-wide concern rather than a localized one.

From a network and communications perspective, the memory card stores the PROFINET device configuration, IP address assignments, and communication parameters that govern how the S7-1500 CPU interacts with other nodes on the industrial Ethernet network. This includes configuration data for CP 1543-1 communication processors, which extend the controller’s connectivity to external networks and cloud infrastructure. The card also retains the configuration for PROFIBUS DP interfaces where legacy field devices remain integrated into the architecture, ensuring backward compatibility without sacrificing the performance of the newer S7-1500 platform.

At the power layer, the 6ES7954-8LF03-0AA0 works in conjunction with the PM 70W 120/230VAC power supply module and the PS 60W 24/48/60VDC power supply to ensure that program data is preserved even during unexpected power interruptions. The memory card’s non-volatile storage architecture means that no battery backup is required for program retention, simplifying the maintenance profile of the control cabinet and reducing the risk of data loss due to battery failure — a common failure mode in older PLC generations.

For human-machine interface integration, the memory card’s role extends to supporting the seamless interaction between the S7-1500 CPU and SIMATIC HMI panels such as the TP700 Comfort or TP1200 Comfort. The HMI configuration, tag connections, and alarm definitions stored in the TIA Portal project are compiled and transferred to the controller via the memory card during initial commissioning. This ensures that the HMI layer accurately reflects the process variables managed by the control layer, maintaining system coherence across the operator interface.

At the execution layer, the memory card supports the precise timing and sequencing required by servo drives, variable frequency drives, and safety relay modules connected to the S7-1500 system. The program blocks stored on the 6ES7954-8LF03-0AA0 include motion control function blocks, PID control routines, and safety program segments that govern actuator behavior. The reliability of this storage medium is therefore directly linked to the accuracy and repeatability of the physical processes being controlled.

Architecture Specification Table

Coordinated Control System Design

The 6ES7954-8LF03-0AA0 achieves its full value when deployed as part of a coordinated SIMATIC S7-1500 control system. In a typical architecture, the CPU 1516-3 PN/DP serves as the central processing unit, with the memory card installed in its front-panel card slot to provide the primary program storage. The CPU communicates downstream with ET 200MP distributed I/O stations via PROFINET IO, where IM 155-5 PN ST interface modules aggregate digital and analog I/O signals from the field. The memory card stores the hardware configuration that defines the PROFINET device names, IP addresses, and I/O update cycles for each ET 200MP station.

For applications requiring extended communication reach, the CP 1543-1 communication processor is mounted on the same S7-1500 rack alongside the CPU, enabling secure data exchange with MES systems, SCADA platforms, and cloud-based monitoring services over standard Ethernet. The configuration parameters for the CP 1543-1, including firewall rules and VPN settings, are stored as part of the TIA Portal project on the 6ES7954-8LF03-0AA0, ensuring that communication security settings are preserved and restored consistently after any CPU replacement or firmware update.

In redundant system designs, the memory card plays a role in the H-system architecture where two S7-1500H CPUs operate in hot-standby mode. The program stored on the memory card of the primary CPU is synchronized to the standby CPU, ensuring bumpless switchover in the event of a primary CPU fault. This redundancy capability is essential in continuous process industries where unplanned downtime carries significant operational and safety consequences.

The system architecture also incorporates SIMATIC HMI TP1200 Comfort panels connected via PROFINET, with tag communication configured in TIA Portal and stored on the memory card. Terminal modules such as the TM-E15S26-A1 and backplane bus connectors within the ET 200MP stations complete the physical I/O layer, while SIRIUS 3RK3 safety relay modules handle safety-rated discrete outputs. The entire architecture — from the CPU and memory card through the I/O layer, communication processors, HMI panels, and field devices — is configured, compiled, and stored as a unified project on the 6ES7954-8LF03-0AA0, making this memory card the single source of truth for the entire control system.

Application in Layered Automation Systems

The Siemens 6ES7954-8LF03-0AA0 is deployed across a wide range of industrial sectors where the SIMATIC S7-1500 platform is the controller of choice. In automotive manufacturing, the memory card supports high-speed assembly line controllers managing robotic welding cells, conveyor sequencing, and quality inspection systems, where program integrity and fast restart capability are critical to production throughput. The non-volatile storage eliminates the risk of program loss during the frequent power cycling that characterizes shift-change and maintenance windows in automotive plants.

In electrical power generation and distribution, S7-1500 controllers equipped with the 6ES7954-8LF03-0AA0 manage substation automation, transformer protection relay coordination, and grid-tie inverter control. The memory card’s ability to store large, complex programs supports the sophisticated interlocking logic required in high-voltage switchgear applications, where control program reliability is directly linked to grid stability and personnel safety.

Petrochemical and refinery applications leverage the S7-1500 platform with this memory card for continuous process control of distillation columns, heat exchangers, and compressor trains. The card supports the storage of advanced PID control strategies, cascade control loops, and emergency shutdown sequences that must execute reliably under the demanding thermal and electromagnetic conditions of process plant environments.

Water and wastewater treatment facilities use S7-1500 systems with the 6ES7954-8LF03-0AA0 to control pumping stations, chemical dosing systems, and filtration processes across geographically distributed sites. The memory card’s role in storing PROFINET configuration data is particularly valuable in these distributed architectures, where consistent device naming and IP address management across multiple remote stations is essential for centralized SCADA monitoring.

In mining and metallurgical processing, the memory card supports S7-1500 controllers managing conveyor belt systems, crusher controls, and smelting furnace automation, where the harsh operating environment demands components with proven industrial-grade reliability. Packaging and food processing lines similarly rely on the S7-1500 platform for high-speed motion control and recipe management, with the memory card serving as the repository for product-specific program variants that can be rapidly loaded and activated during product changeovers.

Architecture Engineering FAQ

Q1: Is the 6ES7954-8LF03-0AA0 compatible with all S7-1500 CPU variants, including safety and motion control CPUs?
The 6ES7954-8LF03-0AA0 is compatible with the full range of SIMATIC S7-1500 CPUs, including standard CPUs (CPU 1511 through CPU 1518), fail-safe CPUs (CPU 1511F, 1513F, 1515F, 1516F, 1517F, 1518F), technology CPUs (CPU 1511T, 1515T, 1516T, 1517T, 1518T), and compact CPUs (CPU 1511C, 1512C). It is also compatible with S7-1500H redundant CPUs. The card must be formatted using TIA Portal before first use on a new CPU, and the TIA Portal version must match the firmware version of the target CPU to ensure full compatibility.

Q2: Can the 6ES7954-8LF03-0AA0 be used to transfer programs between S7-1500 CPUs during maintenance or CPU replacement?
Yes. One of the primary use cases for the SIMATIC Memory Card is program transfer and CPU replacement support. When a CPU requires replacement due to hardware failure, the memory card can be removed from the faulty CPU and inserted into the replacement unit. The new CPU will automatically load the program from the card upon startup, provided the firmware versions are compatible. This capability significantly reduces mean time to repair (MTTR) in production environments, as it eliminates the need for a programming device to be present on-site during emergency CPU replacements. This feature is a key element of the contextual integration capability of the S7-1500 architecture.

Q3: What does the 12-Month Warranty cover for the 6ES7954-8LF03-0AA0, and what support is available for integration issues?
The 12-Month Warranty provided by ZYPLC covers the 6ES7954-8LF03-0AA0 against manufacturing defects and functional failures under normal operating conditions. If the memory card fails to be recognized by a compatible S7-1500 CPU, fails to retain data, or exhibits read/write errors within the warranty period, ZYPLC will provide a replacement unit. For integration and commissioning support, ZYPLC’s technical team can assist with TIA Portal formatting procedures, firmware compatibility verification, and PROFINET configuration guidance. Customers are encouraged to contact ZYPLC at [email protected] or +86 19859288691 before installation to confirm compatibility with their specific CPU firmware version and TIA Portal project version.
