Siemens 6ES7972-0BA52-0XA0 Energy-Saving PROFIBUS DP Connector

Siemens 6ES7972-0BA52-0XA0 Energy-Saving PROFIBUS DP Connector: Precision Energy Control for Optimized Production Lines

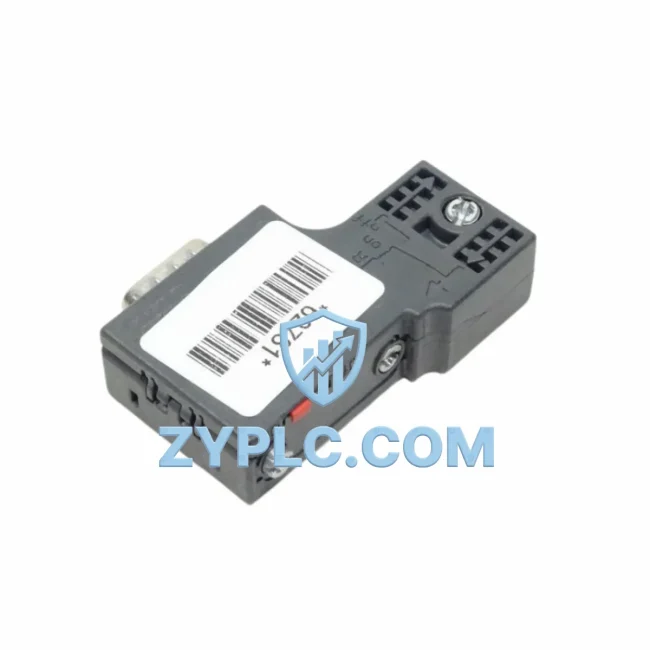

The Siemens 6ES7972-0BA52-0XA0 is a high-performance PROFIBUS DP bus connector engineered for industrial automation environments where communication reliability and energy efficiency are non-negotiable. Designed to integrate seamlessly within the SIMATIC S7 ecosystem, this connector enables stable, low-latency data exchange between PLCs, drives, I/O modules, and field devices — forming the backbone of an energy-aware automation architecture. Whether deployed in discrete manufacturing, process control, or motion-intensive production lines, the 6ES7972-0BA52-0XA0 reduces signal overhead, minimizes retransmission losses, and supports deterministic cycle times that directly translate into measurable energy savings at the system level.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a modern energy-optimized production environment, every millisecond of communication latency carries an energy cost. The 6ES7972-0BA52-0XA0 PROFIBUS DP connector is the physical interface that ties together the control and drive layers of your automation system. When paired with a Siemens SIMATIC S7-1500 CPU — such as the CPU 1516-3 PN/DP — the connector enables high-speed cyclic data exchange with field devices, ensuring that motor start/stop commands, speed references, and torque setpoints are transmitted without delay or retransmission overhead.

On the drive side, SINAMICS G120 variable frequency drives connected via PROFIBUS DP rely on this connector to receive precise speed and energy-saving commands from the PLC. The G120’s built-in energy recovery function (kinetic buffering) can only be fully exploited when the communication link is stable and deterministic — exactly what the 6ES7972-0BA52-0XA0 delivers. Similarly, SINAMICS S120 multi-axis drive systems benefit from the connector’s ability to sustain 12 Mbit/s throughput across complex topologies without signal degradation.

For distributed I/O, the ET 200SP and ET 200M remote I/O stations connect to the PROFIBUS network through this same connector interface, allowing the S7 CPU to monitor real-time energy consumption data from field-level sensors and actuators. When integrated with a SENTRON PAC3200 power monitoring device — also addressable via PROFIBUS — the system gains granular visibility into per-machine energy draw, enabling operators to identify inefficient equipment and schedule predictive maintenance before energy waste escalates into unplanned downtime.

HMI integration is equally important. A SIMATIC TP1200 Comfort Panel connected to the PROFIBUS segment can display live energy KPIs, drive efficiency curves, and motor utilization rates, giving line supervisors the data they need to make real-time adjustments. The SIMATIC S7-300 CPU 315-2 DP, a widely deployed controller in legacy lines, also uses this exact connector type for its DP port, making the 6ES7972-0BA52-0XA0 a universal upgrade component for both new installations and brownfield retrofits.

For safety-critical applications, the SIMATIC ET 200S with fail-safe I/O modules communicates over PROFIBUS DP using the same bus connector standard, ensuring that safety shutdowns and energy isolation commands are executed with the same deterministic reliability as standard control signals. This unified communication architecture eliminates the need for parallel wiring infrastructure, reducing both installation cost and the energy overhead of redundant signal paths.

Power Optimization in Real Production Lines

The energy impact of a PROFIBUS DP connector may seem indirect, but in practice, communication quality is one of the most underestimated variables in industrial energy management. When bus connectors degrade — through oxidation, mechanical stress, or improper termination — the PROFIBUS network begins generating retransmission cycles. Each retransmission forces the CPU to hold its output update, delaying drive commands and causing motors to run at non-optimal operating points longer than necessary. Over a three-shift production day, this translates into measurable excess energy consumption across every motor on the segment.

The 6ES7972-0BA52-0XA0 addresses this at the hardware level. Its 90° cable outlet design reduces mechanical stress on the cable shield, maintaining consistent impedance matching across the bus. The integrated terminating resistor (switchable) ensures proper bus termination without requiring external components, eliminating a common source of reflection-induced communication errors. With a stable, error-free PROFIBUS segment, the SINAMICS G120 drives can execute energy-saving ramp profiles precisely as programmed — reducing peak current draw during motor acceleration and enabling smooth deceleration energy recovery.

In conveyor and packaging lines, where production rhythm (takt time) is directly tied to motor synchronization, the deterministic cycle time enabled by a properly terminated PROFIBUS network allows the S7 CPU to coordinate multiple drives with sub-millisecond precision. This eliminates the micro-stops and speed fluctuations that force motors to compensate with excess torque — a hidden source of energy waste in high-throughput lines. Facilities that have standardized on the 6ES7972-0BA52-0XA0 across their PROFIBUS infrastructure report more consistent OEE (Overall Equipment Effectiveness) scores and reduced reactive power penalties on their utility bills.

From a maintenance perspective, the connector’s robust housing and gold-plated contacts extend service life in harsh industrial environments, reducing the frequency of bus faults caused by connector failure. Fewer bus faults mean fewer emergency stops, fewer manual resets, and less energy wasted on uncontrolled motor restarts. Every unit shipped by ZYPLC undergoes functional testing and is backed by a 12-month warranty, ensuring that the connector performs to specification from day one of installation.

Energy Optimization FAQ

Q1: How does the 6ES7972-0BA52-0XA0 contribute to energy savings in a PROFIBUS DP network?
By ensuring stable, error-free communication between the S7 PLC and connected drives and I/O devices, this connector eliminates retransmission cycles that delay drive commands. Precise, on-time command delivery allows SINAMICS drives to execute energy-saving speed profiles and ramp functions as programmed, reducing unnecessary motor run time and peak current draw.

Q2: Is the 6ES7972-0BA52-0XA0 compatible with both legacy S7-300/400 and newer S7-1500 systems?
Yes. This connector is compatible with all Siemens SIMATIC controllers that feature a PROFIBUS DP port, including the S7-300, S7-400, S7-1500, and distributed I/O systems such as the ET 200SP and ET 200M. It is also compatible with SINAMICS G120 and S120 drive systems, making it suitable for both greenfield and brownfield automation projects.

Q3: What is the recommended replacement interval, and how do I know when to replace the connector?
In standard industrial environments, PROFIBUS DP connectors should be inspected annually. Signs that replacement is needed include increased bus error rates in the CPU diagnostics, intermittent communication faults on specific nodes, or visible mechanical damage to the housing or cable entry. Proactive replacement with the 6ES7972-0BA52-0XA0 during scheduled maintenance windows prevents unplanned downtime and maintains network energy efficiency.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6ES7972-0BA52-0XA0 unit supplied by ZYPLC is inspected and functionally tested prior to shipment to verify electrical continuity, contact integrity, and termination resistor function. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides replacement or refund support — contact [email protected] or call +86 19859288691 for assistance.
