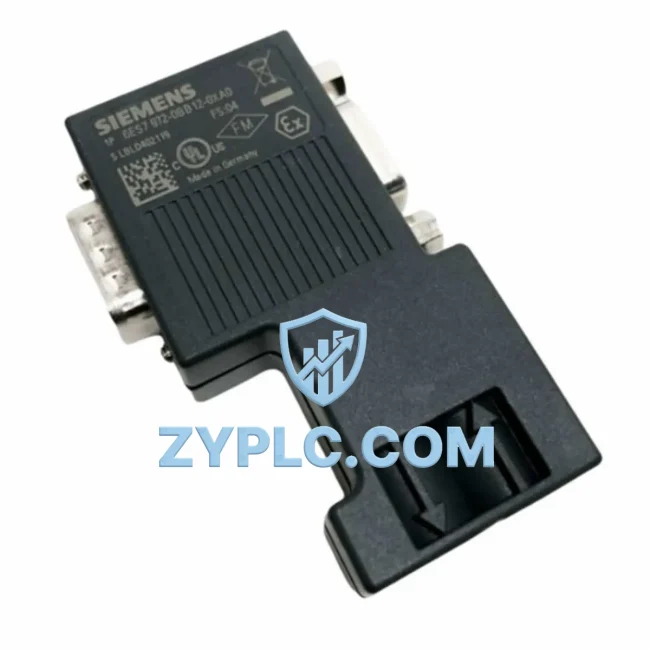

Siemens 6ES7972-0BB12-0XA0 Energy-Saving PROFIBUS Connector

Siemens 6ES7972-0BB12-0XA0 Energy-Saving PROFIBUS Connector for Optimized S7 Automation

In modern industrial environments where every millisecond of latency and every watt of wasted energy translates directly into operational cost, the physical integrity of your fieldbus network is not a secondary concern — it is the foundation of your entire automation strategy. The Siemens 6ES7972-0BB12-0XA0 PROFIBUS DP connector is engineered to deliver exactly that foundation: a low-impedance, high-reliability termination point that keeps your SIMATIC S7 network running at peak efficiency, minimizing signal reflection, reducing retransmission overhead, and ensuring that every control command reaches its destination with zero ambiguity.

Deployed across thousands of production lines worldwide, the 6ES7972-0BB12-0XA0 serves as the critical last-meter interface between your PROFIBUS DP cable and the field devices that drive your plant — from S7-300 and S7-400 CPU modules to distributed I/O stations, variable frequency drives, servo amplifiers, and intelligent sensors. Its 90-degree cable exit design reduces mechanical stress on the cable jacket in tight cabinet installations, while the integrated bus termination resistor network eliminates the need for external termination components, reducing both wiring complexity and the risk of impedance mismatch that can cause intermittent communication faults and unnecessary CPU scan cycle extensions.

Efficiency Performance Table

Energy-Aware Automation Architecture

The efficiency of a PROFIBUS DP network is not determined by the CPU alone — it is the cumulative result of every node, cable segment, and connector in the chain. When the 6ES7972-0BB12-0XA0 is installed at the terminal end of a PROFIBUS segment connected to a Siemens SIMATIC S7-315-2DP CPU, the properly terminated bus eliminates standing wave reflections that would otherwise force the master to issue repeated polling cycles, consuming both CPU time and network bandwidth that could be allocated to real-time process control.

In drive-intensive applications, this connector is routinely deployed at the PROFIBUS interface of Siemens SINAMICS G120 and SINAMICS S120 variable frequency drives, where clean, low-latency communication between the S7 controller and the drive’s Control Unit (CU250S-2 DP) is essential for precise speed regulation and energy-efficient motor operation. A poorly terminated PROFIBUS segment in this context can introduce jitter into the speed reference signal, causing the drive to hunt — oscillating around the setpoint and consuming excess energy in the process. The 6ES7972-0BB12-0XA0 eliminates this risk at the hardware level.

For distributed I/O architectures, the connector interfaces directly with ET 200S and ET 200M remote I/O stations, enabling the S7 master to poll digital and analog input modules — including 4DI 24VDC modules and 2AO U/I modules — with consistent cycle times. This predictability is critical when the I/O data feeds into energy monitoring logic running on the S7 CPU, where irregular scan cycles would introduce measurement errors into power consumption calculations. Paired with a Siemens SITOP PSU100S 24VDC power supply module, the entire distributed I/O segment operates within a tightly controlled power envelope.

At the HMI layer, Siemens SIMATIC HMI TP700 Comfort panels connected via PROFIBUS rely on stable connector termination to maintain live energy dashboards without screen freezes or communication timeouts. Operators monitoring motor load curves, drive efficiency ratings, and production throughput KPIs depend on the uninterrupted data flow that a properly installed 6ES7972-0BB12-0XA0 provides. In SCADA-integrated environments using Siemens WinCC, the same connector integrity ensures that historian data — used for energy audits and ISO 50001 compliance reporting — is captured without gaps.

For safety-critical segments where Siemens SIMATIC S7-300 FM 350-1 counter modules or CP 342-5 PROFIBUS communication processors are installed, the 6ES7972-0BB12-0XA0’s robust locking mechanism and gold-plated contacts ensure that vibration in the cabinet does not cause intermittent disconnections that would trigger safety shutdowns and unplanned production stops — each of which carries a measurable energy cost in restart sequences and equipment re-homing cycles.

Power Optimization in Real Production Lines

The relationship between connector quality and energy efficiency is rarely discussed in procurement specifications, yet it is one of the most impactful variables in fieldbus network performance. On a production line running 24 hours a day, 365 days a year, a PROFIBUS segment with poor termination — caused by a degraded or incorrectly specified connector — will generate bus errors that trigger diagnostic interrupts in the S7 CPU. Each interrupt pulls the CPU out of its cyclic OB1 execution, extends the scan cycle, and delays the output of control signals to drives and actuators. The cumulative effect is a control system that is perpetually slightly behind its setpoint, causing drives to compensate with excess torque and motors to draw more current than the process actually requires.

By installing the 6ES7972-0BB12-0XA0 at every segment termination point, maintenance engineers eliminate this source of hidden energy waste. The connector’s integrated termination network — when switched to the active position at the physical end of the bus — provides the correct 220Ω/390Ω impedance matching that the PROFIBUS standard requires, ensuring that the bus master’s transmitted signal arrives at every slave node with full amplitude and clean edges. This translates directly into fewer retries, shorter polling cycles, and a CPU that spends more of its execution time on productive control logic rather than error recovery routines.

In predictive maintenance programs, the 6ES7972-0BB12-0XA0 also plays a role in data quality. Vibration sensors, temperature transmitters, and current transducers connected to ET 200 I/O stations upstream of this connector depend on its signal integrity to deliver accurate readings to the S7 CPU’s predictive maintenance function blocks. Corrupted sensor data — caused by bus reflections from an improperly terminated segment — can mask early warning signatures of bearing wear or winding insulation degradation, allowing equipment to run to failure rather than being serviced during a planned maintenance window. The energy cost of an unplanned motor replacement, including the restart energy spike and production loss, far exceeds the cost of a correctly specified PROFIBUS connector.

Every unit of the Siemens 6ES7972-0BB12-0XA0 supplied by ZYPLC undergoes pre-shipment functional testing to verify contact resistance, termination switch operation, and mechanical locking integrity. Stock is maintained for immediate dispatch, and all units are covered by a 12-month warranty from the date of shipment.

Energy Optimization FAQ

Q1: How does a PROFIBUS connector affect energy efficiency in an S7 automation system?
A: A correctly terminated PROFIBUS connector eliminates bus reflections and communication retries, reducing the CPU scan cycle overhead and allowing drives and actuators to receive control signals with minimal latency. This prevents drives from over-compensating on torque and current draw, directly reducing energy consumption in motor-driven applications.

Q2: Is the 6ES7972-0BB12-0XA0 compatible with both S7-300 and S7-400 systems?
A: Yes. The 6ES7972-0BB12-0XA0 is fully compatible with all SIMATIC S7-300 and S7-400 PROFIBUS DP interfaces, as well as ET 200S, ET 200M, ET 200SP distributed I/O stations, SINAMICS drive series, and any other device with a standard PROFIBUS Sub-D 9-pin port operating at speeds from 9.6 kbit/s up to 12 Mbit/s.

Q3: Can this connector replace a damaged unit on an existing live PROFIBUS segment?
A: Yes, with the appropriate maintenance window. The 6ES7972-0BB12-0XA0 is a direct replacement for the previous 6ES7972-0BB12-0XA0 revision and is backward compatible with earlier PROFIBUS DP connector variants used in SIMATIC S7 installations. ZYPLC recommends verifying the termination switch position after installation to match the segment topology.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
A: Each 6ES7972-0BB12-0XA0 unit is tested for contact resistance, mechanical locking function, and termination resistor continuity before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. ZYPLC provides replacement or refund support for any unit that fails within the warranty period.
