Siemens 6EW1890-3AA System-Ready Power Supply for SIMATIC Architecture

Siemens 6EW1890-3AA System-Ready Power Supply for SIMATIC Architecture: Enabling Reliable Control System Power Delivery

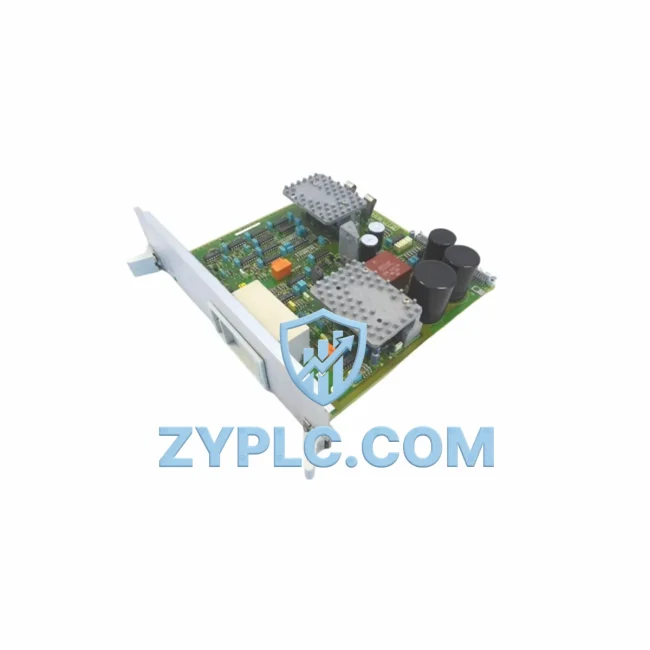

The Siemens 6EW1890-3AA is a dedicated power supply module designed to serve as the foundational energy backbone within SIMATIC-based industrial control architectures. In any layered automation system, the power supply layer is not merely a utility—it is the critical enabler that ensures every controller, I/O module, communication gateway, and human-machine interface operates within defined electrical parameters. The 6EW1890-3AA fulfills this role by delivering stable, regulated DC output tailored to the voltage and current demands of classic SIMATIC S5 system racks and compatible peripheral assemblies.

Architecture Specification Table

Coordinated Control System Design

Within a fully configured SIMATIC S5 control cabinet, the 6EW1890-3AA power supply module does not operate in isolation. Its regulated outputs feed directly into the backplane bus, energizing the CPU module—such as the Siemens 6ES5 095-8MA05 central processing unit—which orchestrates all logic execution and program cycling. Adjacent to the CPU, digital input modules like the Siemens 6ES5 431-8MA11 receive field signals from proximity sensors, limit switches, and safety interlocks, while digital output modules such as the 6ES5 441-8MA11 drive solenoid valves, motor contactors, and indicator lamps.

The power supply’s DC 5V rail is critical for maintaining logic-level integrity across the bus, ensuring that communication between the CPU and interface modules like the Siemens 6ES5 308-3UC11 PROFIBUS-DP connector proceeds without voltage sag or timing errors. For analog process control, modules such as the 6ES5 464-8MA11 analog input card depend on clean, ripple-free power to maintain measurement accuracy for temperature transmitters, pressure sensors, and flow meters connected to the system.

In architectures requiring redundancy or extended I/O capacity, expansion racks powered by additional 6EW1890-3AA units connect via the Siemens 6ES5 705-0BC50 bus cable, preserving signal integrity over longer backplane distances. The coordination between the power layer and the communication layer is essential: any voltage instability at the supply level propagates as data corruption or module fault flags across the entire rack, making the selection of a purpose-built supply module a non-negotiable engineering decision.

For systems migrating toward SIMATIC S7 platforms, the 6EW1890-3AA remains relevant in hybrid cabinets where legacy S5 racks coexist with newer S7-300 or S7-400 controllers via gateway modules such as the Siemens 6ES7 153-1AA03-0XB0 ET 200M interface. This contextual integration ensures that brownfield installations can modernize incrementally without wholesale power infrastructure replacement.

Human-machine interface panels, including the Siemens 6AV6 643-0CD01-1AX1 MP 277 Touch Panel, often share the same cabinet power bus, drawing from the 24V output rail. The 6EW1890-3AA’s thermal protection and overload response characteristics ensure that transient current spikes from HMI boot sequences or backlight activation do not destabilize adjacent control modules.

Application in Layered Automation Systems

The Siemens 6EW1890-3AA finds its primary deployment in manufacturing execution systems, water treatment SCADA architectures, metallurgical process lines, and packaging automation cells. In a typical water treatment plant, the power supply module energizes a control rack responsible for pump sequencing, chemical dosing valve control, and level measurement signal conditioning. The layered architecture separates field-level instrumentation from control-level logic, with the 6EW1890-3AA providing the electrical foundation that makes this separation reliable over decades of continuous operation.

In steel rolling mill applications, where electromagnetic interference and ambient temperatures challenge lesser components, the 6EW1890-3AA’s industrial-grade design ensures uninterrupted power delivery to CPU and communication modules managing real-time speed synchronization across multiple drive sections. The module’s compatibility with standard DIN-rail and subrack mounting simplifies maintenance procedures—field technicians can perform hot-swap replacements during scheduled outages without reconfiguring system wiring.

For petrochemical facilities operating under strict uptime requirements, pairing redundant 6EW1890-3AA modules in parallel-feed configurations provides N+1 power resilience, ensuring that single-point power failures do not cascade into process shutdowns. This architectural approach aligns with IEC 61511 functional safety principles, where power layer integrity directly impacts Safety Integrity Level (SIL) calculations for the overall instrumented system.

Long-term inventory availability and supply chain reliability are critical considerations for maintenance-intensive industries. The 6EW1890-3AA remains a stocked item with verified sourcing channels, supporting planned maintenance schedules and emergency spares programs without extended lead times.

Architecture Engineering FAQ

Q1: Is the 6EW1890-3AA compatible with SIMATIC S5-115U and S5-135U rack systems?
A: Yes. The 6EW1890-3AA is designed for direct installation into S5-series subracks, including the S5-115U, S5-135U, and S5-155U chassis. It provides both 5V logic power and 24V peripheral power required by all standard S5 module types.

Q2: Can this power supply support mixed S5/S7 cabinet architectures during system migration?
A: The 6EW1890-3AA supplies regulated power to the S5 rack segment, while S7 components typically use their own PS 307 or SITOP supplies. Both can coexist in the same cabinet with proper bus isolation and grounding practices, enabling phased migration without full system downtime.

Q3: What warranty and support coverage applies to this module?
A: Every 6EW1890-3AA supplied through ZYPLC carries a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Technical support for system integration, architecture compatibility, and installation guidance is available throughout the warranty period.
