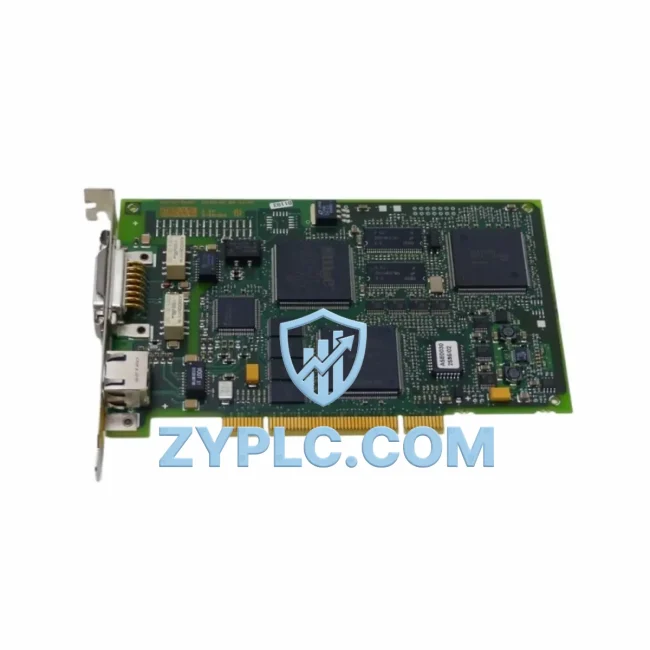

Siemens 6GK1161-3AA01 System-Ready CP1600 for SIMATIC NET

Siemens 6GK1161-3AA01 System-Ready CP1600 for SIMATIC NET: Control System Architecture and Upstream–Downstream Coordination

The Siemens 6GK1161-3AA01 CP1600 is a PCI-based Industrial Ethernet communication processor engineered for seamless integration within the SIMATIC NET control architecture. Rather than functioning as a standalone peripheral, this module occupies a critical position in the communication layer of distributed automation systems — bridging the controller platform, field devices, supervisory networks, and enterprise-level data infrastructure into a unified, high-availability control environment.

In modern industrial automation, the communication processor is not merely a network interface card. It is the architectural backbone that determines how reliably a SIMATIC S7 or PC-based controller exchanges process data with I/O stations, remote field panels, SCADA servers, and engineering workstations. The 6GK1161-3AA01 fulfills this role by providing deterministic Industrial Ethernet communication via the PCI bus, supporting PROFINET IO, ISO transport, and TCP/IP protocols — making it a versatile node in both real-time control and supervisory data exchange layers.

Architecture Specification Table

Coordinated Control System Design

The 6GK1161-3AA01 achieves its full architectural value when deployed as part of a coordinated SIMATIC control system. In a typical layered automation environment, this CP1600 module is installed in an industrial PC platform — such as the SIMATIC IPC427E or IPC477E — where it serves as the primary PROFINET IO controller interface, managing real-time cyclic data exchange with distributed I/O stations across the plant floor.

At the controller layer, the CP1600 works in close coordination with SIMATIC WinAC RTX or STEP 7-based software controllers, providing the deterministic communication channel that these platforms require for time-critical process control. The module’s PCI bus integration ensures low-latency data transfer between the software PLC runtime and the Ethernet network stack, maintaining cycle times consistent with the demands of high-speed manufacturing and process automation.

For I/O layer connectivity, the 6GK1161-3AA01 communicates directly with SIMATIC ET 200SP and ET 200M distributed I/O stations via PROFINET IO, enabling modular expansion of digital and analog signal acquisition across geographically distributed control cabinets. This architecture allows engineers to extend the I/O footprint without modifying the central controller hardware, significantly reducing system expansion costs and downtime.

At the network layer, the CP1600 integrates with SCALANCE X series Industrial Ethernet switches — such as the SCALANCE X208 or SCALANCE XC216 — to form a structured, managed network topology. These switches provide VLAN segmentation, ring redundancy via MRP (Media Redundancy Protocol), and port mirroring for network diagnostics, all of which complement the CP1600’s communication capabilities and enhance overall network resilience.

Power layer stability is maintained through SITOP PSU series power supplies, which deliver regulated 24 VDC to the IPC platform and connected field devices. The SITOP PSU8600 modular power supply system, for example, supports redundant power configurations that protect the CP1600 and its associated controller platform from single-point power failures — a critical consideration in continuous-process industries.

At the human-machine interface layer, SIMATIC HMI panels — including the TP1200 Comfort Panel and the MP377 Multi Panel — connect to the same PROFINET network managed by the CP1600, retrieving real-time process values and alarm states from the controller. This integration ensures that operators receive accurate, low-latency process visualization without requiring additional communication hardware or protocol converters.

For systems requiring redundant communication paths, the CP1600 can be paired with a secondary CP1616 or CP1604 module in a dual-channel configuration, providing communication path redundancy at the controller level. This approach is particularly relevant in power generation, petrochemical processing, and water treatment applications where communication loss cannot be tolerated during production.

Terminal modules such as the SIMATIC S7-300 SM321 digital input module and SM322 digital output module, when connected via ET 200M remote I/O stations, extend the signal acquisition and actuation capabilities of the CP1600-based controller system across multiple process zones. Relay output modules and analog signal conditioners further expand the system’s ability to interface with legacy field instrumentation and actuator networks.

Application in Layered Automation Systems

The Siemens 6GK1161-3AA01 CP1600 is deployed across a broad range of industrial sectors where reliable, high-throughput communication between the control layer and field devices is non-negotiable.

In manufacturing and assembly automation, the CP1600 serves as the PROFINET IO controller in PC-based machine control systems, coordinating servo drives, vision systems, and conveyor control modules across high-speed production lines. Its ability to handle multiple simultaneous PROFINET IO device connections makes it suitable for complex multi-axis and multi-zone manufacturing cells.

In power generation and electrical distribution, the module provides the communication backbone for substation automation systems, interfacing with protection relays, energy meters, and bay controllers via Industrial Ethernet. Its support for IEC 61850-compatible communication frameworks — when combined with appropriate protocol gateways — enables integration with modern digital substation architectures.

In petrochemical and refinery process control, the CP1600 supports continuous process monitoring by maintaining stable PROFINET IO communication between the DCS-equivalent PC controller and field transmitters, control valves, and safety instrumented system (SIS) interfaces. The module’s industrial temperature rating and PCI bus reliability make it suitable for control room environments in hazardous process facilities.

In water and wastewater treatment, the CP1600 enables centralized SCADA communication with remote pump stations, flow meters, and chemical dosing systems distributed across large geographic areas. Its TCP/IP support allows integration with plant-wide MES and historian systems for regulatory compliance reporting and process optimization.

In mining and metallurgical processing, the module supports high-availability communication in environments characterized by electrical noise, vibration, and temperature extremes. When deployed within ruggedized IPC enclosures and paired with SCALANCE managed switches, the CP1600 maintains communication integrity in conveyor control, crusher automation, and smelting process management systems.

Architecture Engineering FAQ

Q1: Is the 6GK1161-3AA01 CP1600 compatible with SIMATIC WinCC and STEP 7 engineering environments?
Yes. The CP1600 is fully supported by SIMATIC NET PC Software, which integrates with both STEP 7 Classic and TIA Portal engineering environments. Configuration is performed via NCM PC (Network Configuration Manager for PC), allowing engineers to define PROFINET IO device assignments, communication connections, and diagnostic parameters within the familiar SIMATIC engineering workflow. WinCC can access process data through the configured OPC DA or OPC UA server interfaces provided by the SIMATIC NET software stack.

Q2: Can the CP1600 be used in a redundant communication architecture, and what are the hardware requirements?
The CP1600 supports redundant communication configurations when used in conjunction with compatible SIMATIC NET software and a secondary communication processor — such as the CP1616 — installed in the same IPC platform. Redundancy is managed at the software level through the SIMATIC NET redundancy framework, which monitors communication path availability and performs automatic switchover without interrupting the controller’s process data exchange. The IPC platform must have sufficient PCI slots to accommodate both modules, and the PROFINET network must be configured with ring or parallel redundancy topology using MRP-capable SCALANCE switches.

Q3: What does the 12-Month Warranty cover, and how is long-term spare parts availability managed?
The 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions as specified in the product datasheet. Warranty claims are processed through our technical support team with documented failure analysis. For long-term maintenance planning, we recommend maintaining a minimum of one spare CP1600 module per critical communication node in your architecture. Our inventory management service provides guaranteed stock availability and lead-time commitments for SIMATIC NET communication processors, ensuring that your spare parts strategy aligns with your plant’s maintenance intervals and production continuity requirements.
