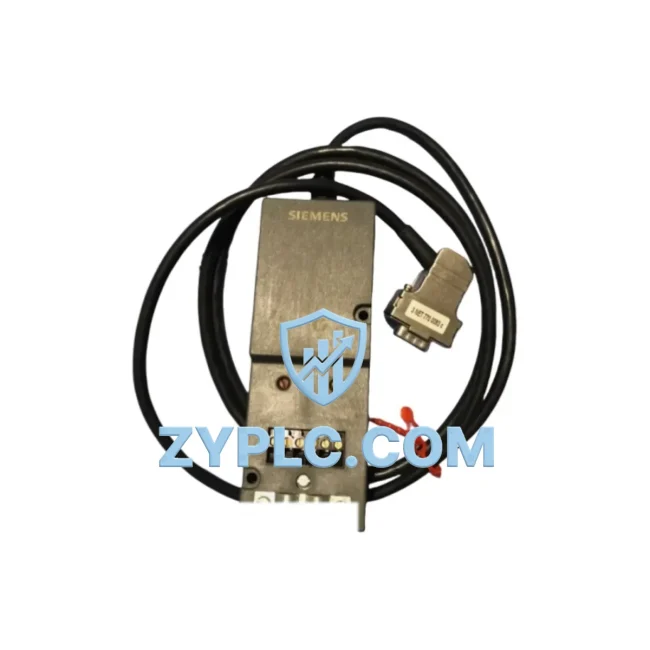

Siemens 6GK1500-0AA10 Energy-Saving Communication Processor

Siemens 6GK1500-0AA10 Energy-Saving Communication Processor for Optimized CP 5431 Automation

The Siemens 6GK1500-0AA10 is a high-performance CP 5431 FMS/DP PROFIBUS communication processor engineered for industrial automation environments where energy efficiency, network reliability, and production continuity are mission-critical. Designed to integrate seamlessly into Siemens S5 and compatible control architectures, this module enables deterministic, low-latency data exchange across PROFIBUS DP and FMS networks — directly contributing to reduced idle energy consumption, optimized motor control cycles, and improved production line throughput.

In modern manufacturing, communication bottlenecks between PLCs, drives, and field devices are a hidden source of energy waste. When a controller cannot receive timely feedback from a frequency inverter or servo drive, it defaults to conservative, energy-inefficient operating modes. The 6GK1500-0AA10 eliminates this latency by providing a dedicated, high-speed PROFIBUS interface that keeps the entire automation loop synchronized — from energy metering at the field level to command execution at the drive level.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6GK1500-0AA10 functions as the communication backbone in an energy-aware automation architecture. In a typical production cell, it connects the Siemens S5-135U PLC to a network of distributed field devices — including SINAMICS G120 variable frequency drives, ET 200S distributed I/O modules, and SIRIUS 3RW soft starters — over a single PROFIBUS DP segment. This consolidated communication path replaces multiple point-to-point wiring runs, reducing both installation complexity and the parasitic energy losses associated with uncoordinated device polling.

When paired with a SIMATIC S7-300 or S7-400 controller via a gateway or migration bridge, the CP 5431 enables legacy S5 systems to participate in modern energy monitoring architectures. Power measurement data from SENTRON PAC3200 power meters can be routed through the PROFIBUS network and aggregated at the PLC level, giving energy managers real-time visibility into per-machine consumption without requiring a separate energy management network. This integration supports ISO 50001 energy management system requirements by providing the data granularity needed for meaningful energy baseline analysis.

At the drive level, the 6GK1500-0AA10 enables closed-loop communication with MICROMASTER 440 and SINAMICS S120 drive systems. Rather than running motors at fixed speeds determined by mechanical timers or manual setpoints, the PLC can dynamically adjust drive parameters — speed reference, torque limits, ramp-up times — based on real-time production demand signals. This demand-responsive motor control is one of the most impactful energy-saving strategies available in discrete manufacturing, with documented energy reductions of 20–40% on variable-load conveyor, pump, and fan applications.

The module also supports integration with SIMATIC WinCC SCADA systems via OPC server interfaces, enabling plant-wide energy dashboards that correlate production output with energy consumption in real time. Operators can identify energy-intensive production states, schedule high-load operations during off-peak tariff periods, and receive alerts when specific machines exceed their energy consumption baselines — all driven by the reliable, deterministic communication that the 6GK1500-0AA10 provides.

Power Optimization in Real Production Lines

In automotive body shop applications, the 6GK1500-0AA10 has been deployed to coordinate robotic welding cells where precise timing between the PLC, servo controllers, and weld power supplies is essential. By ensuring that the PROFIBUS DP cycle time remains consistent and predictable, the module prevents the unnecessary motor energization that occurs when drives wait for delayed control signals. Each millisecond of reduced wait time across dozens of axes translates into measurable reductions in reactive power demand and peak current draw.

In food and beverage processing lines, the CP 5431 enables coordinated speed control across multiple conveyor zones driven by SINAMICS G120C drives. Rather than running all zones at maximum speed continuously, the PLC uses real-time feedback from photoelectric sensors and load cells — transmitted over PROFIBUS — to implement zone-by-zone speed matching. This eliminates product accumulation and gap formation, reduces mechanical wear on conveyor components, and cuts motor energy consumption by running each zone only as fast as the downstream process requires.

Predictive maintenance is another area where the 6GK1500-0AA10 delivers energy-related value. By enabling continuous monitoring of drive diagnostic data — including motor current signatures, thermal status, and fault history from SINAMICS and MICROMASTER units — the PLC can detect early signs of bearing wear, insulation degradation, or mechanical imbalance before they cause unplanned downtime. Preventing a single unplanned stoppage on a high-throughput line can save more energy than weeks of incremental efficiency improvements, because restart sequences, scrap generation, and idle heating/cooling cycles all carry significant energy costs.

All units of the 6GK1500-0AA10 supplied by ZYPLC are sourced from verified industrial channels, subjected to functional communication testing on PROFIBUS DP test benches, and covered by a 12-month warranty. Stock is maintained for immediate dispatch, supporting urgent MRO (maintenance, repair, and operations) requirements where production line downtime costs far exceed the component cost.

Energy Optimization FAQ

Q1: How does the 6GK1500-0AA10 contribute to factory energy savings?
By providing reliable, low-latency PROFIBUS DP communication between the PLC and field devices such as variable frequency drives and distributed I/O, the CP 5431 enables demand-responsive motor control and real-time energy monitoring. This eliminates the conservative, fixed-speed operating modes that drives default to when communication is unreliable, directly reducing unnecessary energy consumption across motor-driven loads.

Q2: Is the 6GK1500-0AA10 compatible with modern Siemens S7 systems?
The CP 5431 is natively designed for Siemens S5 series PLCs (S5-115U/H, S5-135U, S5-155U). Integration with S7-300 or S7-400 systems is achievable via PROFIBUS DP gateway modules or migration bridges, allowing legacy S5 communication infrastructure to coexist with or transition to newer control platforms without full system replacement.

Q3: What is the recommended replacement or upgrade path for aging CP 5431 installations?
For sites planning a phased migration, the CP 5431 can continue to serve as the PROFIBUS master while newer S7 or S7-1500 controllers are introduced as PROFIBUS slaves or via PN/DP coupler modules. This approach preserves existing field wiring and device configurations while enabling gradual adoption of TIA Portal-based engineering tools and PROFINET-capable devices.

Q4: What does the 12-month warranty cover, and how is testing performed?
Every 6GK1500-0AA10 unit supplied by ZYPLC undergoes functional testing on a PROFIBUS DP test bench, verifying communication establishment, data exchange integrity, and module self-diagnostics prior to shipment. The 12-month warranty covers manufacturing defects and functional failures under normal industrial operating conditions. Expedited replacement is available for critical production applications to minimize downtime exposure.
