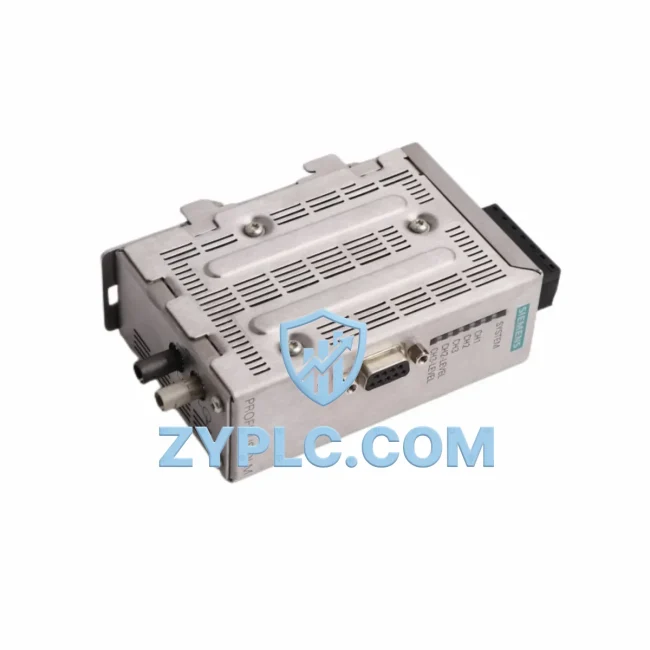

The Siemens 6GK1503-2CC00 Optical Link Module (OLM) is a critical network-layer component engineered for seamless integration within layered industrial automation architectures. Rather than functioning as a standalone device, the 6GK1503-2CC00 serves as the optical backbone of PROFIBUS DP networks, enabling reliable, interference-free data transmission between PLCs, remote I/O stations, drives, and HMI systems across distributed plant environments. Its role in the control system hierarchy spans the physical and data-link layers, ensuring that upstream controllers and downstream field devices maintain consistent, low-latency communication even in electrically noisy industrial settings.

In modern automation systems, network integrity is not a peripheral concern — it is the foundation upon which all control logic depends. The 6GK1503-2CC00 addresses this by converting electrical PROFIBUS signals to optical fiber transmission, eliminating ground loop interference and electromagnetic coupling that commonly degrade copper-based fieldbus segments in heavy industrial environments such as steel mills, chemical plants, and high-voltage switchgear rooms. This optical isolation capability makes it an indispensable element in any architecture where signal fidelity and system uptime are non-negotiable.

From a system architecture perspective, the 6GK1503-2CC00 integrates naturally into Siemens SIMATIC S7 control platforms. It connects directly to PROFIBUS DP ports on CPUs such as the S7-300 CPU 315-2 DP or S7-400 CPU 414-3 DP, extending the physical reach of the fieldbus segment beyond the 1,200-meter copper limit to distances exceeding 15 kilometers via fiber optic cable. This makes it particularly valuable in geographically distributed installations — water treatment facilities, mining conveyor systems, and large-scale process plants — where remote I/O racks, ET 200M distributed I/O stations, or variable frequency drives must be integrated into a single coherent control domain.

The module supports ring topology configurations, which introduces a critical redundancy dimension to the network layer. In a fiber optic ring, the 6GK1503-2CC00 can detect a cable break and automatically reconfigure the network path within milliseconds, maintaining continuous communication between the SIMATIC S7 CPU and all connected field devices. This self-healing capability is essential in applications where process interruption carries significant safety or financial consequences, such as in pharmaceutical batch processing or continuous casting in metallurgy.

Within the broader system architecture, the 6GK1503-2CC00 works in close coordination with other Siemens SIMATIC NET components. PROFIBUS DP slaves such as the ET 200S or ET 200M distributed I/O systems connect to the optical segment, while SIMATIC S7 CPUs with integrated DP interfaces serve as the network masters. Power supply modules such as the SITOP PSU100S 24V provide stable DC power to the OLM and associated field devices, ensuring that voltage fluctuations do not compromise network availability. For installations requiring protocol bridging, the SCALANCE X208 managed switch or PN/DP coupler modules can be integrated to extend connectivity into PROFINET domains, enabling hybrid architectures that leverage both legacy PROFIBUS infrastructure and modern Ethernet-based control systems.

Engineering teams working with the 6GK1503-2CC00 benefit from its straightforward commissioning process. The module requires no software configuration — network topology and redundancy mode are set via onboard DIP switches, reducing setup time and eliminating configuration errors during initial installation or field replacement. This hardware-based configuration approach also simplifies maintenance: technicians can replace a failed OLM without requiring a laptop or programming tool, minimizing mean time to repair (MTTR) in critical production environments.

Long-term maintainability is further supported by the module’s compatibility with the broader Siemens SIMATIC NET ecosystem. Spare parts availability, firmware consistency, and cross-generation compatibility with S7-300, S7-400, and S7-1500 PROFIBUS interfaces ensure that systems built around the 6GK1503-2CC00 can be maintained and extended over multi-decade operational lifespans. For facilities managing large installed bases of Siemens automation equipment, standardizing on the 6GK1503-2CC00 as the optical link solution reduces the complexity of spare parts inventory and technician training requirements.

All units supplied by ZYPLC are sourced from verified channels, functionally tested prior to dispatch, and covered by a comprehensive 12-Month Warranty. Our inventory management ensures consistent stock availability to support both planned maintenance schedules and emergency replacement requirements. With Contextual Integration support, our technical team can assist in verifying compatibility with your existing PROFIBUS architecture, confirming fiber type requirements, and advising on ring topology design for your specific application.

Architecture Specification Table

Coordinated Control System Design

The 6GK1503-2CC00 achieves its full architectural value when deployed as part of a coordinated Siemens SIMATIC control system. At the controller level, Siemens S7-315-2 DP or S7-414-3 DP CPUs act as PROFIBUS DP masters, managing all downstream communication through the optical segment established by the OLM. Distributed I/O expansion is handled by ET 200M or ET 200S remote I/O stations, which connect to the fiber ring as DP slaves, providing analog and digital signal acquisition from field instruments and actuators.

Power integrity across the control cabinet is maintained by SITOP PSU100S 24V DC power supply modules, which provide regulated voltage to the OLM, I/O racks, and communication modules. For applications requiring integration with PROFINET or Industrial Ethernet backbones, the SCALANCE X208 or SCALANCE XB208 managed switches serve as the network boundary devices, bridging the optical PROFIBUS segment with higher-level Ethernet infrastructure. In drive-intensive applications such as conveyor systems or pump stations, Siemens SINAMICS G120 or MICROMASTER 440 variable frequency drives connect to the PROFIBUS ring as DP slaves, receiving speed and torque setpoints directly from the S7 CPU via the optical link.

HMI integration is achieved through Siemens SIMATIC TP700 Comfort or TP1200 Comfort panels, which communicate with the S7 CPU via PROFINET while the OLM maintains the fieldbus integrity of the I/O layer below. For installations requiring terminal block connectivity between the control cabinet and field wiring, Siemens SIRIUS 3RT contactors and 8WA terminal blocks provide the mechanical interface between the automation system and the process. This layered architecture — from CPU through OLM to distributed I/O, drives, and field devices — represents a complete, validated system design that the 6GK1503-2CC00 enables and sustains.

Application in Layered Automation Systems

The 6GK1503-2CC00 is deployed across a wide range of industrial sectors where PROFIBUS DP remains the established fieldbus standard and optical isolation is required for reliable operation.

In power generation and distribution facilities, the module bridges control rooms and switchgear rooms separated by high-voltage equipment, where copper PROFIBUS cables would be susceptible to induced interference. The optical fiber link ensures that protection relay status, breaker position feedback, and load control signals are transmitted without degradation.

In petrochemical and refinery environments, the 6GK1503-2CC00 extends PROFIBUS segments across hazardous area boundaries, connecting Ex-rated field devices and valve positioners to the central DCS or PLC system while maintaining the electrical isolation required by safety standards.

In water and wastewater treatment plants, the ring topology capability of the OLM supports geographically distributed pump stations and dosing systems connected over long fiber runs, with automatic redundancy ensuring that a single cable fault does not interrupt treatment process control.

In mining and minerals processing, the module connects conveyor drive systems, crusher controls, and weighing systems distributed across large site footprints, where fiber optic transmission is the only practical medium for reliable long-distance PROFIBUS communication.

In automotive and discrete manufacturing assembly lines, the 6GK1503-2CC00 supports high-speed PROFIBUS DP communication between robot controllers, servo drives, and safety PLCs, where deterministic cycle times and network reliability directly impact production throughput and quality.

Architecture Engineering FAQ

Q1: Is the 6GK1503-2CC00 compatible with both S7-300 and S7-400 PROFIBUS DP masters?
Yes. The 6GK1503-2CC00 is fully compatible with any PROFIBUS DP master that conforms to the EN 50170 standard, including Siemens S7-300 CPUs with integrated DP interfaces (e.g., CPU 315-2 DP), S7-400 CPUs (e.g., CPU 414-3 DP), and CP 342-5 / CP 443-5 communication processors. It is also compatible with third-party PROFIBUS DP masters. No special configuration is required on the CPU side — the OLM is transparent to the PROFIBUS master and operates purely at the physical layer.

Q2: How does the ring redundancy function, and what is the reconfiguration time after a fiber break?
In ring topology, two 6GK1503-2CC00 modules at each end of the fiber ring monitor optical signal continuity. Upon detection of a fiber break, the OLMs automatically reconfigure the ring into a line topology within approximately 10–15 milliseconds, maintaining communication with all connected DP slaves. This reconfiguration is transparent to the PROFIBUS DP master and does not require any PLC program intervention. The redundancy function is activated via DIP switch settings on the OLM and requires no software tools.

Q3: What does the 12-Month Warranty from ZYPLC cover, and how is long-term spare parts availability managed?
The 12-Month Warranty covers functional defects identified under normal operating conditions, including optical transceiver failure, power supply faults, and communication port malfunctions. ZYPLC maintains dedicated stock of the 6GK1503-2CC00 to support both planned maintenance programs and emergency replacement requirements. Our technical team provides pre-sales compatibility verification and post-sales commissioning support to ensure that replacement units integrate correctly into your existing PROFIBUS architecture without requiring network reconfiguration.
