Siemens 6GK1571-0BA00-0AA0 System-Ready PC Adapter for SIMATIC S7 Architecture

Siemens 6GK1571-0BA00-0AA0 System-Ready PC Adapter for SIMATIC S7 Architecture

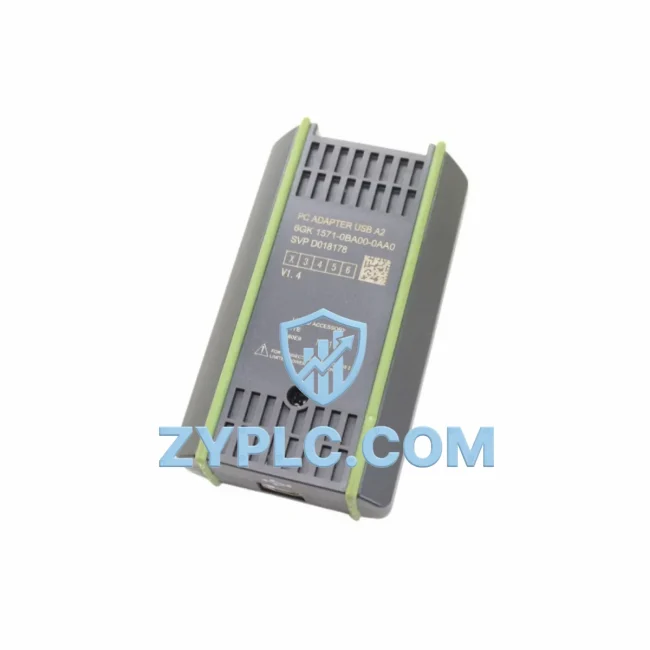

The Siemens 6GK1571-0BA00-0AA0 PC Adapter USB A2 is a precision-engineered programming and diagnostic interface designed to integrate seamlessly into the SIMATIC S7 control system architecture. Rather than functioning as a standalone accessory, this adapter occupies a critical position in the communication layer of distributed automation systems — bridging the engineering workstation to the MPI or PROFIBUS DP network that interconnects CPUs, I/O modules, HMI panels, and field devices across the control hierarchy.

In modern industrial automation, the integrity of the programming interface directly affects the reliability of the entire control architecture. Whether commissioning a new S7-300 or S7-400 system, performing online diagnostics on a running line, or uploading firmware to a remote CPU, the 6GK1571-0BA00-0AA0 provides a stable, galvanically isolated USB connection that eliminates ground loop interference and protects both the engineering PC and the PLC backplane from electrical transients common in heavy industrial environments.

Architecture Specification Table

Coordinated Control System Design

The 6GK1571-0BA00-0AA0 does not operate in isolation — its value is fully realized when considered within the broader SIMATIC S7 system architecture. A typical S7-300 control cabinet might be built around a CPU 315-2 DP (6ES7315-2AH14-0AB0) or a CPU 317-2 PN/DP (6ES7317-2EK14-0AB0) mounted on a DIN rail-mounted S7-300 rack, powered by a PS 307 power supply module (6ES7307-1EA01-0AA0) providing 24 VDC to the backplane. Digital and analog signals are handled by I/O modules such as the SM 321 digital input module (6ES7321-1BH02-0AA0) and SM 331 analog input module (6ES7331-7KF02-0AA0), all communicating with the CPU via the internal S7-300 backplane bus.

At the network layer, the 6GK1571-0BA00-0AA0 connects the engineering station directly to the MPI port of the CPU or to the PROFIBUS DP segment, enabling STEP 7 or TIA Portal to perform online monitoring, variable forcing, program download, and hardware configuration uploads without interrupting the running process. In larger architectures where a CP 342-5 PROFIBUS communication processor is used to offload DP master tasks from the CPU, the PC Adapter still provides the primary engineering access point to the MPI network, ensuring that all nodes — including remote I/O racks connected via ET 200M distributed I/O stations — remain accessible from a single engineering workstation.

For S7-400 high-availability systems, the adapter integrates equally well, connecting to the MPI interface of a CPU 414-3 PN/DP (6ES7414-3EM05-0AB0) or a redundant CPU 417H configuration. In these environments, the 6GK1571-0BA00-0AA0 supports diagnostic access to both the active and standby CPUs, which is essential for verifying synchronization status and performing controlled switchover tests during planned maintenance windows. HMI panels such as the SIMATIC TP700 Comfort (6AV2124-0GC01-0AX0) connected on the same MPI segment remain fully operational during engineering sessions, as the adapter operates as a passive participant on the bus and does not disrupt ongoing HMI-to-CPU communication cycles.

Application in Layered Automation Systems

Across industries, the 6GK1571-0BA00-0AA0 serves as the standard engineering access tool for SIMATIC S7-based control systems deployed in demanding environments:

Manufacturing & Assembly Lines: In automotive body shop or discrete parts manufacturing, S7-300 and S7-400 PLCs control robotic welding cells, conveyor systems, and quality inspection stations. The PC Adapter enables maintenance engineers to perform rapid online diagnostics — reading force values, monitoring I/O states, and adjusting PID parameters — without taking the line offline. Its compact form factor allows it to be carried in a field service kit and connected to any MPI port on the network within seconds.

Power Generation & Utilities: In power plant auxiliary systems and substation automation, SIMATIC S7-400 CPUs manage turbine control, transformer protection interlocks, and load dispatch sequences. The galvanic isolation of the 6GK1571-0BA00-0AA0 is particularly critical in these environments, where ground potential differences between the engineering laptop and the PLC panel can reach tens of volts. The adapter’s isolation barrier prevents ground loop currents from corrupting communication frames or damaging USB ports.

Petrochemical & Process Industries: In refineries and chemical plants operating under ATEX zone requirements, S7-300 Ex-rated systems or standard S7-400 systems in pressurized control rooms rely on PROFIBUS DP for field device communication. The 6GK1571-0BA00-0AA0 provides the engineering interface for commissioning PROFIBUS segments, verifying device addresses, and performing live diagnostics on field instruments connected via DP/PA couplers.

Water Treatment & Infrastructure: Municipal water treatment facilities use S7-300 PLCs to control pump stations, dosing systems, and SCADA-integrated monitoring networks. The PC Adapter’s plug-and-play USB connectivity makes it ideal for field service teams who need to access remote pump station PLCs with minimal setup time, connecting directly to the CPU’s MPI port for rapid fault diagnosis and parameter adjustment.

Mining & Metallurgy: In ore processing plants and smelting operations, S7-400 systems manage conveyor drives, crusher controls, and furnace temperature regulation. The robustness of the PROFIBUS DP protocol, combined with the reliable USB interface of the 6GK1571-0BA00-0AA0, ensures stable communication even in environments with significant electromagnetic interference from large motor drives and induction furnaces.

Architecture Engineering FAQ

Q1: Is the 6GK1571-0BA00-0AA0 compatible with both STEP 7 Classic and TIA Portal engineering environments?
The 6GK1571-0BA00-0AA0 is natively supported by STEP 7 V5.x (Classic) for S7-300 and S7-400 projects. When used with TIA Portal, it functions through the SIMATIC NET PC software layer or via the legacy S7ONLINE access point, making it suitable for mixed-generation engineering environments where both Classic and TIA Portal projects coexist on the same PROFIBUS/MPI network. Always verify the installed SIMATIC NET version matches the adapter driver requirements before deployment.

Q2: Can this adapter be used for online diagnostics without interrupting the running PLC program or connected HMI communications?
Yes. The 6GK1571-0BA00-0AA0 connects to the MPI or PROFIBUS DP bus as an additional network node and does not interrupt existing communications between the CPU, HMI panels, or other network participants. Online monitoring, variable table observation, and diagnostic buffer reading are all non-intrusive operations. Program download (online change) should be performed according to Siemens guidelines for the specific CPU type to ensure process continuity. The adapter’s bus participation is fully compliant with the MPI and PROFIBUS DP protocol specifications.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for this adapter?
All units supplied by ZYPLC carry a 12-Month Warranty covering manufacturing defects, electrical failures, and communication interface faults under normal operating conditions. In the event of a warranty claim, ZYPLC provides direct replacement or repair support coordinated through our technical team. For long-term maintenance planning, ZYPLC maintains stock of the 6GK1571-0BA00-0AA0 and related SIMATIC S7 communication accessories to support customers with multi-year service contracts and planned maintenance schedules. Contact our team at [email protected] or +86 19859288691 for availability confirmation and volume pricing.
