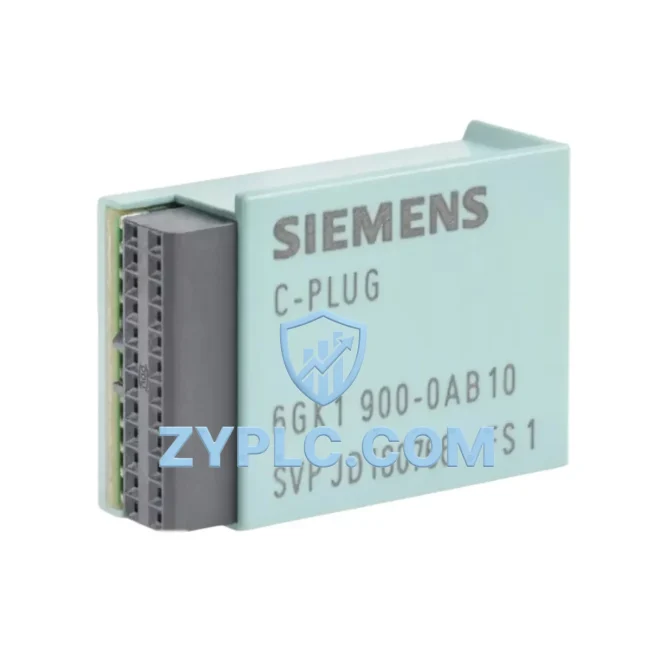

The Siemens 6GK1900-0AB10 C-PLUG is a removable data storage module engineered for seamless Contextual Integration within SIMATIC NET communication architectures. In modern industrial automation, network-layer components are no longer standalone accessories — they are load-bearing elements of a layered control system. The 6GK1900-0AB10 fulfills this role by providing reliable, plug-and-replace configuration storage that supports rapid device replacement, consistent parameter management, and uninterrupted system continuity across distributed control environments.

Within a complete automation hierarchy, the 6GK1900-0AB10 sits at the network layer, bridging the gap between the control layer — where CPUs such as the Siemens S7-300 CPU 315-2 PN/DP or S7-400 CPU 414-3 PN/DP execute logic — and the field device layer, where I/O modules, drives, and actuators receive commands. By storing device configuration data locally on the C-PLUG, engineers eliminate the need for manual re-parameterization during hardware replacement, dramatically reducing mean time to repair (MTTR) and minimizing production downtime in high-availability environments.

The module is compatible with a wide range of SIMATIC NET devices, including Industrial Ethernet switches such as the SCALANCE X208 and SCALANCE X308-2, as well as media converters and managed switches within the SCALANCE X-300 series. When a network device fails and must be replaced, the 6GK1900-0AB10 is simply transferred to the new unit, which automatically loads the stored configuration — port settings, VLAN assignments, PROFINET device names, and IP parameters — without any engineering workstation intervention. This capability is especially critical in 24/7 process industries where scheduled maintenance windows are narrow and unplanned outages carry significant operational cost.

From a system architecture perspective, the 6GK1900-0AB10 contributes directly to redundancy design. In ring topologies using MRP (Media Redundancy Protocol) or in parallel network paths supported by SCALANCE X-400 series switches, the C-PLUG ensures that a replacement node rejoins the redundant ring with the correct configuration immediately upon insertion. This supports the overall system’s fault-tolerance objectives without requiring manual reconfiguration by a commissioning engineer on-site.

The module also plays a supporting role in multi-tier communication architectures that integrate PROFIBUS DP and PROFINET IO simultaneously. In systems where a CP 343-1 Advanced or CP 443-1 Advanced communication processor connects an S7-300 or S7-400 controller to an Ethernet backbone, the C-PLUG stores the communication processor’s configuration, ensuring that the CP module can be replaced in the field without access to the original STEP 7 or TIA Portal project. This is particularly valuable in geographically distributed installations — such as water treatment plants, mining operations, or oil and gas pipeline monitoring systems — where on-site engineering expertise may be limited.

For power layer integration, the 6GK1900-0AB10 is compatible with devices powered by standard 24 VDC SITOP power supplies, including the SITOP PSU100S and SITOP modular series, which are commonly deployed alongside SIMATIC NET infrastructure in control cabinet environments. The C-PLUG itself draws no additional power from the host device, making it a zero-overhead addition to any network node’s power budget.

At the HMI and supervisory layer, SCADA systems and Siemens SIMATIC WinCC installations benefit indirectly from the 6GK1900-0AB10’s role in maintaining network topology consistency. When network switches retain their configuration through C-PLUG storage, the IP addressing and PROFINET device naming schemes remain stable, preventing communication errors between the HMI server and field devices that would otherwise arise from misconfigured replacement hardware.

In packaging lines, automotive assembly plants, and pharmaceutical manufacturing environments, the 6GK1900-0AB10 supports modular machine design by allowing network infrastructure to be pre-configured, stored, and deployed as a unit. Machine builders can pre-load switch configurations onto C-PLUGs during factory acceptance testing (FAT), then ship the equipment to the end customer with the assurance that network commissioning on-site will be straightforward and repeatable.

Long-term maintenance efficiency is a core value proposition of the 6GK1900-0AB10. Over a system’s operational lifetime — which may span 10 to 20 years in heavy industry — network hardware will inevitably require replacement due to component aging, environmental stress, or physical damage. The C-PLUG transforms what would otherwise be a complex re-commissioning event into a simple plug-and-play operation, preserving institutional knowledge embedded in the device configuration even when the original commissioning engineer is no longer available.

ZYPLC maintains verified stock of the Siemens 6GK1900-0AB10, sourced through authorized supply channels and subject to pre-shipment functional verification. Every unit is covered by a 12-Month Warranty, providing assurance of product authenticity and operational reliability from the date of delivery. Our inventory management system ensures consistent availability for both immediate project requirements and long-term maintenance stock planning.

Architecture Specification Table

Coordinated Control System Design

The 6GK1900-0AB10 achieves its full value when considered within the context of a coordinated control system. In a typical SIMATIC-based architecture, the CPU layer may include a Siemens S7-300 CPU 315-2 PN/DP or S7-400 CPU 414-3 PN/DP managing process logic, connected to the network backbone via a CP 343-1 Advanced or CP 443-1 Advanced communication processor. The Ethernet backbone itself is typically structured around managed switches from the SCALANCE X208 or SCALANCE X308-2 family, each of which supports a C-PLUG slot for configuration storage.

At the I/O layer, distributed ET 200S or ET 200M I/O stations connect to the PROFINET network, with their device names and IP addresses managed centrally by the CPU. The IE/PB Link PN IO gateway bridges PROFINET and legacy PROFIBUS DP segments, allowing older field devices — including frequency drives, valve positioners, and smart transmitters — to participate in the modern network architecture. The C-PLUG in each SCALANCE switch ensures that if a switch is replaced, the PROFINET topology is restored automatically, preventing device name conflicts that would otherwise halt I/O communication.

Power distribution for the network infrastructure is typically handled by SITOP PSU100S 24V or SITOP modular power supplies, which provide stable 24 VDC to both the SCALANCE switches and the CP communication modules. Terminal modules from the SIMATIC S7-300 SM series — including digital input modules such as the SM 321 and analog input modules such as the SM 331 — complete the I/O layer, feeding process signals to the CPU for closed-loop control.

At the supervisory layer, a Siemens SIMATIC WinCC SCADA server communicates with the S7 CPUs via Industrial Ethernet, relying on stable IP addressing maintained by the C-PLUG-equipped network switches. The overall architecture — from CPU to I/O to network to HMI — functions as a coherent, maintainable system, with the 6GK1900-0AB10 serving as a silent but essential enabler of long-term operational consistency.

Application in Layered Automation Systems

The Siemens 6GK1900-0AB10 finds application across a broad spectrum of industrial sectors where network reliability and maintainability are non-negotiable requirements.

In power generation and distribution facilities, substation automation systems rely on SIMATIC NET infrastructure to communicate between protection relays, RTUs, and control centers. The C-PLUG ensures that network switches in substation control panels can be replaced without disrupting IEC 61850 communication sessions or requiring specialist re-commissioning.

In petrochemical and oil & gas processing plants, where control systems operate continuously for years between planned shutdowns, the 6GK1900-0AB10 supports maintenance strategies that minimize intervention time. A field technician can replace a failed SCALANCE switch during a brief maintenance window, confident that the C-PLUG will restore the device to its correct operational state within seconds of insertion.

In water and wastewater treatment plants, distributed pump stations and remote monitoring sites often lack on-site engineering expertise. The C-PLUG’s plug-and-replace capability allows local maintenance staff to perform network hardware replacement without specialized training, reducing dependence on remote engineering support.

In mining and metallurgical operations, where harsh environmental conditions accelerate hardware aging, the ability to rapidly replace network components while preserving configuration data is a significant operational advantage. The 6GK1900-0AB10’s wide operating temperature range supports deployment in both surface and underground control environments.

In automotive and discrete manufacturing assembly lines, where production scheduling demands maximum uptime, the C-PLUG supports lean maintenance practices by converting complex re-commissioning tasks into simple hardware swap operations, keeping production lines running with minimal interruption.

Architecture Engineering FAQ

Q1: Is the 6GK1900-0AB10 compatible with all SCALANCE X series switches, and can it be used across different SIMATIC NET device families?
The 6GK1900-0AB10 C-PLUG is compatible with a wide range of SIMATIC NET devices that feature a dedicated C-PLUG slot, including SCALANCE X-200, X-300, and X-400 series managed switches, as well as certain SCALANCE W wireless access points and SCALANCE S security modules. Compatibility should be verified against the specific device’s product documentation, as not all SIMATIC NET devices include a C-PLUG slot. The C-PLUG stores the configuration of the host device in which it is installed; it is not interchangeable between different device types, as each device family uses a device-specific configuration format.

Q2: What happens to the stored configuration if the C-PLUG is inserted into a new device with a different firmware version, and how does this affect system commissioning?
When a C-PLUG containing a stored configuration is inserted into a replacement device running a different firmware version, the device will typically attempt to load the stored configuration and apply it to the current firmware. In most cases, SIMATIC NET devices handle minor firmware version differences gracefully, preserving core configuration parameters such as IP address, PROFINET device name, port settings, and VLAN assignments. For major firmware version differences, it is recommended to verify configuration compatibility using STEP 7 or TIA Portal before deployment. ZYPLC recommends maintaining consistent firmware versions across replacement hardware to ensure seamless C-PLUG-based device replacement in production environments.

Q3: What does the 12-Month Warranty cover, and what support does ZYPLC provide for system integration and long-term maintenance planning?
The 12-Month Warranty provided by ZYPLC covers the Siemens 6GK1900-0AB10 against manufacturing defects and functional failures under normal operating conditions from the date of delivery. In the event of a warranty claim, ZYPLC will arrange for replacement or repair of the affected unit. Beyond warranty coverage, ZYPLC supports customers with inventory planning for long-term maintenance stock, helping engineering and procurement teams identify compatible spare parts across the SIMATIC NET product family. For system integration inquiries, architecture compatibility questions, or bulk procurement requirements, customers are encouraged to contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
