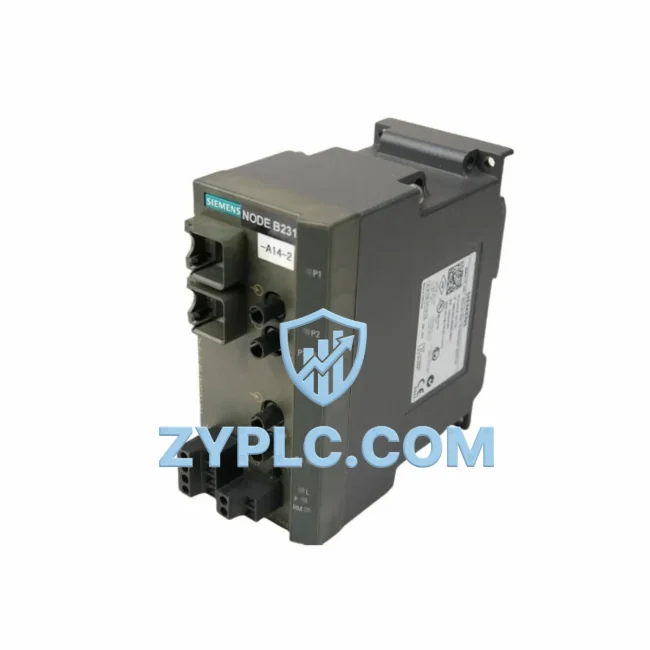

Siemens 6GK5202-2BB00-2BA3 System-Ready Switch for SCALANCE X200

Siemens 6GK5202-2BB00-2BA3 System-Ready Switch for SCALANCE X200: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6GK5202-2BB00-2BA3 is an unmanaged Industrial Ethernet switch from the SCALANCE X200 product family, purpose-built to serve as the field-level network backbone within layered industrial automation architectures. Rather than functioning as a standalone device, this switch is engineered for Contextual Integration — connecting the control layer, I/O layer, field device layer, and HMI layer into a coherent, high-availability communication fabric. In modern distributed control environments, network consistency is as critical as CPU performance or I/O accuracy, and the 6GK5202-2BB00-2BA3 addresses this requirement with deterministic Ethernet switching, robust industrial-grade construction, and plug-and-play deployment that minimizes engineering overhead during commissioning and long-term maintenance.

Within a typical SIMATIC S7-300 or S7-400 control architecture, the 6GK5202-2BB00-2BA3 occupies the network aggregation role at the field level, bridging PROFINET IO devices, remote I/O stations, and distributed peripherals back to the central CPU. When paired with a SIMATIC S7-315-2 PN/DP or S7-317-2 PN/DP CPU, this switch ensures that cyclic PROFINET communication remains stable and latency-consistent across all connected nodes. Its unmanaged design eliminates the need for SNMP configuration or VLAN provisioning in simpler topologies, reducing the risk of misconfiguration during initial system startup and subsequent maintenance windows.

The 6GK5202-2BB00-2BA3 supports 2-port Fast Ethernet connectivity with auto-negotiation and auto-crossover (MDI/MDI-X), making it compatible with a wide range of PROFINET-capable field devices including ET 200SP distributed I/O stations, ET 200M remote I/O racks, and SINAMICS G120 or S120 drive systems. In power-intensive applications where variable frequency drives must communicate status and fault data back to the PLC in real time, the switch’s deterministic forwarding behavior ensures that drive feedback loops remain intact even under high network load conditions. This is particularly important in coordinated multi-axis motion control systems where timing deviations can cause synchronization faults.

From a power architecture perspective, the 6GK5202-2BB00-2BA3 operates on a 24 VDC supply, consistent with the standard control cabinet power rail used by SITOP PSU100S or SITOP PSU8600 power supply modules. This voltage compatibility simplifies cabinet wiring and eliminates the need for additional DC-DC converters, contributing to a cleaner, more maintainable panel layout. The switch’s low power consumption also reduces thermal load within the control enclosure, extending the operational lifespan of adjacent components including terminal blocks, relay modules, and CP 343-1 communication processors.

In redundant network topologies, the 6GK5202-2BB00-2BA3 can be deployed alongside SCALANCE X208 or SCALANCE X212-2 managed switches that support Media Redundancy Protocol (MRP) ring configurations. While the 6GK5202-2BB00-2BA3 itself operates as an unmanaged device and does not participate in MRP ring management, it can serve as a star-topology aggregation point feeding into an MRP-capable ring segment, providing a cost-effective hybrid architecture that balances redundancy requirements with budget constraints. This approach is commonly used in water treatment facilities, packaging lines, and discrete manufacturing cells where partial redundancy is sufficient.

For human-machine interface integration, the switch provides reliable connectivity between SIMATIC HMI panels — such as the KTP700 Basic or TP1200 Comfort — and the PROFINET network, ensuring that operator visualization data, alarm acknowledgments, and recipe downloads are transmitted without packet loss. In process industries including petrochemical refining, pharmaceutical batch processing, and food and beverage production, HMI responsiveness is a direct indicator of system health, and the 6GK5202-2BB00-2BA3’s switching performance supports the sub-10ms cycle times required by most PROFINET Class B applications.

Long-term maintainability is a core design principle of the SCALANCE X200 family. The 6GK5202-2BB00-2BA3 features a fanless, convection-cooled housing rated for operation in ambient temperatures from -10°C to +60°C, making it suitable for installation in both climate-controlled control rooms and harsher industrial environments. Its DIN rail mounting form factor aligns with standard cabinet layouts used across SIMATIC automation systems, and its compact footprint allows installation in space-constrained enclosures alongside IM 153-2 interface modules and SM 321/SM 322 digital I/O modules. All units supplied by ZYPLC are backed by a 12-Month Warranty, ensuring hardware defects are addressed promptly to minimize unplanned downtime and support long-term operational continuity.

Architecture Specification Table

Coordinated Control System Design

The 6GK5202-2BB00-2BA3 achieves its full architectural value when deployed as part of a coordinated SIMATIC control system. In a typical S7-300 rack configuration, the CPU — such as a SIMATIC S7-315-2 PN/DP — communicates with distributed I/O via PROFINET, with the 6GK5202-2BB00-2BA3 providing the local switching infrastructure at the field level. Remote I/O stations such as ET 200SP or ET 200M connect through this switch, while upstream connectivity to the plant network is handled by a SCALANCE X208 managed switch supporting MRP ring redundancy. This layered topology ensures Contextual Integration between field devices and the supervisory control layer, enabling consistent signal flow from sensor to controller to actuator.

Power distribution within the cabinet is managed by SITOP PSU100S 24V/10A power supply modules, which feed both the PLC rack and the switch on a common 24 VDC rail. Communication gateways such as the IE/PB Link PN IO bridge PROFIBUS DP segments to the PROFINET backbone, allowing legacy PROFIBUS devices to participate in the unified network architecture. For drive integration, SINAMICS G120 inverters with PROFINET option boards connect directly to the switch, enabling closed-loop speed and torque control with real-time feedback to the S7 CPU. At the HMI layer, SIMATIC KTP700 Basic panels connect via the same PROFINET segment, providing operators with real-time process visualization and alarm management. CP 343-1 Advanced communication processors may be added to the S7-300 rack to support parallel Industrial Ethernet connections for MES or SCADA integration, with the 6GK5202-2BB00-2BA3 providing the necessary port expansion at the field level.

Application in Layered Automation Systems

The 6GK5202-2BB00-2BA3 is deployed across a broad range of industrial sectors where reliable field-level Ethernet switching is essential to system performance. In discrete manufacturing environments — including automotive assembly, electronics production, and metal fabrication — the switch supports high-density PROFINET IO topologies where dozens of field devices must communicate with the PLC within strict cycle time constraints. In the power generation and electrical distribution sector, the switch is used within substation automation panels to connect protection relays, energy meters, and bay controllers to the SCADA communication network. Its wide operating temperature range and metal housing make it suitable for outdoor switchgear cabinets and harsh electrical environments.

In water and wastewater treatment facilities, the 6GK5202-2BB00-2BA3 provides reliable connectivity between pump control panels, flow meters, and the central SCADA system, supporting continuous process monitoring and remote diagnostics. Petrochemical and refinery applications benefit from the switch’s ATEX Zone 2 certification, which permits installation in areas with potentially explosive atmospheres when housed in appropriate Ex-rated enclosures. Mining and metallurgical operations deploy the switch in conveyor control systems, crusher automation panels, and smelting process control cabinets, where vibration resistance and thermal stability are critical requirements. Packaging line integrators use the 6GK5202-2BB00-2BA3 to connect servo drives, vision systems, and barcode readers within high-speed production cells, ensuring that all field devices remain synchronized with the central motion controller.

Architecture Engineering FAQ

Q1: Is the 6GK5202-2BB00-2BA3 compatible with SIMATIC S7-1200 and S7-1500 PROFINET architectures?
Yes. The 6GK5202-2BB00-2BA3 is a standard IEEE 802.3 Fast Ethernet switch and is fully compatible with any PROFINET IO controller, including SIMATIC S7-1200, S7-1500, S7-300, and S7-400 CPUs. It operates transparently at the network layer and does not require any PLC-side configuration. It can be inserted into any existing PROFINET topology without modifying the hardware configuration in TIA Portal or STEP 7.

Q2: Can this switch be used in a ring topology for network redundancy?
The 6GK5202-2BB00-2BA3 is an unmanaged switch and does not support MRP (Media Redundancy Protocol) ring management. For ring redundancy, a managed switch such as the SCALANCE X208 or SCALANCE X212-2 is required as the ring manager. However, the 6GK5202-2BB00-2BA3 can be used as a star-topology aggregation device feeding into an MRP-capable ring segment, providing a cost-effective hybrid architecture suitable for applications where partial redundancy is acceptable.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance requirements?
The 12-Month Warranty provided by ZYPLC covers hardware defects and functional failures under normal operating conditions from the date of shipment. In the event of a warranty claim, ZYPLC will arrange replacement or repair of the defective unit. Beyond the warranty period, ZYPLC maintains ongoing inventory of SCALANCE X200 series components to support planned maintenance, emergency replacement, and system expansion requirements. Customers can contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for spare parts availability, lead time confirmation, and technical compatibility consultation.
