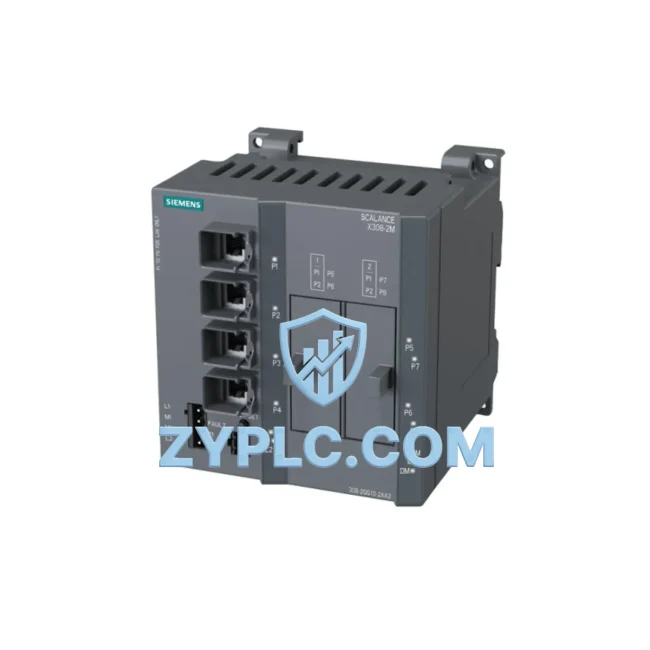

Siemens 6GK5308-2GG10-2AA2 Energy-Saving Ethernet Switch: Precision Energy Control for Optimized Production Lines
The Siemens 6GK5308-2GG10-2AA2 is a managed industrial Ethernet switch from the SCALANCE X300 series, engineered to deliver reliable, low-latency network communication across demanding factory environments. As industrial facilities push toward leaner energy consumption and higher equipment utilization, the 6GK5308-2GG10-2AA2 plays a foundational role in enabling real-time data exchange between energy monitoring systems, drive controllers, and automation platforms — without introducing unnecessary power overhead into the network infrastructure itself.
In modern production lines, network latency and packet loss directly translate into wasted machine cycles, unplanned downtime, and degraded OEE (Overall Equipment Effectiveness). The 6GK5308-2GG10-2AA2 addresses this by providing deterministic Ethernet communication with PROFINET support, ensuring that time-critical control signals between a Siemens S7-1500 PLC and downstream frequency inverters or servo drives are delivered with microsecond-level precision. This directly reduces idle time between production beats and supports tighter synchronization across multi-axis motion systems.
Efficiency Performance Table
| Parameter |
Specification |
| Model / Full SKU |
Siemens 6GK5308-2GG10-2AA2 |
| Series |
SCALANCE X300 |
| Port Configuration |
8 × RJ45 (10/100/1000 Mbps) + 2 × SFP Gigabit Combo |
| Power Consumption |
≤ 11 W (typical operating load) |
| Operating Efficiency |
Managed Layer 2 with VLAN, QoS, RSTP/MSTP ring redundancy |
| Compatible Systems |
PROFINET, PROFIBUS (via gateway), Modbus TCP, EtherNet/IP |
| Application Environment |
Industrial automation, energy monitoring, drive networks, MES integration |
| Energy-Saving Value |
Low-power design; reduces network-induced latency and retransmission overhead |
| Operating Temperature |
-40 °C to +70 °C |
| Protection Rating |
IP30 (DIN rail mount) |
| Origin |
Germany |
| Warranty |
12-Month Warranty |
Energy-Aware Automation Architecture
The 6GK5308-2GG10-2AA2 is designed to sit at the heart of an energy-aware automation architecture, connecting the control layer to the field layer with minimal overhead. In a typical deployment, a Siemens S7-1500 CPU (such as the CPU 1515-2 PN) acts as the central controller, issuing cyclic process data to variable frequency drives — for example, a Siemens SINAMICS G120 or SINAMICS S120 — via PROFINET IO. The switch ensures that these real-time frames are prioritized through its QoS (Quality of Service) configuration, preventing energy monitoring traffic from competing with motion control telegrams.
On the field device side, the switch connects to distributed I/O modules such as the Siemens ET 200SP or ET 200MP, which aggregate digital and analog signals from sensors, actuators, and power measurement transducers. These I/O nodes feed live energy data — current draw, power factor, reactive power — back to the controller and to a Siemens SIMATIC HMI panel (such as the KTP700 Basic or TP1200 Comfort) for operator visualization. This closed-loop architecture allows production managers to correlate machine state with energy consumption in real time, identifying inefficient operating modes before they compound into measurable losses.
For plants integrating power quality monitoring, the 6GK5308-2GG10-2AA2 can bridge a Siemens SENTRON PAC3200 or PAC4200 power monitoring device into the PROFINET network, enabling the PLC to read energy counters directly and trigger load-shedding routines during peak demand windows. When combined with a Siemens LOGO! 8 or a SIMATIC S7-1200 acting as a sub-controller for auxiliary systems (HVAC, lighting, compressed air), the switch enables a hierarchical energy management topology that reduces total facility consumption without sacrificing production throughput.
Communication redundancy is handled via the switch’s RSTP (Rapid Spanning Tree Protocol) and MRP (Media Redundancy Protocol) support, ensuring that a single cable fault does not interrupt the energy data pipeline or halt drive commands mid-cycle — a critical requirement in continuous process industries such as chemical, food and beverage, and automotive assembly.
Power Optimization in Real Production Lines
In practice, the 6GK5308-2GG10-2AA2 contributes to energy optimization across several dimensions of factory operation. First, by enabling reliable PROFINET communication to SINAMICS frequency inverters, it allows the PLC to implement speed-adaptive motor control — ramping drives down during low-load periods rather than running motors at fixed speed. This alone can reduce motor energy consumption by 20–40% in variable-torque applications such as pumps, fans, and conveyors, in line with the IE3/IE4 motor efficiency standards increasingly mandated in industrial installations.
Second, the switch’s support for VLAN segmentation allows energy monitoring traffic (from SENTRON power meters or third-party energy analyzers) to be isolated from real-time control traffic. This prevents measurement polling from introducing jitter into servo positioning loops or drive ramp profiles, preserving production beat accuracy while maintaining continuous energy visibility.
Third, by supporting ring topology with fast failover (recovery time < 200 ms with MRP), the switch eliminates the extended downtime that would otherwise result from a network fault — downtime that not only halts production but also leaves motors and drives in undefined states, consuming power without producing output. Predictive maintenance integration is further supported through the switch’s SNMP and web-based management interface, which allows network health data to be forwarded to a SIMATIC IT or MES platform for trend analysis and anomaly detection.
All units supplied by ZYPLC undergo pre-shipment functional testing, including port-level connectivity verification and power-on diagnostics, before dispatch. Each 6GK5308-2GG10-2AA2 is covered by a 12-month warranty, with in-stock availability ensuring short lead times for maintenance replacements and new project deployments.
Energy Optimization FAQ
Q1: How does the 6GK5308-2GG10-2AA2 contribute to measurable energy savings on the production line?
The switch enables deterministic PROFINET communication between PLCs and variable frequency drives, allowing speed-adaptive motor control that reduces energy consumption during low-load cycles. By ensuring reliable, low-latency data delivery, it prevents unnecessary motor restarts and idle-state energy waste caused by communication faults.
Q2: Is the 6GK5308-2GG10-2AA2 compatible with existing Siemens SIMATIC and SINAMICS systems?
Yes. The switch is fully compatible with SIMATIC S7-300, S7-400, S7-1200, and S7-1500 controllers, as well as SINAMICS G120, G150, S120, and S150 drive families via PROFINET IO. It also supports EtherNet/IP and Modbus TCP for integration with third-party automation platforms.
Q3: Can this switch be used to replace an existing SCALANCE X200 or X200IRT switch in a running installation?
The 6GK5308-2GG10-2AA2 is a managed Gigabit switch from the SCALANCE X300 series and offers backward compatibility with 10/100 Mbps devices. It can replace SCALANCE X208 or X216 switches in most topologies, though PROFINET device configuration in TIA Portal should be updated to reflect the new hardware. ZYPLC recommends verifying the network topology and firmware version before substitution.
Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6GK5308-2GG10-2AA2 unit supplied by ZYPLC is tested for port functionality, power-on stability, and basic management interface access prior to shipment. The 12-month warranty covers hardware defects under normal operating conditions. Units showing failure within the warranty period are eligible for replacement or repair, subject to inspection. Contact ZYPLC support for RMA procedures.
