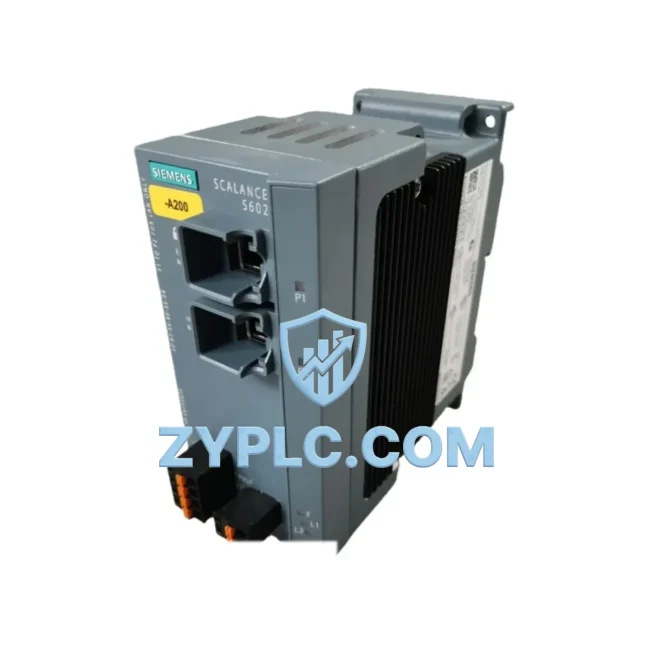

Siemens 6GK5602-0BA10-2AA3 Energy-Saving Network Security Module

Siemens 6GK5602-0BA10-2AA3 Energy-Saving Network Security Module for Optimized SCALANCE Automation

The Siemens 6GK5602-0BA10-2AA3 is a high-performance network security module from the SCALANCE S600 series, engineered to deliver robust industrial cybersecurity while actively contributing to energy-efficient factory automation. In modern production environments where every watt of consumed power and every millisecond of network latency directly impacts operational cost, the 6GK5602-0BA10-2AA3 serves as a critical gateway component that protects, monitors, and optimizes data flow across energy-intensive control networks. By securing communication between PLCs, drives, and field devices, it eliminates unauthorized traffic that would otherwise generate unnecessary processing loads and increase energy consumption across the automation layer.

Designed for seamless integration into Siemens TIA Portal-based architectures, this module works in close coordination with SIMATIC S7-1500 and S7-1200 series controllers to enforce zone-based security policies that reduce network overhead. When paired with SINAMICS G120 variable frequency drives and SIMOTICS motor systems, the 6GK5602-0BA10-2AA3 ensures that only authorized control commands reach the drive layer — preventing spurious start/stop cycles that waste energy and accelerate mechanical wear. This targeted traffic filtering directly supports motor control efficiency and extends mean time between failures (MTBF) for rotating equipment on the production line.

In energy monitoring architectures, the 6GK5602-0BA10-2AA3 acts as a secure conduit for power quality data collected by SENTRON PAC3200 power monitoring devices and SIRIUS 3RW soft starters. By maintaining the integrity of this data stream, plant engineers can rely on accurate consumption metrics to identify inefficient load cycles, optimize production scheduling, and implement demand-side management strategies. The module’s stateful packet inspection capability ensures that energy telemetry from field instruments reaches SCADA and MES layers without corruption or interception — a prerequisite for credible energy audits and ISO 50001 compliance.

The SCALANCE S602 platform supports PROFINET and Industrial Ethernet protocols natively, making the 6GK5602-0BA10-2AA3 fully compatible with distributed I/O systems such as ET 200SP and ET 200MP remote I/O stations. In multi-cell manufacturing environments, this compatibility allows a single security module to protect multiple automation islands simultaneously, reducing the total number of network infrastructure components required and lowering the aggregate standby power draw of the communication layer. Fewer active network nodes mean lower baseline energy consumption during low-production periods and shift changes.

For facilities operating SIMATIC WinCC or WinCC OA SCADA platforms, the 6GK5602-0BA10-2AA3 provides the secure tunnel infrastructure needed to transmit real-time OEE (Overall Equipment Effectiveness) and energy KPI data from the shop floor to supervisory systems. This closed-loop visibility enables operators to correlate energy spikes with specific machine states — such as idle running of SINAMICS S120 multi-axis drive systems — and implement corrective actions that reduce non-productive energy consumption. The result is a measurable improvement in production line rhythm and a reduction in energy cost per unit produced.

Predictive maintenance workflows also benefit directly from the secure data paths established by the 6GK5602-0BA10-2AA3. Vibration and temperature data from IO-Link-enabled smart sensors connected through SIMATIC ET 200 I/O modules can be securely forwarded to cloud analytics platforms via the module’s VPN tunnel capabilities. Early detection of bearing degradation or thermal anomalies in motor windings allows maintenance teams to schedule interventions during planned downtime windows rather than responding to unplanned failures — eliminating the energy waste associated with emergency restarts, extended warm-up cycles, and production catch-up overtime.

Every unit of the Siemens 6GK5602-0BA10-2AA3 supplied by ZYPLC undergoes full functional testing prior to shipment, including firewall rule validation, VPN tunnel establishment verification, and PROFINET communication integrity checks. Stock is maintained in our warehouse to support rapid deployment for both new installations and replacement scenarios. All units are covered by a 12-month warranty, ensuring that your investment in industrial network security and energy optimization infrastructure is protected from day one of commissioning.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6GK5602-0BA10-2AA3 is most effective when deployed as part of a layered, energy-aware automation architecture. At the field level, SIMATIC ET 200SP distributed I/O modules collect process signals from sensors and actuators, with all data routed through the SCALANCE S602 security boundary before reaching the controller layer. The SIMATIC S7-1500 CPU processes these signals and issues optimized control commands to SINAMICS G120C compact inverters, which regulate motor speed and torque in direct response to real production demand rather than fixed setpoints — a fundamental shift that reduces energy consumption by 20–50% compared to fixed-speed motor operation.

At the drive coordination layer, SINAMICS S120 multi-axis drive systems managing servo axes on assembly and packaging lines receive their motion profiles through the secured PROFINET network established by the 6GK5602-0BA10-2AA3. The module’s zone segmentation capability isolates the motion control subnet from general plant IT traffic, ensuring deterministic communication latency that is essential for synchronized multi-axis operations. Reduced jitter in command delivery translates directly to smoother acceleration and deceleration profiles, lower peak current draw, and less regenerative energy that must be dissipated as heat.

Power quality monitoring is handled by SENTRON PAC3200 and PAC4200 measuring devices installed at key distribution points. Their Modbus TCP and PROFINET data streams pass through the 6GK5602-0BA10-2AA3 to reach the SIMATIC WinCC energy management dashboards, where consumption trends are visualized and anomalies are flagged automatically. SIRIUS 3RW44 soft starters connected to high-inertia loads such as compressors and conveyors report their operating states through the same secured network path, enabling the energy management system to correlate soft-start events with demand peaks and optimize start sequencing to flatten the load curve.

At the supervisory level, SIMATIC HMI Comfort Panels provide operators with real-time visibility into energy KPIs alongside production throughput metrics. The secure communication path maintained by the 6GK5602-0BA10-2AA3 ensures that HMI data is never compromised by network intrusions that could display false readings and lead to incorrect operational decisions. SCALANCE XC208 managed switches in the same network segment provide additional traffic prioritization, ensuring that time-critical PROFINET IRT frames from servo drives are never delayed by bulk data transfers from energy monitoring systems.

Power Optimization in Real Production Lines

In automotive body shop applications, the 6GK5602-0BA10-2AA3 has been deployed to secure the communication network connecting robotic welding cells, conveyor drive systems, and quality inspection stations. By enforcing strict firewall policies that block all non-essential traffic during active production cycles, the module reduces the processing load on SIMATIC S7-1500 CPUs by eliminating unsolicited broadcast traffic. This reduction in controller overhead allows the CPU to execute energy optimization routines — such as dynamic speed reduction of conveyor drives during buffer accumulation — with greater precision and faster response times.

In food and beverage processing facilities, where hygiene requirements demand frequent washdown cycles and equipment must be brought to safe states rapidly, the 6GK5602-0BA10-2AA3 supports fast, secure shutdown command propagation across the entire production network. SINAMICS G120 drives connected to pump and mixer motors receive coordinated stop commands through the secured network, enabling controlled deceleration that recovers kinetic energy through regenerative braking rather than dissipating it through mechanical brakes. Over a full production shift, this energy recovery can represent a measurable reduction in net energy consumption per batch produced.

Maintenance cost reduction is another direct benefit of deploying the 6GK5602-0BA10-2AA3 in production environments. By preventing unauthorized access to drive parameter sets and PLC program blocks, the module eliminates the risk of configuration tampering that can cause motors to run outside their optimal efficiency curves. Drives operating at incorrect frequency setpoints or with disabled energy-saving functions consume significantly more power than correctly configured units. The security enforcement provided by the SCALANCE S602 platform ensures that energy optimization configurations remain intact throughout the product lifecycle, protecting the return on investment from energy efficiency projects.

Energy Optimization FAQ

Q1: How does the 6GK5602-0BA10-2AA3 contribute to measurable energy savings in an industrial plant?
The module reduces energy consumption indirectly by eliminating unauthorized network traffic that creates unnecessary processing loads on PLCs and drives, and by securing the data paths that carry energy monitoring information. Accurate, tamper-free energy data enables plant engineers to identify and eliminate inefficient operating modes, which typically yields 5–15% reductions in energy cost per production unit in well-instrumented facilities.

Q2: Is the 6GK5602-0BA10-2AA3 compatible with existing Siemens PROFINET and TIA Portal installations?
Yes. The SCALANCE S602 series is fully compatible with PROFINET RT and IRT communication profiles and integrates natively into TIA Portal V15 and later. It can be added to existing network topologies without requiring changes to PLC program logic or drive parameter sets, making it suitable for both greenfield installations and brownfield upgrades.

Q3: What is the recommended replacement or upgrade path if the existing network security module fails?
The 6GK5602-0BA10-2AA3 is a direct replacement for earlier SCALANCE S602 variants. Configuration files created in STEP 7 or TIA Portal can be reloaded to a replacement unit within minutes, minimizing production downtime. ZYPLC maintains stock of this module specifically to support rapid replacement scenarios, with same-day dispatch available for in-stock units.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Every 6GK5602-0BA10-2AA3 unit undergoes functional testing including power-on verification, firewall rule loading, VPN tunnel establishment, and PROFINET communication validation before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no additional cost, ensuring continuity of your network security and energy optimization infrastructure.
