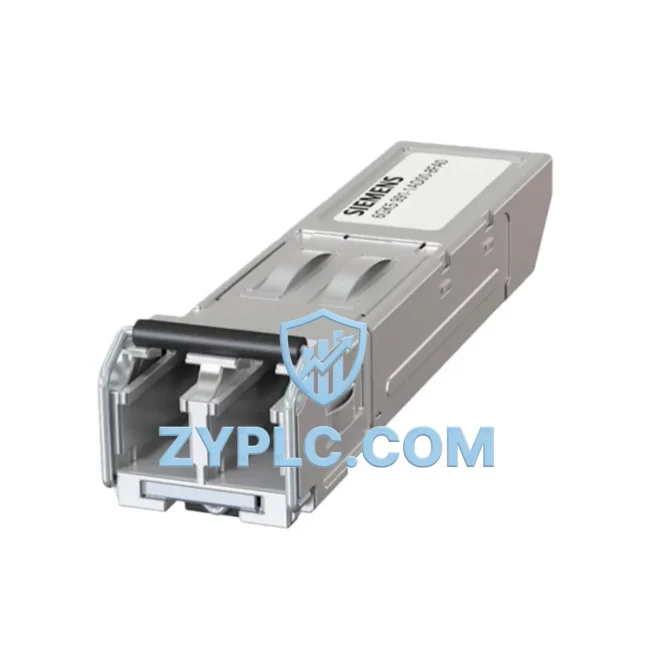

Siemens 6GK5991-1AF00-8AA0 System-Ready Fiber Optic Module for SCALANCE X

Siemens 6GK5991-1AF00-8AA0 System-Ready Fiber Optic Module for SCALANCE X Architecture

The Siemens 6GK5991-1AF00-8AA0 is a fiber optic media module engineered for seamless integration into SCALANCE X managed industrial Ethernet switches. In modern industrial automation, network infrastructure is not a peripheral concern — it is the backbone that determines whether a control system can sustain real-time communication, tolerate faults, and scale across distributed plant topologies. The 6GK5991-1AF00-8AA0 addresses this requirement directly by enabling fiber optic uplinks within the SCALANCE X platform, extending transmission distances, eliminating electromagnetic interference, and supporting ring redundancy architectures that are essential in demanding process environments.

Unlike copper-based media, fiber optic connections provide galvanic isolation between network segments, a critical advantage in high-voltage environments such as power distribution substations, motor control centers, and heavy industrial plants. When deployed within a SCALANCE X switch chassis, the 6GK5991-1AF00-8AA0 transforms a standard managed switch into a long-distance, interference-immune network node capable of anchoring a plant-wide PROFINET or Industrial Ethernet backbone.

Architecture Specification Table

Coordinated Control System Design

The 6GK5991-1AF00-8AA0 does not operate in isolation. Its value is fully realized when it is positioned within a layered control architecture where every component — from the CPU to the field device — communicates over a deterministic, fault-tolerant network. In a typical SIMATIC-based automation system, the network layer anchored by SCALANCE X switches connects the control layer (SIMATIC S7-300, S7-400, or S7-1500 CPUs), the I/O layer (ET 200SP or ET 200M distributed I/O stations), the HMI layer (SIMATIC TP or MP series panels), and the drive layer (SINAMICS G120 or S120 frequency converters) into a unified communication fabric.

When the 6GK5991-1AF00-8AA0 is installed in a SCALANCE X-300 or SCALANCE X-400 chassis, it enables fiber optic ring topologies using the Media Redundancy Protocol (MRP), achieving network recovery times under 200 milliseconds. This is particularly important in systems where a SIMATIC S7-1500 CPU is managing time-critical PROFINET I/O cycles and cannot tolerate communication interruptions. The fiber uplink provided by this module can connect remote ET 200SP I/O islands located hundreds of meters away in a large manufacturing hall or outdoor substation, while maintaining the same PROFINET cycle time as local copper-connected devices.

In multi-cabinet installations, the 6GK5991-1AF00-8AA0 serves as the inter-cabinet fiber backbone link, connecting SCALANCE X switches in each control panel. Each cabinet may house a SITOP PSU8600 power supply module, a SIMATIC S7-1500 or ET 200SP controller, and local I/O modules, while the fiber ring ensures that a cable fault in one segment does not disrupt the entire plant network. The SCALANCE X Management Layer, accessible via SINEMA Network Manager or TIA Portal’s network view, provides centralized diagnostics for all fiber links, enabling maintenance engineers to identify degraded optical power levels before they cause communication failures.

For systems requiring redundant controllers, the 6GK5991-1AF00-8AA0 supports the fiber backbone connecting primary and standby SIMATIC S7-400H or S7-1500R/H redundant CPU pairs. The high-speed fiber ring ensures that the redundancy synchronization traffic between the two CPUs is not affected by electrical noise from nearby variable frequency drives or high-current switching equipment. This architecture is standard in critical process industries where unplanned downtime carries significant financial and safety consequences.

Application in Layered Automation Systems

Manufacturing & Assembly Lines: In automotive body shop or electronics assembly environments, the 6GK5991-1AF00-8AA0 enables fiber ring networks that connect robot controllers, vision systems, conveyor drives, and safety PLCs across large production halls. The fiber medium eliminates ground loop interference common in welding areas, ensuring that PROFINET communication between SIMATIC S7-1500 controllers and SINAMICS drive systems remains stable during high-current welding cycles.

Power Distribution & Substations: In 110 kV or 220 kV substations, copper Ethernet cables are impractical due to extreme electromagnetic fields generated by high-voltage switching. The 6GK5991-1AF00-8AA0 provides the galvanic isolation required for IEC 61850-compliant substation automation networks, connecting protection relays, bay controllers, and SCADA gateways over a fiber ring that is immune to switching transients and lightning-induced surges.

Petrochemical & Refinery Plants: In ATEX Zone 2 classified areas, fiber optic networks are preferred because they carry no electrical energy into the hazardous zone. The 6GK5991-1AF00-8AA0 supports the fiber backbone connecting explosion-proof field junction boxes, remote I/O panels, and the central DCS or PLC control room, enabling real-time monitoring of flow, pressure, and temperature loops across the entire process unit.

Water Treatment & Utilities: Municipal water treatment plants often span multiple buildings and pump stations separated by hundreds of meters. The 6GK5991-1AF00-8AA0 enables a single fiber ring to connect all remote pump control panels back to the central SCADA server, replacing expensive leased communication lines and providing deterministic response times for alarm and control signals.

Mining & Metallurgy: Underground mining environments present extreme challenges for copper network infrastructure due to moisture, vibration, and electrical interference from large motors. Fiber optic networks built around the 6GK5991-1AF00-8AA0 provide reliable communication for conveyor control systems, ventilation PLCs, and emergency shutdown systems, even in the harshest underground conditions.

Architecture Engineering FAQ

Q1: Is the 6GK5991-1AF00-8AA0 compatible with both SCALANCE X-300 and SCALANCE X-400 series switches, and can it support MRP ring redundancy in both platforms?
Yes. The 6GK5991-1AF00-8AA0 is designed as a plug-in media module for the SCALANCE X modular switch family, which includes both the X-300 and X-400 series. Both platforms support Media Redundancy Protocol (MRP) when fiber optic modules are installed, enabling ring topologies with recovery times under 200 ms. Configuration is performed via TIA Portal or the SCALANCE X web interface, and the module is automatically recognized by SINEMA Network Manager for centralized optical link monitoring. The 12-Month Warranty covers the module under normal operating conditions as specified in the product datasheet.

Q2: How does the 6GK5991-1AF00-8AA0 integrate into an existing PROFINET architecture managed by a SIMATIC S7-1500 CPU, and are there any firmware or configuration prerequisites?
The module integrates transparently into PROFINET architectures. From the S7-1500 CPU’s perspective, the fiber optic link is simply a physical layer extension of the SCALANCE X switch — no additional PROFINET device configuration is required for the module itself. The SCALANCE X switch hosting the module must be configured with the appropriate port settings (speed, duplex, VLAN if applicable) via TIA Portal’s network configuration view. Ensure the SCALANCE X switch firmware is updated to a version compatible with the 6GK5991-1AF00-8AA0 module before installation. Contextual Integration with TIA Portal V16 or later is fully supported, enabling drag-and-drop network topology configuration.

Q3: What long-term maintenance considerations apply to the 6GK5991-1AF00-8AA0, and how does ZYPLC’s 12-Month Warranty support ongoing system reliability?
Fiber optic modules require periodic inspection of connector cleanliness, as contaminated SC or BFOC connectors are the leading cause of optical power degradation. SINEMA Network Manager provides continuous optical power level monitoring, enabling predictive maintenance before signal quality drops below acceptable thresholds. ZYPLC supplies the 6GK5991-1AF00-8AA0 with a 12-Month Warranty covering manufacturing defects and premature failure under specified operating conditions. Our technical team provides pre-sales architecture consultation and post-sales commissioning support to ensure the module is correctly integrated into your control system. For replacement units, spare parts planning, or system expansion inquiries, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
