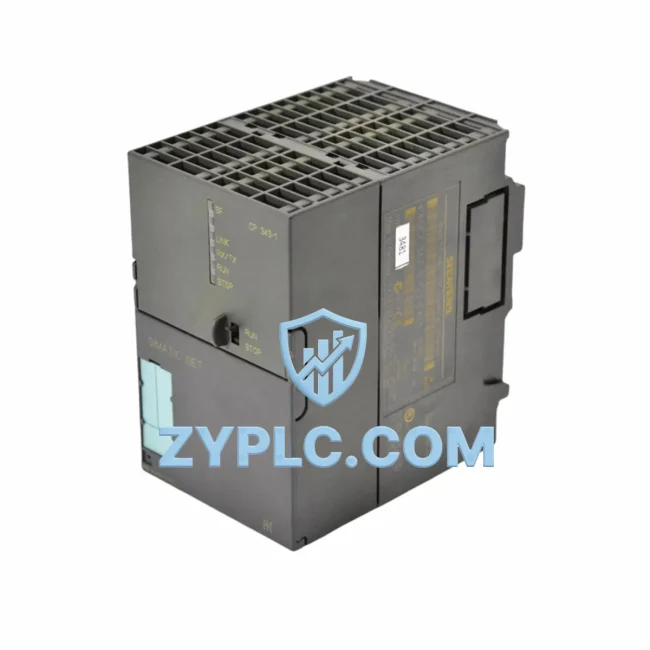

Siemens 6GK7343-1EX20-0XE0 Energy-Saving CP for SIMATIC NET

Siemens 6GK7343-1EX20-0XE0 Energy-Saving CP for SIMATIC NET: Precision Ethernet Communication for Optimized Industrial Automation

The Siemens 6GK7343-1EX20-0XE0 — also known as the CP 343-1 EX Advanced — is a high-performance Ethernet communication processor engineered for the SIMATIC S7-300 PLC platform. Designed to minimize network-layer energy overhead while maximizing data throughput, this CP module plays a critical role in modern industrial energy optimization strategies. Whether deployed in automotive assembly, process manufacturing, or discrete production environments, the 6GK7343-1EX20-0XE0 enables deterministic, low-latency communication that directly supports reduced cycle times, improved equipment utilization, and measurable energy savings across the production line.

In energy-conscious automation architectures, every millisecond of communication delay translates into wasted motor runtime, extended actuator hold times, and unnecessary power draw. The CP 343-1 EX Advanced addresses this by supporting Industrial Ethernet at 10/100 Mbit/s with integrated IT functions, enabling the S7-300 controller to exchange process data with SCADA systems, energy monitoring platforms, and higher-level MES layers with minimal protocol overhead. This tight integration between the field level and the supervisory level is what allows plant engineers to implement real-time energy feedback loops — adjusting drive setpoints, motor speeds, and load schedules based on live consumption data.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6GK7343-1EX20-0XE0 is most effective when integrated into a layered automation architecture where energy data flows seamlessly from the field level to the control and management levels. In a typical deployment, the CP 343-1 EX Advanced sits alongside a SIMATIC S7-300 CPU — such as the CPU 315-2 PN/DP or CPU 317-2 DP — handling all Ethernet-based communication tasks independently, freeing the CPU’s processing capacity for time-critical control logic. This separation of communication and control workloads is a key factor in reducing unnecessary CPU load cycles, which in turn lowers the overall power demand of the controller rack.

On the drive side, the CP module communicates upstream with SINAMICS G120 variable frequency drives and SINAMICS S120 servo drive systems via the S7-300 backplane and Profibus DP interfaces. When the energy monitoring system detects off-peak production windows, the CP 343-1 EX Advanced relays updated speed reference setpoints to the drives within milliseconds, enabling smooth ramp-down of conveyor motors, pump drives, and compressor units — eliminating the energy waste associated with running drives at full speed during low-demand periods.

For power quality monitoring, the 6GK7343-1EX20-0XE0 integrates naturally with SENTRON PAC3200 and SENTRON PAC4200 power monitoring devices via Modbus TCP or direct Ethernet polling. These meters feed real-time kWh, power factor, and harmonic distortion data into the SIMATIC S7-300 controller, where energy KPIs are calculated and forwarded to the plant’s WinCC SCADA or SIMATIC Energy Manager system. This closed-loop architecture allows operators to identify energy waste at the machine level — not just at the substation — and take corrective action through automated PLC logic or manual HMI intervention via a SIMATIC TP700 Comfort Panel or similar operator interface.

At the I/O level, ET 200SP distributed I/O modules connected via PROFINET extend the reach of the S7-300 system to remote field devices — sensors, actuators, and smart meters — without adding significant communication latency. The CP 343-1 EX Advanced manages the Ethernet backbone that ties these distributed nodes together, ensuring that energy-relevant signals (motor current feedback, temperature readings, pressure sensor data) arrive at the controller with the timing precision needed for effective energy optimization algorithms.

Power Optimization in Real Production Lines

In real-world production environments, the Siemens 6GK7343-1EX20-0XE0 contributes to energy savings through several concrete mechanisms. First, by enabling fast and reliable S7 communication between the S7-300 controller and upstream MES or ERP systems, the CP module supports demand-response production scheduling — shifting energy-intensive operations such as press cycles, injection molding, and CNC machining to off-peak tariff windows. This alone can reduce energy costs by 10–20% in facilities with time-of-use electricity pricing.

Second, the CP 343-1 EX Advanced supports ISO-on-TCP and open TCP/IP connections, allowing the S7-300 to communicate directly with third-party energy management systems and cloud-based analytics platforms. This openness means that predictive maintenance algorithms — running on edge computing hardware or cloud servers — can receive real-time motor current signatures, vibration data, and thermal readings from the PLC, enabling early detection of bearing wear, winding degradation, and mechanical imbalance before they cause unplanned downtime. Unplanned stops are among the largest sources of energy waste in manufacturing, as restart sequences, warm-up cycles, and scrap production all consume energy without generating output.

Third, the module’s support for PROFINET IO device mode allows it to participate in synchronized production line architectures where cycle times are tightly coordinated across multiple machines. By ensuring that the S7-300 controller receives accurate, low-latency feedback from upstream and downstream stations, the CP 343-1 EX Advanced helps eliminate buffer accumulation and starved-station conditions — both of which force machines to run in idle or low-efficiency states, consuming power without contributing to throughput.

All units supplied by ZYPLC undergo pre-shipment functional testing, including communication link verification, protocol handshake confirmation, and power-on self-test validation. Each 6GK7343-1EX20-0XE0 is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained for prompt dispatch, supporting both urgent replacement requirements and planned maintenance schedules.

Energy Optimization FAQ

Q1: How does the 6GK7343-1EX20-0XE0 contribute to measurable energy savings on the production line?
The CP 343-1 EX Advanced enables real-time data exchange between the S7-300 PLC and energy management systems, SCADA platforms, and variable frequency drives. By closing the feedback loop between energy consumption data and control setpoints, it allows the controller to dynamically adjust motor speeds, conveyor rates, and actuator hold times based on actual production demand — eliminating the energy waste of running equipment at fixed full-load settings regardless of throughput requirements.

Q2: Is the 6GK7343-1EX20-0XE0 compatible with TIA Portal and modern SIMATIC systems?
The CP 343-1 EX Advanced is natively programmed via STEP 7 V5.x. It can be integrated into TIA Portal environments through legacy device support and NCM PC configuration tools. For new projects requiring full TIA Portal compatibility, Siemens recommends evaluating the CP 343-1 Advanced (6GK7343-1GX31-0XE0) as an alternative, though the 6GK7343-1EX20-0XE0 remains fully functional and widely deployed in existing S7-300 installations.

Q3: What is the recommended replacement or upgrade path for aging CP 343-1 EX Advanced modules?
For direct replacement in existing S7-300 racks, the 6GK7343-1EX20-0XE0 is a drop-in substitute for earlier CP 343-1 variants. For system modernization projects, Siemens recommends migrating to the SIMATIC S7-1500 platform with integrated PROFINET interfaces, which offers higher processing performance and native TIA Portal support. ZYPLC can supply both the replacement CP modules and advisory support for migration planning.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6GK7343-1EX20-0XE0 supplied by ZYPLC is tested prior to shipment for power-on functionality, Ethernet link establishment, and basic S7 communication handshake. The 12-month warranty covers manufacturing defects and functional failures under normal industrial operating conditions. Warranty claims are processed directly through ZYPLC’s technical support team, with replacement units dispatched from stock to minimize downtime.
