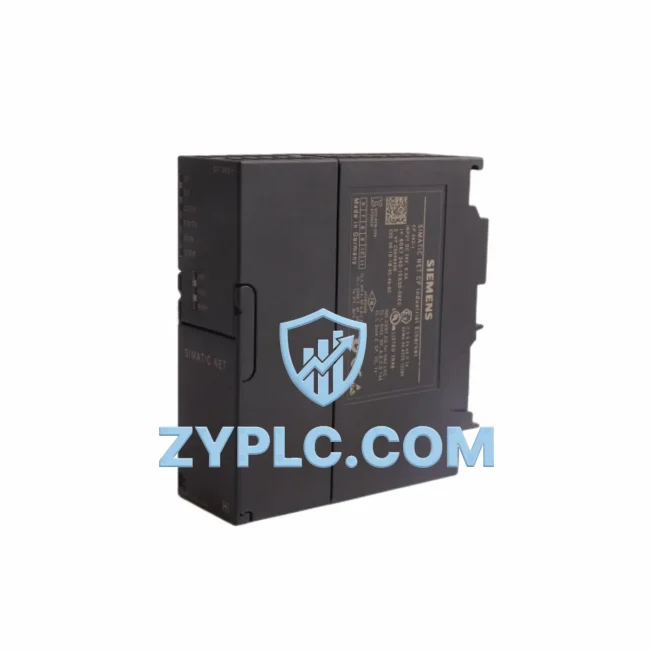

Siemens 6GK7343-1EX30-0XE0 System-Ready Ethernet CP for S7-300 Architecture

Siemens 6GK7343-1EX30-0XE0 System-Ready Ethernet CP for S7-300 Architecture: Contextual Integration Across Control System Layers

The Siemens 6GK7343-1EX30-0XE0, commercially designated as the CP 343-1, is a dedicated Ethernet communication processor engineered for seamless integration within the SIMATIC S7-300 modular PLC platform. Rather than functioning as a standalone peripheral, this module occupies a critical position in the network layer of a layered automation architecture — bridging the deterministic control logic of the S7-300 CPU with enterprise-level PROFINET and Industrial Ethernet infrastructure. Its role is not merely connectivity; it is the enabler of system-wide data coherence, real-time diagnostics, and scalable communication across every tier of the control hierarchy.

In modern industrial control system design, the communication layer is as strategically important as the processing layer. The CP 343-1 addresses this by providing a dedicated TCP/IP and ISO-on-TCP communication channel that offloads network processing from the central CPU — such as the CPU 315-2 PN/DP or CPU 317-2 DP — preserving scan cycle integrity while enabling simultaneous multi-client data exchange. This architectural separation of concerns is fundamental to building robust, high-availability automation systems in demanding environments including power generation, petrochemical processing, water treatment, and discrete manufacturing.

Architecture Specification Table

Coordinated Control System Design

The CP 343-1 (6GK7343-1EX30-0XE0) achieves its full value when considered within the complete S7-300 rack assembly and the broader plant network topology. At the processing layer, it works in tandem with CPUs such as the CPU 315-2 DP or CPU 317-2 PN/DP, which handle the deterministic execution of ladder logic, function block diagrams, and structured text programs. The CP 343-1 assumes responsibility for all Ethernet-based communication tasks, ensuring that network traffic never competes with the CPU’s real-time scan cycle.

Power integrity across the rack is maintained by the PS 307 5A or PS 307 10A power supply modules, which deliver regulated DC 24 V to the backplane and connected I/O modules. Signal acquisition at the field level is handled by digital and analog I/O modules such as the SM 321 DI 32×DC 24V for digital inputs and the SM 331 AI 8×12Bit for analog process values — both of which feed real-time data upstream through the CPU and, via the CP 343-1, to SCADA systems or MES platforms over Ethernet.

For distributed I/O architectures, the CP 343-1 can act as a PROFINET IO controller, managing remote ET 200S or ET 200M distributed I/O stations across the plant floor without burdening the CPU’s DP master interface. This is particularly valuable in large-footprint installations such as water treatment facilities or mining conveyor systems, where field devices are geographically dispersed.

At the human-machine interface layer, the CP 343-1 provides the Ethernet backbone over which SIMATIC HMI TP1200 Comfort or MP377 panels communicate with the S7-300 controller using S7 protocol or OPC UA, enabling operators to monitor process variables, acknowledge alarms, and adjust setpoints in real time. The same Ethernet segment can simultaneously carry data to a SIMATIC WinCC SCADA server for historian logging and trend analysis.

In redundancy-critical applications, the CP 343-1 can be paired with a second communication processor in a dual-CP configuration, providing network-level redundancy without requiring a full CPU redundancy system. This approach is cost-effective for applications in power distribution substations or chemical dosing systems where communication continuity is mandatory but full hot-standby CPU redundancy is not justified. Terminal modules such as the IM 360/IM 361 interface modules extend the S7-300 rack across multiple rows, allowing the CP 343-1 to serve an expanded I/O footprint while maintaining a single logical network node.

Application in Layered Automation Systems

In manufacturing and discrete production lines, the CP 343-1 enables the S7-300 to participate in plant-wide MES integration, transmitting production counts, cycle times, and fault codes to ERP systems via TCP/IP. Assembly lines with multiple S7-300 stations can be networked through a common Industrial Ethernet switch, with each CP 343-1 maintaining independent connections to the supervisory layer.

In power generation and electrical substation environments, the module supports IEC 60870-compatible data exchange through gateway solutions, and its robust operating temperature range and IP20 protection class make it suitable for installation in climate-controlled relay panels. The 12-Month Warranty provides procurement teams with the assurance needed for long-term maintenance planning in critical infrastructure projects.

In petrochemical and process control applications, the CP 343-1 facilitates integration between the S7-300 control layer and distributed control system (DCS) supervisory platforms via OPC server interfaces. Its support for FETCH/WRITE communication allows legacy SCADA systems to access S7-300 data blocks directly without requiring custom protocol adapters.

In water and wastewater treatment facilities, where remote pump stations and chemical dosing units must report to a central SCADA system, the CP 343-1 provides the reliable Ethernet uplink that sustains continuous telemetry. Its ability to maintain up to 16 simultaneous connections ensures that multiple supervisory clients — including historian servers, alarm management systems, and operator workstations — can access process data concurrently without connection contention.

In mining and metallurgical operations, where control cabinets are subject to vibration, dust ingress, and wide ambient temperature swings, the CP 343-1’s industrial-grade design and DIN rail mounting ensure mechanical stability. Its Contextual Integration capability — the ability to participate in both PROFINET IO and classic Industrial Ethernet topologies simultaneously — makes it a versatile choice for brownfield modernization projects where legacy S7-300 systems are being extended rather than replaced.

Architecture Engineering FAQ

Q1: Is the 6GK7343-1EX30-0XE0 compatible with TIA Portal, and can it be used alongside newer S7-1500 systems on the same PROFINET network?
The CP 343-1 is primarily configured via STEP 7 V5.x using NetPro, though limited configuration is possible in TIA Portal through legacy device support. On a shared PROFINET network, the S7-300 with CP 343-1 can coexist with S7-1500 controllers as a PROFINET IO device or as a peer node on the same Ethernet segment, provided IP addressing and subnet masks are correctly assigned. Cross-controller S7 communication is fully supported, enabling data exchange between S7-300 and S7-1500 systems without additional gateways.

Q2: What are the installation and commissioning requirements for integrating the CP 343-1 into an existing S7-300 rack?
The module installs into any standard S7-300 rack slot (excluding slot 1, reserved for the power supply). No external power connection is required as the module draws power from the backplane bus. After physical installation, the module must be assigned an IP address and subnet mask via STEP 7 NetPro or the TIA Portal device configuration tool. A firmware update may be required if integrating with newer CPU firmware versions. Commissioning involves verifying Ethernet link status via the module’s LED indicators and confirming connection establishment through the STEP 7 diagnostic buffer.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance and spare parts availability?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. ZYPLC maintains dedicated inventory of the 6GK7343-1EX30-0XE0 to support both immediate replacement needs and planned maintenance schedules. For long-term projects requiring multi-year spare parts commitments, ZYPLC’s procurement team can arrange forward stock agreements. Technical support for installation, configuration, and system integration is available through our engineering team at plc.sales@zyplc.com or +86 19859288691.
