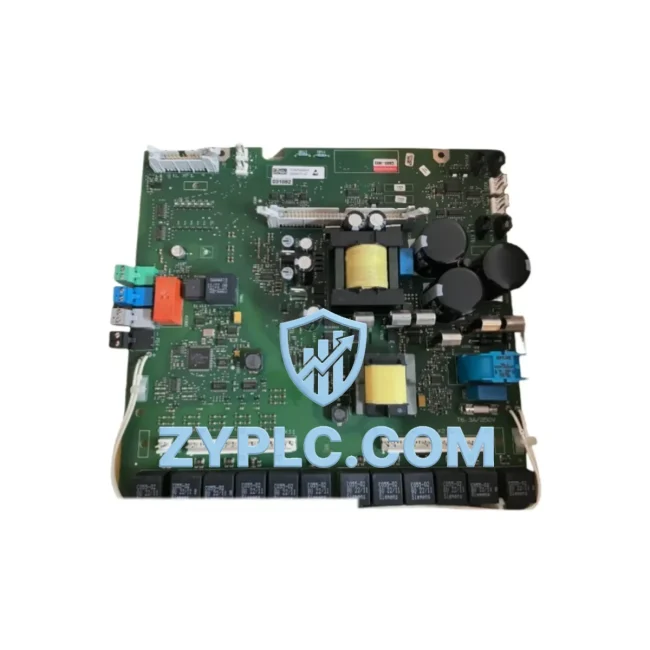

Siemens 6RY1803-0DB02 Energy-Saving Power Supply Module

Siemens 6RY1803-0DB02 Energy-Saving Power Supply Module: Precision Energy Control for SIMOREG Automation

The Siemens 6RY1803-0DB02 (C98043-A7107-L4) is a high-efficiency power supply module engineered for the SIMOREG DC-MASTER drive platform. Designed to deliver stable, regulated DC power to the drive’s control electronics, this module plays a critical role in maintaining consistent motor performance, reducing reactive power losses, and supporting the energy-aware operation of industrial production lines. Whether deployed in continuous process manufacturing, heavy-duty material handling, or precision motion control, the 6RY1803-0DB02 ensures that the SIMOREG drive system operates within its optimal efficiency envelope — minimizing unnecessary energy draw while maximizing equipment uptime.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a well-optimized industrial drive system, every component in the power chain contributes to overall energy efficiency. The Siemens 6RY1803-0DB02 power supply module sits at the heart of the SIMOREG DC-MASTER control architecture, providing the stable voltage rails that allow the drive’s microprocessor board — such as the Siemens C98043-A7002 CUD1 control unit — to execute precise firing angle calculations for the thyristor bridge. When the control supply is unstable, the drive compensates with wider dead-band settings, increasing harmonic distortion and reducing motor efficiency.

Paired with a properly functioning 6RY1803-0DB02, the SIMOREG’s 6RA7085 or 6RA7093 converter unit can maintain tight speed regulation across the full torque range, directly reducing the energy wasted in motor slip and thermal losses. In multi-drive installations, the power supply module also supports the SIMOREG’s communication interface with PROFIBUS-DP fieldbus adapters (such as the 6SX7010-0FF00 CBP2 board), enabling real-time energy data exchange with the plant’s SCADA or DCS system.

For facilities running Siemens SIMATIC S7-300 or S7-400 PLCs as the supervisory controller, a stable SIMOREG power supply ensures that the drive’s serial interface remains synchronized with the PLC’s cyclic scan — preventing communication timeouts that force the drive into a safe-state energy-wasting coast-stop. Operators using Siemens OP7 or TP177 HMI panels to monitor drive parameters will also benefit from the consistent supply rail, as panel communication dropouts are frequently traced back to degraded PSU modules.

In energy monitoring architectures, the 6RY1803-0DB02 supports integration with Siemens SENTRON PAC3200 power analyzers installed upstream of the drive cabinet. When the drive’s internal supply is stable, the PAC3200 can accurately capture the drive’s true power factor and harmonic spectrum — data that is essential for ISO 50001 energy management reporting and for identifying opportunities to install line reactors or harmonic filters to further reduce grid-side losses.

For I/O-intensive applications where the SIMOREG interfaces with Siemens ET 200S or ET 200M distributed I/O stations for encoder feedback, digital speed references, or torque limit signals, the power supply module’s regulated output ensures that the drive’s analog I/O board (such as the C98043-A7006 ADB) maintains its calibration accuracy — directly impacting the precision of speed-controlled processes like winding, extruding, and rolling.

Power Optimization in Real Production Lines

On a typical paper mill or steel rolling line where SIMOREG DC-MASTER drives control main drive motors in the 200–2000 kW range, a failing power supply module is one of the most insidious sources of energy waste. Unlike a blown fuse or a tripped breaker, a degraded PSU causes intermittent drive faults — F023 (supply voltage fault) or A030 (auxiliary voltage warning) — that force the drive to perform unplanned restarts. Each restart cycle on a large DC motor involves a full field-weakening sequence that can draw 150–300% of rated current for 2–5 seconds, consuming energy equivalent to several minutes of normal operation.

By replacing a worn 6RY1803-0DB02 with a tested, in-stock unit from ZYPLC, maintenance teams can eliminate these fault-restart cycles entirely. In a production environment running two shifts per day, eliminating even three unplanned restarts per shift on a 500 kW drive can recover more than 1,500 kWh per month — a meaningful reduction in both energy cost and carbon footprint.

Beyond energy savings, a stable power supply module directly improves equipment utilization rate (OEE). When the SIMOREG’s control electronics are powered reliably, the drive’s adaptive speed controller can maintain tighter process tolerances, reducing scrap rates and improving line throughput. In synchronized multi-drive systems — such as a draw bench with a master SIMOREG and multiple follower drives — a PSU fault on any single drive can cascade into a full-line stop, multiplying the energy and productivity impact across the entire system.

Predictive maintenance programs that monitor SIMOREG drive health via PROFIBUS or USS protocol data logging can use the drive’s internal diagnostic registers to track auxiliary supply voltage trends over time. A gradual decline in the 24 V or 15 V rail — detectable before a hard fault occurs — is a reliable early indicator that the 6RY1803-0DB02 module is approaching end of life. Scheduling a planned replacement during a scheduled maintenance window, using a pre-tested spare from ZYPLC’s inventory, avoids the far greater cost of an unplanned production stop.

All units supplied by ZYPLC are functionally tested under load conditions prior to shipment, with test records available on request. Stock is maintained in our warehouse for immediate dispatch, supporting just-in-time maintenance strategies that minimize spare parts inventory carrying costs while ensuring rapid response to drive failures.

Energy Optimization FAQ

Q1: How does replacing the 6RY1803-0DB02 reduce energy consumption on my production line?
A degraded power supply module causes intermittent drive faults and unplanned restarts, each of which draws a high inrush current surge. Replacing the module with a tested unit eliminates these fault cycles, reducing peak demand charges and overall kWh consumption. In multi-drive systems, it also prevents cascade stops that multiply energy waste across the line.

Q2: Is the 6RY1803-0DB02 compatible with all SIMOREG DC-MASTER variants?
The 6RY1803-0DB02 (C98043-A7107-L4) is designed for use within the Siemens SIMOREG DC-MASTER 6RA70 series control board assembly. Compatibility with specific drive ratings (current and voltage) should be verified against your drive’s hardware configuration list (HWL). ZYPLC’s technical team can assist with cross-referencing your drive’s serial number and firmware version to confirm fitment.

Q3: What is the recommended replacement procedure and how long does it take?
Replacement of the power supply module requires the drive cabinet to be de-energized and locked out (LOTO). The module is typically secured by DIN rail clips or panel screws and connects via a keyed multi-pin connector, making swap-out straightforward for a qualified drive technician. Most replacements are completed within 30–60 minutes, minimizing planned downtime. ZYPLC recommends performing a full drive parameter backup before any hardware change.

Q4: What does the 12-month warranty cover and how is it supported?
All 6RY1803-0DB02 units supplied by ZYPLC carry a 12-month warranty covering functional defects under normal operating conditions. Each unit is tested before shipment. In the event of a warranty claim, ZYPLC provides a replacement unit from stock to minimize your downtime. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty support and RMA processing.
