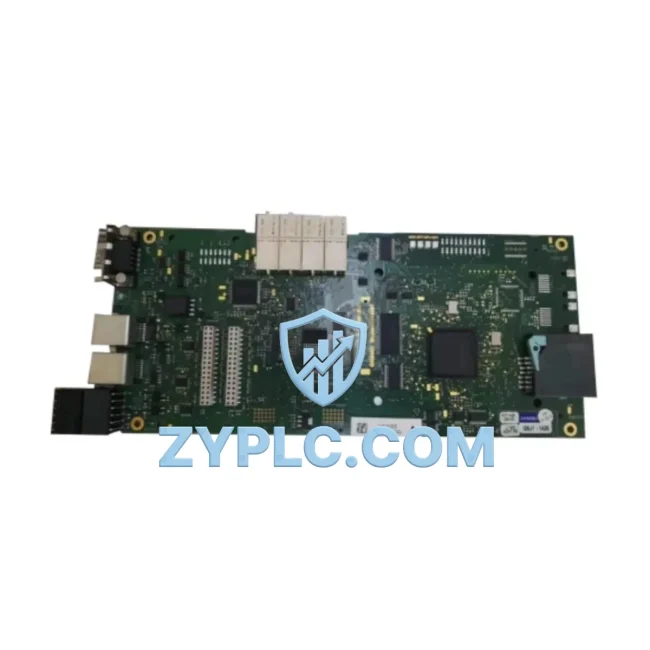

Siemens 6RY1803-1DA04 System-Ready DC Drive Control Module for SIMOREG Architecture

Siemens 6RY1803-1DA04 System-Ready DC Drive Control Module for SIMOREG Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6RY1803-1DA04 is a dedicated DC drive control module engineered for seamless integration within the SIMOREG DC MASTER converter platform. Rather than functioning as a standalone component, this module occupies a critical position within the layered industrial control architecture — bridging the intelligence of the control layer with the power conversion capabilities of the drive layer. In modern industrial automation environments, where system consistency, scalability, and long-term maintainability are paramount, the 6RY1803-1DA04 delivers the contextual integration that engineers and system architects demand across manufacturing, power generation, petrochemical, and process control applications.

Designed to operate within the SIMOREG DC MASTER family — including the widely deployed 6RA70 series converters — this control module provides the computational and signal-processing backbone that governs armature current regulation, field excitation control, speed feedback processing, and fault diagnostics. Its architecture-ready design ensures that it can be deployed as a direct replacement or upgrade component within existing SIMOREG installations without requiring extensive rewiring or software reconfiguration, significantly reducing commissioning time and engineering overhead.

Architecture Specification Table

Coordinated Control System Design

The 6RY1803-1DA04 does not operate in isolation. Its value is fully realized when considered within the complete SIMOREG control system architecture, where multiple hardware layers must communicate, synchronize, and respond to process demands in real time. Understanding the upstream and downstream relationships of this module is essential for system architects designing for redundancy, scalability, and long-term operational stability.

At the control layer, the 6RY1803-1DA04 interfaces directly with the SIMOREG 6RA70 series converter chassis, acting as the central intelligence board that processes reference signals from higher-level controllers such as Siemens SIMATIC S7-300 or S7-400 PLCs. These PLCs communicate via PROFIBUS-DP, enabled by the CBP2 communication board (6SE7090-0XX84-0FF5), which plugs into the SIMOREG option slot and provides the fieldbus gateway between the drive and the automation network. This architecture ensures that speed setpoints, torque limits, and operational modes can be dynamically adjusted from the PLC without manual intervention at the drive level.

At the power layer, the control module coordinates with the thyristor power section of the 6RA70 converter, regulating firing angles to achieve precise armature voltage and current control. The TDB power interface board and associated gate driver circuits translate the digital control signals from the 6RY1803-1DA04 into the firing pulses that govern the thyristor bridge — a critical link in the signal flow from digital command to physical torque output. Proper calibration of this interface is essential during commissioning to ensure linearity and stability across the full speed range.

At the I/O layer, analog and digital signals from process sensors — including tachogenerators, encoder feedback modules, and current transducers — are conditioned and fed into the control module for closed-loop regulation. The SBP pulse encoder evaluation board (6SE7090-0XX84-0BC0) is commonly deployed alongside the 6RY1803-1DA04 to provide high-resolution speed feedback in applications requiring tight speed regulation, such as winding machines, extruders, and rolling mills.

At the network layer, the SIMOREG architecture supports integration with plant-wide SCADA systems and distributed control systems (DCS) through the CBP2 PROFIBUS interface or optional CBD DeviceNet board. This enables the 6RY1803-1DA04-equipped drive to participate in coordinated multi-drive systems, where master-follower speed synchronization or load-sharing between multiple 6RA70 converters is required — a common requirement in paper mills, steel processing lines, and continuous casting plants.

At the HMI layer, the Siemens OP1S operator panel connects directly to the SIMOREG drive, providing local parameter access, fault history display, and drive commissioning capability without requiring a laptop or engineering workstation. For remote monitoring, the drive data can be integrated into Siemens WinCC SCADA or third-party HMI platforms via the PROFIBUS network, enabling operators to monitor drive status, current, voltage, and speed from a central control room.

For applications requiring redundancy, the 6RY1803-1DA04 supports hot-standby configurations when paired with appropriate system-level redundancy designs. Maintaining a spare control module in inventory — alongside critical components such as the CUD1 central unit board and CUD2 expansion board — is a best practice recommended for high-availability production environments where unplanned downtime carries significant financial consequences. ZYPLC maintains ready stock of the 6RY1803-1DA04 and related SIMOREG components to support rapid replacement and minimize mean time to repair (MTTR).

Application in Layered Automation Systems

The Siemens 6RY1803-1DA04 finds application across a broad spectrum of industrial sectors where DC drive technology remains the preferred solution for high-torque, wide-speed-range, and precise speed-regulation requirements.

In steel and metals processing, SIMOREG DC MASTER converters equipped with the 6RY1803-1DA04 control module are deployed in rolling mill main drives, coiler and uncoiler drives, and leveler line drives. The ability to maintain precise tension and speed synchronization across multiple drive sections — coordinated through PROFIBUS-DP and the SIMATIC PLC layer — is critical to product quality and yield. The module’s robust fault diagnostics reduce unplanned stops and enable predictive maintenance scheduling.

In paper and pulp manufacturing, the 6RY1803-1DA04 supports multi-section paper machine drives where each section must maintain precise speed ratios to control web tension. The SIMOREG architecture’s peer-to-peer communication capability allows adjacent drives to share speed and torque data directly, reducing the load on the central PLC and improving dynamic response during web breaks and speed changes.

In petrochemical and refinery applications, DC drives controlled by the 6RY1803-1DA04 are used in extruder drives, compressor drives, and pump drives where variable speed control and high starting torque are required. The module’s compatibility with PROFIBUS-DP enables integration with Siemens PCS 7 distributed control systems, providing seamless process automation from field device to control room.

In mining and mineral processing, SIMOREG drives with the 6RY1803-1DA04 are applied to conveyor drives, hoist drives, and crusher drives. The module’s field weakening control capability allows the drive to operate motors above base speed, maximizing throughput while protecting motor insulation through precise field current regulation.

In water and wastewater treatment, the 6RY1803-1DA04 supports pump and blower drives in applications where energy efficiency and process stability are priorities. Integration with plant SCADA systems via PROFIBUS enables remote monitoring and control, reducing the need for on-site operator intervention and supporting unmanned operation during off-peak hours.

Architecture Engineering FAQ

Q1: Is the 6RY1803-1DA04 compatible with all variants of the Siemens SIMOREG 6RA70 series, and what should be verified before installation?

The 6RY1803-1DA04 is designed for use within the SIMOREG DC MASTER 6RA70 platform. Before installation, engineers should verify the firmware version of the existing converter, the hardware revision of the control board slot, and the parameter set stored in the existing CUD1/CUD2 boards. It is recommended to back up all drive parameters using the OP1S operator panel or DriveMonitor software prior to board replacement. ZYPLC’s technical team can assist with compatibility verification based on the converter’s nameplate data and order number.

Q2: How does the 6RY1803-1DA04 support long-term maintenance and spare parts management in a multi-drive architecture?

In facilities operating multiple SIMOREG 6RA70 converters, standardizing on the 6RY1803-1DA04 as the control module across all drives simplifies spare parts inventory management. A single spare board can serve as a replacement for any converter in the fleet, reducing the total number of spare parts required and lowering inventory carrying costs. ZYPLC recommends maintaining at least one spare 6RY1803-1DA04 per five converters in service, with all spares covered under the 12-Month Warranty to ensure reliability at the point of need.

Q3: What commissioning steps are required after replacing the 6RY1803-1DA04, and how does the 12-Month Warranty apply to replacement units?

After installing a replacement 6RY1803-1DA04, the drive must be recommissioned following Siemens SIMOREG commissioning guidelines. Key steps include restoring saved parameters from backup, verifying analog input/output calibration, confirming encoder feedback signal integrity via the SBP board, and performing a no-load and full-load test run to validate speed regulation accuracy. All 6RY1803-1DA04 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, providing assurance against manufacturing defects and ensuring that replacement units perform to Siemens OEM specifications.
