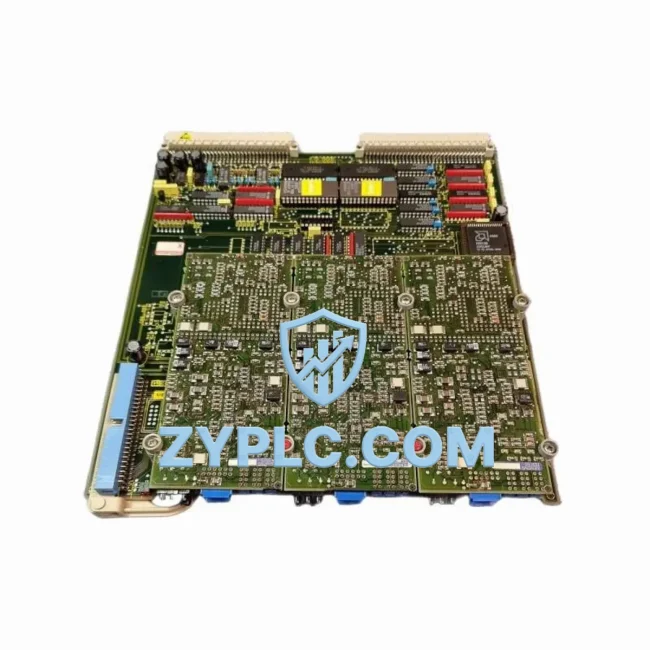

Siemens 6SC6100-0ND20 Energy-Saving Drive Module

Siemens 6SC6100-0ND20 Energy-Saving Drive Module for Optimized Simodrive 610 Automation

The Siemens 6SC6100-0ND20 is a high-performance drive control module from the Simodrive 610 series, engineered to deliver precise motor control, measurable energy savings, and reliable operation across demanding industrial automation environments. Designed for integration into multi-axis drive systems, this module enables factories to reduce idle power consumption, sharpen production line cycle times, and extend the operational lifespan of connected drive hardware — all while maintaining full compatibility with Siemens’ established control architecture.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a modern energy-conscious production facility, the Siemens 6SC6100-0ND20 serves as the drive control backbone within a tightly integrated automation architecture. It operates in conjunction with the Simodrive 610 power supply module (such as the 6SC6100-0GF01) to regulate DC bus voltage and distribute power efficiently across multiple drive axes — eliminating unnecessary energy draw during low-load or standby phases.

On the control side, the 6SC6100-0ND20 interfaces directly with SINUMERIK 840D SL CNC controllers, receiving interpolated axis commands and translating them into precise PWM switching signals for connected servo motors. This tight coupling between the CNC controller and the drive module ensures that motor torque is applied only when and where it is needed, dramatically reducing reactive power losses that are common in oversized or poorly tuned drive systems.

For multi-axis applications, the module works alongside Simodrive 611 feed drive modules and Simodrive 611 main spindle modules, sharing a common DC bus architecture that allows regenerative braking energy from decelerating axes to be redistributed to accelerating axes — a key mechanism for reducing net energy consumption in high-cycle machining environments. The 6SC6500 series resolver evaluation modules provide closed-loop position feedback, ensuring that the drive operates at optimal efficiency points rather than hunting or overshooting target positions.

At the I/O and communication layer, Siemens PROFIBUS DP interface modules and SIMATIC S7-300/S7-400 PLCs coordinate production sequencing, enabling the drive system to enter energy-saving standby modes between production cycles without sacrificing responsiveness. Integration with SIMATIC ET 200 distributed I/O further extends the system’s ability to monitor field-level signals — such as axis load current and thermal status — feeding real-time data back to the control layer for adaptive energy management.

For facilities deploying power quality monitoring, the 6SC6100-0ND20 can be paired with Siemens SENTRON PAC power monitoring devices, which track energy consumption at the drive cabinet level and generate actionable reports for energy audits and ISO 50001 compliance. This combination of drive-level efficiency and system-level energy visibility makes the Simodrive 610 platform a compelling choice for manufacturers targeting measurable reductions in per-part energy cost.

Power Optimization in Real Production Lines

In CNC machining centers and multi-axis grinding systems, unoptimized drive systems are among the largest sources of avoidable energy waste. Oversized motors running at partial load, drives operating in open-loop voltage/frequency mode, and systems lacking regenerative capability can collectively account for 20–35% of a facility’s electrical consumption. The Siemens 6SC6100-0ND20 addresses these inefficiencies at the hardware level.

By delivering closed-loop vector control with high dynamic response, the 6SC6100-0ND20 ensures that motor current is precisely matched to the actual torque demand at every point in the machining cycle. During rapid traverse moves — where the axis decelerates sharply before a positioning stop — the module’s regenerative capability captures kinetic energy and returns it to the shared DC bus, reducing the net power drawn from the mains supply. Over a full production shift, this regenerative contribution can meaningfully reduce energy billing costs, particularly in high-cycle applications such as gear hobbing, thread grinding, or pallet-changing machining centers.

From a maintenance and uptime perspective, the module’s built-in diagnostic functions continuously monitor drive temperature, DC bus voltage ripple, and output current waveform quality. Anomalies are flagged via the SINUMERIK operator panel before they escalate into unplanned downtime events. This predictive maintenance capability reduces emergency repair costs, shortens mean time to repair (MTTR), and supports planned maintenance scheduling — all of which contribute to higher overall equipment effectiveness (OEE) and lower total cost of ownership.

Every 6SC6100-0ND20 unit supplied by ZYPLC undergoes a comprehensive pre-shipment functional test, including DC bus charge/discharge cycling, output stage switching verification, and communication interface validation. Units are shipped with a 12-month warranty, backed by in-stock inventory for fast delivery to minimize production line downtime.

Energy Optimization FAQ

Q1: How much energy can the 6SC6100-0ND20 save compared to a standard V/F drive?
The Simodrive 610 closed-loop vector control architecture typically reduces motor losses by 15–30% compared to open-loop V/F drives in variable-load applications, primarily by eliminating excess magnetizing current during partial-load operation. Actual savings depend on duty cycle, motor sizing, and load profile.

Q2: Is the 6SC6100-0ND20 compatible with my existing Simodrive 610 or 611 cabinet?
Yes. The 6SC6100-0ND20 is designed for direct integration into standard Simodrive 610 drive cabinets and is electrically compatible with Simodrive 611 power supply and feed drive modules sharing the same DC bus. Always verify the axis current rating and firmware revision against your system documentation before installation.

Q3: What is the recommended replacement or upgrade path if the 6SC6100-0ND20 is end-of-life in my system?
For systems where a full platform migration is planned, Siemens SINAMICS S120 drive modules offer a modern replacement path with enhanced energy management features, including integrated energy recovery and PROFINET communication. ZYPLC can advise on compatibility and transition planning based on your specific machine configuration.

Q4: What does the 12-month warranty cover, and what is the testing process?
Every unit is tested for full functional operation prior to shipment, including power stage verification, control interface checks, and communication port validation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no additional cost. Contact ZYPLC at plc.sales@zyplc.com for warranty claims and RMA processing.
