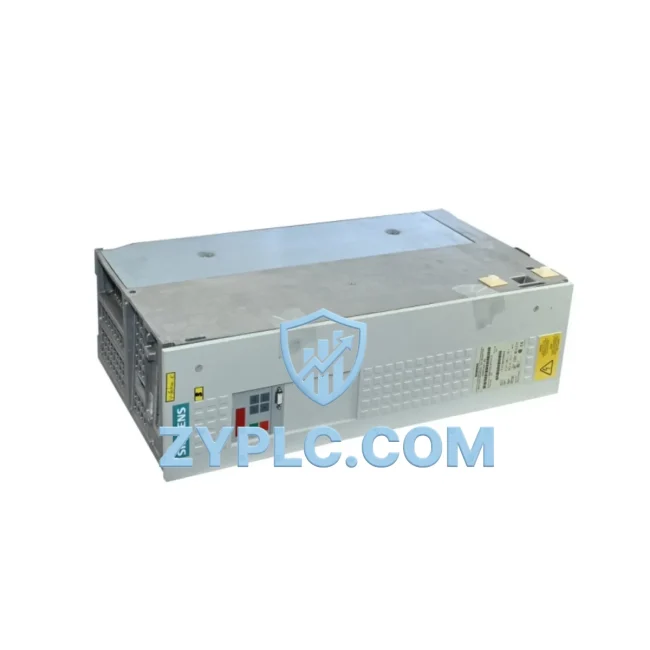

Siemens 6SE7022-6TC51-Z System-Ready Inverter for 6SE70 Architecture

Siemens 6SE7022-6TC51-Z System-Ready Inverter for 6SE70 Architecture

The Siemens 6SE7022-6TC51-Z is a SIMOVERT Masterdrive inverter module engineered for seamless integration within the 6SE70 series control architecture. Rather than functioning as a standalone drive component, this unit is designed to operate as a coordinated element within a layered automation system — interfacing with upstream controllers, downstream actuators, I/O subsystems, communication networks, and power distribution layers to deliver consistent, scalable, and maintainable motion control across demanding industrial environments.

In modern industrial control system design, the inverter module occupies a critical position between the control layer and the execution layer. The 6SE7022-6TC51-Z receives setpoint commands from a higher-level PLC or process controller — such as a Siemens SIMATIC S7-400 or S7-300 CPU — via PROFIBUS-DP or analog reference signals, translates those commands into precise voltage and frequency outputs, and drives three-phase induction motors with high dynamic response. This architecture ensures that speed regulation, torque control, and ramp management are handled at the drive level, reducing the computational burden on the central controller and improving overall system determinism.

System architects integrating the 6SE7022-6TC51-Z into a Masterdrive cabinet must account for the full signal chain: from the SIMATIC CPU issuing motion commands, through the PROFIBUS-DP network connecting the drive to the automation bus, to the 6SE70 power section supplying the DC link voltage, and finally to the motor terminals driving the load. Each layer must be correctly specified and matched to ensure stable operation under variable load conditions, transient disturbances, and emergency stop sequences.

Architecture Specification Table

Coordinated Control System Design

The 6SE7022-6TC51-Z achieves its full performance potential when deployed within a coordinated Masterdrive system architecture. At the control layer, a Siemens SIMATIC S7-400 CPU or S7-300 CPU serves as the master controller, issuing process setpoints and monitoring drive status via cyclic PROFIBUS-DP communication. The drive’s CBP2 PROFIBUS communication board enables deterministic data exchange at cycle times compatible with motion-critical applications, ensuring that speed references and fault acknowledgements are transmitted without latency-induced instability.

At the power layer, the 6SE7022-6TC51-Z inverter module is fed by a 6SE7031 or 6SE7033 series active infeed converter (rectifier unit), which maintains a stable DC link bus shared across multiple inverter modules in a common DC bus topology. This architecture allows regenerative energy from decelerating drives to be redistributed to accelerating drives on the same bus, improving energy efficiency and reducing peak demand on the supply transformer. A 6SE70 braking module and associated braking resistor may be added to the DC bus to handle excess regenerative energy in applications with frequent deceleration cycles.

At the I/O layer, digital and analog signals from field devices — including encoder feedback from the motor shaft, temperature sensors from the motor winding, and process feedback from flow or pressure transmitters — are routed through Siemens ET 200M distributed I/O or directly to the drive’s onboard terminal strip. The 6SE70 technology board T100 or T400 can be inserted into the drive’s option slot to provide closed-loop process control functions, cam controllers, or positioning tasks without requiring additional PLC resources.

At the human-machine interface layer, a Siemens OP7 or OP17 operator panel connected via MPI or PROFIBUS provides local parameter access, fault diagnostics, and drive commissioning capability. For cabinet-level visualization, a SIMATIC HMI TP700 or TP900 touch panel running WinCC Flexible or TIA Portal HMI software delivers real-time drive status, trend displays, and alarm management to the operator. The DriveMonitor or STARTER commissioning tool running on a PC connected via PROFIBUS or USS protocol provides full parameter access during initial setup and periodic maintenance.

At the network layer, the PROFIBUS-DP segment connecting the S7 CPU to the 6SE7022-6TC51-Z and other field devices must be correctly terminated, shielded, and configured with appropriate bus parameters — baud rate, station addresses, and GSD file integration — to ensure reliable communication in electrically noisy cabinet environments. Where Ethernet-based communication is required, a Siemens CP 343-1 or CP 443-1 communication processor bridges the PROFIBUS segment to the plant-level PROFINET or Industrial Ethernet network.

Application in Layered Automation Systems

Manufacturing and Assembly Lines: In automotive body shop or general manufacturing environments, the 6SE7022-6TC51-Z drives conveyor motors, roller tables, and positioning axes where precise speed control and coordinated motion are required. The drive’s vector control mode ensures consistent torque delivery even at low speeds, supporting smooth product transfer between workstations without mechanical shock.

Power Generation and Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — the 6SE7022-6TC51-Z provides variable speed control that reduces energy consumption compared to throttle-valve regulation. The drive’s PROFIBUS integration allows the plant DCS to monitor motor current, speed, and fault status in real time, supporting predictive maintenance programs.

Petrochemical and Process Industries: In refinery and chemical plant applications, the drive controls compressor inlet guide vane actuators, agitator motors, and extruder drives where process stability and SIL-rated safety interlock compatibility are required. The Masterdrive architecture supports safe torque off (STO) and safe stop functions when combined with appropriate safety relay modules.

Water and Wastewater Treatment: Municipal water treatment facilities deploy the 6SE7022-6TC51-Z on raw water intake pumps, aeration blowers, and sludge transfer pumps. Variable speed operation reduces mechanical wear, extends pump seal life, and enables flow-proportional control that responds dynamically to influent load variations without operator intervention.

Mining and Minerals Processing: In ore crushing, conveyor, and mill drive applications, the drive’s robust DC link architecture and overload capacity support high-inertia load starting and sustained heavy-duty operation. The common DC bus topology is particularly advantageous in hoist and winder applications where regenerative braking energy is significant.

Packaging and Material Handling: High-speed packaging lines require precise speed synchronization between infeed, filling, sealing, and discharge stations. The 6SE7022-6TC51-Z, when integrated with a Siemens SIMATIC S7 master controller via PROFIBUS, supports electronic line shafting and master-follower speed control without mechanical gearboxes, reducing maintenance intervals and improving line flexibility.

Architecture Engineering FAQ

Q1: Is the 6SE7022-6TC51-Z compatible with existing 6SE70 Masterdrive cabinet systems, and can it replace an older inverter module without modifying the DC bus or control wiring?

Yes. The 6SE7022-6TC51-Z is designed for direct mechanical and electrical compatibility within the 6SE70 Masterdrive chassis family. It connects to the shared DC link bus via the standard DC bus bars and interfaces with the control electronics via the drive’s internal backplane connector. Provided the replacement unit matches the current rating and the existing parameter set is backed up using DriveMonitor or STARTER before removal, the commissioning process is limited to parameter download and functional verification — no DC bus or control wiring modifications are required in most standard configurations.

Q2: What communication options are available for integrating the 6SE7022-6TC51-Z into a PROFIBUS-DP or PROFINET network, and how is the GSD file configured in the S7 hardware configuration?

The 6SE7022-6TC51-Z supports PROFIBUS-DP communication via the optional CBP2 communication board installed in the drive’s option slot. The corresponding GSD file is imported into the SIMATIC Manager or TIA Portal hardware configuration, and the drive is assigned a unique PROFIBUS station address via the DIP switches on the CBP2 board. The PPO type is selected based on the required process data width — typically PPO Type 3 or PPO Type 5 for applications requiring both setpoint/actual value exchange and parameter access via PKW channel. PROFINET integration requires an additional PN adapter module and is supported in later Masterdrive firmware revisions.

Q3: What does the 12-Month Warranty cover for the 6SE7022-6TC51-Z, and what support is available for long-term spare parts supply and system maintenance?

The 12-Month Warranty covers manufacturing defects and functional failures arising under normal operating conditions as specified in the Siemens 6SE70 technical documentation. Units that fail within the warranty period are repaired or replaced at no charge, subject to inspection confirming the failure is not attributable to installation error, overvoltage, contamination, or unauthorized modification. For long-term maintenance planning, ZYPLC maintains tested stock of 6SE70 series inverter modules, power sections, and communication boards to support planned replacement programs and emergency breakdown recovery. Customers are encouraged to maintain a minimum of one spare inverter module per critical drive application to minimize unplanned downtime exposure.
