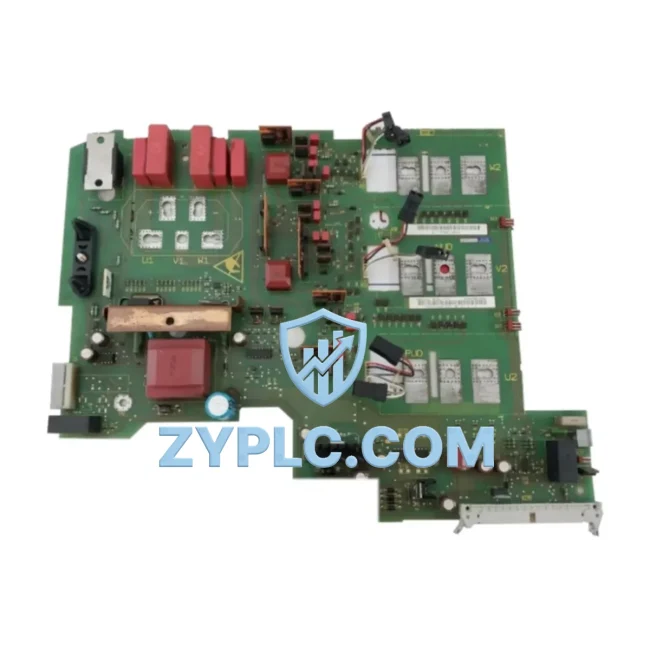

Siemens 6SE7024-7ED84-1HF3 System-Ready AC Drive Module for Masterdrives Architecture

Siemens 6SE7024-7ED84-1HF3 System-Ready AC Drive Module for Masterdrives Architecture: Control Layer Synchronization and Contextual Integration

In modern industrial automation, the performance of any single drive component is inseparable from the architecture in which it operates. The Siemens 6SE7024-7ED84-1HF3 is a compact, high-performance AC drive module engineered for seamless deployment within the SIEMENS MASTERDRIVES 6SE70 platform — a control system architecture trusted across manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous process industries worldwide. Rather than functioning as a standalone inverter, the 6SE7024-7ED84-1HF3 is designed from the ground up to serve as a coordinated node within a layered automation hierarchy, contributing to system consistency, scalability, redundancy, and long-term maintainability.

Understanding the 6SE7024-7ED84-1HF3 requires understanding the full control system stack in which it operates. From the control layer down through I/O, network, power, HMI, and actuation, every tier of the architecture depends on reliable, deterministic drive behavior. This module delivers exactly that — providing stable voltage-frequency output, precise torque regulation, and robust communication capability that integrates naturally with upstream controllers and downstream actuators.

Architecture Specification Table

Coordinated Control System Design

The 6SE7024-7ED84-1HF3 achieves its full potential when integrated within a coherent MASTERDRIVES system architecture. At the control layer, it typically receives setpoint commands from a SIMATIC S7-400 or SIMATIC S7-300 programmable logic controller via PROFIBUS-DP, enabling deterministic cycle-time communication with sub-millisecond response. The drive module interprets these commands and translates them into precise motor output, maintaining torque accuracy across the full speed range.

Power supply integrity is maintained through the 6SE7024-7ED84-0FB0 rectifier/regenerative unit or compatible DC link components, which feed the common DC bus shared across multiple inverter modules in a multi-axis cabinet. This DC bus architecture — a hallmark of the MASTERDRIVES platform — allows energy regenerated by decelerating axes to be consumed by accelerating axes, improving overall system efficiency and reducing peak demand on the supply network.

For I/O signal management, the 6SE7024-7ED84-1HF3 interfaces with SIMATIC ET 200M distributed I/O stations or directly with the drive’s onboard digital and analog terminals, supporting process feedback signals such as encoder inputs, analog speed references, and digital enable commands. In multi-drive installations, the 6SE7090-0XX84-0AB0 MASTERDRIVES option board provides expanded communication and diagnostic capability, while the 6SE7031-7HG84-1JA1 serves as a complementary higher-power inverter module in the same cabinet for mixed-load applications.

Network layer coherence is ensured through PROFIBUS-DP connectivity, with the drive appearing as a standard DP slave on the automation network. In larger installations, a SIMATIC NET CP 443-5 communications processor on the S7-400 rack manages network segmentation and data routing, ensuring that drive status, fault codes, and parameter data are available to the SCADA layer in real time. For installations migrating toward PROFINET, a SINAMICS G120 CU240E-2 PN gateway can bridge legacy MASTERDRIVES nodes into the modern Ethernet-based control backbone without requiring full drive replacement.

At the human-machine interface layer, operators interact with the system through a SIMATIC HMI TP1200 Comfort panel or equivalent, which displays real-time drive parameters, fault histories, and energy consumption data. The HMI communicates with the S7-400 controller, which in turn manages drive setpoints and monitors feedback — creating a closed-loop supervisory architecture that supports both manual intervention and fully automated sequence control.

Terminal and wiring infrastructure within the control cabinet is typically organized using WAGO 750-series or Phoenix Contact CLIPLINE terminal blocks, ensuring clean signal segregation between power, control, and communication circuits. Proper cabinet layout — with the 6SE7024-7ED84-1HF3 mounted on a dedicated backplane or DIN rail section — facilitates airflow management and simplifies maintenance access during scheduled inspections or unplanned fault recovery.

Application in Layered Automation Systems

The 6SE7024-7ED84-1HF3 is deployed across a wide range of industrial sectors where precise motor control and system-level integration are non-negotiable requirements.

In manufacturing and packaging lines, the module controls conveyor drives, winding/unwinding stations, and servo-equivalent positioning axes where speed synchronization between multiple drives is critical. Its vector control capability ensures consistent tension and speed ratios even under variable load conditions.

In power generation and utilities, the drive module is used to control induced draft fans, boiler feed pumps, and cooling water circulation pumps. The ability to operate in sensorless vector mode reduces encoder dependency, improving system reliability in high-vibration environments.

In petrochemical and process industries, the 6SE7024-7ED84-1HF3 manages compressor drives and agitator motors where smooth acceleration profiles and precise speed regulation prevent process upsets. Its PROFIBUS-DP integration allows the DCS to monitor and adjust drive parameters in real time without operator intervention at the drive panel.

In water and wastewater treatment, the module drives submersible pump motors and aeration blowers, where energy efficiency and remote diagnostics reduce operational costs. The 12-Month Warranty provided by ZYPLC ensures that replacement units are available promptly, minimizing plant downtime during critical treatment cycles.

In mining and metallurgy, the drive supports conveyor belt drives, crusher motors, and mill drives where high starting torque and robust fault recovery are essential. The MASTERDRIVES platform’s modular architecture allows failed modules to be swapped without disturbing adjacent drives in the same cabinet, a critical advantage in continuous-process environments where unplanned shutdowns carry significant financial penalties.

Architecture Engineering FAQ

Q1: Is the 6SE7024-7ED84-1HF3 compatible with existing MASTERDRIVES 6SE70 cabinets and DC bus systems?
Yes. The 6SE7024-7ED84-1HF3 is fully compatible with the MASTERDRIVES 6SE70 modular cabinet system, including shared DC bus configurations. It can be installed alongside other 6SE70-series inverter and rectifier modules without requiring modifications to the existing cabinet infrastructure. Ensure that the DC bus voltage rating and total connected load are within the rectifier unit’s capacity before adding additional inverter modules.

Q2: What communication protocols does this drive support, and how does it integrate with S7-series controllers?
The 6SE7024-7ED84-1HF3 supports PROFIBUS-DP as its primary fieldbus interface, enabling direct integration with SIMATIC S7-300 and S7-400 controllers using standard DP master modules. Parameter access, setpoint transmission, and status monitoring are all handled via the PROFIBUS cyclic data exchange. USS protocol is also supported for point-to-point serial communication in simpler configurations. For PROFINET-based systems, a protocol gateway is recommended to bridge the legacy interface.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance needs?
ZYPLC’s 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement units or repair services with priority handling to minimize system downtime. Beyond the warranty period, ZYPLC maintains stock of 6SE7024-7ED84-1HF3 and related MASTERDRIVES components to support long-term maintenance planning, ensuring that aging automation systems can be sustained without forced platform migration.
