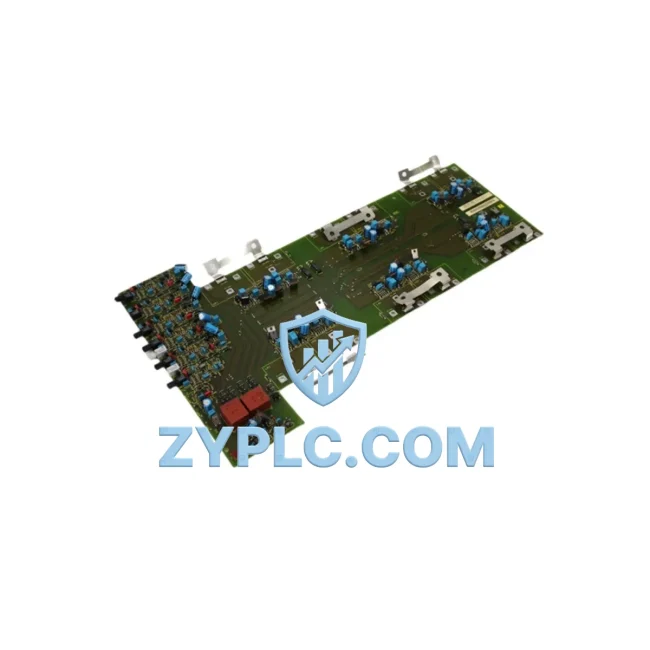

Siemens 6SE7031-7HG84-1JC1 System-Ready Inverter Triggering Module for SIMOVERT Masterdrives

Siemens 6SE7031-7HG84-1JC1 System-Ready Inverter Triggering Module: Control Architecture Coordination in SIMOVERT Masterdrives Systems

The Siemens 6SE7031-7HG84-1JC1 is a dedicated inverter triggering module engineered for the SIMOVERT Masterdrives 6SE70 series — one of Siemens’ most widely deployed variable-speed drive platforms in heavy industrial environments. Rather than functioning as a standalone component, this module occupies a critical position within the layered control architecture of modern automation systems, serving as the interface between the drive’s control intelligence and its power conversion stage. Understanding its role requires examining how it integrates across the control layer, I/O layer, network layer, power layer, HMI layer, and actuation layer simultaneously.

In a fully realized SIMOVERT Masterdrives installation, the 6SE7031-7HG84-1JC1 works in close coordination with the central control board — typically the CU (Control Unit) modules such as the 6SE7090-0XX84-0AB0 — to translate digital firing commands into precise IGBT gate signals. This triggering precision is what determines the quality of the output waveform, the efficiency of the power conversion, and ultimately the stability of the connected motor load. Any degradation in the triggering module’s performance propagates immediately to the motor shaft, making this component a high-priority element in both commissioning and long-term maintenance planning.

Architecture Specification Table

Coordinated Control System Design

The 6SE7031-7HG84-1JC1 does not operate in isolation. Its value is fully realized only when considered within the broader SIMOVERT Masterdrives system architecture. At the control layer, the CU (Control Unit) — such as the 6SE7090-0XX84-0AB0 or the 6SE7031-2EF84-1JC1 control board — generates the PWM (Pulse Width Modulation) commands that the triggering module receives and amplifies into gate drive signals for the IGBT power modules. The power modules themselves, such as the 6SE7031-7HG84-1FA0 IGBT stack, depend entirely on the triggering module for correct switching sequences.

At the power supply layer, the 6SE7031-7HG84-1JC1 requires stable auxiliary voltage from the drive’s internal power supply unit (PSU), often the 6SE7090-0XX84-0KA0 or equivalent. Voltage fluctuations at this layer can cause spurious triggering events or complete gate drive failure, which is why proper PSU sizing and redundancy planning are essential in high-availability installations.

At the network and communication layer, the SIMOVERT Masterdrives platform supports PROFIBUS-DP integration through dedicated communication boards such as the 6SE7090-0XX84-0FF5 (CBP2 PROFIBUS board). While the triggering module itself does not directly handle fieldbus communication, its correct operation is a prerequisite for the drive to respond accurately to speed and torque setpoints transmitted from a Siemens S7-300 or S7-400 PLC via PROFIBUS. In distributed architectures, the 6SE7031-7HG84-1JC1 therefore sits at the intersection of digital control commands and physical power delivery.

For HMI integration, operators monitoring drive status through a Siemens OP270 or TP270 panel — connected via MPI or PROFIBUS — rely on the triggering module’s fault-free operation to receive accurate drive state feedback. Fault codes related to IGBT triggering failures (e.g., F023 or F026 in SIMOVERT Masterdrives diagnostics) are directly traceable to this module, making it a key diagnostic reference point during commissioning and troubleshooting.

In redundant drive architectures — common in critical applications such as steel rolling mills, mine hoists, and large pump stations — a spare 6SE7031-7HG84-1JC1 is typically held in the local spare parts inventory alongside the 6SE7031-7HG84-1FA0 IGBT module and the 6SE7090-0XX84-0AB0 control unit. This three-component spare set covers the majority of drive failure scenarios and is the foundation of any effective predictive maintenance program for SIMOVERT Masterdrives installations.

Application in Layered Automation Systems

Manufacturing & Packaging Lines: In high-throughput packaging and assembly lines, SIMOVERT Masterdrives units equipped with the 6SE7031-7HG84-1JC1 control conveyor motors, servo-synchronized axes, and tension-regulated winding systems. The triggering module’s precise gate timing ensures smooth torque delivery at variable speeds, reducing mechanical stress on gearboxes and extending conveyor belt service life. Integration with Siemens S7-300 PLCs via PROFIBUS allows centralized speed profiling and fault logging.

Power Generation & Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — the 6SE7031-7HG84-1JC1 supports variable-speed operation that reduces energy consumption by 20–40% compared to fixed-speed alternatives. In these applications, the triggering module must maintain reliable operation across extended duty cycles, often running continuously for months between scheduled maintenance windows. The 12-Month Warranty provides procurement teams with a defined quality assurance baseline for critical utility assets.

Petrochemical & Process Industries: Compressor drives and extruder motors in petrochemical plants demand precise speed control with rapid fault response. The SIMOVERT Masterdrives platform, anchored by components like the 6SE7031-7HG84-1JC1, supports torque-controlled operation modes that protect process equipment from mechanical overload. Contextual Integration with DCS systems via PROFIBUS DP ensures that drive parameters are visible and adjustable from the central control room without requiring local panel access.

Mining & Metallurgy: In mine hoist and conveyor applications, drive reliability is a safety-critical requirement. The 6SE7031-7HG84-1JC1 supports the high-current IGBT modules used in large-frame SIMOVERT Masterdrives units rated above 200 kW. Redundant triggering module inventory at the mine site is standard practice, and the 12-Month Warranty on replacement modules provides assurance that newly installed spares meet original factory performance specifications.

Water & Wastewater Treatment: Variable-speed pump drives in water treatment facilities benefit from the energy efficiency and soft-start capabilities of the SIMOVERT Masterdrives platform. The 6SE7031-7HG84-1JC1 enables smooth motor acceleration profiles that reduce water hammer effects in pipeline systems, extending valve and pipe service life while maintaining process flow targets.

Architecture Engineering FAQ

Q1: Is the 6SE7031-7HG84-1JC1 compatible with all SIMOVERT Masterdrives 6SE70 frame sizes, and how do I confirm compatibility before installation?
The 6SE7031-7HG84-1JC1 is designed for specific frame sizes within the SIMOVERT Masterdrives 6SE70 series — primarily larger frame configurations (Frame H and above) where the inverter triggering function is implemented as a separate plug-in module rather than being integrated into the control board. Before installation, cross-reference the drive’s type plate (specifically the full order number including the suffix digits) against the Siemens SIMOVERT Masterdrives spare parts catalog or contact your Siemens service partner. Incorrect triggering module installation can result in IGBT gate drive mismatch, leading to immediate fault trips or latent power module damage.

Q2: Can this module be installed in a live system during a brief maintenance window, and what commissioning steps are required after replacement?
Replacement of the 6SE7031-7HG84-1JC1 requires the drive to be fully de-energized, including discharge of the DC link capacitors (minimum 5-minute wait after power-off, verified with a calibrated voltmeter). After physical installation, the drive should be powered up in a no-load test condition first, with the motor decoupled if possible. Verify that no IGBT-related fault codes appear during the initial power-up sequence. If the drive uses parameter sets stored in the CU module, no re-parameterization is typically required for a like-for-like triggering module replacement. Full load testing should follow standard SIMOVERT Masterdrives commissioning procedures as outlined in the 6SE70 operating instructions.

Q3: What does the 12-Month Warranty cover, and how does it apply to long-term maintenance planning for SIMOVERT Masterdrives installations?
The 12-Month Warranty on the 6SE7031-7HG84-1JC1 covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, environmental contamination beyond the module’s rated IP class, or unauthorized modification. For maintenance planning purposes, the warranty period aligns with a typical annual preventive maintenance cycle, allowing engineering teams to schedule module inspection and replacement decisions at the 12-month mark. Stocking a verified, warranty-covered spare 6SE7031-7HG84-1JC1 alongside the drive’s IGBT power module and control unit ensures that unplanned downtime can be resolved within a single shift rather than waiting for emergency procurement lead times.
