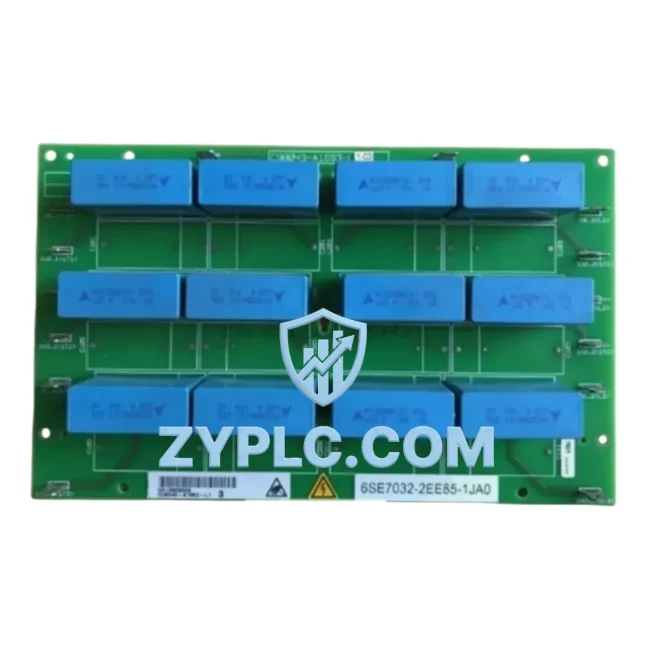

Siemens 6SE7032-2EE85-1JA0 Energy-Saving Inverter Module

Siemens 6SE7032-2EE85-1JA0 Energy-Saving Inverter Module: Precision Energy Control for SIMOVERT Masterdrives Automation

The Siemens 6SE7032-2EE85-1JA0 is a high-performance inverter module from the SIMOVERT Masterdrives series, engineered to deliver precise motor speed control, reduce unnecessary energy consumption, and extend the operational lifespan of drive systems in demanding industrial environments. As a core component of Siemens’ vector control drive architecture, this inverter module enables factories to move away from fixed-speed motor operation toward dynamic, load-adaptive drive management — one of the most impactful levers for reducing plant-wide energy expenditure.

In modern manufacturing, energy waste is rarely caused by a single point of failure. It accumulates across poorly tuned drives, oversized motors running at partial load, and control systems that lack real-time feedback. The 6SE7032-2EE85-1JA0 addresses these inefficiencies directly by integrating into the SIMOVERT Masterdrives control platform, where it works in concert with the SIMOVERT Masterdrives Control Unit (CU) and Pulse Width Modulation (PWM) power section to deliver smooth, energy-proportional torque output across the full speed range.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment and is backed by a 12-month warranty, ensuring confidence in both performance and supply continuity for MRO and project procurement teams.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6SE7032-2EE85-1JA0 does not operate in isolation — its energy optimization value is fully realized when integrated within a coordinated automation architecture. In a typical SIMOVERT Masterdrives installation, this inverter module interfaces directly with the SIMOVERT Masterdrives Control Unit (6SE70xx CU board), which handles closed-loop speed and torque regulation. The control unit reads encoder feedback, processes setpoint commands from the SIMATIC S7-300 or S7-400 PLC, and adjusts the inverter’s switching frequency in real time to match actual load demand.

On the power monitoring side, integrating a Siemens SENTRON PAC3200 power meter or PAC4200 into the distribution panel upstream of the drive cabinet allows operators to capture real-time kWh consumption data per drive circuit. This data, when fed back into the SIMATIC WinCC SCADA system, creates a closed energy feedback loop — enabling shift-by-shift energy benchmarking and rapid identification of drives operating outside their efficiency envelope.

For multi-axis or coordinated motion applications, the 6SE7032-2EE85-1JA0 can be paired with SIMOVERT Masterdrives Motion Control (MC) units and SIMODRIVE 611 servo amplifiers to synchronize axis movement and minimize reactive power draw across the drive bus. In conveyor and material handling systems, this synchronization directly reduces mechanical stress and eliminates the energy spikes associated with unsynchronized start-stop cycles.

I/O expansion via Siemens ET 200S distributed I/O or ET 200M remote I/O stations connected over PROFIBUS-DP allows the drive system to receive process signals — pressure, flow, temperature — and adjust motor speed accordingly, rather than relying on mechanical throttling. This alone can reduce pump and fan energy consumption by 20–40% in variable-load applications. The SIMATIC S7-300 CPU 315-2 DP is a common controller pairing for this type of distributed drive management architecture.

For operator visibility, a Siemens OP177B HMI panel or TP900 Comfort Panel connected via PROFIBUS or PROFINET provides real-time drive status, fault diagnostics, and energy trend visualization at the machine level — reducing the time operators spend diagnosing drive faults and enabling faster corrective action before energy waste compounds into unplanned downtime.

Power Optimization in Real Production Lines

In practice, the energy impact of deploying the Siemens 6SE7032-2EE85-1JA0 is most visible in applications where motors previously ran at fixed speed regardless of actual process demand. Consider a central cooling water pump system in an automotive stamping plant: without variable-speed control, the pump motor runs continuously at full speed, consuming rated power even during low-production periods. Replacing the fixed-speed starter with a SIMOVERT Masterdrives inverter module allows the pump speed to track actual thermal load, cutting pump energy consumption by 30–50% during off-peak hours.

In paper and textile mills, where production line speed must be precisely synchronized across multiple drive axes, the 6SE7032-2EE85-1JA0 enables master-follower speed control that eliminates web tension fluctuations — reducing material waste, rework rates, and the energy cost of reprocessing defective output. The drive’s fast dynamic response also shortens acceleration and deceleration ramps, improving line throughput without increasing installed motor power.

From a maintenance perspective, the SIMOVERT Masterdrives platform provides detailed fault logging and operating hour counters accessible via the drive’s serial interface or PROFIBUS connection. Maintenance teams can use this data to schedule bearing replacements and cooling fan service before failures occur — avoiding the energy inefficiency of motors running with degraded mechanical components, and eliminating the production losses associated with unplanned drive failures.

ZYPLC maintains ready stock of the 6SE7032-2EE85-1JA0 and related SIMOVERT Masterdrives components to support urgent MRO requirements. All units are tested for output voltage balance, switching integrity, and thermal performance before dispatch. Standard lead time for in-stock units is 1–3 business days, with expedited shipping available for critical line-down situations.

Energy Optimization FAQ

Q1: What energy savings can I realistically expect from deploying the 6SE7032-2EE85-1JA0 in a pump or fan application?
In variable-torque applications such as centrifugal pumps and fans, energy savings of 20–50% are achievable compared to fixed-speed operation, depending on the load profile. The affinity laws dictate that reducing motor speed by 20% reduces power consumption by approximately 50%. The SIMOVERT Masterdrives inverter module enables precise speed matching to process demand, eliminating the throttling losses inherent in valve or damper control.

Q2: Is the 6SE7032-2EE85-1JA0 compatible with my existing SIMATIC S7 PLC and PROFIBUS network?
Yes. The SIMOVERT Masterdrives series supports PROFIBUS-DP communication via optional communication boards (CB), allowing seamless integration with SIMATIC S7-300, S7-400, and S7-1500 controllers. Parameter setting, setpoint transmission, and fault diagnostics can all be handled over the existing PROFIBUS network without additional wiring infrastructure.

Q3: Can this inverter module serve as a direct replacement for a failed unit in an existing SIMOVERT Masterdrives cabinet?
In most cases, yes. The 6SE7032-2EE85-1JA0 is designed as a modular replacement component within the SIMOVERT Masterdrives architecture. Compatibility depends on the existing power section rating, DC bus configuration, and control unit firmware version. ZYPLC recommends verifying the existing cabinet’s power section type and CU board revision before ordering. Our technical team can assist with compatibility confirmation prior to purchase.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6SE7032-2EE85-1JA0 unit supplied by ZYPLC undergoes a full functional test covering output phase balance, IGBT switching performance, gate drive integrity, and thermal management before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that develop faults within the warranty period are repaired or replaced at no charge. Warranty claims are processed directly through ZYPLC’s after-sales team.
