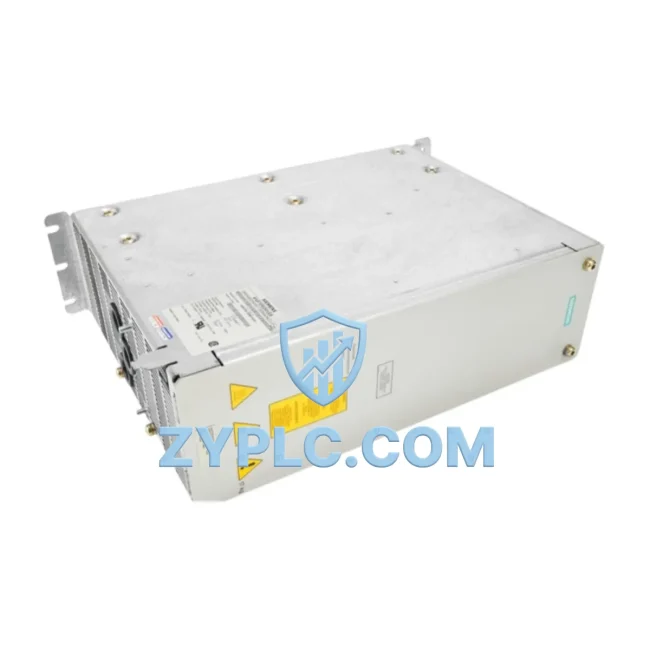

Siemens 6SE7032-7EB87-2DA1 System-Ready AC Drive Module for Simovert Masterdrives

Siemens 6SE7032-7EB87-2DA1 System-Ready AC Drive Module for Simovert Masterdrives: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6SE7032-7EB87-2DA1 is a high-performance AC drive module belonging to the SIMOVERT Masterdrives series, engineered to serve as a critical execution-layer component within multi-tier industrial automation architectures. Rather than functioning as a standalone inverter, this module is designed from the ground up for deep contextual integration within layered control systems — coordinating seamlessly with programmable logic controllers, distributed I/O networks, power supply infrastructure, human-machine interfaces, and field-level actuators to deliver consistent, scalable, and maintainable drive performance across demanding industrial environments.

In modern industrial automation, the drive layer is not an isolated subsystem. It is the mechanical execution endpoint of a signal chain that originates at the control layer and passes through I/O, communication, and power distribution stages before reaching the motor shaft. The 6SE7032-7EB87-2DA1 is built to honor this architectural reality. Its electrical and communication design ensures that torque commands, speed references, and fault diagnostics flow bidirectionally between the drive and the broader control platform without signal degradation, latency, or protocol mismatch.

Within a SIMOVERT Masterdrives installation, this module typically operates alongside companion units such as the 6SE7031-8EF84-1JA1 rectifier/regenerative unit and the 6SE7033-2EG84-1JA1 inverter module, sharing a common DC bus architecture that enables energy exchange between drive axes, reduces peak demand on the supply network, and supports regenerative braking without external braking resistors. This common DC bus topology is a defining feature of the Masterdrives platform and directly influences how the 6SE7032-7EB87-2DA1 is integrated into multi-axis machine designs.

At the control layer, the module interfaces with SIMATIC S7-400 or S7-300 PLCs via PROFIBUS-DP, enabling cyclic process data exchange and acyclic parameter access through standardized drive profiles (PROFIdrive). This communication architecture allows the PLC program to issue speed setpoints, read actual values, and monitor drive health in real time — all within the deterministic scan cycle of the controller. For distributed installations, the ET 200M remote I/O system with IM 153-2 interface modules can extend the PROFIBUS segment to field cabinets, maintaining communication integrity across long cable runs typical in large-scale process plants.

Power supply stability is a prerequisite for reliable drive operation. The 6SE7032-7EB87-2DA1 is designed to work within power distribution architectures supported by SITOP PSU300S or SITOP modular power supply units, which provide regulated 24 VDC for control electronics and auxiliary circuits. Proper coordination between the drive’s internal power management and the plant-level power supply ensures that transient load events — such as motor acceleration under full load — do not propagate as voltage disturbances to adjacent control equipment.

For operator interaction and process visualization, the drive integrates naturally with SIMATIC HMI panels such as the TP1200 Comfort or MP377, which can display drive status, fault codes, speed trends, and energy consumption data through WinCC Flexible or TIA Portal visualization projects. This HMI integration closes the loop between the operator layer and the execution layer, enabling informed intervention without requiring direct access to the drive cabinet.

Terminal modules and wiring infrastructure — including Siemens SIRIUS 3RT contactors, 3RV circuit breakers, and 3RA integrated motor starters — complete the cabinet-level architecture surrounding the drive, providing motor protection, isolation, and safe switching capability that complements the electronic control functions of the 6SE7032-7EB87-2DA1.

Architecture Specification Table

Coordinated Control System Design

Deploying the 6SE7032-7EB87-2DA1 within a coordinated control system requires careful selection of upstream and downstream components to ensure architectural consistency. The following components are commonly integrated alongside this drive module in Siemens-based automation systems:

The SIMATIC S7-400 CPU 414-3 PN/DP serves as the central processing unit in high-availability process control applications, issuing speed and torque references to the drive via PROFIBUS-DP while simultaneously managing safety interlocks, sequence logic, and alarm management. For mid-range applications, the S7-300 CPU 315-2 DP provides a cost-effective control platform with equivalent PROFIBUS master capability.

The 6SE7031-8EF84-1JA1 active front-end rectifier unit is the natural companion to the 6SE7032-7EB87-2DA1 in common DC bus configurations, supplying regulated DC voltage to the shared bus while enabling regenerative energy return to the supply network — a critical feature in applications with frequent braking cycles such as hoists, centrifuges, and winding machines.

The ET 200M distributed I/O station with SM 321/SM 322 digital I/O modules extends the control system’s reach to field devices — limit switches, proximity sensors, solenoid valves — located near the driven machinery, reducing cabinet wiring complexity and improving signal integrity. The CP 443-1 Advanced communication processor enables Ethernet-based SCADA connectivity alongside the PROFIBUS drive network, supporting parallel data paths for process historians and MES integration.

The SITOP PSU300S 20A power supply module provides stable 24 VDC auxiliary power to the drive’s control board, encoder interface, and safety relay circuits, ensuring that control functions remain operational even during brief AC supply interruptions. The TP1200 Comfort HMI panel provides the operator interface layer, displaying real-time drive parameters, trend graphs, and fault history in a format accessible to both operators and maintenance engineers.

For motor protection and safe isolation, SIRIUS 3RV2 motor circuit breakers and 3RT2 contactors are installed upstream of the drive output, providing short-circuit protection and enabling safe motor disconnection during maintenance without de-energizing the entire drive cabinet.

Application in Layered Automation Systems

The 6SE7032-7EB87-2DA1 finds application across a broad spectrum of industrial sectors where variable-speed motor control is integral to process efficiency and product quality.

In manufacturing and packaging lines, the drive controls conveyor speeds, winding tension, and indexing mechanisms with the precision required for high-throughput production. Its vector control capability ensures consistent torque delivery at low speeds — critical for applications such as label applicators, filling machines, and palletizers where speed accuracy directly affects product quality.

In power generation and utilities, the drive is deployed on boiler feed pumps, induced draft fans, and cooling water pumps, where variable-speed operation reduces energy consumption by 30–50% compared to throttle-controlled fixed-speed alternatives. The PROFIBUS interface enables integration with plant DCS systems for remote setpoint adjustment and performance monitoring.

In petrochemical and refinery applications, the drive’s robust design and compatibility with explosion-proof motor configurations (via appropriate motor selection) supports operation in classified hazardous areas when installed in purged and pressurized enclosures. The common DC bus architecture supports multi-pump and multi-compressor installations with coordinated speed control.

In water and wastewater treatment, the drive controls submersible pump motors, aeration blowers, and sludge mixers, with PID control loops managed either internally or via the SIMATIC PLC, enabling automatic flow and pressure regulation in response to process demand.

In mining and minerals processing, the drive’s high overload capacity and robust thermal management support the demanding duty cycles of conveyor drives, crusher feeders, and mill drives, where load transients are frequent and motor protection is critical to avoiding unplanned downtime.

Architecture Engineering FAQ

Q1: Is the 6SE7032-7EB87-2DA1 compatible with existing SIMOVERT Masterdrives common DC bus installations?
Yes. The 6SE7032-7EB87-2DA1 is fully compatible with the SIMOVERT Masterdrives 6SE70 common DC bus platform. It can be integrated into existing multi-axis installations alongside other 6SE70-series rectifier and inverter modules, sharing the DC bus infrastructure without requiring modifications to the bus bar or power distribution components. Verify firmware compatibility and DC bus voltage ratings with your system documentation before installation.

Q2: What communication configuration is required to integrate this drive with a SIMATIC S7 PLC via PROFIBUS-DP?
Integration requires the drive to be configured as a PROFIBUS-DP slave using the PROFIdrive communication profile. The GSD file for the 6SE70 series must be imported into STEP 7 or TIA Portal, and the drive’s PROFIBUS address must be set via the operator panel or parameter P918. Cyclic process data (speed setpoint, actual value, control word, status word) is exchanged within the PLC scan cycle, while acyclic parameter access uses DP-V1 services for diagnostic and commissioning functions.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It includes replacement or repair of defective units at no additional cost. For long-term maintenance, we recommend maintaining a spare module in inventory given the 6SE70 series’ position in the product lifecycle. Our technical team provides pre-sales compatibility verification, commissioning guidance, and post-sales support. Contact us at plc.sales@zyplc.com or +86 19859288691 for spare parts planning and system architecture consultation.
