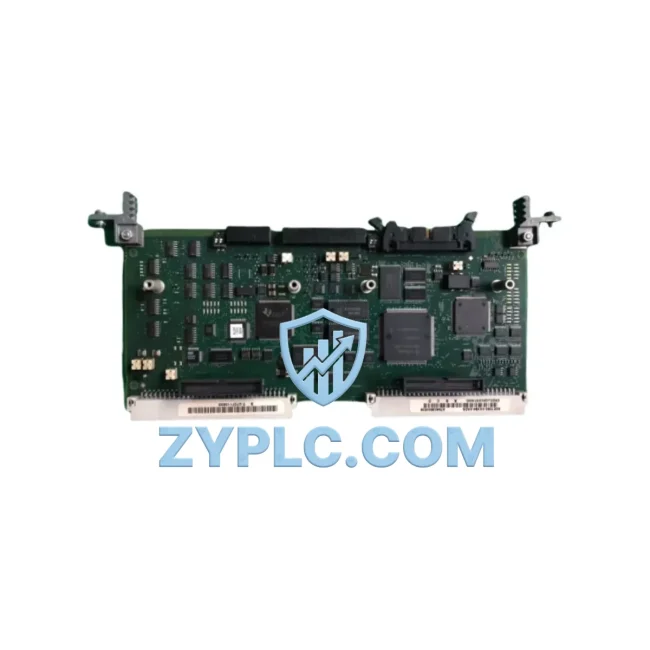

Siemens 6SE7034-5HK84-1JC0 Energy-Saving Drive Board Masterdrives

Siemens 6SE7034-5HK84-1JC0 Energy-Saving Drive Control Board for Masterdrives Automation

The Siemens 6SE7034-5HK84-1JC0 is a high-performance drive control board engineered for the Siemens Masterdrives series, delivering precise motor control and measurable energy savings across demanding industrial production environments. As a core component of the Masterdrives MC (Motion Control) and VC (Vector Control) drive platforms, this board governs the pulse-width modulation logic, IGBT gate triggering, and closed-loop feedback processing that determine how efficiently a drive converts electrical energy into mechanical output. In facilities where motor-driven systems account for 60–70% of total electricity consumption, the quality and condition of the drive control board directly impacts energy expenditure, equipment uptime, and production throughput.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a well-optimized industrial drive system, the 6SE7034-5HK84-1JC0 does not operate in isolation — it functions as the intelligence layer within a broader energy management architecture. The Masterdrives VC/MC inverter unit relies on this control board to execute the vector control algorithms that maintain motor flux and torque at optimal levels, minimizing reactive power draw and reducing heat generation in the motor windings.

At the field level, the drive communicates with a Siemens SIMATIC S7-300 or S7-400 PLC via PROFIBUS-DP, receiving speed and torque setpoints that are dynamically adjusted based on process demand. This demand-driven control strategy — enabled by the precise PWM output of the 6SE7034-5HK84-1JC0 — eliminates the energy waste associated with fixed-speed motor operation. When paired with a Siemens SITOP power supply module for stable DC bus conditioning, the drive system maintains consistent performance even under fluctuating load conditions.

For energy monitoring, the drive platform integrates with Siemens SENTRON PAC3200 or PAC4200 power monitoring devices, which capture real-time kWh consumption, power factor, and harmonic distortion data at the drive output. This data feeds into a SIMATIC WinCC SCADA or TIA Portal visualization layer, giving energy managers visibility into per-motor consumption trends and enabling targeted efficiency interventions. The 6SE7034-5HK84-1JC0 ensures that the drive’s internal switching behavior remains within the efficiency envelope required for accurate energy accounting.

On the I/O side, a Siemens ET 200SP distributed I/O station handles digital and analog signals from sensors — temperature, vibration, current feedback — that inform the drive’s protective logic. The control board processes these signals to implement functions such as motor stall detection, overtemperature derating, and regenerative braking coordination, all of which contribute to reducing unnecessary energy consumption during transient operating conditions.

For multi-axis applications such as coordinated conveyor systems or gantry cranes, the 6SE7034-5HK84-1JC0 supports synchronization via the Masterdrives MC motion control firmware, working alongside a Siemens SINAMICS S120 CU320-2 control unit in hybrid drive architectures. This cross-platform compatibility allows facilities to standardize on a single control philosophy while optimizing energy flow across multiple drive axes simultaneously.

Power Optimization in Real Production Lines

The most significant energy losses in industrial motor systems occur not during steady-state operation, but during acceleration, deceleration, load transitions, and fault recovery events. A degraded or failed drive control board introduces timing errors in IGBT gate signals, leading to increased switching losses, elevated DC bus ripple, and reduced power factor — all of which translate directly into higher electricity bills and accelerated motor wear.

Replacing a faulty control board with a verified 6SE7034-5HK84-1JC0 restores the drive to its original switching efficiency, typically recovering 3–8% of energy consumption that was being lost to suboptimal gate timing. In a 200 kW pump application running 6,000 hours per year, this efficiency recovery can represent tens of thousands of kilowatt-hours annually — a measurable reduction in operating cost that justifies the replacement investment within weeks.

Beyond energy recovery, the restored control board eliminates the unplanned downtime caused by intermittent drive faults. In production lines where a single drive failure can halt an entire process — bottling, extrusion, press forming, or material handling — the cost of downtime far exceeds the cost of the component itself. Maintaining a verified spare 6SE7034-5HK84-1JC0 in inventory is a standard practice in predictive maintenance programs, ensuring that mean time to repair (MTTR) is measured in minutes rather than days.

The board’s compatibility with the Masterdrives diagnostic interface also supports condition monitoring workflows. Drive fault codes, current waveform data, and thermal history logs accessible via the PROFIBUS-DP connection or the Masterdrives PMU operator panel provide early warning indicators of developing issues — enabling maintenance teams to schedule interventions during planned downtime windows rather than reacting to emergency failures. This shift from reactive to predictive maintenance is one of the highest-leverage strategies available for improving overall equipment effectiveness (OEE) and reducing the energy penalty associated with inefficient, fault-prone drive operation.

All units supplied by ZYPLC undergo functional testing prior to shipment, including gate drive signal verification, insulation resistance testing, and communication interface validation. Stock is maintained for fast dispatch, and every 6SE7034-5HK84-1JC0 is covered by a 12-month warranty, providing procurement teams with the confidence to standardize on this component for both immediate replacement and strategic spare parts inventory.

Energy Optimization FAQ

Q1: How does replacing the 6SE7034-5HK84-1JC0 control board improve energy efficiency?
A faulty control board causes incorrect IGBT gate timing, which increases switching losses and reduces the drive’s power conversion efficiency. A verified replacement restores OEM-spec PWM control, recovering lost efficiency and reducing heat generation in both the drive and the connected motor. In high-utilization applications, this can reduce drive-related energy losses by 3–8%.

Q2: Which Siemens Masterdrives models are compatible with the 6SE7034-5HK84-1JC0?
This control board is designed for Siemens Masterdrives VC and MC series inverters in the higher power range (frame size H, up to approximately 250 kW at 400 V). It is compatible with drives using the 6SE70 platform architecture. For confirmation of compatibility with a specific drive serial number or firmware version, contact ZYPLC technical support before ordering.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover?
Every 6SE7034-5HK84-1JC0 supplied by ZYPLC is tested for gate drive signal integrity, communication interface function, and insulation resistance before dispatch. The 12-month warranty covers functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified operating parameters.

Q4: Can this board be used as a direct drop-in replacement without drive reconfiguration?
In most cases, yes. The 6SE7034-5HK84-1JC0 is a direct OEM replacement for the same part number in compatible Masterdrives units. After installation, it is recommended to verify drive parameter settings via the PMU operator panel or DriveMonitor software to ensure that motor data and control mode settings are correctly retained. No firmware re-flashing is typically required for like-for-like replacement.
