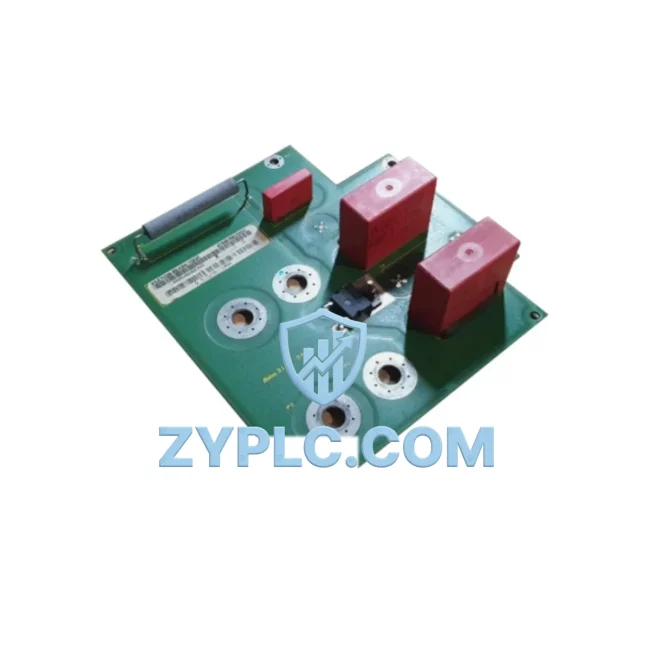

Siemens 6SE7038-6EK84-1GG0 Energy-Saving Inverter Masterdrives

Siemens 6SE7038-6EK84-1GG0 Energy-Saving Inverter Masterdrives: Precision Drive Control for Industrial Energy Optimization

The Siemens 6SE7038-6EK84-1GG0 is a high-capacity inverter output module engineered for the SIMOVERT Masterdrives platform — one of Siemens’ most robust and widely deployed variable-speed drive series in heavy industrial environments. Designed to deliver precise motor control with minimal energy overhead, this module plays a central role in reducing reactive power losses, smoothing motor acceleration profiles, and enabling real-time load adaptation across demanding production lines. Whether integrated into a steel rolling mill, a cement plant conveyor system, or a large-scale HVAC installation, the 6SE7038-6EK84-1GG0 consistently delivers the drive-side performance that modern energy-conscious facilities require.

At ZYPLC, every unit of the 6SE7038-6EK84-1GG0 is sourced from verified supply channels, subjected to functional output testing prior to shipment, and backed by a 12-month warranty. Our inventory is maintained to support rapid dispatch for both planned maintenance schedules and unplanned downtime recovery.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6SE7038-6EK84-1GG0 does not operate in isolation — its energy optimization value is fully realized when it is integrated within a coherent Siemens Masterdrives automation architecture. In a typical high-power drive system, the module interfaces directly with a Siemens 6SE7038-6EK84-1HF3 rectifier/regenerative unit, which handles the AC-to-DC conversion stage and enables energy feedback to the DC bus during motor deceleration. This regenerative capability alone can reduce net energy consumption by 15–30% in applications with frequent braking cycles, such as hoists, winders, and centrifuges.

On the control side, the module is typically governed by a Siemens SIMATIC S7-400 PLC or a SIMATIC S7-300 CPU communicating over PROFIBUS-DP. The PLC issues speed setpoints and torque limits in real time, allowing the drive to adapt motor output to actual load demand rather than running at fixed speed — a fundamental principle of variable-speed energy saving. For installations requiring distributed I/O, a Siemens ET 200M IM153-2 remote I/O station can be deployed alongside the drive cabinet to collect field-level signals without adding cable runs back to the central panel.

Power quality and energy metering are handled upstream by a Siemens SENTRON PAC3200 power monitoring device, which tracks active power, reactive power, harmonics, and power factor at the feeder level. When paired with the 6SE7038-6EK84-1GG0, operators gain visibility into exactly how much energy the drive system consumes per production cycle — enabling data-driven decisions about shift scheduling, load balancing, and maintenance timing. For motor-side feedback, a Siemens 1PH7 induction motor with integrated encoder provides closed-loop speed and torque data back to the inverter, ensuring the drive never over-delivers power beyond what the mechanical load requires.

In multi-drive installations, a Siemens 6SE7038-6EK84-1AA0 DC bus connection module allows multiple inverter output modules to share a common DC link, enabling energy exchange between motoring and regenerating drives within the same system — a topology that dramatically reduces the total energy drawn from the grid. HMI visualization is typically provided by a Siemens SIMATIC TP1500 Comfort Panel, giving operators a real-time dashboard of drive status, energy consumption trends, fault history, and production throughput metrics.

Power Optimization in Real Production Lines

In a cement plant raw mill application, replacing a fixed-speed drive system with a Masterdrives configuration built around the 6SE7038-6EK84-1GG0 typically yields measurable reductions in specific energy consumption per ton of material processed. The inverter’s ability to ramp motor speed precisely to match grinding load — rather than relying on mechanical throttling or damper control — eliminates a significant source of wasted electrical energy. Operators report that drive-controlled mills maintain more consistent product fineness, reducing the need for rework passes and the associated energy cost.

In steel processing lines, the 6SE7038-6EK84-1GG0 is frequently deployed in coiler and decoiler drives where tension control is critical. By maintaining precise torque regulation throughout the coil cycle, the module prevents over-tension events that cause strip breaks — each of which results in a full line stop, rethread sequence, and the associated energy and time cost. Predictive maintenance integration via the Siemens SIMATIC WinCC SCADA system allows maintenance teams to monitor drive thermal load, DC bus voltage ripple, and IGBT junction temperature trends, scheduling intervention before a fault occurs rather than reacting after an unplanned stop.

In water treatment and pumping stations, the variable-speed capability of the Masterdrives platform — anchored by the 6SE7038-6EK84-1GG0 — enables pump speed to track actual flow demand in real time. This eliminates the energy waste of throttle-valve control and reduces mechanical wear on pump seals and impellers, extending service intervals and lowering total cost of ownership. Facilities that have transitioned from direct-on-line motor starters to Masterdrives-based variable speed control consistently report energy savings of 20–40% on pump and fan loads.

Every unit shipped by ZYPLC undergoes a structured pre-shipment test protocol: DC bus charge verification, gate drive signal integrity check, output phase balance measurement, and thermal imaging under load simulation. This process ensures that the module arrives at your facility ready for immediate commissioning, minimizing the risk of infant-failure events that can disrupt production schedules and erode the energy savings the drive was installed to deliver.

Energy Optimization FAQ

Q1: What energy savings can I realistically expect from deploying the 6SE7038-6EK84-1GG0 in a pump or fan application?
In variable-torque loads such as centrifugal pumps and fans, reducing motor speed by 20% typically reduces power consumption by approximately 50% due to the affinity law relationship between speed and power. The 6SE7038-6EK84-1GG0, operating within the SIMOVERT Masterdrives platform, enables precise speed control across the full operating range, making it well-suited to capture these savings in real production environments.

Q2: Is the 6SE7038-6EK84-1GG0 compatible with my existing SIMOVERT Masterdrives cabinet and control system?
Yes — the 6SE7038-6EK84-1GG0 is designed for direct integration into the SIMOVERT Masterdrives modular cabinet system. It is compatible with Masterdrives VC (Vector Control), MC (Motion Control), and FC (Frequency Control) variants. Verify your DC bus voltage rating and cabinet frame size before installation. ZYPLC’s technical team can assist with compatibility confirmation prior to order.

Q3: Can this module replace a faulty unit in an existing installation without full system reconfiguration?
In most cases, yes. The 6SE7038-6EK84-1GG0 is a drop-in replacement for same-rated inverter output modules within the Masterdrives platform. Parameter sets stored in the existing control board or uploaded from a SIMATIC S7 PLC can be reloaded after module swap, minimizing recommissioning time. ZYPLC recommends verifying firmware compatibility between the replacement module and the existing control electronics before installation.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All 6SE7038-6EK84-1GG0 units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes DC bus integrity testing, output phase balance verification, gate drive signal analysis, and thermal performance assessment. Units that do not pass all test criteria are quarantined and not dispatched. Warranty claims are processed directly through ZYPLC with a target response time of 48 hours.
