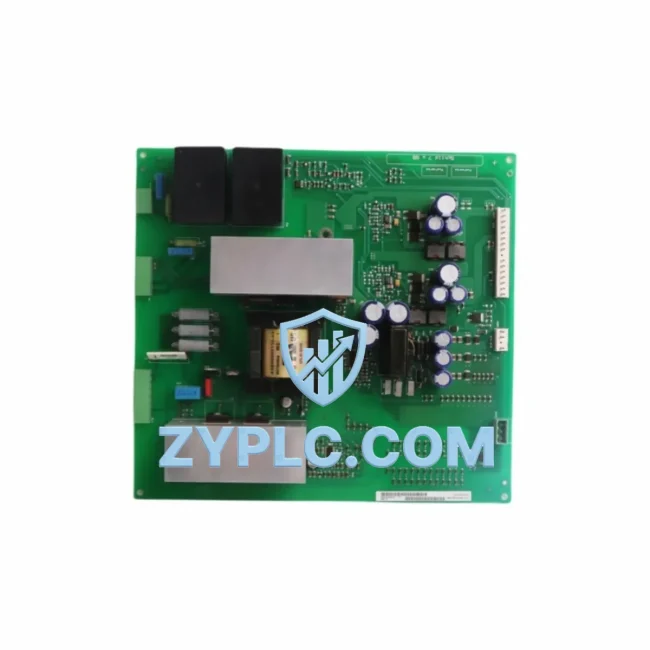

Siemens 6SE7038-6GL84-1JA1 System-Ready Power Module for SIMOVERT Architecture

Siemens 6SE7038-6GL84-1JA1 System-Ready Power Module for SIMOVERT MASTERDRIVES Architecture

The Siemens 6SE7038-6GL84-1JA1 is a high-capacity AC drive power module engineered for seamless integration within the SIMOVERT MASTERDRIVES control architecture. Designed to operate as a core power conversion component in multi-axis and single-axis drive systems, this module delivers reliable, high-efficiency energy conversion across demanding industrial environments. Rather than functioning as a standalone unit, the 6SE7038-6GL84-1JA1 is conceived as a system-level component — one that achieves its full operational value only when coordinated with the surrounding control, I/O, communication, and power infrastructure layers of a complete automation system.

In modern industrial automation, the power layer is the foundation upon which all higher-level control logic depends. The 6SE7038-6GL84-1JA1 occupies this critical position within the SIMOVERT MASTERDRIVES platform, converting incoming AC supply into precisely regulated DC bus voltage that feeds downstream inverter stages. Its architecture supports both vector control and V/f control modes, enabling flexible deployment across motor-driven applications ranging from high-inertia compressors and extruders to precision positioning axes in machine tools and packaging lines. The module’s robust thermal management design, combined with its integrated protection circuitry, ensures continuous operation under the thermal and electrical stress conditions typical of 24/7 industrial production environments.

System engineers integrating the 6SE7038-6GL84-1JA1 into a new or retrofit drive cabinet will find that its mechanical and electrical interface is fully compatible with the SIMOVERT MASTERDRIVES modular cabinet system. The module slots into the standard drive chassis alongside companion inverter units, control electronics, and communication boards, forming a cohesive drive system that can be commissioned, diagnosed, and maintained through a unified engineering environment. This contextual integration capability significantly reduces commissioning time and minimizes the risk of interface mismatches that commonly arise when mixing components from different drive generations or vendors.

Architecture Specification Table

Coordinated Control System Design

The 6SE7038-6GL84-1JA1 achieves its highest system value when deployed as part of a fully coordinated SIMOVERT MASTERDRIVES drive system. At the control layer, a Siemens SIMATIC S7-400 or S7-300 PLC typically serves as the master controller, issuing speed and torque setpoints to the drive via PROFIBUS-DP. The CBP2 PROFIBUS communication board, installed directly into the drive’s option slot, provides the physical and protocol interface between the PLC network and the drive’s internal control electronics, enabling real-time closed-loop speed regulation with cycle times well under 10 ms.

At the power supply layer, a Siemens SITOP PSU300S or equivalent regulated DC power supply provides stable 24 VDC control voltage to the drive’s electronics and I/O circuits, ensuring that control functions remain active even during brief AC supply disturbances. For applications requiring uninterrupted operation, a SITOP UPS module can be integrated to bridge short power interruptions and allow controlled shutdown sequences that protect both the drive and the connected mechanical load.

On the motor side, the 6SE7038-6GL84-1JA1 is typically paired with a Siemens 1LA or 1LG series induction motor, or with a 1FK or 1FT series servo motor for high-dynamic positioning applications. Output filters such as the Siemens dv/dt filter or sinusoidal filter are recommended for long motor cable runs exceeding 50 meters, protecting motor winding insulation from high-frequency voltage spikes generated by the PWM switching stage.

For multi-drive installations, the 6SE7038-6GL84-1JA1 can share its DC bus with companion SIMOVERT MASTERDRIVES inverter modules such as the 6SE7031 or 6SE7035 series, enabling energy regeneration between axes and reducing overall system power consumption. This DC bus coupling architecture is particularly effective in winding, unwinding, and crane applications where one axis is frequently decelerating while another is accelerating, allowing kinetic energy to be transferred directly between drives without returning to the AC supply.

At the human-machine interface layer, a Siemens SIMATIC OP77B or TP177B operator panel connected via MPI or PROFIBUS provides local visualization of drive status, fault codes, and process variables. For more advanced diagnostics, the STARTER commissioning tool running on a standard engineering PC connects to the drive via PROFIBUS or USS protocol, providing full parameter access, drive optimization wizards, and trace functionality for capturing transient events during commissioning and troubleshooting.

Application in Layered Automation Systems

Manufacturing & Machine Tool: In CNC machining centers and transfer lines, the 6SE7038-6GL84-1JA1 powers the main spindle drive, delivering the high torque and precise speed regulation required for metal cutting operations. Its vector control mode enables full torque at zero speed, supporting rigid tapping and thread milling cycles without spindle speed deviation.

Power Generation & Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — the module’s high power rating and robust protection features make it suitable for continuous-duty applications where unplanned downtime carries significant operational and financial consequences. The 12-Month Warranty provides procurement teams with a defined quality assurance baseline for critical infrastructure projects.

Petrochemical & Process Industry: Compressor and pump drives in oil refining and chemical processing plants demand drive systems capable of operating continuously in high-ambient-temperature environments with minimal maintenance intervention. The 6SE7038-6GL84-1JA1’s forced-air cooling system and comprehensive protection circuitry support these requirements, while its PROFIBUS connectivity enables integration into plant-wide DCS systems such as Siemens SIMATIC PCS 7.

Water & Wastewater Treatment: Variable-speed pump control using the 6SE7038-6GL84-1JA1 enables water treatment facilities to match pump output precisely to process demand, reducing energy consumption by up to 50% compared to fixed-speed operation. The drive’s V/f control mode provides a simple, robust solution for centrifugal pump applications where precise speed regulation is less critical than energy efficiency and reliability.

Mining & Metals: In conveyor, hoist, and mill drive applications, the module’s DC bus sharing capability supports regenerative braking energy recovery, reducing operating costs in high-cycle applications. Its compatibility with the SIMOVERT MASTERDRIVES chassis system allows multiple drives to be housed in a single, standardized drive cabinet, simplifying installation and reducing the physical footprint of the drive room.

Architecture Engineering FAQ

Q1: Is the 6SE7038-6GL84-1JA1 compatible with existing SIMOVERT MASTERDRIVES cabinets and control boards?
Yes. The 6SE7038-6GL84-1JA1 is fully compatible with the standard SIMOVERT MASTERDRIVES modular chassis system. It accepts the same option boards — including the CBP2 PROFIBUS board, the SBP encoder board, and the CBC CAN board — as other modules in the 6SE70 series. Before installation, verify that the existing control board firmware version is compatible with the module’s hardware revision by consulting the Siemens SIMOVERT MASTERDRIVES compatibility matrix. Our technical team can assist with compatibility verification prior to order confirmation.

Q2: What commissioning tools and procedures are required for system integration?
The 6SE7038-6GL84-1JA1 is commissioned using the Siemens STARTER software tool, which provides a guided parameter setup wizard, motor identification routine, and drive optimization functions. Connection to the drive is established via PROFIBUS-DP or the drive’s RS232 serial interface using a PC adapter cable. For retrofit installations replacing an older drive module, parameter sets from the existing drive can be uploaded, modified, and downloaded to the new module, significantly reducing recommissioning time. Our team provides pre-delivery parameter verification services upon request.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?
The 12-Month Warranty covers manufacturing defects and functional failures arising under normal operating conditions from the date of delivery. It does not cover damage resulting from incorrect installation, operation outside specified electrical or environmental limits, or unauthorized modification. For long-term maintenance planning, we recommend maintaining a spare module in inventory given the lead times associated with high-power drive components. We offer inventory reservation services and can provide technical documentation, including parameter backup files and wiring diagrams, to support your maintenance team throughout the product lifecycle. Contact our technical sales team at plc.sales@zyplc.com or +86 19859288691 for maintenance planning support.
