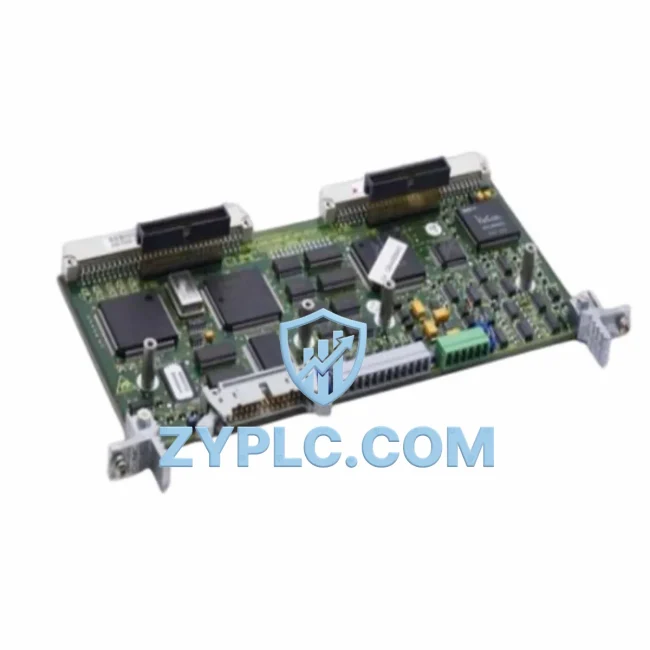

Siemens 6SE7090-0XX84-0AD0 System-Ready Control Board for SIMOVERT Masterdrives Architecture

Siemens 6SE7090-0XX84-0AD0 System-Ready Control Board: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6SE7090-0XX84-0AD0 is a dedicated control board engineered for the SIMOVERT Masterdrives 6SE70 series variable frequency drive platform. Within a layered industrial automation architecture, this component occupies a critical position at the drive control layer — serving as the intelligence hub that interprets command signals from the upper control layer, executes closed-loop regulation, and delivers precise output to the motor execution layer. Understanding this board not as a standalone replacement part, but as a system-integrated element, is essential for engineers designing or maintaining high-availability automation systems across manufacturing, power generation, petrochemical, water treatment, mining, metallurgy, and process control industries.

In a complete control system hierarchy, the 6SE7090-0XX84-0AD0 interfaces upward with SIMATIC S7-300 or S7-400 series PLCs via PROFIBUS-DP communication, receiving speed references, torque commands, and operational mode signals. It coordinates laterally with the SIMOVERT Masterdrives power section, the 6SE70 series DC link bus, and the associated gate driver boards to ensure synchronized pulse-width modulation and fault-tolerant operation. Downward, it governs motor feedback loops through encoder interface modules and resolver circuits, enabling precise speed and position control in demanding process environments.

System architects integrating the 6SE7090-0XX84-0AD0 into a multi-drive cabinet will recognize its role in maintaining drive-to-drive communication consistency. When paired with the SIMOVERT Masterdrives communication board (CBP2 or CBD) and the SIMATIC OP series HMI panels, the control board enables centralized parameter management, real-time diagnostics, and remote fault acknowledgment — reducing unplanned downtime and simplifying commissioning across large-scale installations.

Architecture Specification Table

Coordinated Control System Design

The 6SE7090-0XX84-0AD0 achieves its full potential when deployed within a coordinated system architecture. At the controller level, SIMATIC S7-300 CPUs (such as the CPU 315-2 DP or CPU 317-2 DP) issue speed and torque references via PROFIBUS-DP, with the CBP2 communication board acting as the protocol gateway between the PLC network and the drive’s internal control bus. This architecture supports deterministic cycle times essential for synchronized multi-axis applications in packaging lines and rolling mills.

At the power supply layer, the SIMOVERT Masterdrives 6SE70 series relies on a stable DC link, often shared across multiple drive units in a common DC bus configuration. The 6SE7090-0XX84-0AD0 monitors DC link voltage and coordinates regenerative braking commands with the braking chopper module (6SE7090-0XX84-0KA0 or equivalent), ensuring energy is safely dissipated or returned to the bus during deceleration cycles. This is particularly relevant in crane, hoist, and centrifuge applications where regenerative loads are frequent.

For I/O integration, the control board interfaces with distributed I/O racks via the ET 200M or ET 200S remote I/O systems connected through PROFIBUS-DP, allowing field signals — including motor thermistor inputs, contactor feedback, and process interlocks — to be processed within the same control loop. Terminal modules such as the 6ES7193 series provide the physical connection layer between field wiring and the I/O backplane.

At the human-machine interface layer, SIMATIC OP7, OP17, or TP270 panels connected via MPI or PROFIBUS provide operators with real-time drive status, fault history, and parameter adjustment capability. The 6SE7090-0XX84-0AD0 exposes drive parameters through the SIMOVERT parameter set (P-numbers), which are accessible via DriveMonitor or STARTER commissioning software, enabling rapid system startup and parameter backup across fleet installations.

In redundant architecture designs, a standby drive unit equipped with an identical 6SE7090-0XX84-0AD0 control board can be pre-configured and held in warm standby, with automatic switchover triggered by the PLC upon detection of a drive fault. This approach, common in critical pump and compressor applications in water treatment and petrochemical plants, minimizes mean time to repair (MTTR) and supports continuous process operation without manual intervention.

Application in Layered Automation Systems

Manufacturing and Packaging Lines: In high-speed packaging and assembly lines, the 6SE7090-0XX84-0AD0 enables precise speed synchronization between conveyor drives, ensuring product spacing and throughput consistency. Its PROFIBUS-DP integration allows the line PLC to dynamically adjust drive speeds in response to upstream sensor signals, supporting flexible production scheduling and rapid format changeover.

Power Generation and Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — the control board supports variable speed operation that reduces energy consumption during partial-load conditions. Its robust fault detection and diagnostic logging capabilities allow maintenance teams to identify developing issues before they cause unplanned outages, supporting predictive maintenance programs.

Petrochemical and Process Industries: In continuous process plants, the 6SE7090-0XX84-0AD0 operates within SIL-rated safety architectures by interfacing with safety PLCs through hardwired digital inputs for emergency stop and safe torque off (STO) functions. Its compatibility with the SIMOVERT Masterdrives safety option boards extends functional safety coverage to the drive level, meeting IEC 61508 requirements for process-critical applications.

Mining and Metallurgy: In ore processing and metal rolling applications, the control board manages high-inertia loads with precision torque control, preventing mechanical shock during startup and load transitions. Its ability to operate in environments with elevated dust and vibration — when installed in appropriately rated IP54 or IP65 control cabinets — makes it suitable for harsh industrial sites.

Water and Wastewater Treatment: Municipal water systems rely on variable speed pump drives to maintain system pressure and flow across varying demand conditions. The 6SE7090-0XX84-0AD0, integrated with SCADA systems via PROFIBUS-DP or OPC server gateways, enables remote monitoring and control of pump stations, reducing the need for on-site operator intervention and supporting energy efficiency targets.

Architecture Engineering FAQ

Q1: Is the 6SE7090-0XX84-0AD0 compatible with all SIMOVERT Masterdrives 6SE70 variants, and can it be used as a direct replacement in existing installations?
The 6SE7090-0XX84-0AD0 is designed for the SIMOVERT Masterdrives 6SE70 platform and is compatible with both Vector Control (VC) and Motion Control (MC) drive variants within this series. When used as a replacement, engineers should verify the firmware version stored on the existing control board and ensure the replacement unit is loaded with the same or a compatible firmware revision using STARTER or DriveMonitor software. Parameter sets should be backed up from the original unit prior to replacement and restored to the new board to minimize recommissioning time. Compatibility with option boards such as the CBP2 (PROFIBUS), CBD (DeviceNet), or encoder evaluation modules should also be confirmed against the drive’s original bill of materials.

Q2: How does the 6SE7090-0XX84-0AD0 support redundant drive architectures, and what is required for a seamless switchover?
In redundant drive configurations, a second SIMOVERT Masterdrives unit equipped with an identical 6SE7090-0XX84-0AD0 control board is maintained in standby mode with its parameters pre-loaded and its output contactor open. The primary PLC monitors drive health via PROFIBUS-DP status words and, upon detection of a critical fault, commands the standby drive’s output contactor to close and the primary drive’s contactor to open — typically within one to two PLC scan cycles. For bumpless transfer, both drives should be synchronized to the same speed reference prior to switchover. This architecture is commonly implemented in critical pump and fan applications where process continuity is mandatory, and it is fully supported by the SIMATIC S7 PLC’s drive fault handling function blocks.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance and spare parts availability for the 6SE7090-0XX84-0AD0?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. In the event of a warranty claim, ZYPLC’s technical team will assess the returned unit and provide a replacement or repair at no additional cost. Beyond the warranty period, ZYPLC maintains stock of the 6SE7090-0XX84-0AD0 and related SIMOVERT Masterdrives components to support long-term maintenance programs. Customers operating large fleets of 6SE70 drives are encouraged to establish a consignment stock arrangement with ZYPLC to ensure critical spare parts are available on-site, minimizing lead times during unplanned outages. For technical support, commissioning assistance, or bulk procurement inquiries, contact ZYPLC directly.
