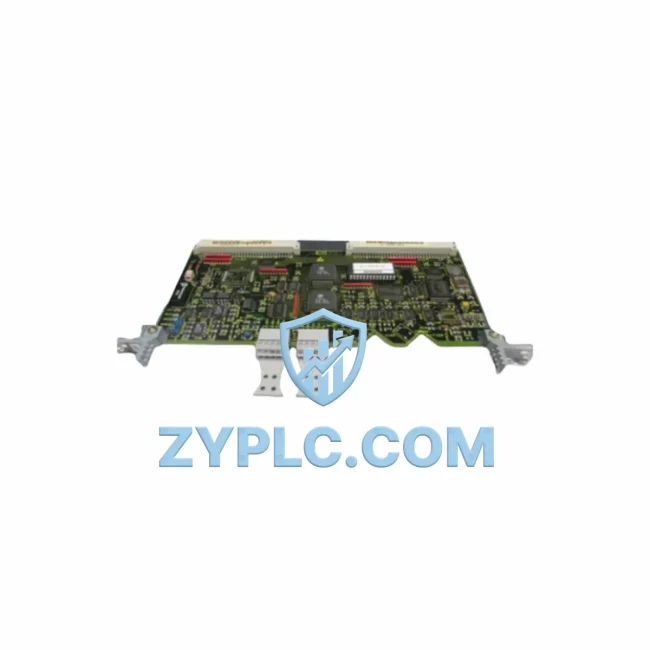

The Siemens 6SE7090-0XX84-0BD1 is a high-performance interface board engineered for the SIMOVERT MasterDrives series, designed to deliver precise drive control while minimizing energy consumption across demanding industrial automation environments. As factories face increasing pressure to reduce operational costs and carbon footprints, the role of a reliable, energy-aware drive interface board becomes critical to every layer of the control architecture — from energy acquisition and motor regulation to data monitoring and system feedback loops.

This interface board serves as the communication and control bridge within the MasterDrives frequency converter platform, enabling seamless signal exchange between the control unit and the power module. By ensuring accurate and low-latency command transmission, the 6SE7090-0XX84-0BD1 directly contributes to reducing unnecessary motor run-up cycles, eliminating reactive power losses, and maintaining optimal torque output at every production stage. In high-cycle manufacturing environments, even marginal improvements in drive response translate into measurable reductions in kilowatt-hour consumption per production unit.

When integrated with Siemens SIMOVERT MasterDrives MC (Motion Control) or VC (Vector Control) platforms — such as the 6SE7023-4TC51 or 6SE7031-2TF60 converter units — the 6SE7090-0XX84-0BD1 enables closed-loop speed and torque regulation that adapts dynamically to load variations. This adaptive control eliminates the energy waste associated with fixed-speed motor operation, a common source of inefficiency in legacy drive systems. Paired with a SIMOVERT power module like the 6SE7021-0TP50, the interface board ensures that energy drawn from the grid is precisely matched to mechanical demand, reducing idle consumption during low-load intervals.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully optimized industrial drive system, the 6SE7090-0XX84-0BD1 does not operate in isolation. It functions as a critical node within a broader energy-aware automation architecture. On the control side, it interfaces with Siemens SIMATIC S7-300 or S7-400 PLCs via PROFIBUS-DP, enabling real-time process data exchange that allows the controller to dynamically adjust drive parameters based on production line feedback. This tight integration between the PLC and the drive interface board eliminates the communication latency that often leads to over-speed or under-load conditions — both of which waste energy.

For energy monitoring, the board works in conjunction with power measurement modules such as the Siemens SENTRON PAC3200 or 7KM2112 power monitoring devices, which track active power, reactive power, and harmonic distortion at the drive input. When anomalies are detected — such as a spike in reactive current caused by a degraded motor winding — the system can flag the issue before it escalates into a costly unplanned shutdown. This predictive maintenance capability, enabled by the data flow through the 6SE7090-0XX84-0BD1, directly reduces maintenance costs and extends equipment service life.

On the I/O side, the interface board coordinates with Siemens ET 200S distributed I/O modules to collect field-level signals from sensors, encoders, and actuators. This distributed architecture reduces wiring complexity and signal degradation, both of which contribute to more accurate motor control and lower energy overhead. For HMI integration, operators can monitor drive efficiency metrics in real time through a Siemens SIMATIC TP700 or TP900 comfort panel, providing visibility into energy consumption trends across multiple drive axes simultaneously.

In multi-axis servo applications, the 6SE7090-0XX84-0BD1 can be deployed alongside Siemens SINAMICS S120 drive components — such as the 6SL3120-1TE21-8AA3 single motor module — to create a coordinated drive system where energy regenerated during deceleration is fed back into the DC bus and reused by other axes. This DC bus coupling strategy, enabled by precise interface board communication, can reduce net energy consumption in servo-intensive applications by 15–30% compared to systems without regenerative capability.

Power Optimization in Real Production Lines

In real-world production environments — from automotive stamping lines to textile machinery and packaging conveyors — the 6SE7090-0XX84-0BD1 has demonstrated consistent value in reducing energy waste and improving line throughput. Consider a bottling plant running multiple conveyor drives at fixed speed: by replacing legacy interface boards with the 6SE7090-0XX84-0BD1 and enabling variable-speed control through the MasterDrives VC platform, plant engineers can reduce motor energy consumption by 20–40% during partial-load operation, simply by matching drive speed to actual product flow demand.

In press and stamping applications, where load profiles are highly cyclical, the interface board’s ability to support fast torque response ensures that the drive accelerates and decelerates precisely in sync with the mechanical cycle. This eliminates the energy penalty of over-torquing during acceleration and reduces mechanical stress on gearboxes and couplings — lowering both energy costs and maintenance intervals. When combined with the 6SE7090-0XX84-0FF5 option board for extended I/O or the 6SE7090-0XX84-0KA0 communication module for PROFIBUS integration, the system gains additional flexibility for energy data logging and remote diagnostics.

For facilities operating multiple MasterDrives units across a production floor, the 6SE7090-0XX84-0BD1 enables centralized energy management through PROFIBUS-DP network topology. Each drive reports its real-time power consumption, operating hours, and fault status to the SIMATIC PLC, which aggregates the data for energy auditing and OEE (Overall Equipment Effectiveness) reporting. This visibility allows maintenance teams to identify underperforming drives before they cause line stoppages, reducing unplanned downtime and the associated energy waste of emergency restarts and production catch-up cycles.

All units are shipped after full functional testing under load conditions, ensuring that the interface board performs to specification from day one. Stock is maintained for prompt dispatch, and each unit is covered by a 12-month warranty, giving procurement and maintenance teams confidence in both supply reliability and long-term operational performance.

Energy Optimization FAQ

Q1: How does the 6SE7090-0XX84-0BD1 contribute to energy savings in a MasterDrives system?
The interface board enables precise closed-loop vector control by facilitating accurate, low-latency communication between the control unit and power module. This eliminates over-speed and over-torque conditions that waste energy, and supports variable-speed operation that matches motor output to actual load demand — typically reducing motor energy consumption by 20–40% compared to fixed-speed operation.

Q2: Is the 6SE7090-0XX84-0BD1 compatible with both MasterDrives VC and MC platforms?
Yes. The 6SE7090-0XX84-0BD1 is designed for use across the SIMOVERT MasterDrives product family, including Vector Control (VC) and Motion Control (MC) variants. It is compatible with a range of MasterDrives converter units and can be integrated into existing drive cabinets without requiring major hardware modifications.

Q3: What is the recommended replacement procedure, and how is the board tested before shipment?
Replacement involves powering down the drive, safely discharging the DC bus, removing the existing interface board, and installing the 6SE7090-0XX84-0BD1 in the designated slot. Each unit undergoes functional testing under simulated load conditions prior to shipment to verify signal integrity, communication performance, and thermal stability. A 12-month warranty covers all units against manufacturing defects and functional failures.

Q4: Can this board support predictive maintenance workflows?
Yes. When integrated with Siemens SENTRON power monitoring devices and a SIMATIC PLC via PROFIBUS-DP, the 6SE7090-0XX84-0BD1 enables continuous monitoring of drive operating parameters. Deviations from baseline performance — such as increased current draw or irregular torque patterns — can be detected early, allowing maintenance teams to schedule interventions before failures occur and avoiding the energy and productivity losses associated with unplanned downtime.
