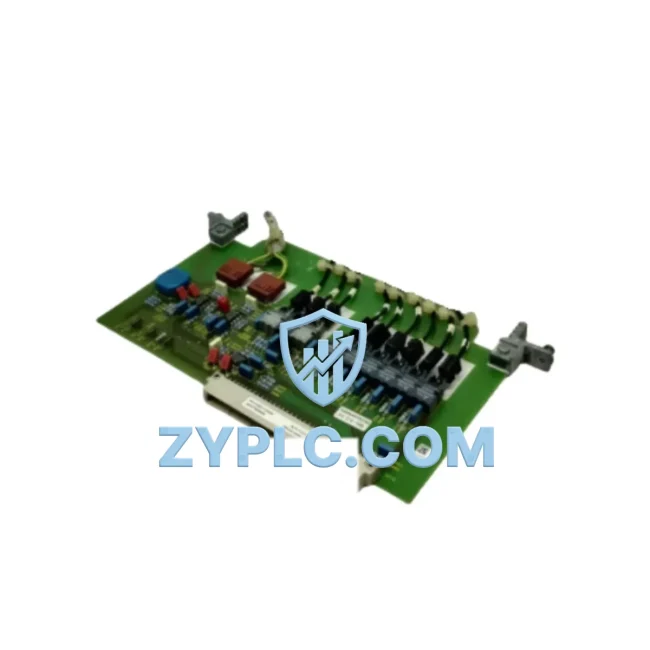

Siemens 6SE7090-0XX84-1CH0 System-Ready Control Unit for SIMOVERT Masterdrives

Siemens 6SE7090-0XX84-1CH0 System-Ready Control Unit for SIMOVERT Masterdrives: Control System Architecture and Contextual Integration

The Siemens 6SE7090-0XX84-1CH0 is a dedicated control unit engineered for the SIMOVERT Masterdrives 6SE70 series variable-speed drive platform. Within a layered industrial automation architecture, this component occupies the critical interface between the drive control layer and the broader supervisory control infrastructure. Rather than functioning as a standalone device, the 6SE7090-0XX84-1CH0 is designed to operate as an integrated node within a coordinated system — receiving setpoint commands from upper-level controllers, executing closed-loop speed and torque regulation, and feeding back real-time process data to SCADA, DCS, or PLC supervisory layers. Its role in maintaining system-wide consistency, reducing commissioning complexity, and enabling long-term maintainability makes it a foundational element in any SIMOVERT Masterdrives-based control cabinet.

In modern industrial automation, the reliability of a drive control unit is inseparable from the architecture surrounding it. The 6SE7090-0XX84-1CH0 is built to support this philosophy — providing deterministic signal processing, stable communication interfaces, and modular expandability that align with the engineering requirements of manufacturing lines, power distribution systems, petrochemical processes, water treatment facilities, and heavy-industry applications. With a 12-Month Warranty and verified contextual integration capability, this unit is a dependable choice for both new system builds and retrofit projects requiring drop-in compatibility with existing 6SE70 drive frames.

Architecture Specification Table

Coordinated Control System Design

The 6SE7090-0XX84-1CH0 achieves its full potential when deployed within a coordinated SIMOVERT Masterdrives system architecture. At the power layer, the drive relies on a matched 6SE70 power section — such as units from the 6SE7016, 6SE7021, or 6SE7031 sub-series — to supply the DC bus and motor output stages. The control unit interfaces directly with these power sections through the internal drive bus, ensuring synchronized operation without external wiring complexity.

At the communication layer, the 6SE7090-0XX84-1CH0 supports integration with PROFIBUS DP networks via the CBP2 communication board (6SE7090-0XX84-0FF5), enabling real-time parameter exchange with SIMATIC S7-300 or S7-400 PLCs acting as PROFIBUS masters. For installations using serial communication, the SCB2 peer-to-peer board facilitates USS protocol connectivity to supervisory controllers or operator panels. This dual-protocol flexibility ensures the control unit can be embedded into both legacy and modern network topologies without gateway overhead.

At the I/O layer, the SCI1 and SCI2 serial interface modules expand the available digital and analog I/O points, allowing the 6SE7090-0XX84-1CH0 to interface with field sensors, limit switches, encoder feedback devices, and process transmitters. This modular I/O expansion is essential in applications where the drive must respond to multi-variable process conditions — such as pressure-flow cascade control in pump stations or tension control in winding lines.

For human-machine interface integration, the OP1S operator panel or PMU parameterization unit can be connected directly to the control unit’s front interface port, providing local parameter access, fault diagnostics, and drive commissioning without requiring a laptop or engineering workstation. In distributed cabinet layouts, the OP1S can be remotely mounted up to 200 meters from the drive using standard shielded cable, supporting ergonomic panel design in large switchgear rooms.

Redundancy and system resilience are addressed through the drive’s built-in fault detection, automatic restart functions, and kinetic buffering capability — features that are configured and managed through the 6SE7090-0XX84-1CH0 control unit’s parameter set. In critical process applications, these functions reduce unplanned downtime and support the overall availability targets of the automation system. The control unit also supports integration with the SIMOVERT Masterdrives technology option boards, including the T400 technology board for complex closed-loop applications such as winders, hoists, and multi-axis coordinated drives.

Application in Layered Automation Systems

In manufacturing and assembly lines, the 6SE7090-0XX84-1CH0 is deployed to control conveyor drives, spindle motors, and positioning axes where precise speed regulation and rapid response to PLC commands are essential. Its PROFIBUS DP connectivity allows the drive to participate in synchronized multi-axis motion sequences coordinated by a SIMATIC S7 master controller.

In power generation and electrical distribution facilities, the control unit manages medium-voltage motor drives for cooling fans, feedwater pumps, and compressor units. Its robust vector control algorithm maintains stable motor operation under variable load conditions, reducing mechanical stress and extending equipment service life.

In petrochemical and refinery processes, the 6SE7090-0XX84-1CH0 supports continuous process drives where flow rate, pressure, and temperature are regulated through closed-loop PID control implemented within the drive’s parameter structure. The unit’s compatibility with intrinsically safe I/O modules and its ability to interface with DCS platforms via PROFIBUS make it suitable for hazardous area control cabinet installations.

In water and wastewater treatment plants, the control unit drives submersible pumps, aeration blowers, and sludge handling equipment. Its energy-saving V/f control mode reduces power consumption during partial-load operation, contributing to facility-wide energy efficiency targets.

In mining, metallurgy, and heavy industry, the 6SE7090-0XX84-1CH0 is applied to hoist drives, rolling mill main drives, and crusher motor controls. The T400 technology board option extends the control unit’s capability to handle complex torque-sharing and load-balancing requirements in multi-motor drive systems.

Architecture Engineering FAQ

Q1: Is the 6SE7090-0XX84-1CH0 compatible with all 6SE70 power sections, and can it be retrofitted into an existing SIMOVERT Masterdrives cabinet?
The 6SE7090-0XX84-1CH0 is designed as a universal control unit for the SIMOVERT Masterdrives 6SE70 series and is compatible with Compact PLUS and chassis-type power sections across the 6SE70 range. Retrofitting into an existing cabinet is straightforward provided the drive frame type and firmware version are matched. The unit retains the same mechanical mounting interface and internal bus connector as the original CU, allowing direct replacement without cabinet modification. Parameter sets from the replaced unit can be uploaded via the OP1S or DriveMonitor software to minimize recommissioning time.

Q2: What communication options are available for integrating this control unit into a PROFIBUS or Ethernet-based automation network?
The 6SE7090-0XX84-1CH0 supports PROFIBUS DP integration via the CBP2 communication board and USS serial communication via the SCB2 board. For Ethernet-based networks, a CBC (Communication Board CAN) or third-party gateway module can be used to bridge PROFIBUS DP to PROFINET or Modbus TCP, enabling integration with modern SIMATIC S7-1500 or third-party PLC platforms. All communication parameters are configured through the drive’s parameter set (P918 for PROFIBUS address, P700 for setpoint source selection), ensuring consistent network behavior across the control system architecture.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance of this control unit?
The 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions from the date of shipment. Warranty service includes unit replacement or repair at no additional cost. For long-term maintenance, ZYPLC maintains stock of 6SE7090-0XX84-1CH0 units and compatible option boards to support planned maintenance cycles and emergency replacements. Engineering support for parameter backup, firmware verification, and system recommissioning is available through our technical team. Contact us at +86 19859288691 or plc.sales@zyplc.com for maintenance planning and spare parts availability.
