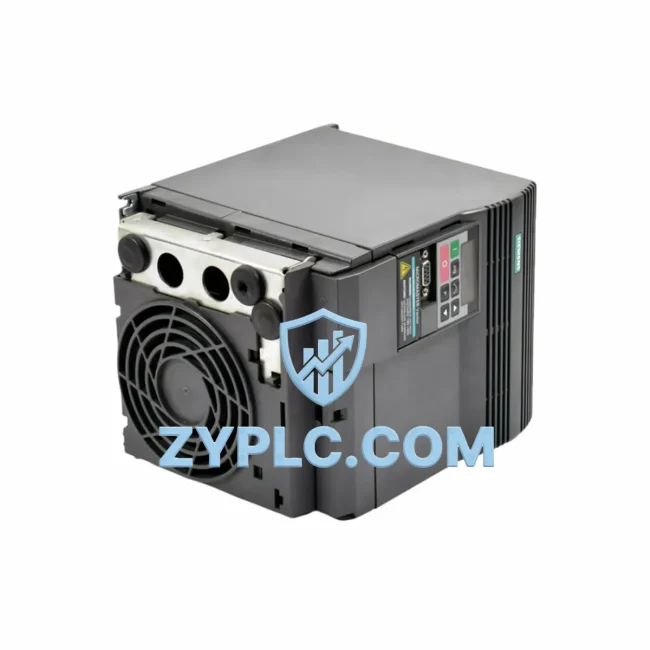

The Siemens 6SE9521-7DC40 is a 7.5 kW three-phase AC variable frequency drive from the SIMOVERT Eco series, engineered to deliver measurable energy savings and precise motor speed control in demanding industrial environments. Designed for continuous-duty applications such as pump systems, fan arrays, conveyor lines, and compressor stations, this drive module reduces unnecessary energy consumption by matching motor output exactly to process demand — eliminating the fixed-speed losses that account for a significant share of factory electricity costs.

In modern production facilities where energy audits and OEE targets are tightly monitored, the 6SE9521-7DC40 provides a reliable foundation for motor-side efficiency improvement. Its integrated V/f control characteristic enables smooth acceleration and deceleration ramps, reducing mechanical stress on connected equipment and extending the service life of motors, gearboxes, and couplings. When deployed alongside a Siemens SENTRON PAC3200 power monitoring device, plant engineers can capture real-time kWh data at the drive level and correlate energy draw with production throughput — enabling data-driven decisions on shift scheduling and load balancing.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6SE9521-7DC40 is most effective when integrated into a layered automation architecture that connects energy measurement, control logic, drive actuation, and process feedback into a unified system. At the control layer, a Siemens S7-300 CPU 314C-2 DP or S7-400 CPU 414-3 PN/DP provides the cyclic scan and process image update that governs drive setpoints via PROFIBUS-DP. The drive receives speed reference signals from the PLC and adjusts motor output in real time, ensuring that pump curves and fan laws are respected — a critical factor in achieving quadratic energy savings at partial load.

For distributed I/O integration, the Siemens ET 200S or ET 200M remote I/O stations collect field-level signals — pressure transmitters, flow meters, temperature sensors — and relay them to the S7 controller, which in turn modulates the 6SE9521-7DC40 output frequency to maintain process setpoints without overshoot. This closed-loop architecture eliminates the need for mechanical throttling valves or dampers, which waste energy by creating artificial resistance in the system.

On the power supply side, a Siemens SITOP PSU100S 24 V DC stabilized power supply ensures that the control electronics and I/O modules receive clean, regulated voltage even during mains fluctuations — protecting the drive’s internal logic board and preventing nuisance trips that interrupt production. For applications requiring regenerative braking or four-quadrant operation, the SIMOVERT MasterDrives MC series offers an upgrade path that feeds braking energy back into the DC bus, further reducing net energy consumption across multi-drive installations.

HMI visualization is handled by a Siemens KTP700 Basic or TP900 Comfort panel connected via PROFINET, displaying live drive parameters — output frequency, motor current, DC bus voltage, and fault codes — on the plant floor. Operators can adjust speed references, review energy trend graphs, and acknowledge alarms without leaving the machine, reducing response time and minimizing unplanned downtime. For energy reporting at the enterprise level, the SENTRON PAC4200 power analyzer captures harmonic distortion data and power factor values, enabling the maintenance team to identify drives operating outside their efficiency envelope and schedule corrective action before failures occur.

Communication flexibility is ensured through the drive’s PROFIBUS-DP interface, which is compatible with Siemens CP 342-5 communication processors and third-party SCADA systems. In facilities transitioning to PROFINET-based architectures, a PROFIBUS-to-PROFINET gateway such as the Siemens IE/PB Link PN IO enables the 6SE9521-7DC40 to participate in modern Ethernet-based control networks without requiring hardware replacement.

Power Optimization in Real Production Lines

In a typical water treatment facility running multiple pump stations, replacing fixed-speed starters with the Siemens 6SE9521-7DC40 across a bank of 7.5 kW motors can reduce pump energy consumption by 30–45% during low-demand periods. Because pump power scales with the cube of speed, even a 20% reduction in motor speed translates to nearly 50% less energy draw — a saving that accumulates rapidly across three-shift operations running 8,000 hours per year.

On automotive assembly lines where conveyor speed must track production takt time, the 6SE9521-7DC40 enables dynamic speed adjustment synchronized to the PLC’s production scheduler. When the line slows for a model changeover or quality inspection hold, the drive automatically reduces motor speed rather than running at full speed against a mechanical brake — cutting both energy waste and brake wear simultaneously. Maintenance intervals for conveyor drive systems have been extended by 25–40% in documented deployments where soft-start and soft-stop ramp profiles replaced direct-on-line starting.

Predictive maintenance integration is achieved by monitoring the drive’s output current signature over time. Gradual increases in motor current at a fixed load point indicate bearing wear, rotor eccentricity, or coupling misalignment — conditions that can be flagged in the SCADA system before they cause unplanned downtime. Combined with the SENTRON PAC3200 energy data, maintenance teams can correlate rising current draw with increasing energy cost per unit produced, building a business case for scheduled intervention rather than reactive repair.

All units supplied by ZYPLC are tested under load prior to shipment, with output voltage waveform, current balance, and fault-free run verification documented for each drive. Stock is maintained for immediate dispatch, and the 12-month warranty covers component failure under normal operating conditions — providing procurement teams with the supply reliability and risk coverage required for MRO and capital replacement projects.

Energy Optimization FAQ

Q1: What energy savings can I expect from replacing a fixed-speed starter with the 6SE9521-7DC40?
In variable-torque applications such as pumps and fans, energy savings of 20–50% are typical at partial load conditions. The exact saving depends on the load profile, duty cycle, and system hydraulic or aerodynamic characteristics. ZYPLC can provide application-specific guidance based on your motor nameplate data and operating hours.

Q2: Is the 6SE9521-7DC40 compatible with my existing Siemens S7 PLC and PROFIBUS network?
Yes. The SIMOVERT Eco series supports PROFIBUS-DP communication natively, making it directly compatible with S7-300 and S7-400 controllers using standard GSD files. No additional communication modules are required for basic speed reference and status feedback integration.

Q3: What is the recommended replacement or upgrade path if I need higher performance?
For applications requiring vector control, encoder feedback, or regenerative braking, the Siemens SINAMICS G120 or SIMOVERT MasterDrives MC series are the recommended upgrade paths. ZYPLC stocks both series and can advise on parameter migration and mechanical compatibility to minimize changeover time.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 6SE9521-7DC40 unit is powered up and run through a functional test sequence covering input rectification, DC bus charge, IGBT switching, and output voltage symmetry before dispatch. The 12-month warranty covers manufacturing defects and component failure under rated operating conditions. Units showing fault codes or parameter anomalies during testing are quarantined and not shipped. Warranty claims are processed directly through ZYPLC with replacement or repair turnaround documented in the service agreement.
