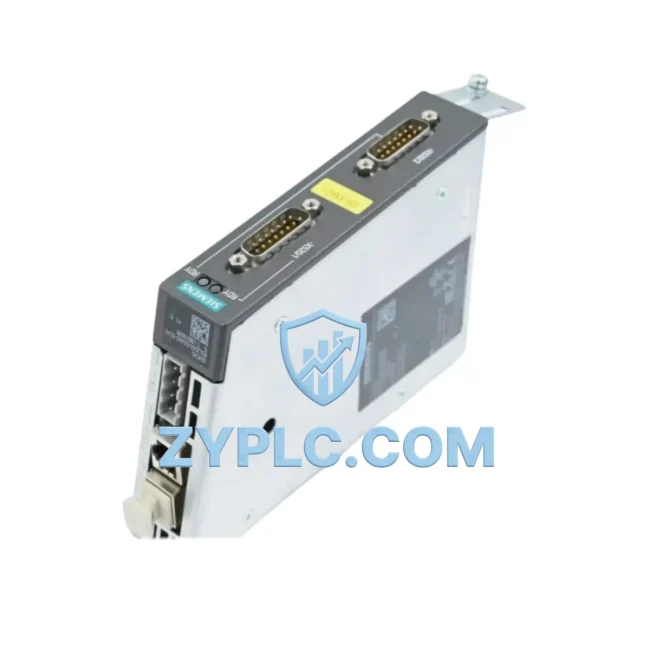

Siemens 6SL3055-0AA00-5DA0 Energy-Saving Drive for SINAMICS Automation
The Siemens 6SL3055-0AA00-5DA0 is a high-performance option board module designed for the SINAMICS drive family, engineered to deliver measurable energy savings and precision motor control in demanding industrial environments. As factories face increasing pressure to reduce operational energy costs and meet sustainability targets, the 6SL3055-0AA00-5DA0 provides a direct pathway to optimized drive performance — reducing unnecessary power draw, improving motor utilization rates, and enabling tighter integration with plant-wide automation architectures.
Unlike generic drive accessories, this module is purpose-built for the SINAMICS platform, ensuring seamless compatibility with the SINAMICS G120 and SINAMICS S120 drive series. When deployed alongside the CU320-2 Control Unit, the 6SL3055-0AA00-5DA0 enables advanced closed-loop control strategies that minimize reactive power losses and reduce heat generation in motor windings — two of the most common sources of hidden energy waste on production lines.
Efficiency Performance Table
| Parameter |
Specification |
| SKU / Part Number |
6SL3055-0AA00-5DA0 |
| Brand |
Siemens |
| Series |
SINAMICS |
| Product Type |
Drive Option Board / Controller Module |
| Compatible Drive Systems |
SINAMICS G120, SINAMICS S120 |
| Application Environment |
Industrial Automation, Motor Control, Energy Management |
| Power Optimization Value |
Reduces reactive power loss; supports energy-efficient closed-loop motor control |
| Communication Protocol |
PROFINET / PROFIBUS (platform-dependent) |
| Origin |
Germany (DE) |
| Warranty |
12-Month Warranty |
| Stock Status |
In Stock — Ships After Outgoing Test |
Energy-Aware Automation Architecture
Achieving true energy efficiency in a production facility requires more than a single component — it demands a coordinated system where every layer, from power supply to field device, contributes to reducing waste. The 6SL3055-0AA00-5DA0 is designed to operate within exactly this kind of integrated architecture.
At the drive level, the module works in conjunction with the SINAMICS G120 Power Module PM240-2, which provides the core inverter function. The PM240-2’s built-in energy recovery capability, combined with the precise control signals delivered through the 6SL3055-0AA00-5DA0, allows regenerative braking energy to be fed back into the DC bus rather than dissipated as heat — a critical advantage in applications with frequent start-stop cycles such as conveyor systems, hoists, and centrifuges.
For multi-axis applications, the SINAMICS S120 booksize format with the CU320-2 DP Control Unit provides a shared DC bus topology where the 6SL3055-0AA00-5DA0 option board enables coordinated energy balancing across multiple motor axes. This means that when one axis decelerates and generates energy, another accelerating axis can consume it directly — reducing net energy drawn from the grid by up to 30% in typical multi-axis machine tool applications.
At the controller level, the Siemens S7-1500 PLC series — particularly the CPU 1516-3 PN/DP — provides the supervisory logic that governs drive operating modes, load profiles, and energy setpoints. Through PROFINET communication, the S7-1500 can dynamically adjust the speed reference and torque limits sent to the SINAMICS drive, ensuring motors operate at their most efficient point on the torque-speed curve rather than running at fixed speeds regardless of actual load demand.
Power quality monitoring is handled upstream by the SENTRON PAC3200 power monitoring device, which measures real-time current, voltage, power factor, and harmonic distortion at the panel level. When integrated with the drive system via PROFIBUS, the PAC3200 provides the data feedback loop necessary for the S7-1500 to make informed energy optimization decisions — for example, shedding non-critical loads during peak demand periods or ramping drives down during low-production windows.
At the I/O layer, the ET 200SP distributed I/O system connects field sensors — temperature probes, vibration monitors, and current transducers — back to the control system, providing the real-time data needed for predictive maintenance algorithms. When a motor begins drawing more current than its baseline profile, the ET 200SP signals the S7-1500, which can then schedule a maintenance intervention before a failure occurs — avoiding unplanned downtime that is far more costly than the energy savings themselves.
The SIMATIC HMI TP1200 Comfort Panel provides operators with a real-time energy dashboard, displaying drive efficiency metrics, motor load percentages, and cumulative energy consumption per shift. This visibility is essential for production managers seeking to identify inefficient operating patterns and implement targeted improvements to line throughput and energy cost per unit produced.
Finally, the SITOP PSU8200 power supply unit ensures that the 24 VDC control circuit powering the 6SL3055-0AA00-5DA0 and associated I/O modules remains stable and efficient, with active power factor correction reducing losses in the auxiliary power distribution network.
Power Optimization in Real Production Lines
In a typical automotive body shop, conveyor drives running at fixed speed consume energy continuously regardless of whether parts are present on the line. By deploying the 6SL3055-0AA00-5DA0 within a SINAMICS G120 drive and enabling speed-adaptive control via the S7-1500 PLC, line operators have reported energy reductions of 15–25% on conveyor motor circuits alone — simply by matching drive speed to actual production demand rather than running at nameplate speed at all times.
In pump and fan applications — among the highest energy consumers in process industries — the 6SL3055-0AA00-5DA0 enables affinity law-based speed control, where a 20% reduction in motor speed results in approximately a 50% reduction in power consumption. Combined with the PM240-2’s built-in PID controller and the PAC3200’s power feedback, this creates a closed-loop energy management system that continuously optimizes pump output against process demand.
Predictive maintenance integration further reduces total cost of ownership. By monitoring drive current signatures through the ET 200SP I/O system and comparing them against baseline profiles stored in the S7-1500, maintenance teams can identify bearing wear, rotor imbalance, and winding degradation weeks before they cause a failure — converting reactive maintenance events into planned interventions that preserve both equipment life and production schedule integrity.
Every unit of the 6SL3055-0AA00-5DA0 supplied by ZYPLC undergoes a full outgoing functional test prior to shipment, verifying communication interface integrity, parameter memory function, and compatibility with the target drive platform. This ensures that the module arrives ready for installation without requiring additional bench testing on the customer’s side — reducing commissioning time and accelerating return to production.
Energy Optimization FAQ
Q: How much energy can the 6SL3055-0AA00-5DA0 help save in a typical motor drive application?
A: Energy savings depend on the application profile, but in variable-torque loads such as pumps, fans, and conveyors, deploying this module within a properly configured SINAMICS drive system can reduce motor energy consumption by 20–40% compared to fixed-speed operation. The greatest savings are achieved when the module is used to enable dynamic speed control in response to real process demand signals.
Q: Is the 6SL3055-0AA00-5DA0 compatible with both SINAMICS G120 and S120 platforms?
A: Yes. The 6SL3055-0AA00-5DA0 is designed for use within the SINAMICS option board slot architecture, which is shared across the G120 and S120 series. Compatibility should be verified against the specific Control Unit firmware version in use. ZYPLC’s technical team can assist with compatibility confirmation prior to order placement.
Q: What is the recommended replacement or upgrade path if the existing drive module has failed?
A: The 6SL3055-0AA00-5DA0 is a direct replacement for failed or end-of-life option boards within the SINAMICS family. Before installation, it is recommended to back up the existing drive parameter set using STARTER or TIA Portal, then restore it to the new module after installation. This preserves all tuned control parameters and minimizes recommissioning time.
Q: What warranty and testing does ZYPLC provide with this product?
A: All units are covered by a 12-month warranty from the date of shipment. Prior to dispatch, each 6SL3055-0AA00-5DA0 undergoes a documented outgoing functional test covering communication interface verification, parameter storage integrity, and hardware self-diagnostics. Test records are available upon request for quality assurance purposes.
